Description
Product Overview

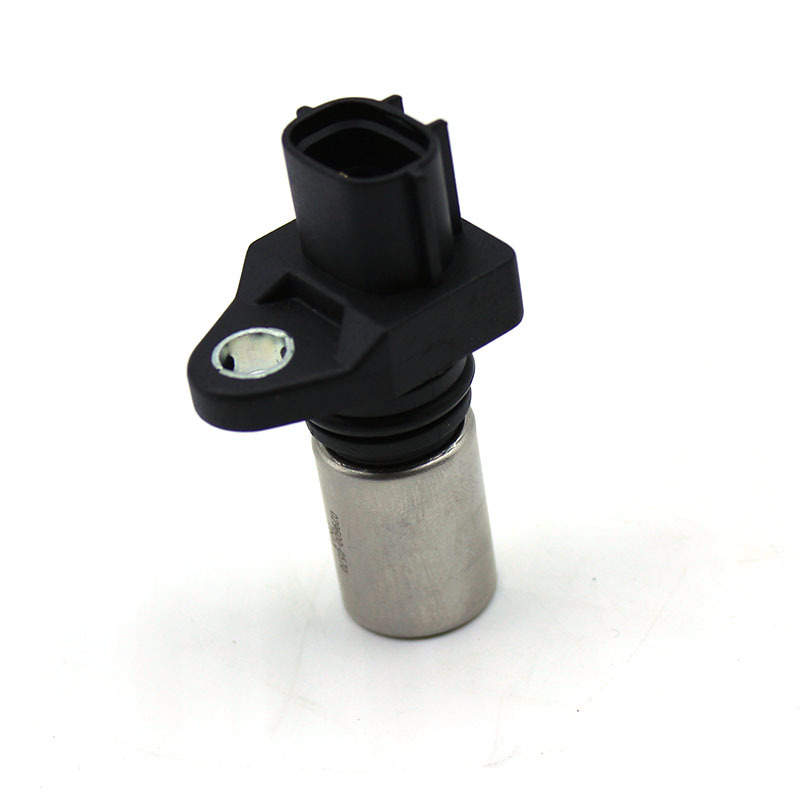

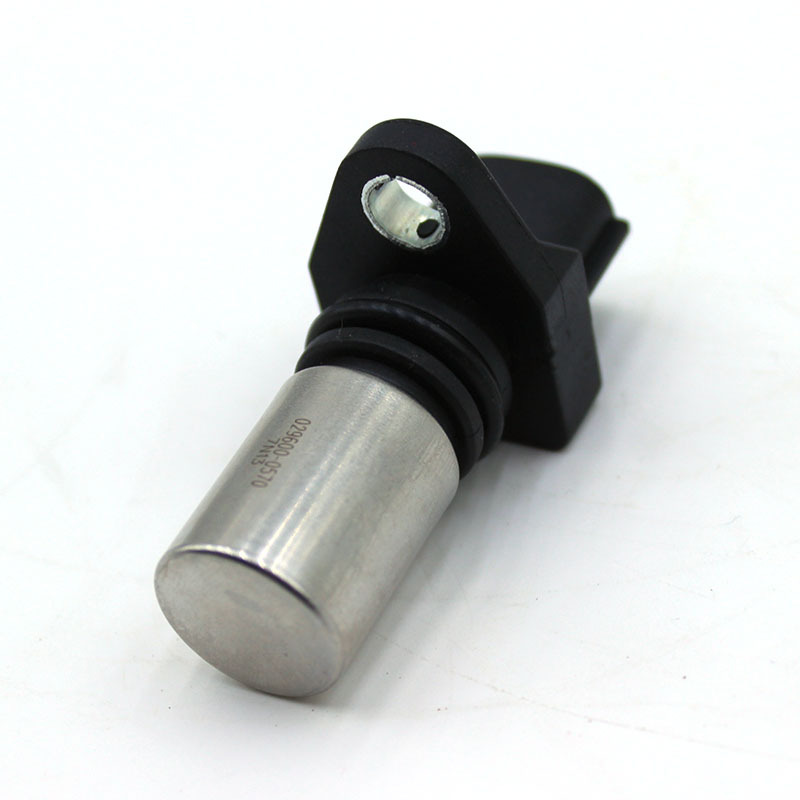

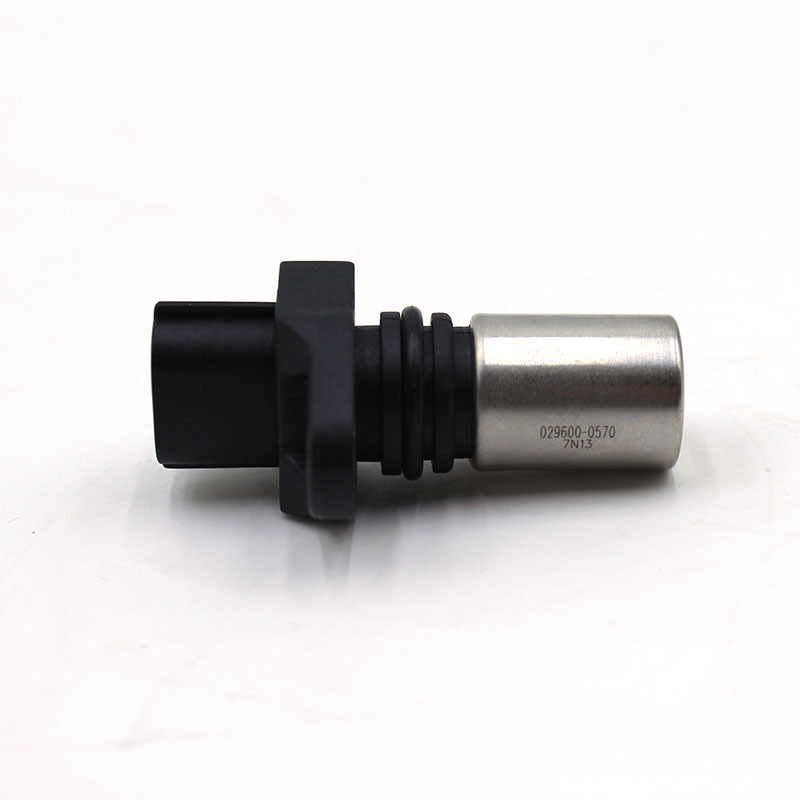

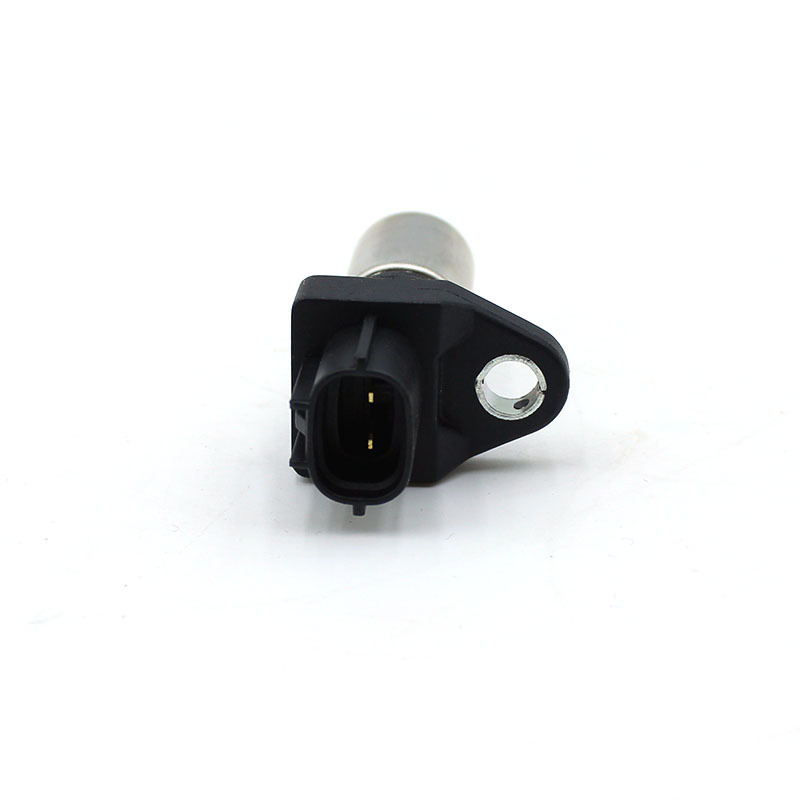

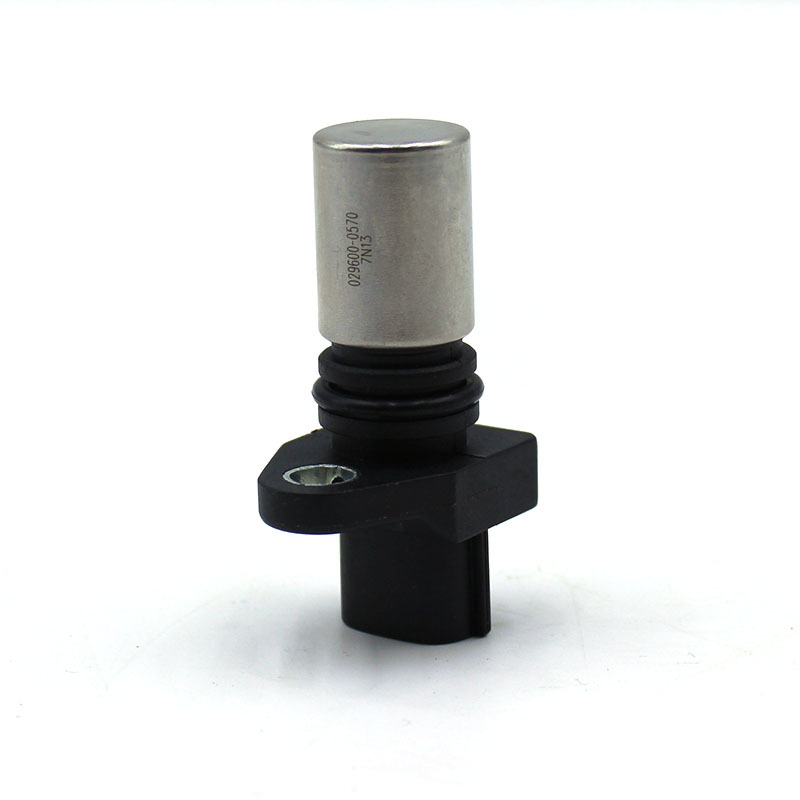

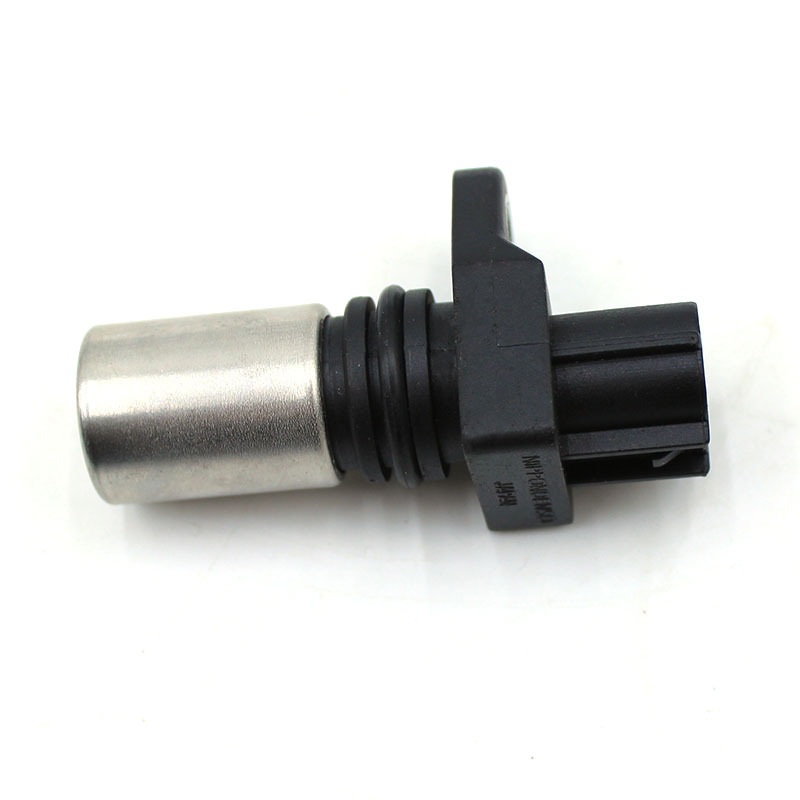

029600-0570 Speed Sensor is the core signal acquisition component of the electronic control system for diesel engines. The metal probe senses the crankshaft ring and simultaneously transmits speed and phase data to the control unit, thereby controlling the fuel injection timing and quantity. When the old sensor experiences failure in sensing, aging of the gasket causing water leakage, or signal interruption of the plug, replacing this accessory can restore the engine's precise fuel injection control. It is suitable for light trucks, small construction machinery, and agricultural diesel equipment maintenance and replacement.
Unique Core Features of the Single Product
Integrated solid metal sensing probe, stable signal acquisition and anti-interference
Front end thickened stainless steel sensing cylinder, sensitive to magnetic field signal transmission, isolating cylinder body electromagnetic and high-temperature interference, no signal loss or drift in high and low speed operating conditions, avoiding sudden engine oil cutoff and engine shutdown.
Double-layer parallel ring-shaped sealing gasket, double-layer barrier against oil, water, and steam leakage
Two independent oil-resistant rubber sealing rings are equipped at the probe root, forming a double-layer sealing barrier after assembly, preventing engine oil, water vapor from entering the interface of the cylinder body, and eliminating the possibility of internal sensing components getting damp and short-circuited.
Integrated snap-fit straight plug with waterproof feature, not prone to loosening in bumpy conditions
Black plastic-sealed snap-type terminal at the tail, with an all-enclosed waterproof and dustproof structure, the plug will not loosen under long-term vehicle vibration or immersion in engine compartment oil stains, ensuring stable and continuous transmission of speed signals.
Stepwise positioning installation structure, precise assembly depth without damaging the probe
There are positioning and limit steps between the probe and the plug, when screwed into the cylinder body, it automatically limits the insertion depth, preventing excessive pressure on the crankshaft ring, causing scratches and damage, and prolonging the sensor's service life.
Comprehensive temperature-resistant composite shell, suitable for variable outdoor conditions
The plug housing is made of high-temperature-resistant engineering plastic, and the metal probe is treated for rust prevention and passivation, not cracking or rusting in low-temperature or high-temperature engine compartment environments, maintaining stable signal acquisition accuracy throughout the four seasons. Applicable scenarios
Suitable for light-duty diesel freight vehicles, small excavators, agricultural tractors, mobile diesel generators, and equipment for high and low temperature alternation, as well as dusty and light-load operations on urban roads and field sites.
Product basic parameters
Product name: Crankshaft Speed Position Sensor
Part number: 029600-0570
Main material: Stainless steel sensing probe, oil-resistant double-layer rubber sealing ring, waterproof engineering plastic clip plug
Structural features: Solid metal sensing cylinder, double-channel circular sealing rubber ring, clip-type direct-insert waterproof connector, positioning and limiting installation steps
Application conditions: Short-distance light-load, alternation of high and low temperatures in the engine compartment, outdoor multi-pollution diesel-powered equipment
Product status: New finished product, completed with signal sensing accuracy, waterproof sealing performance, and vibration resistance performance for factory inspection
Packaging: Independent cushioned small package, protecting the metal probe from bumps and scratches, suitable for cross-border small package logistics.
