Product Overview
The pressure limiting valve is installed on the side of the high-pressure common rail pipe. When the system fuel pressure exceeds the set safety threshold, it automatically opens to release pressure and return the excess fuel to the low-pressure oil circuit, preventing damage to the high-pressure pump, injector, and high-pressure oil pipe due to overpressure. After long-term continuous impact of thousands of bar oil pressure, wear and corrosion of diesel impurities, and fatigue aging of internal springs, the pressure relief function may fail, and the rail pressure may remain high. The vehicle may trigger fault torque limiting and the risk of high-pressure oil circuit leakage significantly increases. This product features an integrated pre-installed pressure limiting valve assembly with standardized thread specifications and pressure relief parameters. Installation and disassembly do not require secondary adjustment, and it is suitable for maintenance of medium-sized excavators, heavy-duty loaders, long-distance freight trucks, and high-power common rail diesel engines.
Core advantages of the single product
The integral galvanized alloy steel valve body is resistant to rust and high-pressure impact.
The overall steel is treated with hot galvanizing and passivation to resist corrosion from cabin moisture, diesel oil, and gas. It is less likely to rust and get stuck in dusty and humid environments in mining areas and construction sites. The valve body has high structural strength and does not deform or crack under extremely high oil pressure for a long time.
The middle section has a large hexagonal clamping structure, making disassembly and assembly less prone to slipping.
The integrated large hexagonal clamping structure in the valve body allows for uniform force application when the wrench is clamped, preventing valve body twisting and thread slippage during the tightening process. After assembly, the thread seal is tightly fitted, eliminating the risk of high-pressure fuel leakage.
The upper section has precise standard external threads, and the sealing gasket has dual locking.
The rolled standard external threads on the upper section, combined with the matching metal sealing gasket, provide a double seal when screwed into the common rail pipe. It completely seals the thread gap, stabilizing the system working rail pressure, and preventing fuel leakage and pressure relief.
An internal ceramic pressure relief valve core with precise and wear-resistant response
The internal assembly includes a high-temperature-resistant pressure spring and a ceramic mirror surface valve core. The sealing surface is micrometer-level, and the oil pressure exceeds the limit, causing it to open immediately for relief. When the pressure drops, it quickly closes and resets. The ceramic material is resistant to impurity particle erosion and is not prone to wear and fatigue under long-term high-frequency opening and closing.

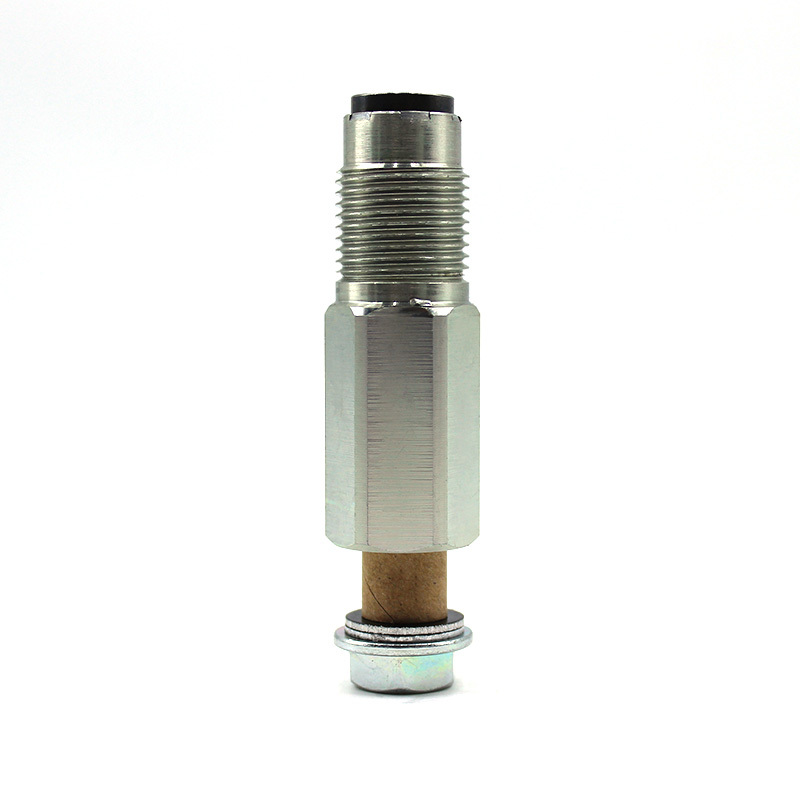

The black protective end cover on the top protects the valve core during storage and transportation.
The black sealing protective cover on the top wraps the internal valve core sensing end, isolating dust and impact during storage and cross-border transportation, preventing the precise sealing surface of the valve core from being scratched, jammed, or failing.
Integrated pre-installed molding, making maintenance and assembly simple
The valve core, spring, and valve body are pre-assembled into a complete assembly. There are no scattered small parts for disassembly and assembly. During maintenance, the entire assembly can be replaced directly without on-site disassembly and assembly, reducing the probability of assembly errors.
Product list of accessories
095420-0440 Complete pressure limiting valve body 1 piece
Matching metal sealing gasket 1 piece Applicable scenarios
It is suitable for medium-sized mining excavators with high-pressure common rail fuel supply system, heavy-duty wheeled loaders, long-distance heavy-duty freight trucks, and fixed high-power diesel generator sets. It is applicable for the replacement of heavy-duty electronic control common rail diesel engine oil pressure protection components in environments with 24-hour full-load operation at the construction site, continuous high-temperature vibration of the engine compartment, and dusty and impure diesel conditions.
Product Basic Parameters

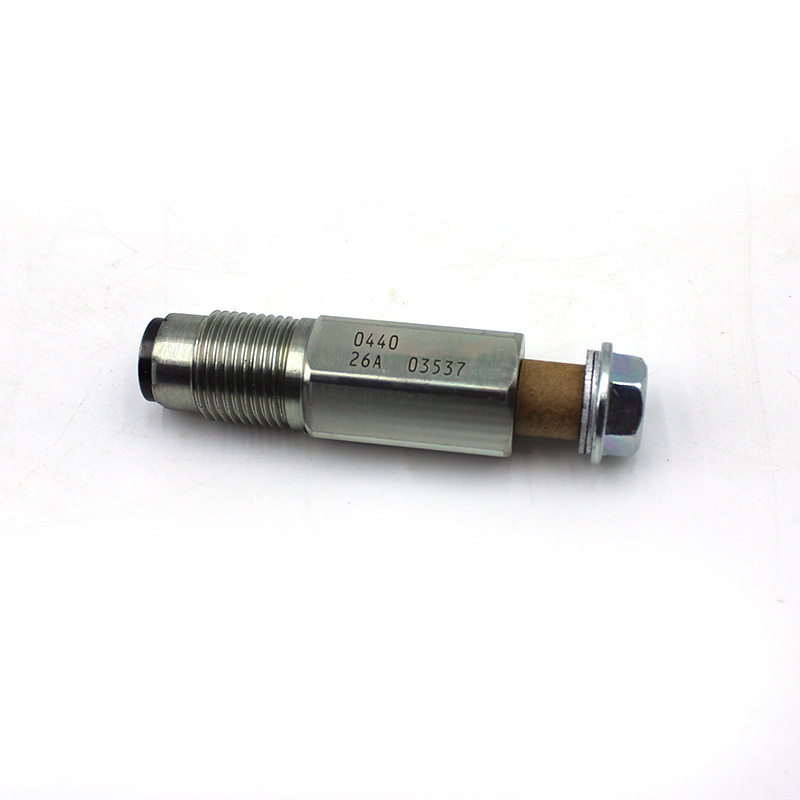

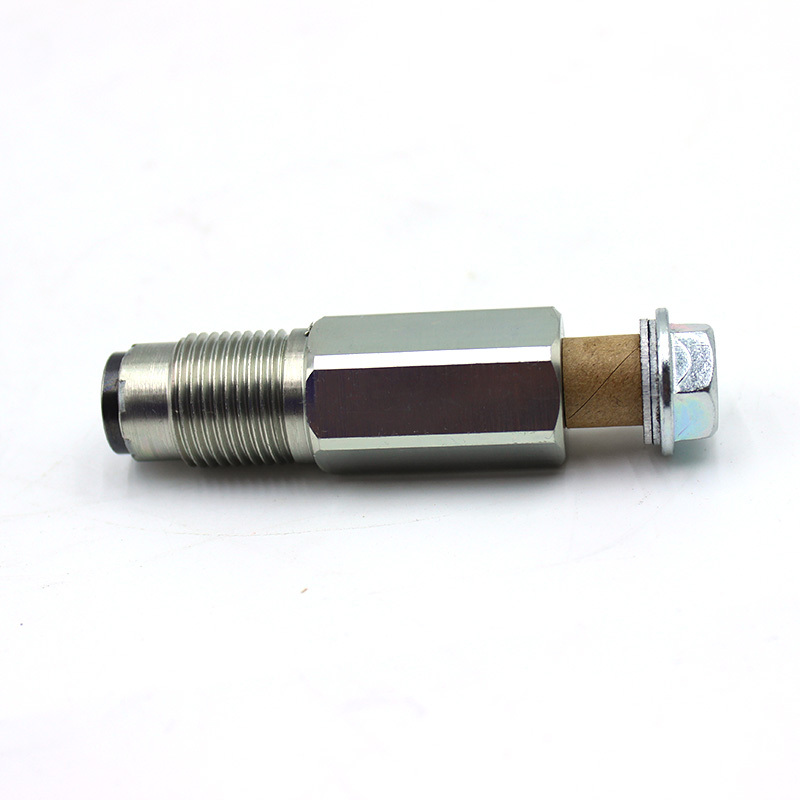

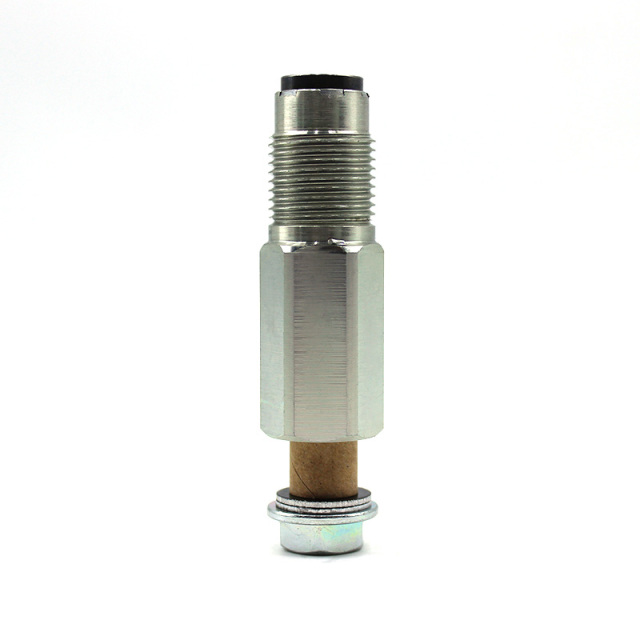

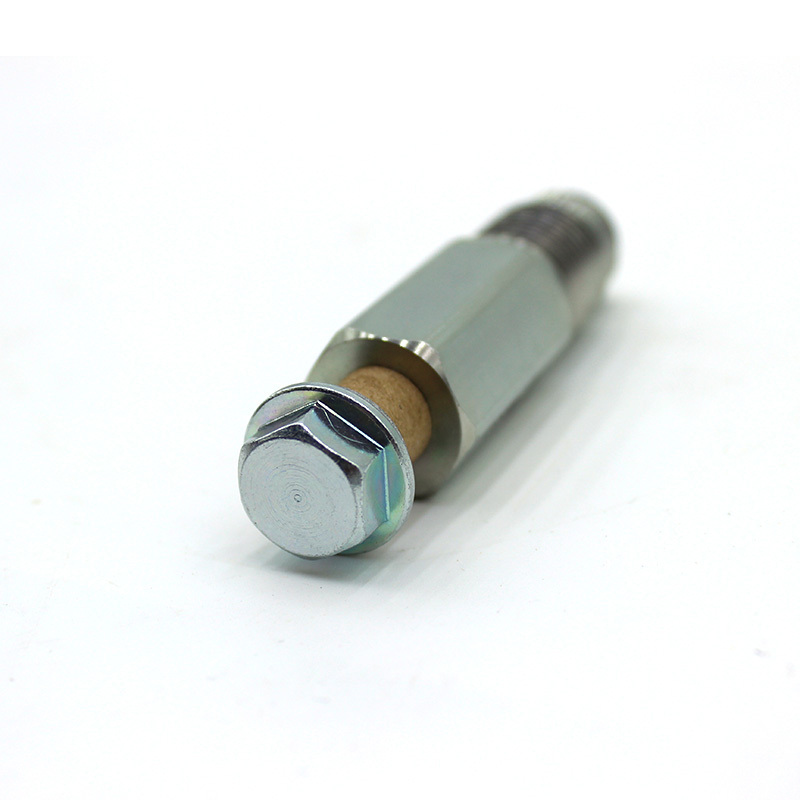

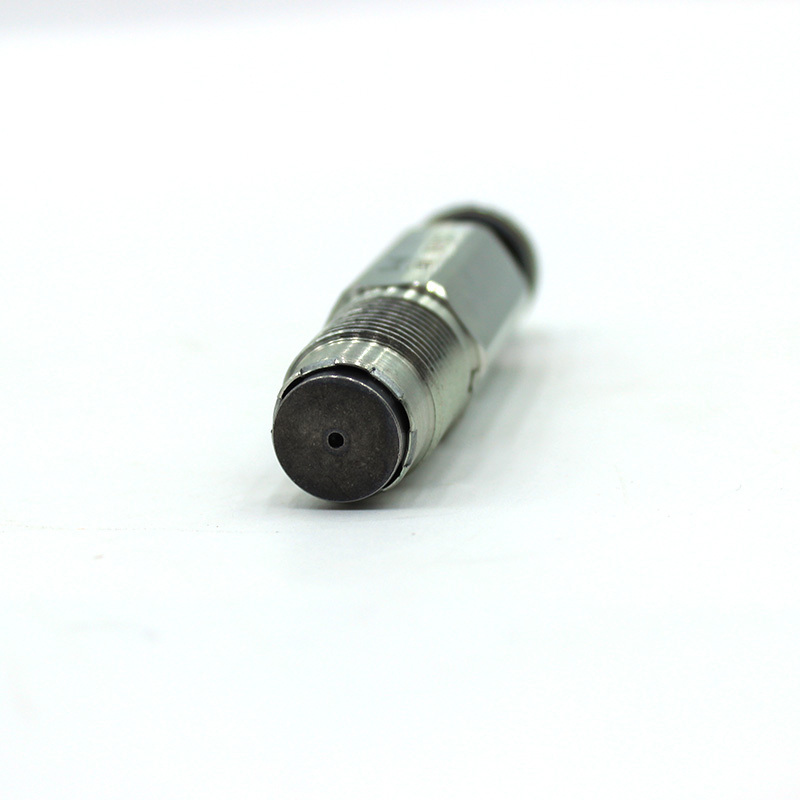

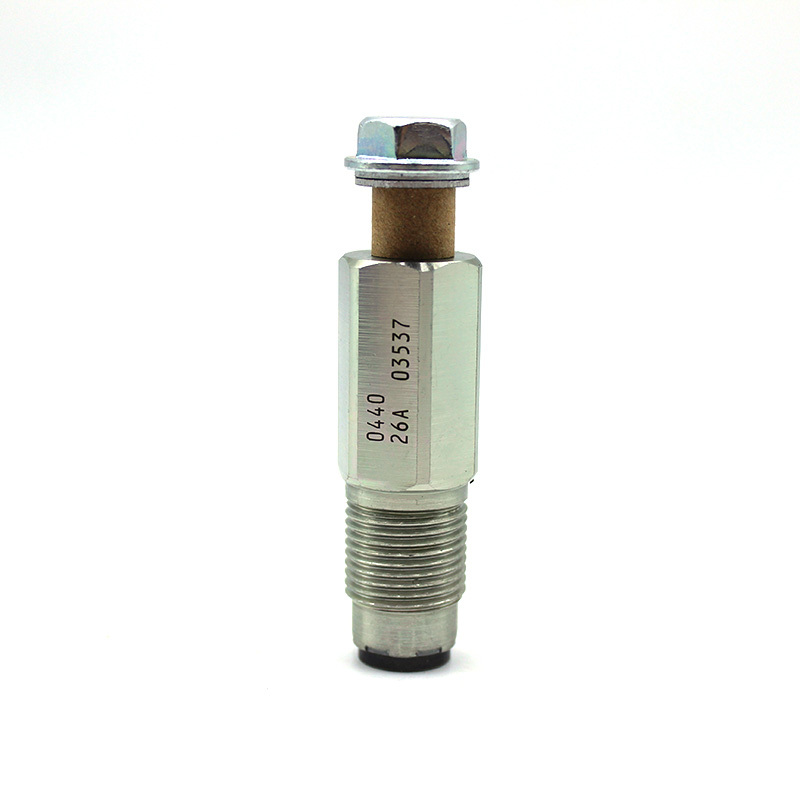

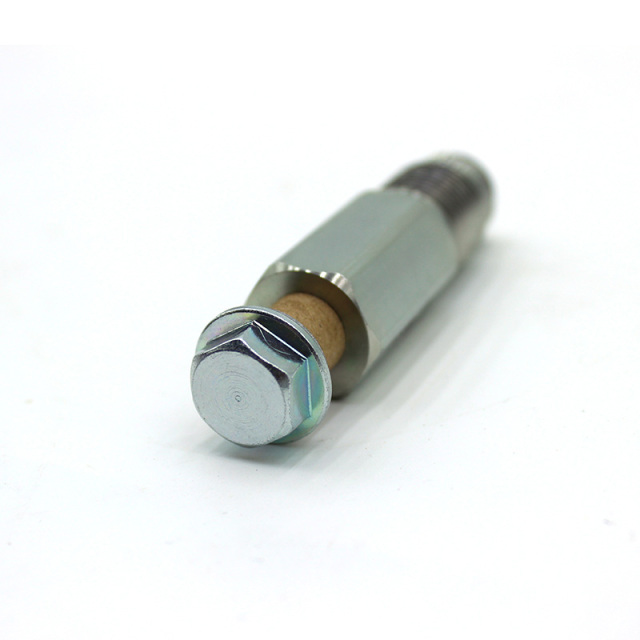

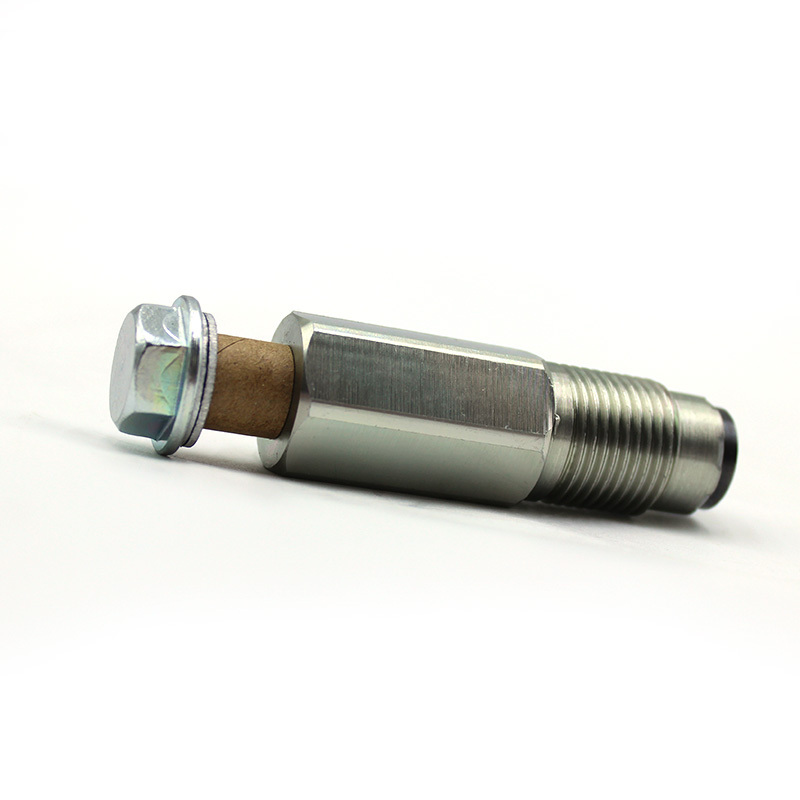

Product Name: High-pressure Common Rail Pressure Limiting and Relief Valve
Part Number: 095420-0440
Main Material: Galvanized alloy steel valve body, ceramic relief valve core, high-temperature resistant pressure spring, metal sealing gasket
Structural Feature: Hexagonal clamping valve body, upper section external threaded installation section, built-in ceramic valve core, black protective top cover, matching sealing gasket
Application Conditions: Ultra-high oil pressure continuous impact, high-temperature vibration of the engine compartment, outdoor dust corrosion heavy-duty electronic control common rail diesel engine
Product Status: New and complete pressure limiting valve assembly, factory completed with full calibration and testing of relief pressure, high-pressure sealingity, and opening/closing response
Packaging: Single independent hard tube protection, threaded end equipped with dust-proof plastic plug to prevent transportation from磕碰划伤 the threaded and valve core sealing surfaces， supporting single-piece retail， bulk purchase in cases， and compatible with cross-border small package / case logistics.
