Description
Product Overview
The oil cut-off solenoid valve is installed at the end of the mechanical distribution pump oil circuit. When powered on, the valve core opens the oil supply channel, and when powered off, the valve core cuts off the oil circuit to achieve engine shutdown. After long-term exposure to high-temperature vibrations in the engine compartment and immersion in diesel, the coil ages, the sealing rubber ring hardens, and the valve core gets stuck, resulting in problems such as the vehicle being unable to shut off the engine, difficulty starting after shutdown, idling jitter, and oil leakage at the joint of the oil pump. This product is a complete integrated solenoid valve body with standardized thread dimensions and working voltage. Maintenance is carried out by directly replacing the entire valve body. It is suitable for agricultural tractors, light trucks, and small construction machinery with VE distribution fuel injection pumps for maintenance and servicing.
Core advantages of the product
Galvanized integrated metal valve body, rust-proof and resistant to diesel corrosion
The valve body is uniformly galvanized and passivated, isolating the engine compartment from water vapor, diesel oil and gas erosion. It is not prone to rust and sticking in dusty and humid environments on the farm or construction site. The valve body's pressure-bearing structure is stable, and it does not deform or leak under long-term oil pressure impact.

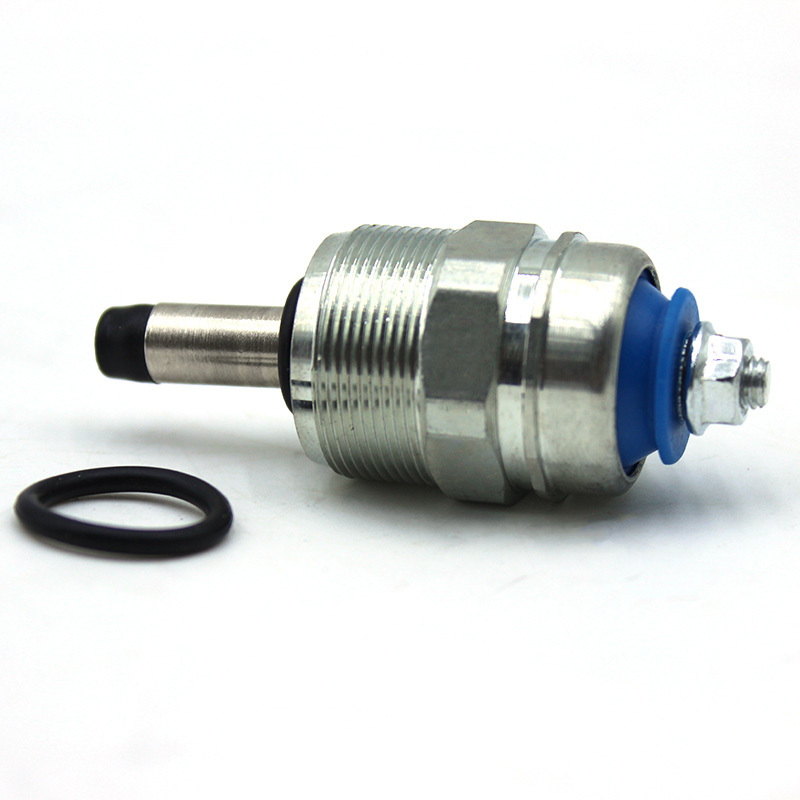

Six-angle clamping structure in the middle section, convenient for disassembly and assembly without slipping
The standard six-angle wrench slot in the valve body's middle section clamps evenly, and the disassembly and assembly process will not twist the valve body or grind the threads. After assembly, the threads fit tightly, eliminating fuel leakage through the installation gap.

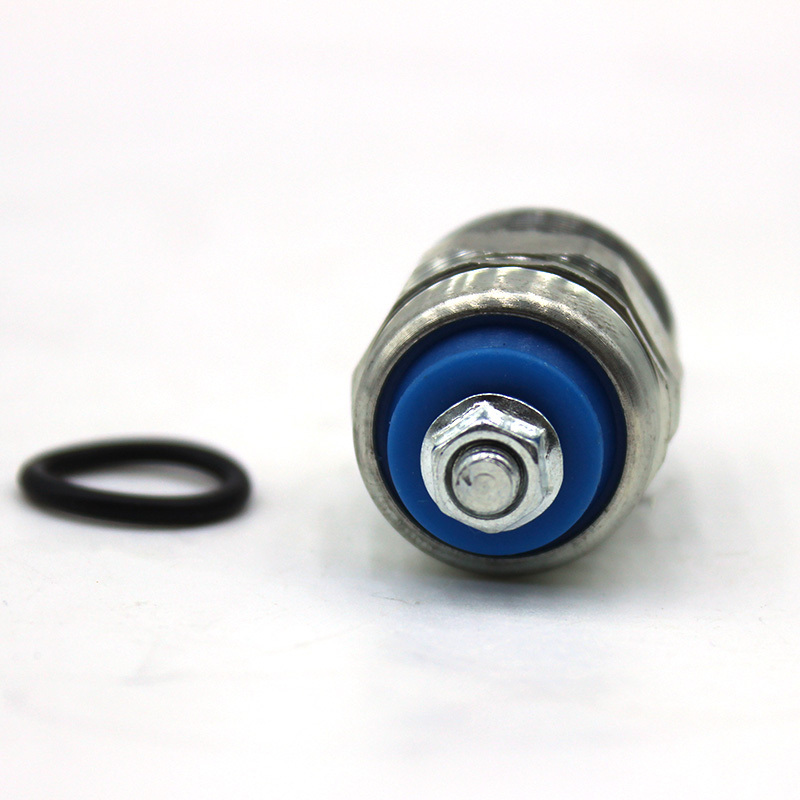

The blue oil-resistant high-pressure sealing ring at the front end, double anti-leakage
The head is equipped with an integrated blue fluororubber sealing ring, which is resistant to high and low temperatures and diesel swelling. After being installed in the oil pump's installation hole, it tightly adheres to the inner wall, blocking the leakage of low-pressure fuel outward, and stabilizing the internal oil pressure of the oil pump.

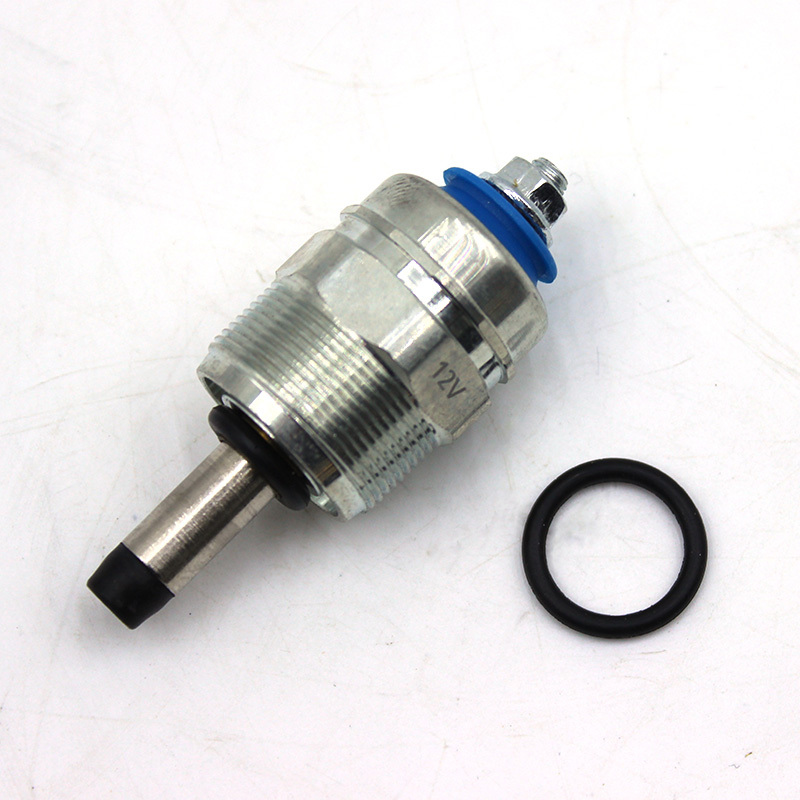

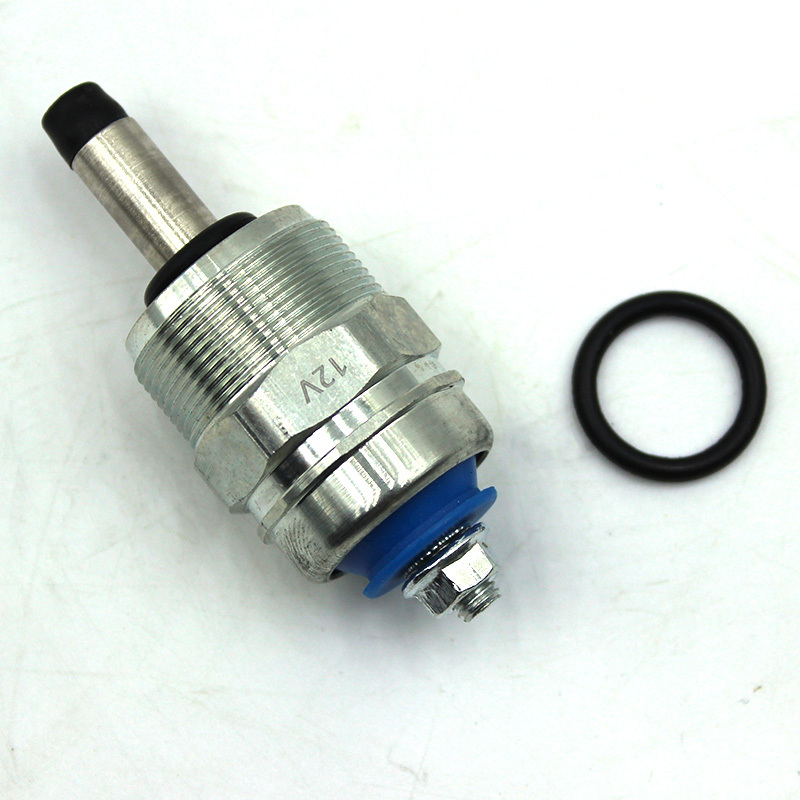

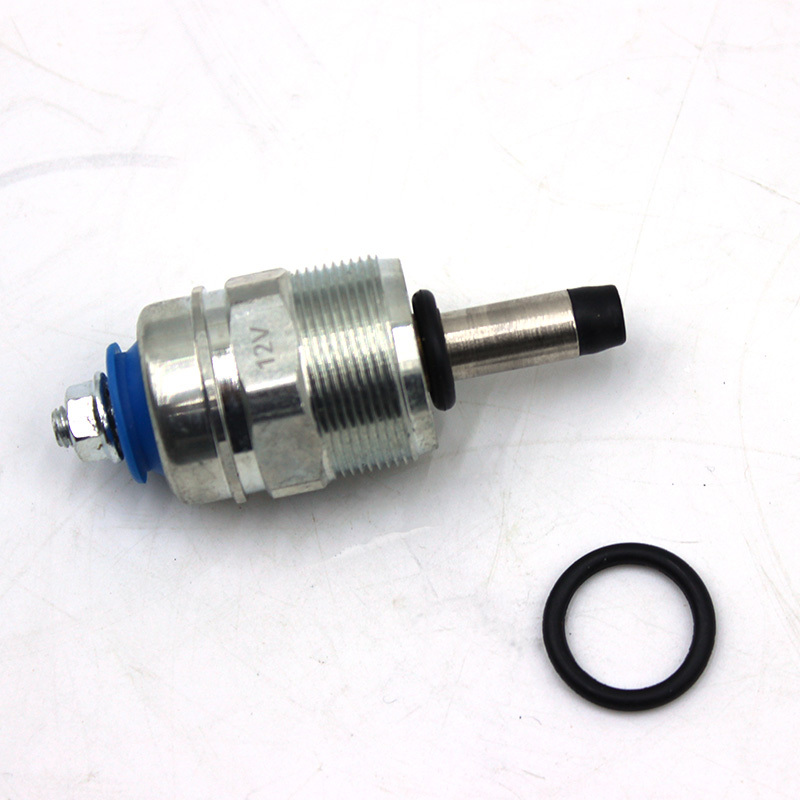

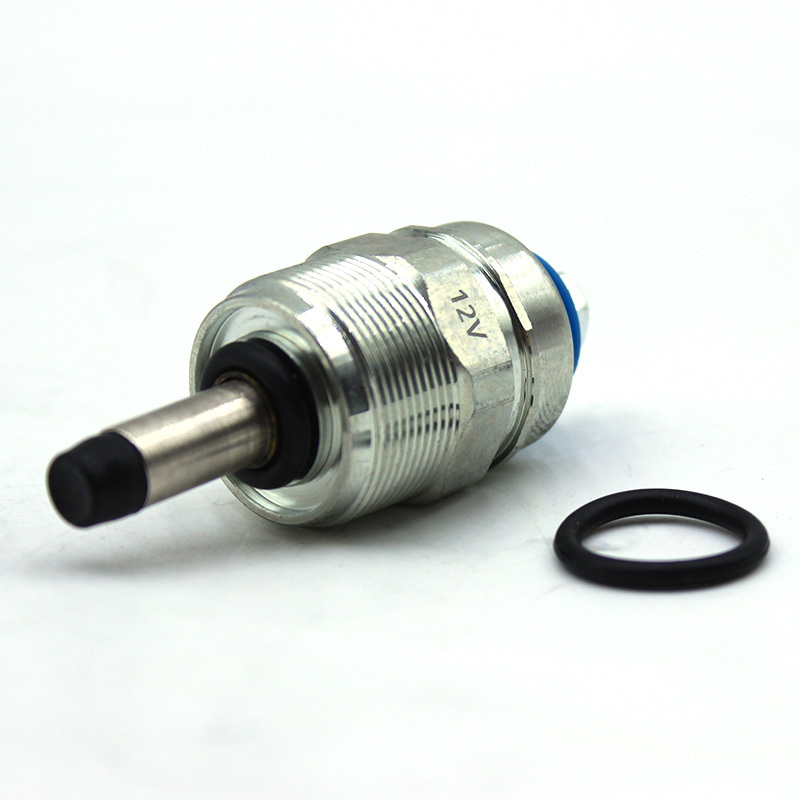

Clear 12V voltage marking, easy to match the model and avoid incorrect installation
The 12V marking on the hexagonal outer wall is laser-engraved, and the characters are resistant to diesel wiping and do not fall off. During storage, cross-border transportation, disassembly and maintenance, it can prevent dust and bumps, prevent the insulation layer of the coil from being damaged and short-circuited, and extend the service life.
Built-in high-precision solenoid valve core, sensitive and stable opening and closing response
The internal is equipped with a high-temperature-resistant solenoid coil and a hard-sealed valve core. When powered on, it quickly conducts the oil circuit, and when powered off, it immediately cuts off the fuel supply. There is no sticking or delay, completely solving the problems of engine shutdown sticking and poor starting performance. Applicable scenarios
This product is suitable for agricultural tractors, light freight trucks, small wheeled construction machinery, and small diesel generator sets that are equipped with VE mechanical distribution type fuel injection pumps. It is applicable for agricultural operations, short-distance freight transportation, and mechanical direct injection diesel engines operating in outdoor high and low temperature dusty environments. The oil pump cut-off control component can be replaced.
Product Basic Parameters
Product Name: 12V Fuel Injection Pump Cut-off Electromagnetic Valve
Part Number: 096030-0070-12V
Working Voltage: 12V
Main Material: Galvanized alloy steel valve body, fluorine rubber sealing ring, high-temperature resistant electromagnetic coil, hard alloy valve core

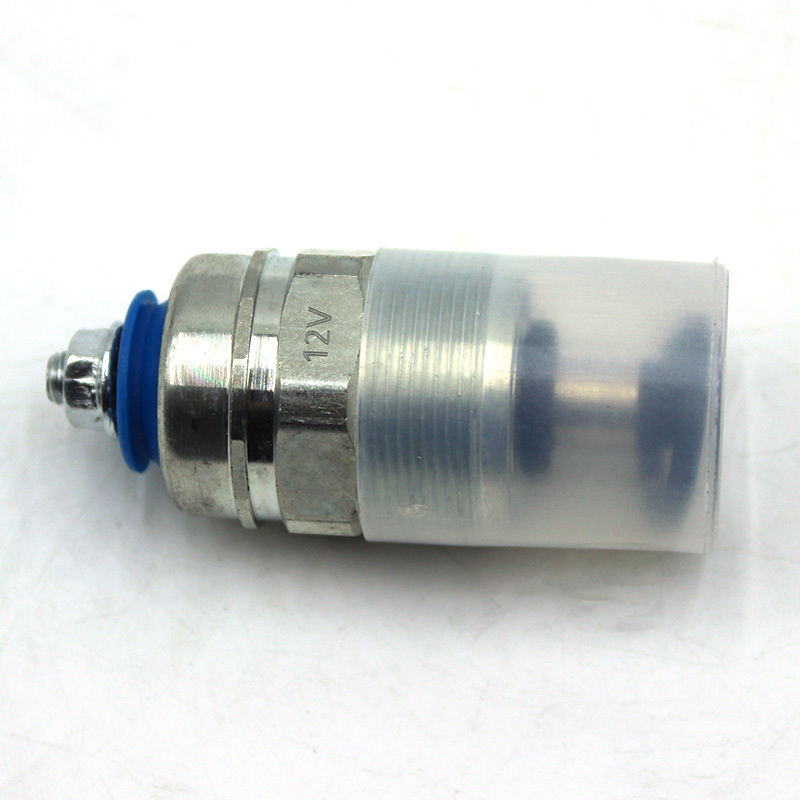

Structural Feature: Hexagonal clamping metal valve body, blue front sealing rubber ring, transparent protective sleeve at the rear, 12V marking on the outer wall
Applicable Working Conditions: Low-pressure continuous fuel supply, alternation of engine compartment temperature, dusty and diesel-corroded environment for mechanical direct injection engines
Product Status: New and complete electromagnetic valve assembly, factory completed with power-on opening and closing, high-pressure sealing, and durability full set of tests
Packaging: Single independent tube protection packaging, equipped with dust protection plugs at both ends, buffer protection to avoid磕碰划伤 the sealing rubber ring and threads during transportation， supporting single-piece retail， bulk purchase in boxes， and compatible with cross-border small items and full-box logistics.
