Description

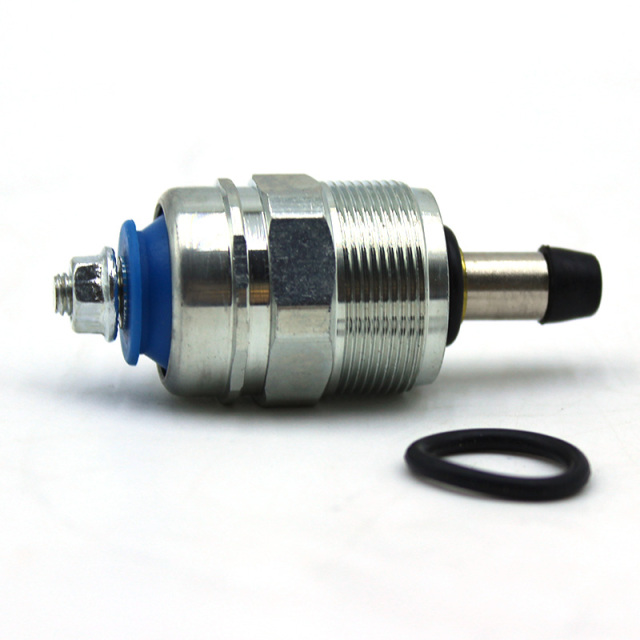

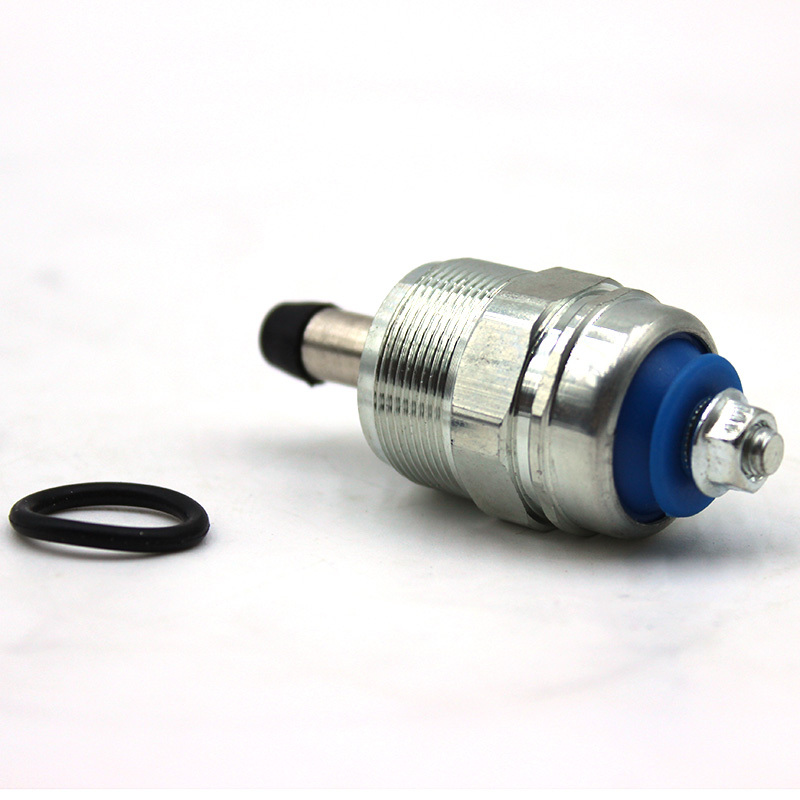

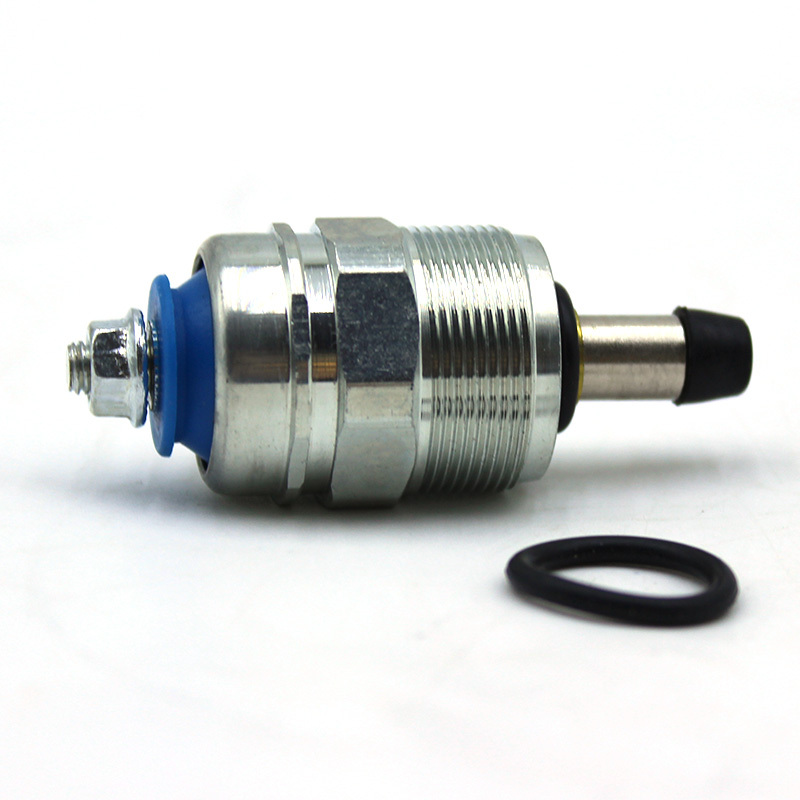

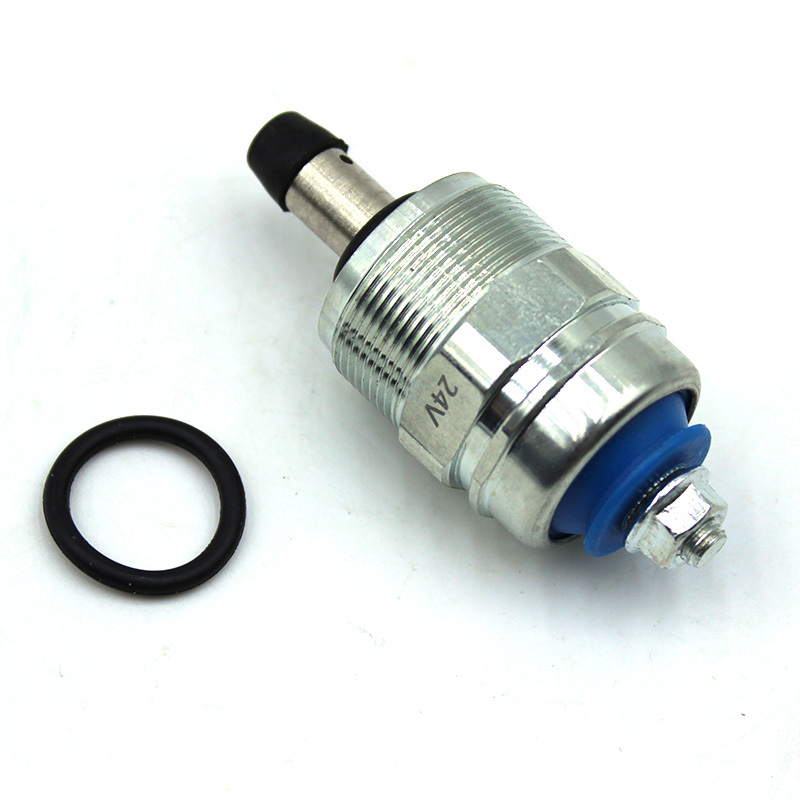

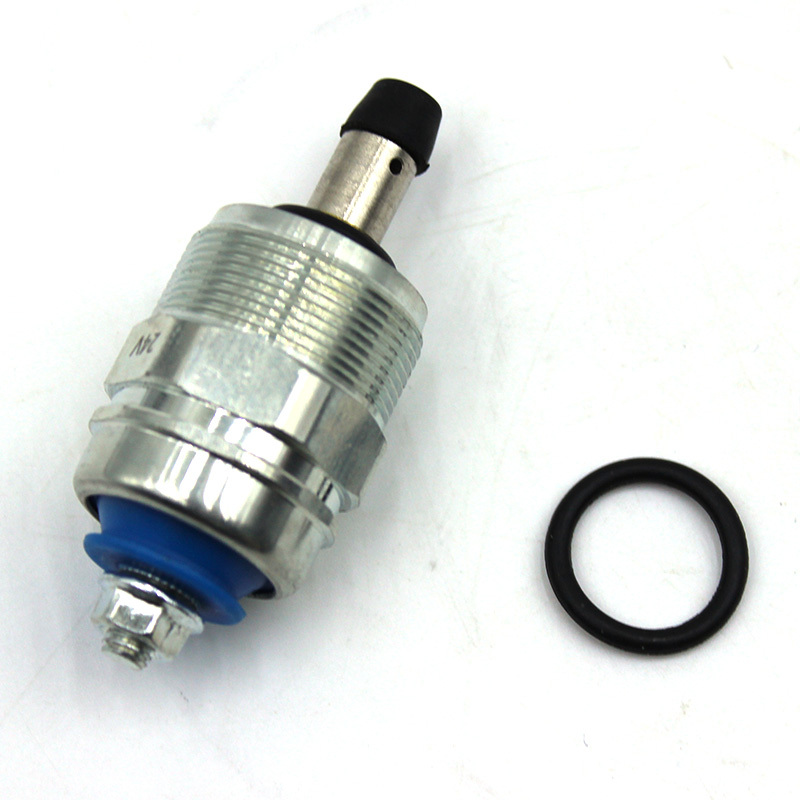

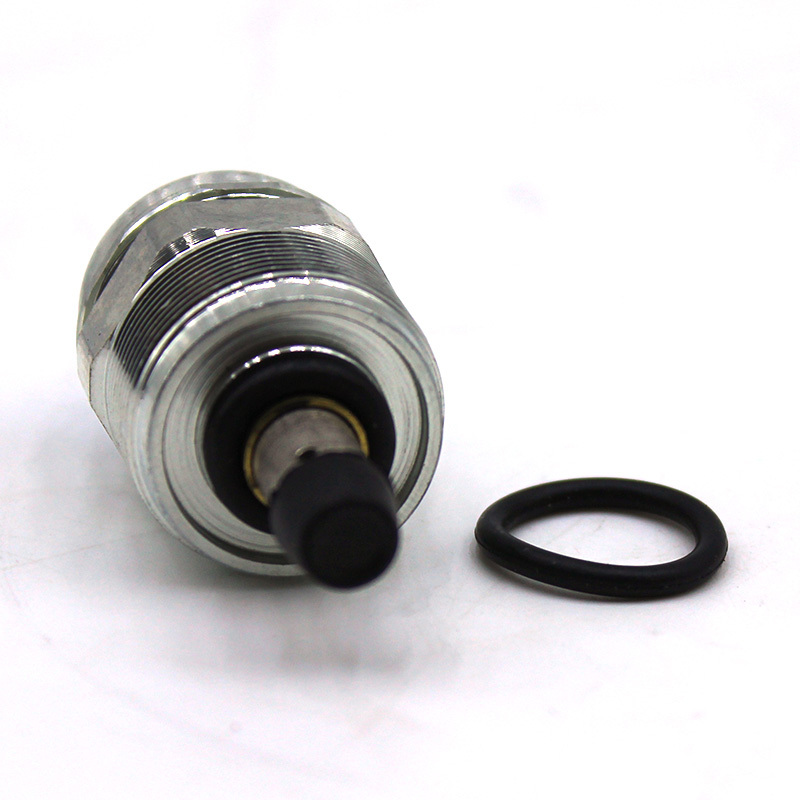

096030-0070-24V Mechanical Fuel Injection Pump 24V Electromagnetic Cut-off Valve, a core electronic control component for controlling the on-off and shutdown of the diesel fuel path and engine shutdown. The valve body is made of fully galvanized and rust-proof metal, with a standard hexagonal clamping position in the middle section, a pre-installed blue fluororubber sealing ring at the front end, and a fully wrapped semi-transparent dust-proof protective sleeve. The product undergoes comprehensive tests for electromagnetic opening and closing response, fuel path sealing, and long-term power-on durability. It can solve problems such as vehicle inability to shut off, idle surging, cold start difficulties, oil pump installation surface oil leakage, and valve core jamming. The integrated pre-installed complete assembly does not require disassembly for assembly. It is compatible with corresponding VE distribution mechanical fuel injection pumps for direct replacement and maintenance. Product Overview
The cut-off electromagnetic valve is installed at the end of the VE distribution fuel injection pump's fuel path. When powered on, the valve core opens the fuel supply channel, and when powered off, the valve core quickly cuts off the fuel path to achieve engine shutdown. After long-term high-temperature vibrations in the engine compartment and long-term exposure to diesel, the internal coil ages, the sealing rubber ring hardens and fails, and the valve core gets clogged with impurities, resulting in problems such as vehicle shutdown failure, difficulty in secondary startup after shutdown, unstable idle speed, and fuel leakage at the oil pump installation surface. This product features a one-piece electromagnetic valve with standardized overall size, thread specifications, and 24V working voltage. The maintenance can be directly carried out by replacing the entire assembly, suitable for heavy-duty trucks, large agricultural machinery, and medium-sized construction machinery with VE distribution fuel injection pumps for maintenance and repair.
Core Advantages of the Single Product
The valve body is made of fully galvanized alloy steel, resistant to corrosion and oil pressure impact.
The surface of the valve body is treated with galvanizing and passivation for rust prevention, protecting against water vapor and diesel oil corrosion in the engine compartment. It is less likely to rust and get stuck in damp and dusty working conditions at construction sites and farmlands. The thickened bearing structure ensures that it does not deform or crack under long-term low-pressure fuel impact, preventing oil leakage from the shell.
The standard hexagonal clamping structure makes disassembly and assembly less prone to slippage and damage to the threads.
The integrated hexagonal wrench position in the middle section of the valve body clamps evenly, and the disassembly process will not twist the valve body or scratch the threads. After assembly, the threads fit tightly, blocking the fuel from leaking through the installation gap from the source.
The front integrated blue fluororubber sealing ring provides long-term sealing and prevents leakage.
The head is equipped with a blue oil-resistant sealing gasket, resistant to diesel swelling and aging in high and low temperatures. After being installed in the oil pump installation hole, it closely adheres to the inner wall, providing a double barrier to prevent fuel from leaking outward, stabilizing the fuel supply pressure inside the oil pump.
The 24V dedicated voltage specification is compatible with heavy-duty vehicle circuits.
The coil power and electromagnetic suction force have been calibrated, ensuring that there will be no insufficient suction force, incomplete oil cut-off, or coil burnout faults. It is suitable for heavy trucks, large agricultural machinery, and 24V equipment such as large tractors and large agricultural machinery, and is not easily confused with 12V specifications.

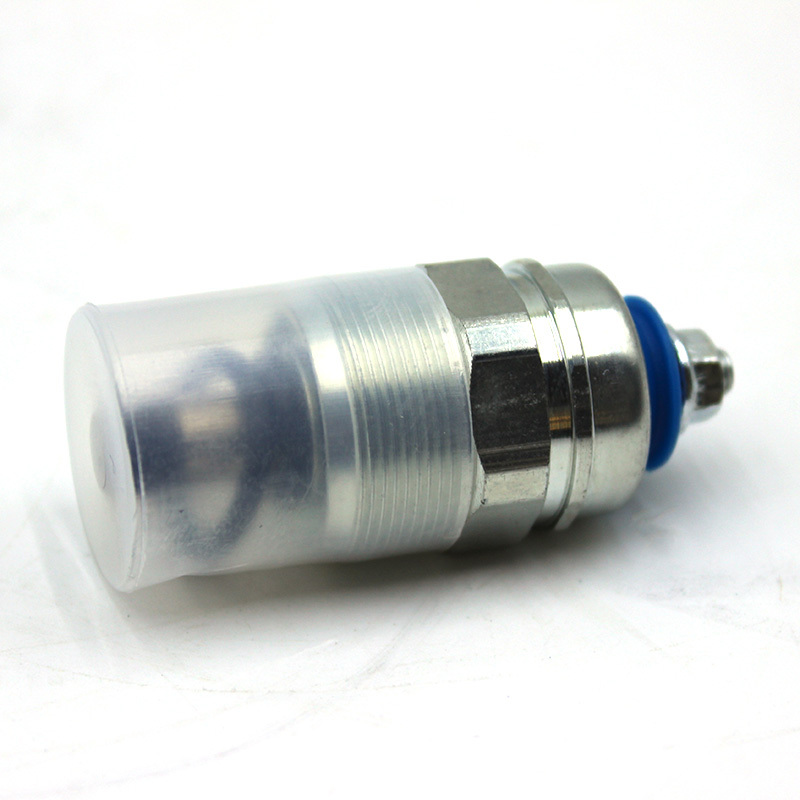

The fully wrapped transparent protective sleeve provides all-round protection for the electromagnetic components.
The outer layer of the semi-transparent plastic sleeve completely wraps the main body of the electromagnetic coil, isolating dust,磕碰， and scratches on the coil insulation layer during storage， cross-border transportation， disassembly， and maintenance， avoiding short circuits and damage， and extending the service life of the accessory storage.

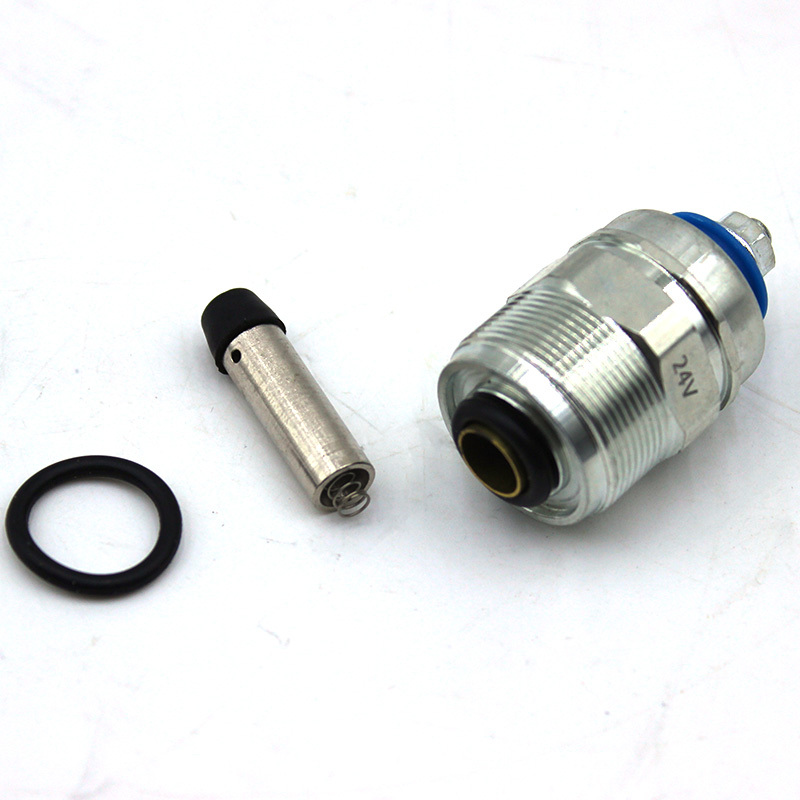

High-precision built-in electromagnetic valve core， with sensitive opening and closing without delay or jamming.
The internal is equipped with a high-temperature-resistant electromagnetic coil and a hard-sealed valve core. It conducts the oil path immediately upon power-on and cuts off the fuel supply immediately upon power-off， with a crisp action without delay or jamming， completely solving problems such as shutdown sticking， start-up difficulties， and idle jitter. Applicable scenarios
This product is suitable for heavy-duty freight trucks, large and medium-sized agricultural tractors, medium-sized wheeled construction machinery, and 24V diesel generator sets. It is applicable for long-distance freight transportation, heavy-duty operations in farmlands, and mechanical direct injection diesel engines operating in dusty environments with alternating cold and hot conditions. This product is for replacing the oil pump disconnection control components.
Product Basic Parameters
Product Name: 24V Injection Pump Electromagnetic Disconnection Electromagnetic Valve
Part Number: 096030-0070-24V
Working Voltage: 24V
Main Material: Galvanized alloy steel valve body, fluorine rubber sealing ring, high-temperature resistant insulated electromagnetic coil, hard alloy valve core
Structural Feature: Hexagonal clamping metal valve body, blue oil-resistant sealing rubber ring at the front end, fully enclosed transparent protective sleeve, 24V dedicated electromagnetic components
Application Conditions: Low-pressure continuous fuel supply, alternation of engine compartment cold and hot conditions, dusty diesel corrosion environment 24V mechanical direct injection diesel engine fuel pump
Product Status: New and complete electromagnetic valve assembly, factory completed with power-on opening and closing, high-pressure sealing, and durability full testing
Packaging: Single independent tube protection packaging, both ends equipped with dust protection plugs, buffer protection to avoid磕碰划伤 sealing rubber ring and threads during transportation， supports single-piece retail， bulk purchase in cases， and is compatible with cross-border small items and case logistics.
