Product Overview

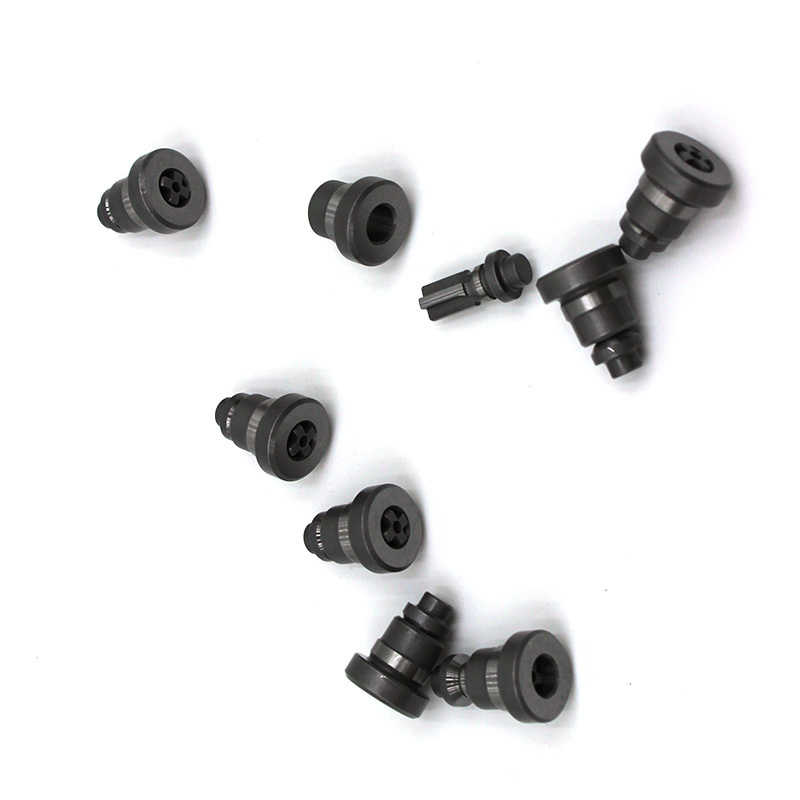

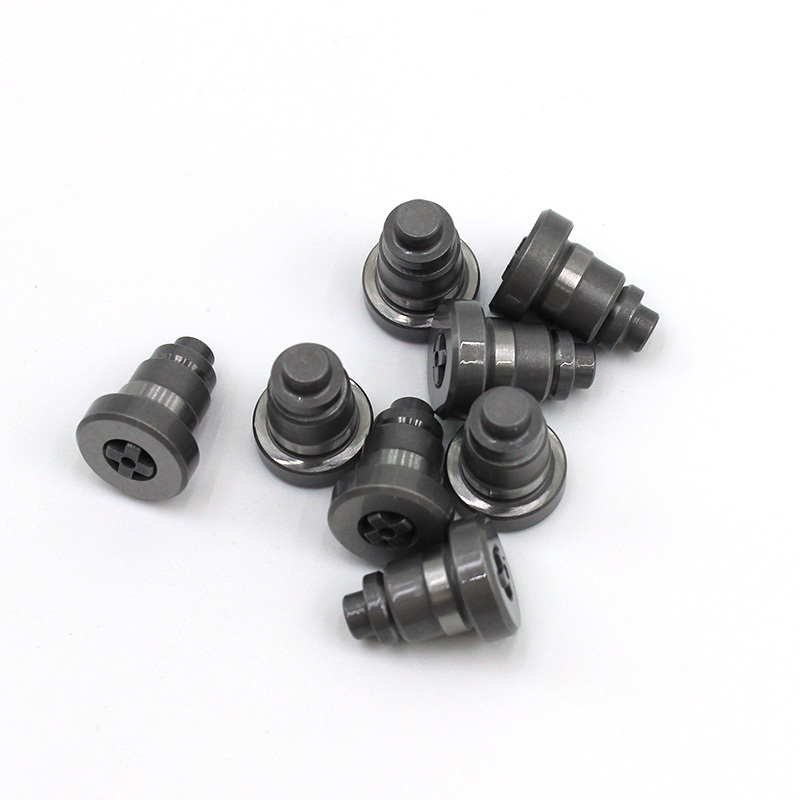

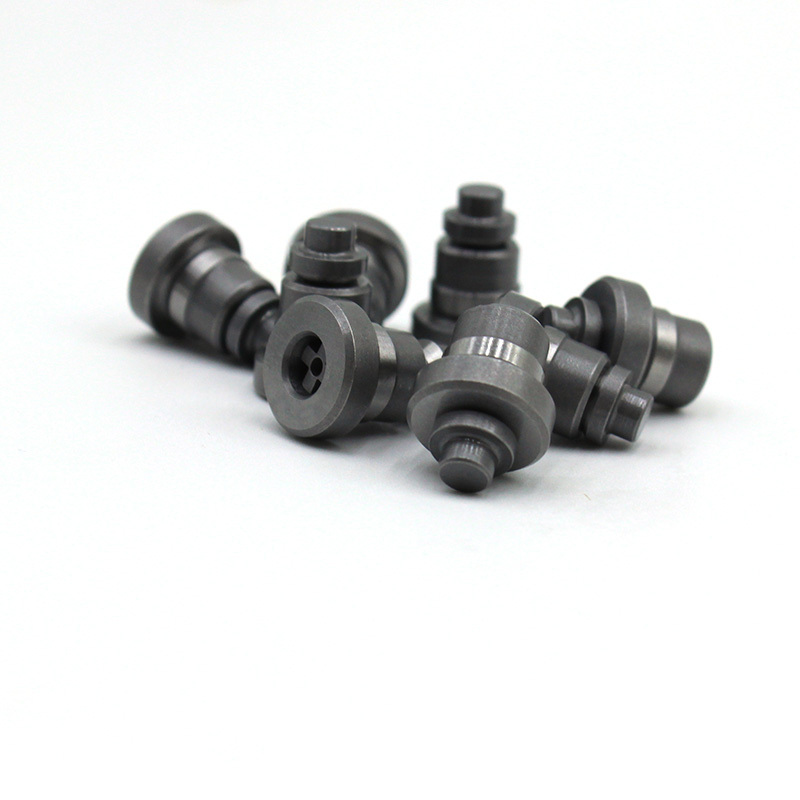

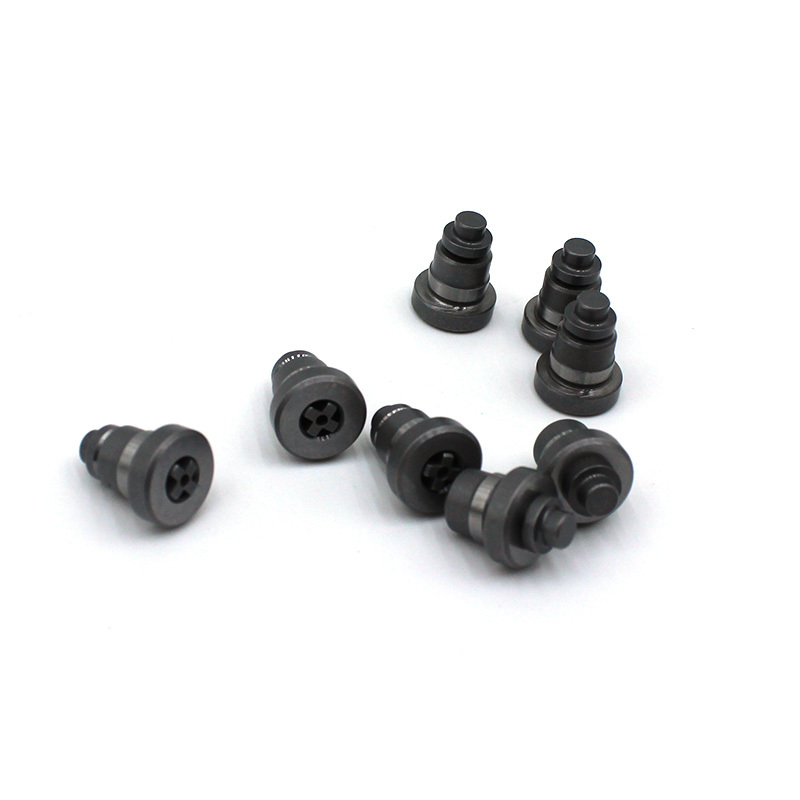

The 096420-0510 Delivery Valve (Model VE15) is the core pressure control component for Denso VE series mechanical diesel injection pumps. Also named fuel delivery valve, pressure outlet valve, it locks fuel pressure inside the pump chamber and cuts off residual fuel reflux instantly after injection, ensuring stable injection pressure, accurate fuel supply volume and consistent spray atomization.
Our aftermarket delivery valve adopts identical OEM dimensional standards, crafted from high-hardness alloy steel with precision grinding sealing surface. Every unit passes strict pressure tightness and flow testing before shipment, eliminating unstable fuel supply problems caused by worn original valves.
Cross Reference Part Number
Main OE No.:
096420-0510
Standard Model Code: VE15
Matching Pump: Denso VE Mechanical Injection Pump
Compatible Engines & Vehicles
Toyota Light Commercial & Pickup
Toyota 1C / 2C-T Diesel Engine
Toyota Dyna, Hiace, Hilux Old Models
Mitsubishi Pickup & MPV
Mitsubishi 4D6 Diesel Engine
Mitsubishi Triton, L300, Delica
Universal Fit
All vehicles & small machinery equipped with Denso VE15 series VE injection pumps
Fault Symptoms Fixed By Replacing 096420-0510
Replace your worn delivery valve if you face these troubles:
- Difficult cold start, long cranking time before ignition
- Severe power loss, weak acceleration & climbing performance
- Excessive black smoke exhaust, rising fuel consumption
- Fuel leakage inside injection pump, oil dilution risk
- Unstable idle speed, engine shaking at low RPM
- Uneven cylinder fuel supply, rough engine running
Core Product Advantages（转化卖点）
✅ 1:1 OEM Alloy Precision Machining
High hardness GCr15 alloy steel, vacuum quenching & mirror grinding sealing surface, wear-resistant, long service life.
✅ 100% Bench Pressure Inspection
Each delivery valve is tested for sealing, backflow & fuel delivery pressure on professional pump test benches to avoid post-install failure.
✅ Perfect Sealing Performance
Tightly fit pump plunger chamber, zero fuel reflux after injection, stabilize rail pressure fully under all engine loads.
✅ Direct Plug & Play Replacement
Fully consistent size with original Denso VE15 valve, no modification required, easy installation for repair workshops.
✅ Factory Direct Wholesale Supply
Stable large stock, competitive bulk price for auto repair shops, spare parts distributors & machinery maintenance stores.
✅ Quality Warranty
6-month factory warranty for all manufacturing defects.
Installation Reminder
Clean the pump plunger chamber thoroughly before installing the new delivery valve; replace matching sealing washer together to prevent fuel leakage caused by poor sealing.
Package Content
1 × Delivery Valve Assembly 096420-0510 VE15
Technical Specifications
- Part Number: 096420-0510
- Type: VE15 Delivery Valve / Fuel Pressure Outlet Valve
- Matching Pump: Denso VE Mechanical Injection Pump
- Material: High-hardness alloy steel GCr15
- Hardness: HRC62-65
- Net Weight: 0.045kg
- Applicable Fuel: Diesel
- Certification: ISO9001 Factory Quality Control
