Description
Product Overview

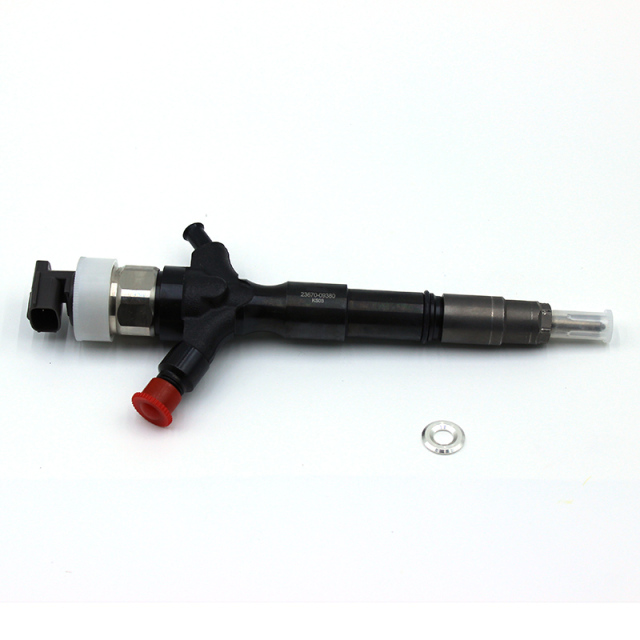

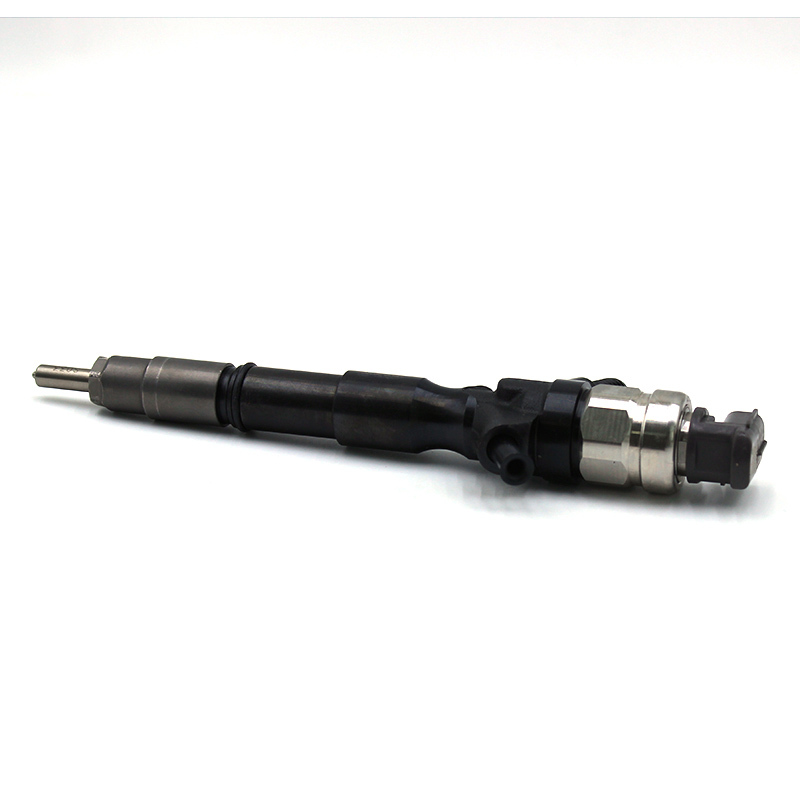

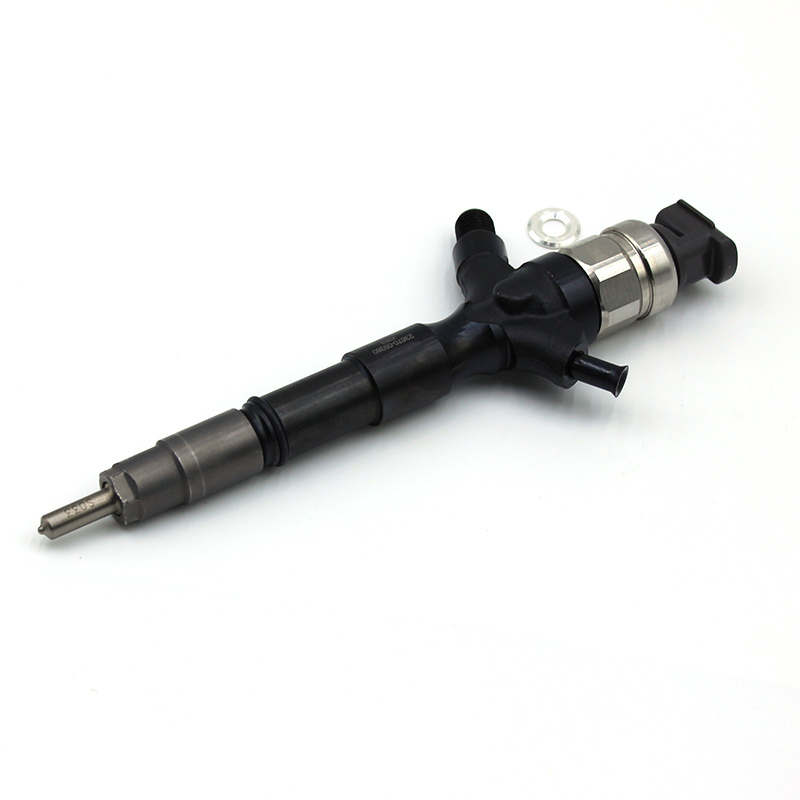

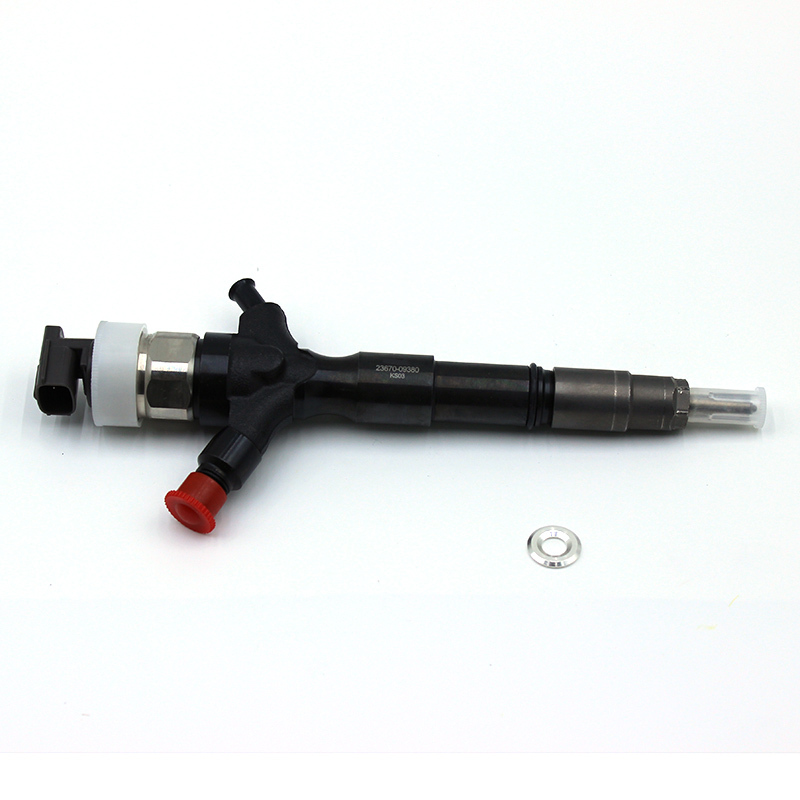

23670-09380 Electronic Fuel Injector is a core injection component of the common rail system for light-duty diesel passenger cars, light trucks, and small commercial vehicles. It precisely controls the injection timing and volume through the electromagnetic components at the rear. Over time, if the nozzle gets clogged, the internal components wear out, or the seal fails, it can cause power loss and increased fuel consumption. The entire assembly comes with an installed gasket, allowing for a one-time replacement to restore the engine to a stable operating condition. It is suitable for routine maintenance of civilian diesel vehicles.
Unique Core Features of the Individual Product

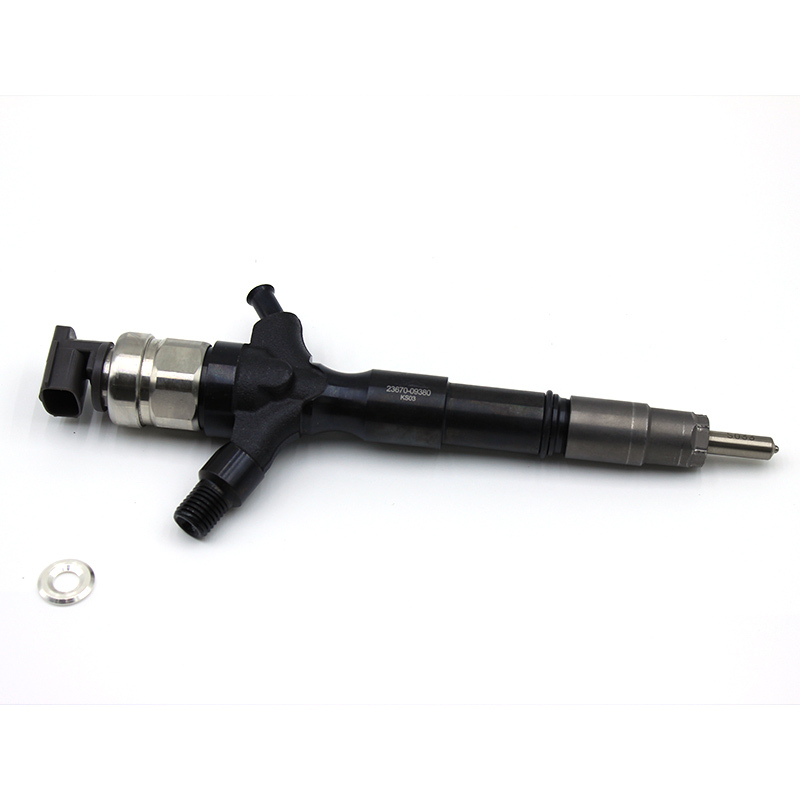

Sideways inclined thread oil inlet structure, suitable for narrow engine compartment space
Inclined thread for oil inlet at the lower side of the body, avoiding interference from vertical pipes, allowing smooth bending and connection of oil pipes within the compact engine compartment without squeezing the pipes and causing insufficient fuel supply.

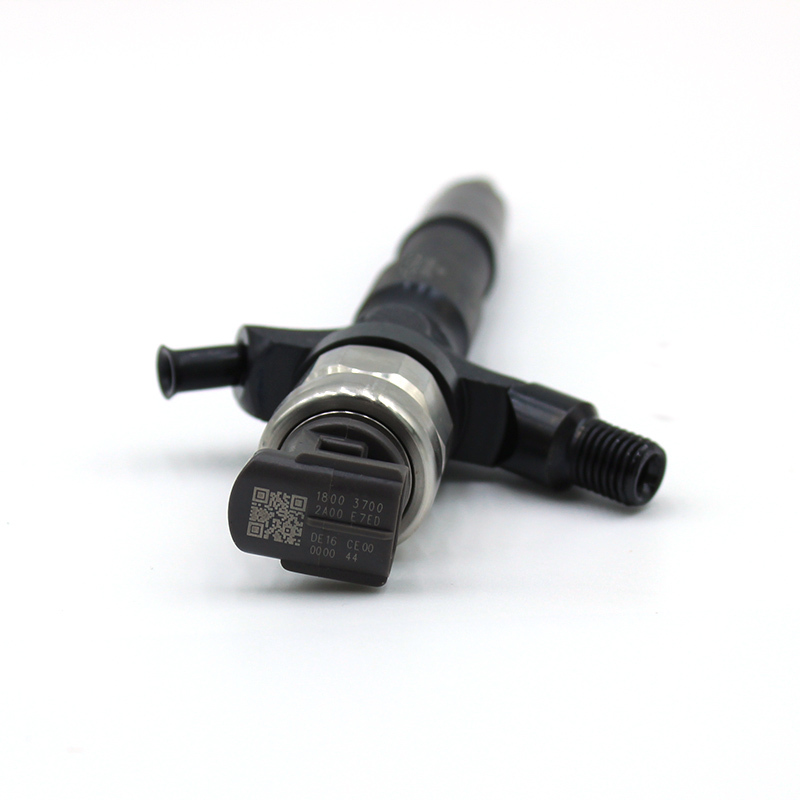

Tail horizontal plug-in waterproof electronic control plug, resistant to vibration and less prone to short circuits
Tail horizontal integrated black plastic plug, with a multi-layer waterproof and dust-proof sealing structure. Under vehicle vibration and engine compartment oil erosion, it is less likely to experience poor contact or cylinder shortage alarms.
Segmented multi-level metal valve body, with built-in ring-shaped seal for long-term leak prevention
The valve body is segmented and machined, combined with oil-resistant sealing rings to distribute the track pressure layer by layer. Under long-term high-temperature conditions, the sealing parts are less likely to age and shrink, and there is no oil leakage or carbon accumulation at the joint position.

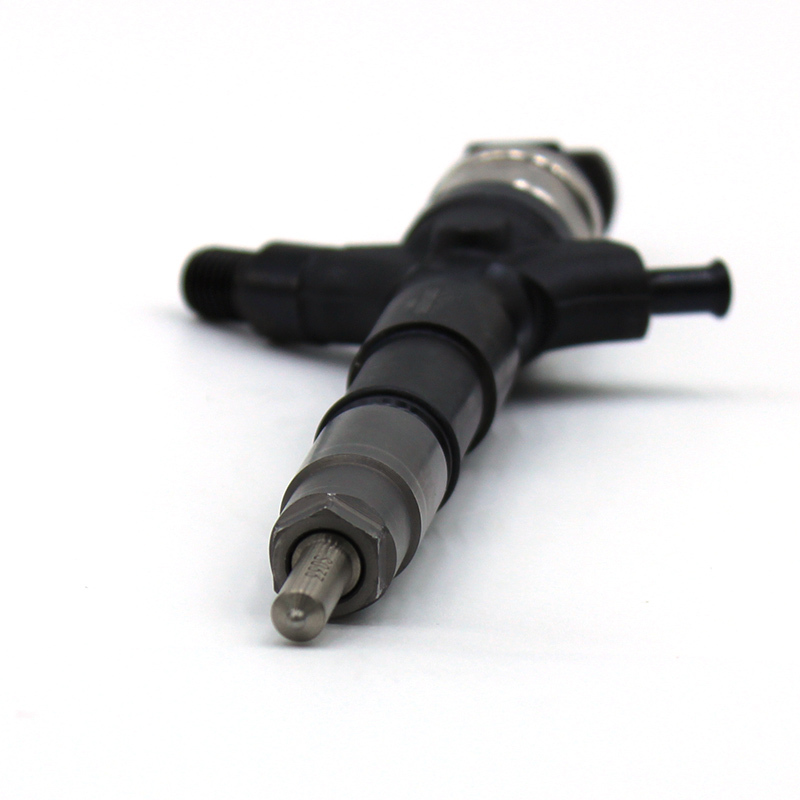

Precise micro-hole slender nozzle, ensuring thorough atomization and reducing carbon deposits and exhaust emissions
Front end slender multi-micro-hole nozzle, with uniform high-pressure fuel atomization particles, ensuring complete combustion in the cylinder, reducing black smoke emissions, and delaying carbon deposit blockage at the nozzle head, extending the maintenance period.
Exclusive metal sealing gasket for matching, assembled in one step
Factory-provided thick metal sealing gasket, eliminating the need for separate purchase of consumables during installation. The gasket has moderate hardness, sealing the cylinder installation surface tightly after compression, preventing high-pressure fuel leakage. Applicable scenarios
Suitable for light-duty diesel passenger cars, light-duty pickup trucks, small box vans, and small diesel commercial vehicles. It is applicable to urban roads, short-distance commuting, and light-load daily driving conditions.
Product basic parameters
Product name: Light-duty Passenger Car Electronic Common Rail Injector Assembly
Part number: 23670-09380
Main material: Hardened alloy segmented valve body, waterproof plastic-sealed electronic control plug, precision micro-hole nozzle, metal sealing gasket
Structural features: Side-mounted inclined oil inlet thread, tail-end horizontal electronic control plug, segmented sealed valve body, matching installation gasket
Application conditions: Urban short-distance light-load, cabin high temperature, daily dusty civilian diesel vehicles
Product status: New and complete injector assembly, completed with electronic control response, high-pressure atomization, and sealingity full factory inspection
Packaging: Independent shock-proof cushion packaging, nozzle, thread, plug are separately protected to prevent transportation bumps and scratches, suitable for cross-border small package logistics.
