Description
Product Overview

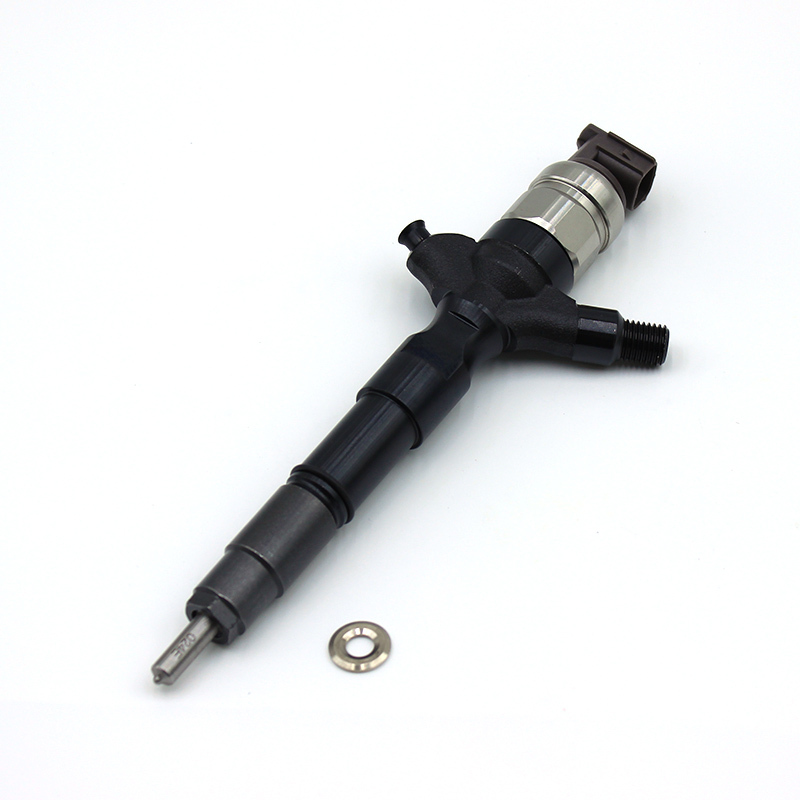

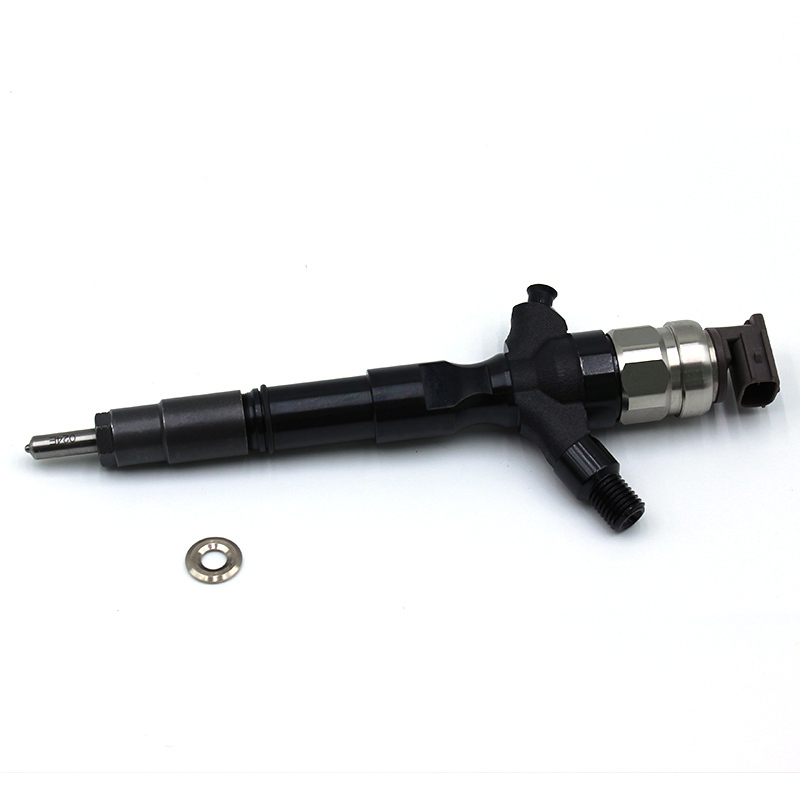

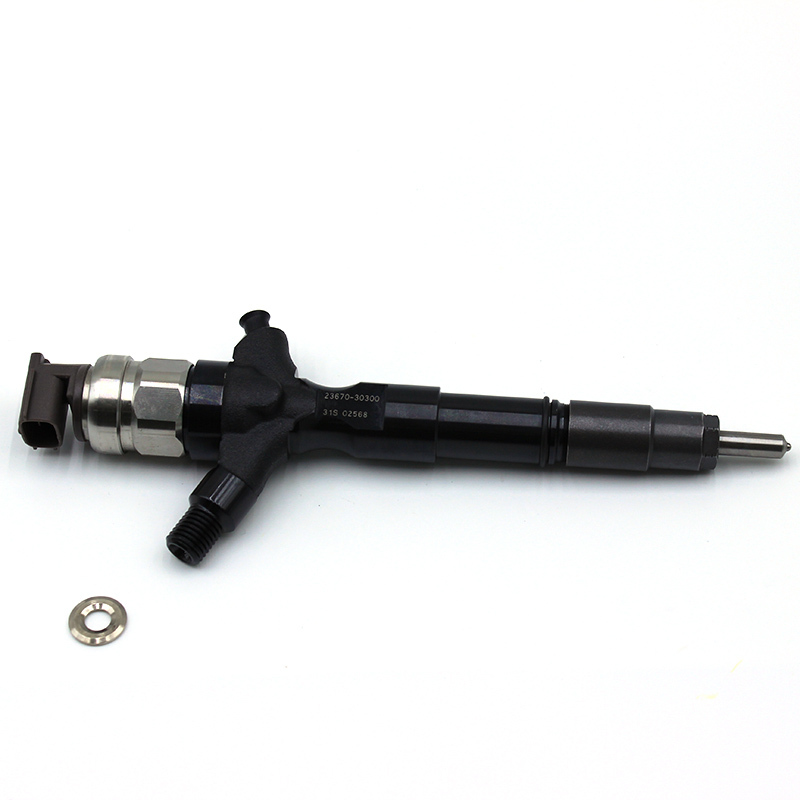

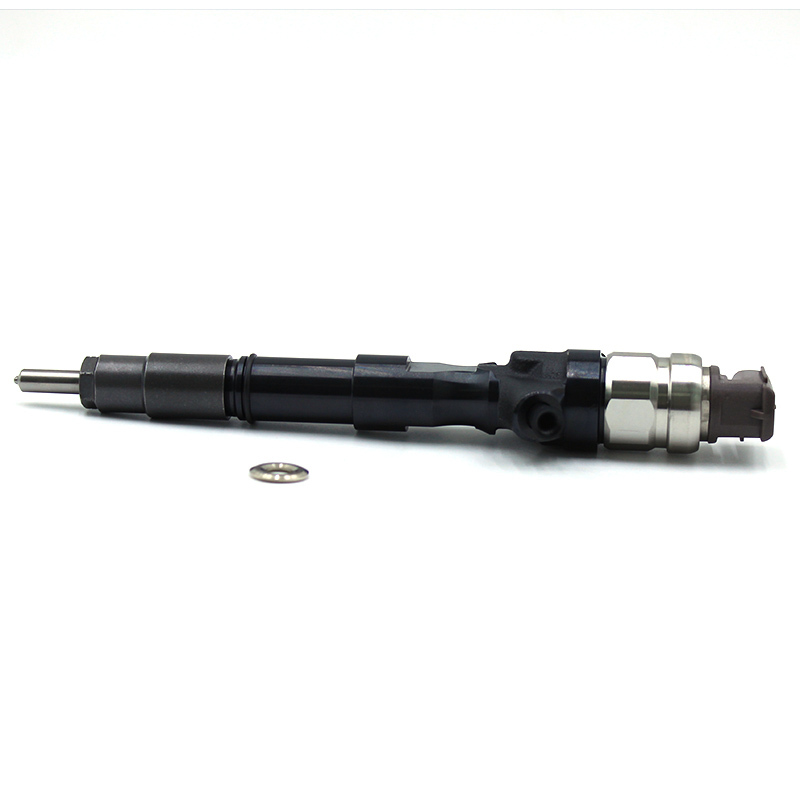

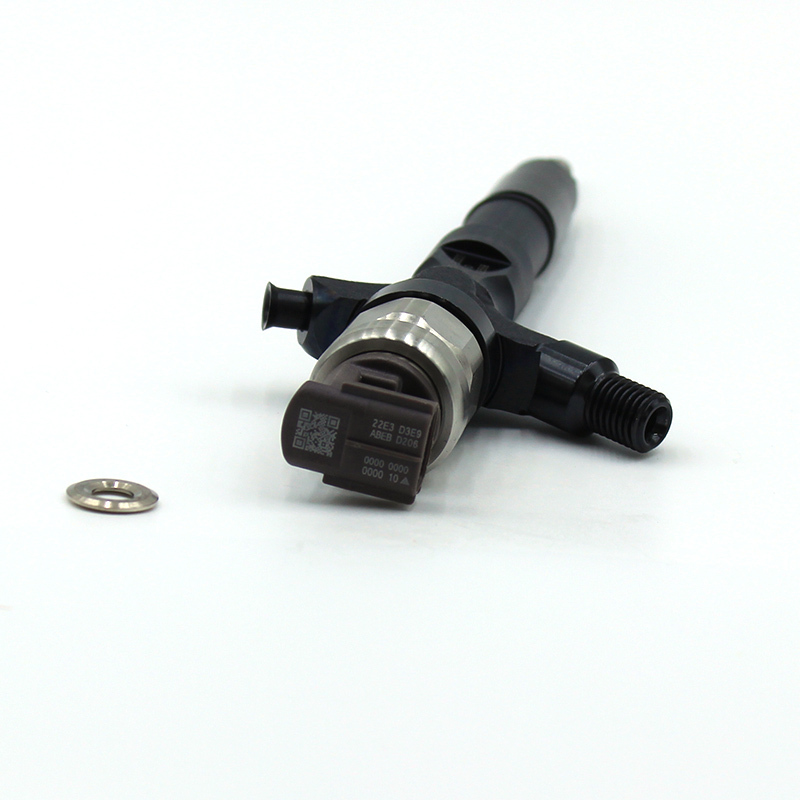

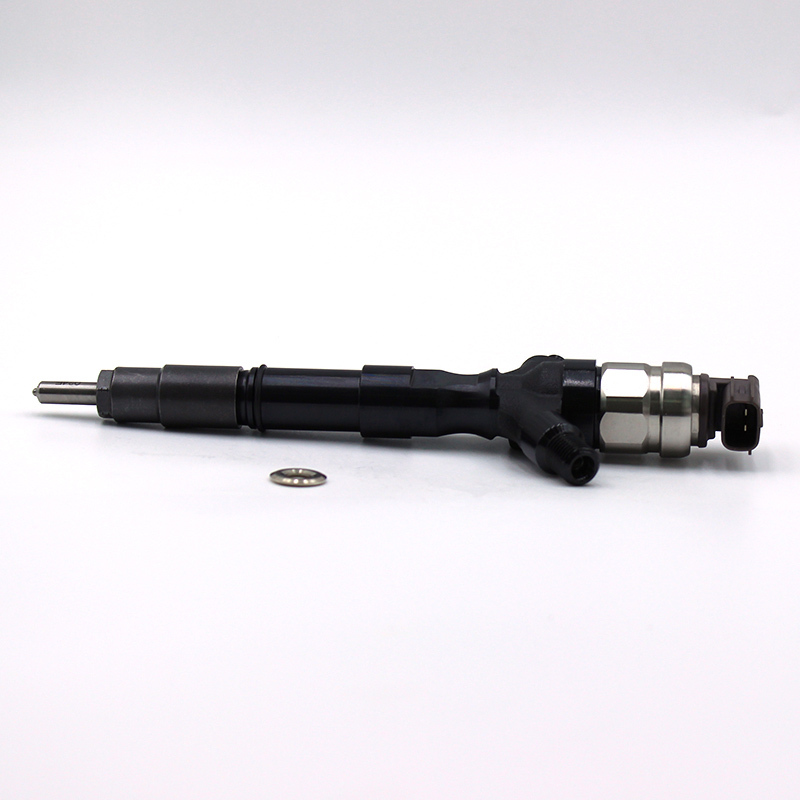

23670-30300 electronic fuel injectors are the core components of common rail injection systems for light-duty diesel passenger cars, light trucks, and commercial vehicles. They precisely control the timing and amount of fuel injection through the head electromagnetic valve. Long-term use may result in carbon deposits on the nozzle, internal valve wear, and sealing leakage, leading to decreased power and increased fuel consumption. The entire fuel injector comes with an installed gasket, allowing for a one-time repair of the oil circuit fault and is suitable for routine maintenance and repair of civilian diesel vehicles.
Unique Core Features of the Individual Product

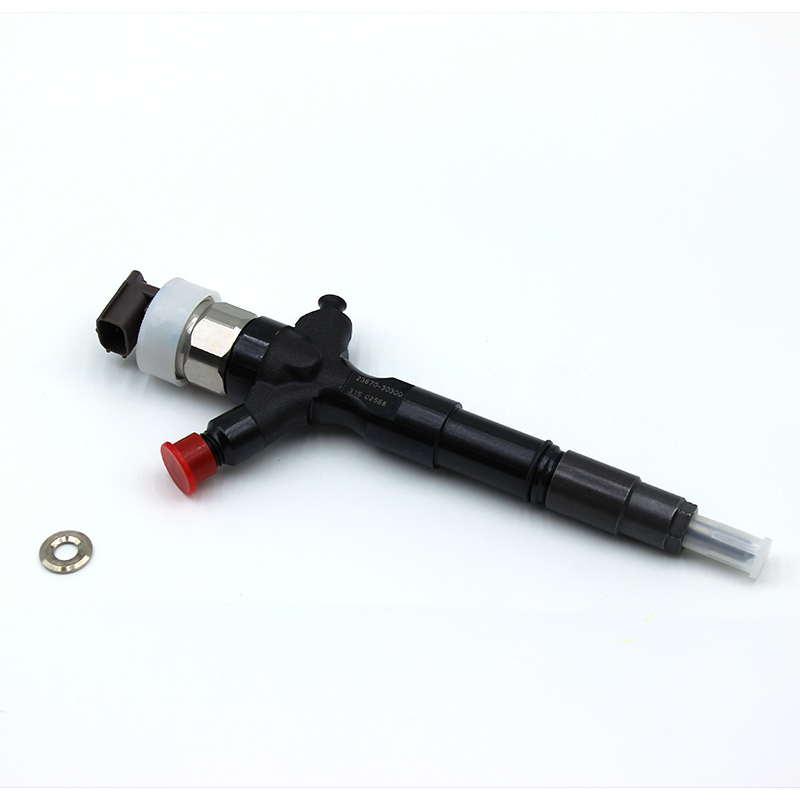

The side-mounted fuel inlet port is equipped with a red dust-proof protective cap to prevent impurities in the oil circuit
The oil inlet thread on the side of the body has an oblique angle, and a red plastic protective cap is pre-installed at the factory. During storage and transportation, it isolates dust and sand to prevent impurities from entering the valve body and causing valve core jamming, reducing the risk of installation faults, and facilitating easy and straight pipe arrangement in a cramped engine compartment.
The white protective cover for the electromagnetic valve isolates oil contamination and high temperatures to protect the valve body
A white insulation protective cover is added to the outer layer of the electromagnetic components to prevent erosion by the engine compartment's high temperature and diesel oil, reducing the problems of electromagnetic valve aging and poor signal contact. Under bumpy driving conditions, the circuit transmission is stable, and there is a lower risk of missing cylinder error.
The long rod is made of hardened alloy valve body with multiple layers of sealing for long-term leak prevention
The valve body is formed by multi-stage machining and has an oil-resistant ring-shaped seal inside. The valve body distributes the high-pressure impact in multiple layers, and the sealing parts are less likely to harden and shrink under long-term high-temperature operation, ensuring no oil leakage or carbon accumulation at the joint position.
The extended precision micro-hole nozzle ensures complete combustion and reduces carbon tail gas
The front end has a slender multi-hole nozzle, with fine and uniform high-pressure fuel atomization particles. The combustion of the internal mixture is more thorough, reducing black smoke emissions, slowing down the rate of nozzle blockage, and extending the vehicle maintenance cycle.
An independent metal sealing gasket is provided for the matching, eliminating the need for additional spare parts during maintenance
The factory-provided thick metal sealing gasket is directly used during assembly. The hardness of the gasket is compatible with the cylinder body installation surface, and after compression, it is fully sealed, preventing high-pressure fuel from leaking from the installation position. Applicable scenarios
Suitable for light-duty diesel pickup trucks, box vans, diesel commercial buses, and small family diesel SUVs. It is applicable for urban commuting, short-distance freight transportation, and daily light-load road driving conditions.
Product basic parameters
Product name: Light Vehicle Electronic Control Common Rail Injector Assembly
Part number: 23670-30300
Main material: Hardened alloy segmented valve body, waterproof electromagnetic plug, insulated protective sheath, precision micro-hole nozzle, metal sealing gasket
Structural features: Red dust-proof plug at the side-mounted fuel inlet, white protective cover for the electromagnetic valve, long-stem segmented sealed valve body, matching installation gasket
Application conditions: Urban short-distance light-load, engine compartment high temperature, daily dusty civilian diesel vehicles
Product status: New and complete injector assembly, completed with electronic control response, high-pressure atomization, and sealingity full factory inspection
Packaging: Independent shock-absorbing protective packaging, nozzle, threads, plug divided protection to prevent transportation bumps and scratches, suitable for cross-border small-item logistics.
