Description
### Product Overview
The fuel pressure control valve is installed on the high-pressure fuel pump. It controls the valve core opening through electromagnetic signals, regulates the fuel flow entering the high-pressure plunger, and maintains the stability of the oil pressure in the common rail pipeline. Over time, due to the erosion of impure oil and the continuous high-frequency electrical conditions, the valve core wears out, the performance of the electromagnetic components declines, and the seals age. This can lead to malfunction in fuel supply regulation and loss of oil pressure control. This product is standardized in terms of its thread specifications, electrical interfaces, and valve core flow characteristics. During the repair of engine fuel systems, individual parts can be directly replaced. It is suitable for various vehicles equipped with common rail diesel engines and for maintenance of construction machinery.
Core advantages of individual products
1. **High-strength metal valve body, resistant to high-pressure and diesel fuel corrosion**
The valve body is made of precision steel and undergoes surface anti-rust treatment. It can withstand the pressure shock of diesel fuel for a long time and resist the erosion of diesel medium. The threads are not prone to slipping and the shell is not prone to leakage.
2. **High-precision electromagnetic drive assembly, with sensitive and stable signal response**
It is equipped with high-quality electromagnetic coils. The response speed is balanced when energized, and it can precisely receive the electrical control instructions to regulate the flow rate. The linearity of oil pressure regulation is excellent, reducing the phenomenon of track pressure fluctuation.
3. **Precise flow control valve core, with strict and uniform clearance**
The valve core has high grinding accuracy and stable friction resistance. It is not prone to jamming and ensures that the fuel supply volume is precisely controllable under different load conditions.
4. **Original factory specification electrical plugs, with firm and stable connection**
The plug has a standard shape and layout that matches the connector of the wiring harness. It is less likely to have contact failure in the driving vibration environment and avoids intermittent power failures.
5. **Pre-installed oil-resistant sealing O-ring, effectively preventing fuel leakage into the intake**
It is equipped with a sealing rubber ring resistant to high and low temperatures. After installation, it isolates fuel leakage and prevents air from entering the low-pressure oil circuit, avoiding difficulties in starting and unstable oil pressure.
6. **Single-piece power-on and flow inspection at factory, with strong consistency in performance**
Each product undergoes power-on operation testing and flow characteristic sampling inspection. The parameter range is unified, and no additional calibration is required after maintenance and installation.
### List of Accessories
- 238100E010 Fuel Pressure Control Valve 1 piece
- Pre-installed internal sealing O-ring
### Applicable Scenario
It is suitable for use with pickup trucks, light vans, buses and small construction machinery that are equipped with corresponding common rail diesel engines. It is used for troubleshooting, repairing and replacing the fuel flow control system of the high-pressure fuel pump.
### Product Basic Parameters

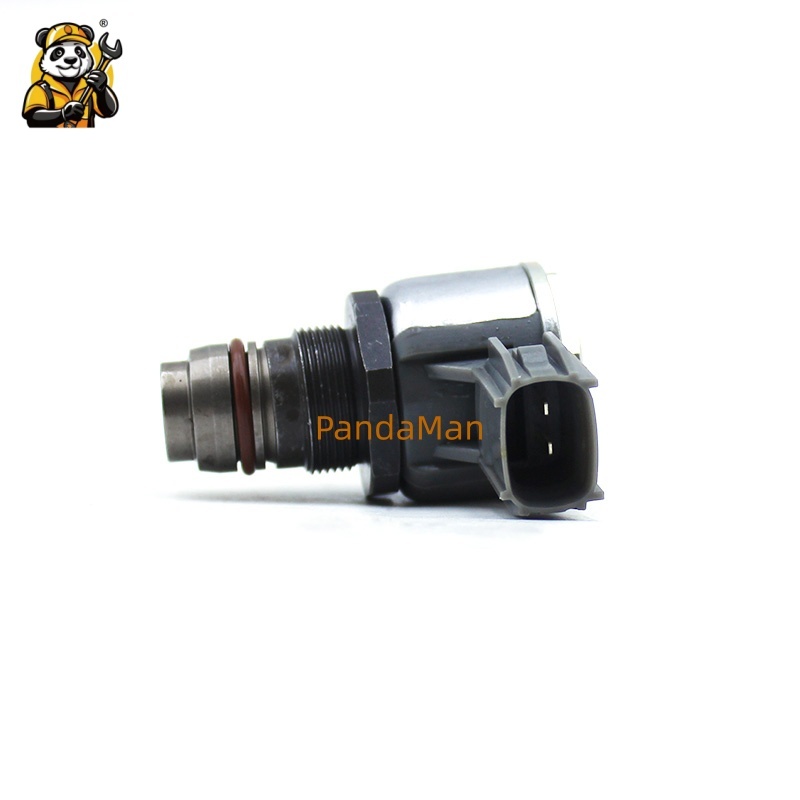

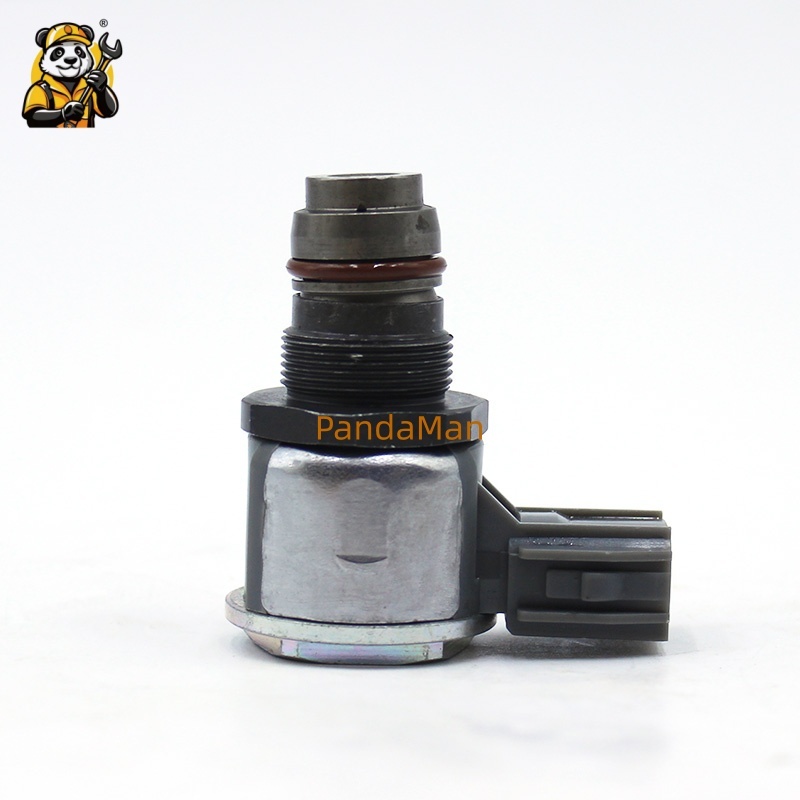

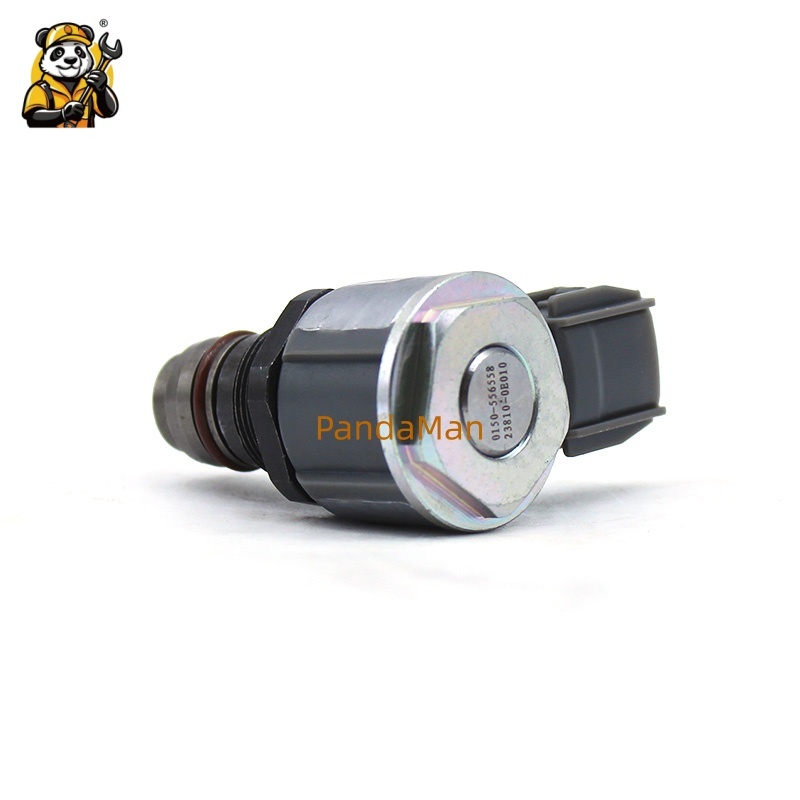

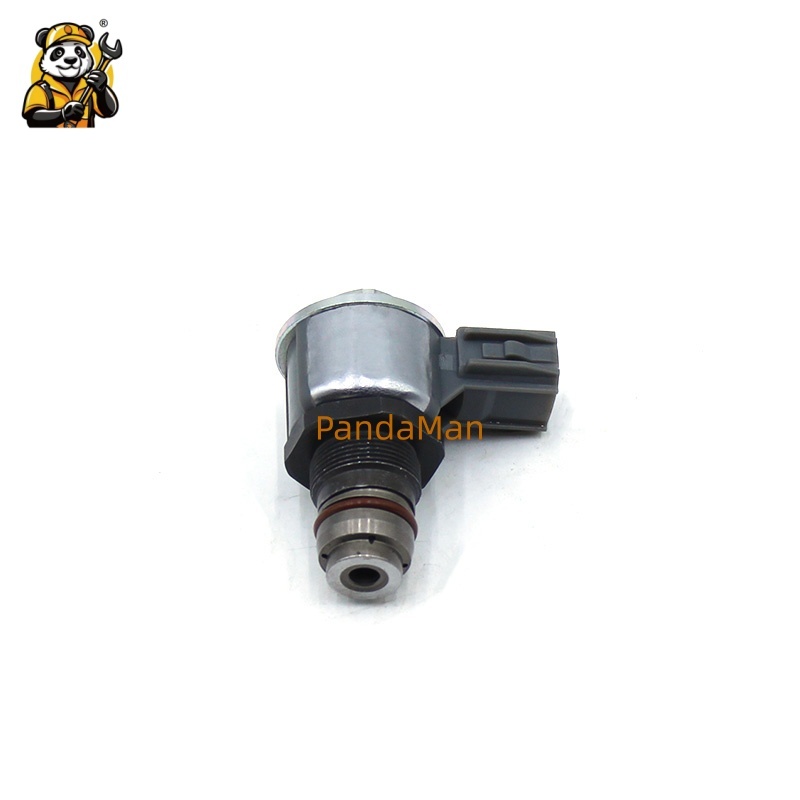

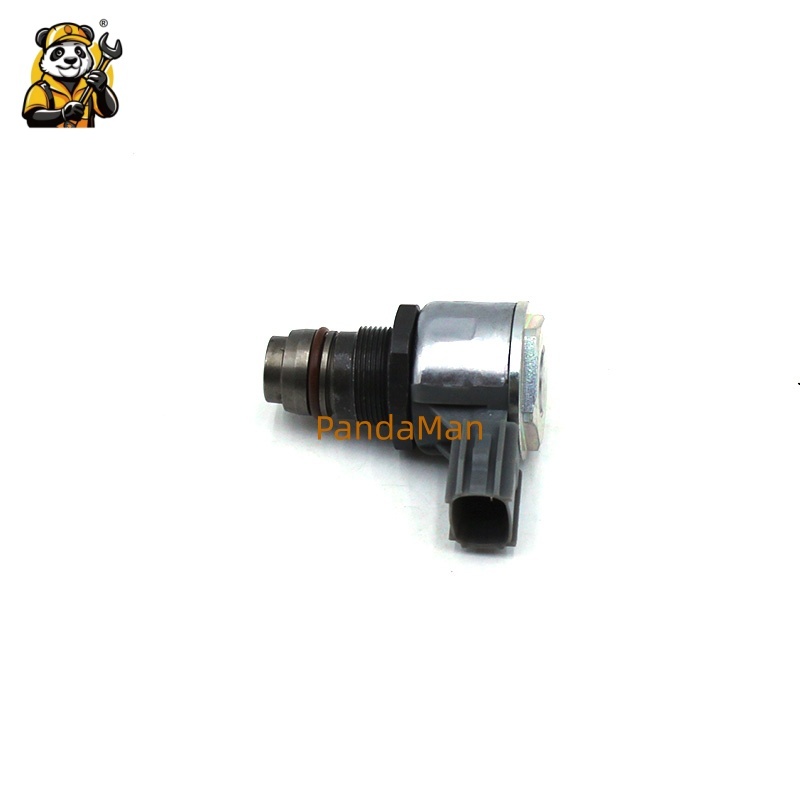

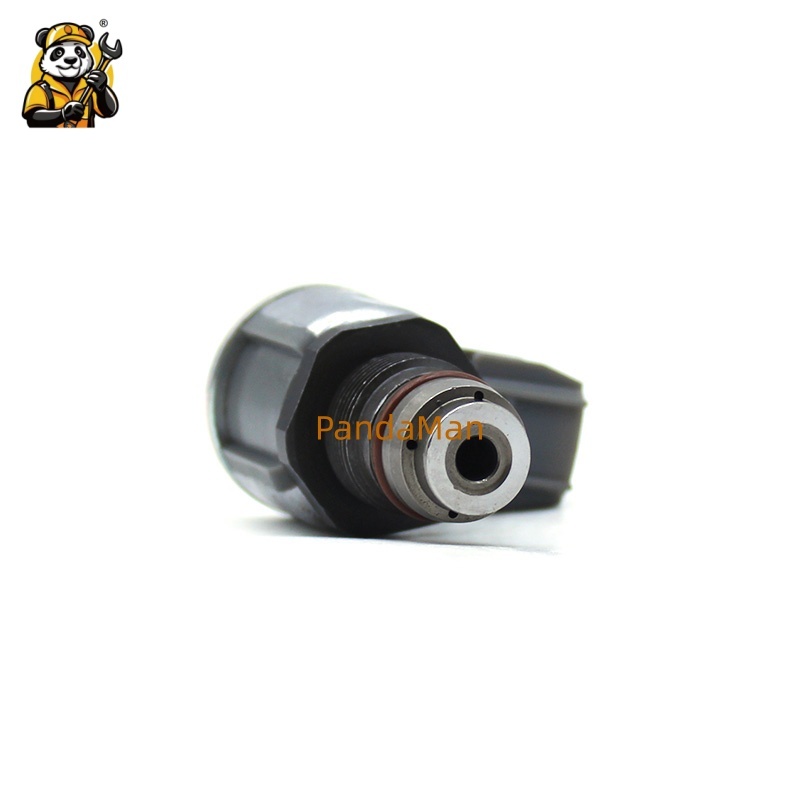

Product Name: Fuel Pressure Control Valve (Metering Unit SCV Valve)
Part Number: 238100E010
Main Material: Precision steel valve body, electromagnetic coil assembly, oil-resistant fluorosilicone sealing ring
Structural Feature: External thread screwing structure, integrated wiring plug, built-in flow valve core
Applicable Working Conditions: High-pressure fuel supply system of diesel engine, continuous electronic control adjustment, wide temperature difference working condition oil pressure control accessory
Product Status: New and complete control valve assembly, factory completed with power-on response, flow characteristic bench calibration and testing
Packaging: Independent shock-proof packaging, protecting the precision working surfaces of the threads and valve core from磕碰 damage； supports single-piece retail and bulk purchase of the package， suitable for cross-border logistics transportation.
