Description
Product Overview

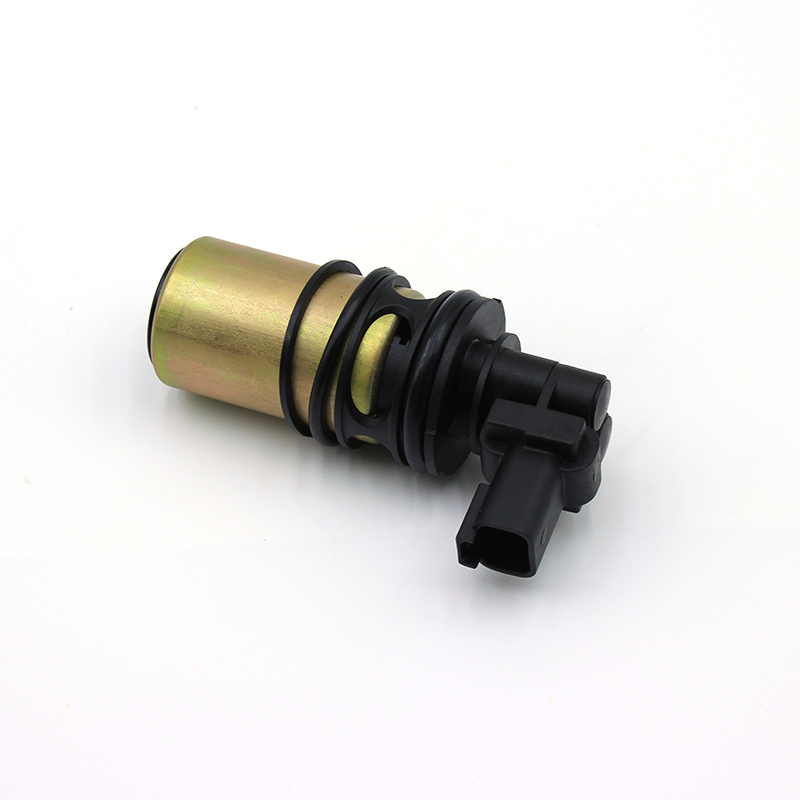

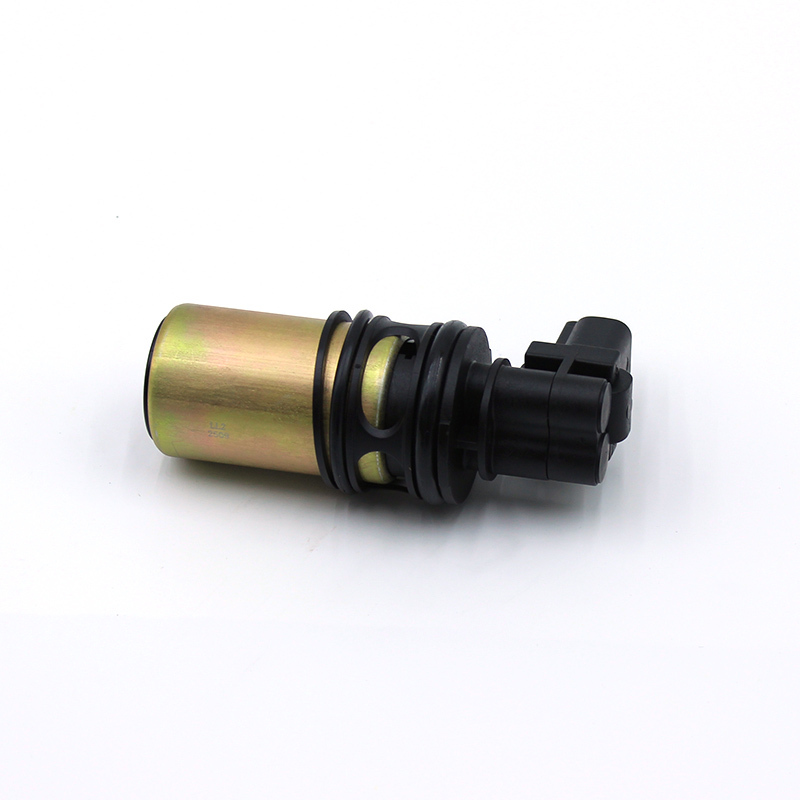

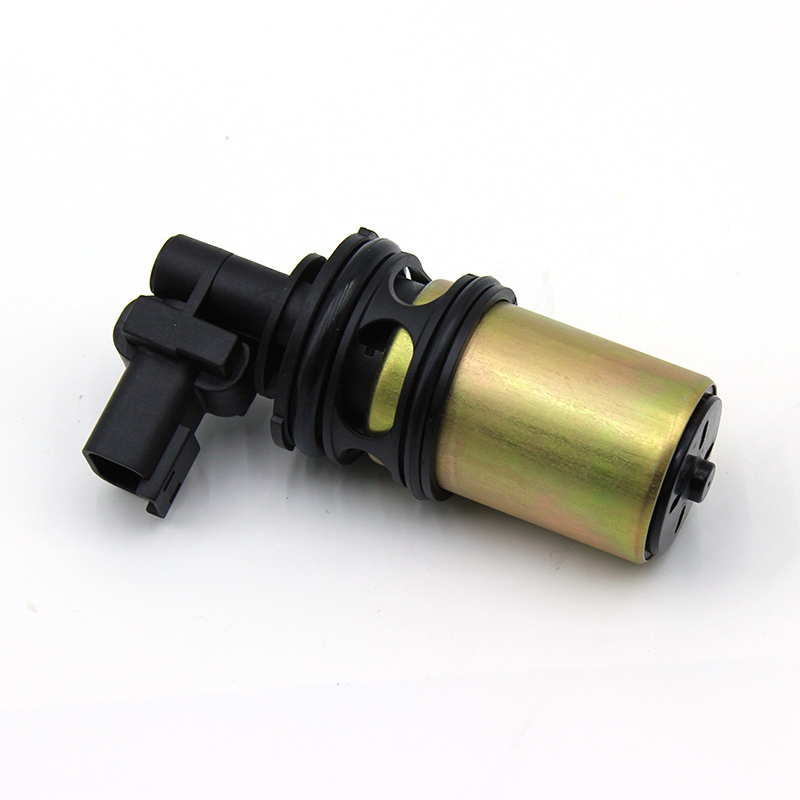

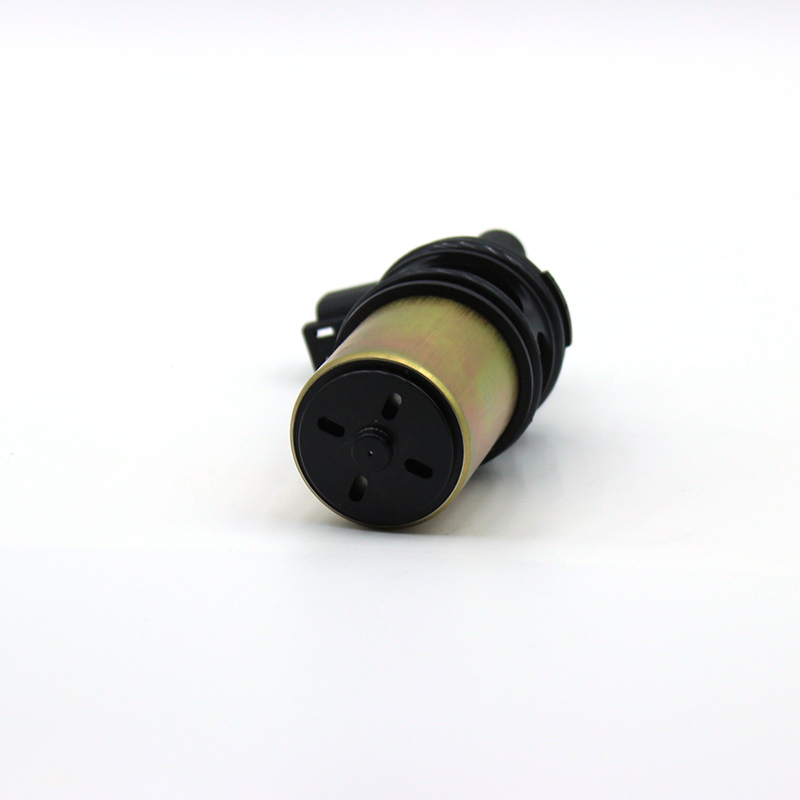

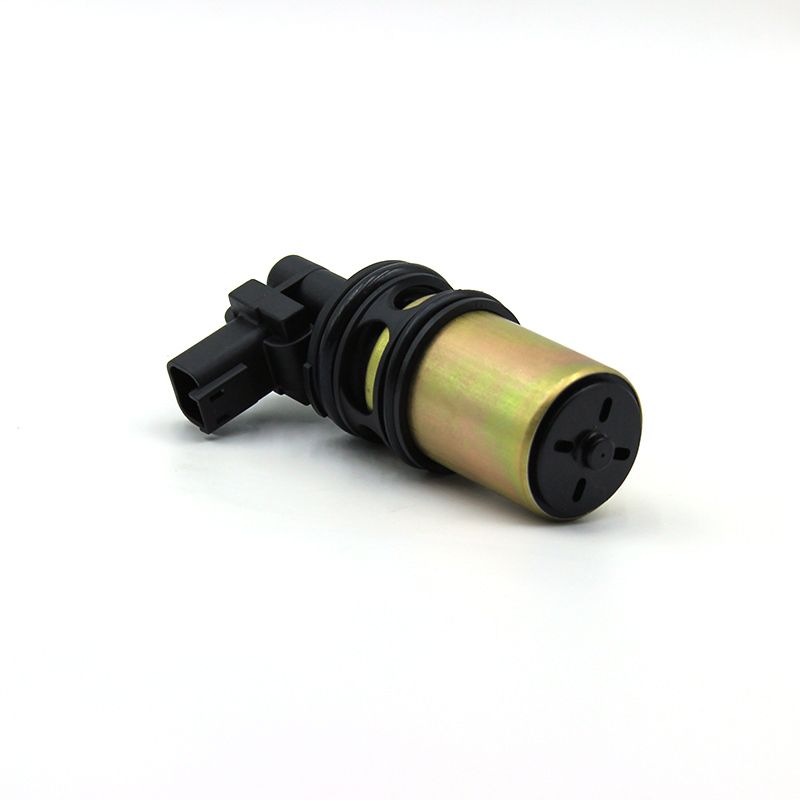

The 526-2037 electromagnetic control valve is the core electronic control actuator for common rail injectors. Installed inside the injector body, it drives the internal valve spool via electromagnetic force to precisely manage fuel injection timing and fuel volume. When an injector experiences frequent misfires, difficult cold starts, or abnormal increases in fuel consumption, this valve can be replaced independently without replacing the entire injector, significantly reducing maintenance costs and making it ideal for overhaul operations on various diesel common rail systems.
Key Features
Integrated brass anti-rust electromagnetic cylinder with stable magnetic force and high-temperature resistance
The front section features a thickened, one-piece brass magnetic cylinder that ensures uniform heat dissipation, effectively isolating the engine block's high temperatures. The internal coil delivers consistent magnetic output, maintaining performance under prolonged high-frequency power operation without significant magnetic degradation, preventing delayed injection response.
Dual-layer split-type sealing rings provide double protection against high-pressure leakage
Two independent ring-shaped oil-resistant seals are installed on the outer side of the valve body, segmenting and blocking oil passage gaps. High-pressure fuel cannot leak through assembly joints, while the seals resist hardening and shrinkage under high-temperature conditions, ensuring long-term sealing integrity.

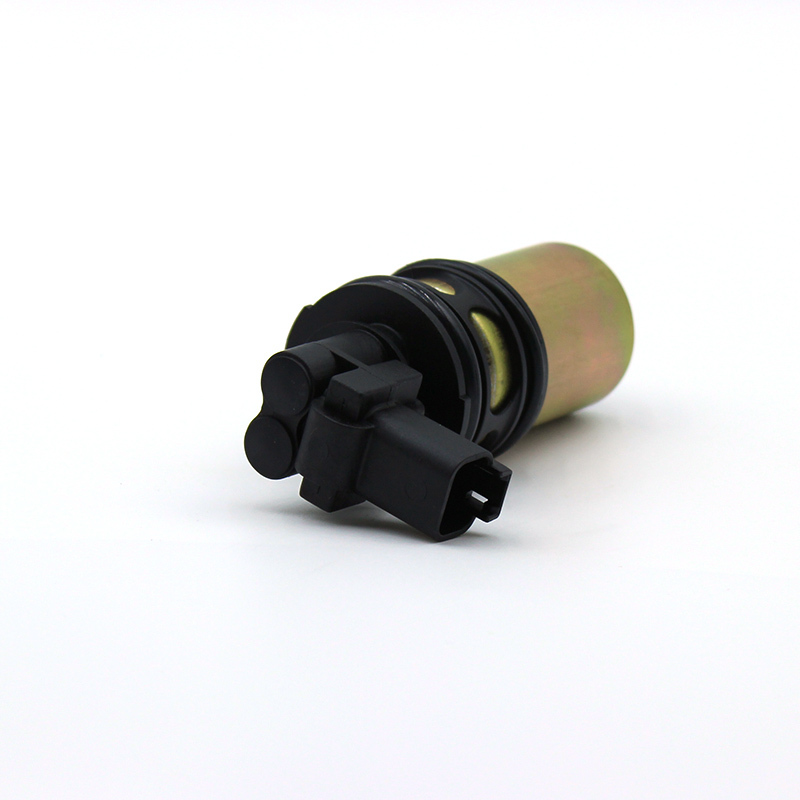

Side-mounted 90° bent plug connector enables easy wiring in tight spaces
A side-bent plastic-insulated terminal connector with built-in locking clip eliminates the need for straight insertion space during installation. It fits smoothly even within the confined internal cavity of the injector and remains securely connected under vehicle vibration, preventing disconnection or circuit breakage.
Perforated分流定位 skeleton ensures unobstructed fuel flow
A hollow black positioning frame is integrated into the center of the sealing ring, creating dedicated fuel flow channels. This design prevents debris and gel buildup from clogging passages, reduces valve spool sticking, and extends the service life of the valve.
Standard embedded one-piece outer diameter ensures direct compatibility with matching valve bodies
The outer diameter is standardized, allowing direct insertion into the injector body without grinding or modification. Installation and removal are simple and quick, minimizing equipment downtime during maintenance.
Applications
Designed to match the internal structure of 526-2037 model common rail injectors, this valve is widely used in light-duty freight vehicles, small excavators, agricultural diesel machinery, and mobile power generators. Ideal for injector refurbishment at auto repair shops and bulk maintenance in fleet operations.
Basic Product Specifications
Product Name: Injector Electromagnetic Control Valve
Part Number: 526-2037
Main Materials: Brass electromagnetic cylinder, dual-layer oil-resistant rubber seal rings, waterproof engineering plastic connector
Structural Features: One-piece brass magnetic cylinder, dual-layer ring seals, perforated分流定位 skeleton, side-mounted bent waterproof plug
Operating Conditions: Suitable for short-haul heavy-duty road use, fieldwork, and construction sites with alternating high and low temperatures
Product Status: Brand new, fully tested for electromagnetic attraction, high-pressure sealing, and electrical response

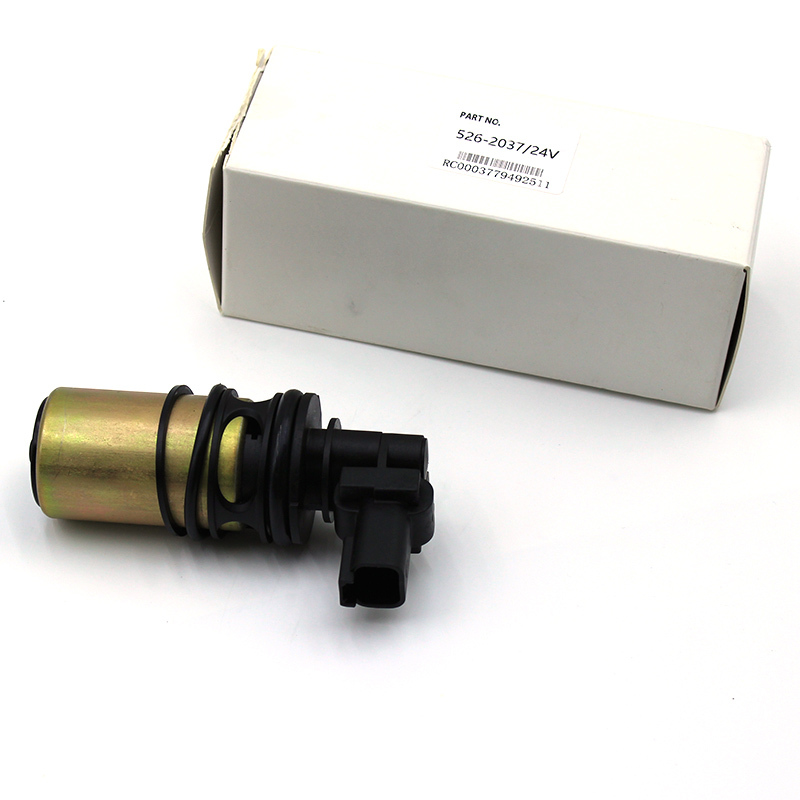

Packaging: Individually separated shock-resistant packaging protects the brass cylinder and plug from impact and scratches, suitable for international small parcel shipping
