Description
Product Overview
The electromagnetic coil is installed at the tail of the injector and is energized to generate electromagnetic suction to lift the internal needle valve, opening the high-pressure oil passage to achieve fuel injection. After long-term exposure to high cabin temperatures, diesel vapor corrosion, and frequent power-on operation, the insulation layer of the coil is damaged and short-circuited, and the magnetic force weakens. This can lead to single-cylinder non-functioning, weak acceleration, severe idling vibration, black exhaust smoke, frequent engine fault codes popping up. This product has standardized inner diameter, snap-fit dimensions, and electromagnetic suction parameters of the coil. The coil can be replaced separately during maintenance, eliminating the need to replace the entire injector, thereby reducing maintenance costs and being suitable for the maintenance of common rail injectors for light trucks, diesel buses, and small excavators.
Core advantages of this product:
The high-temperature black insulating plastic enclosure isolates oil, water, and steam short circuits.
The coil is encapsulated in an overall high-temperature-resistant engineering plastic, which isolates diesel oil, gas, and cabin water vapor erosion. The insulation layer of the coil is less likely to age and crack under high-temperature conditions, effectively avoiding short circuits and burnout.
The metal nameplate engraved with codes + QR code enables quick identification of the model.

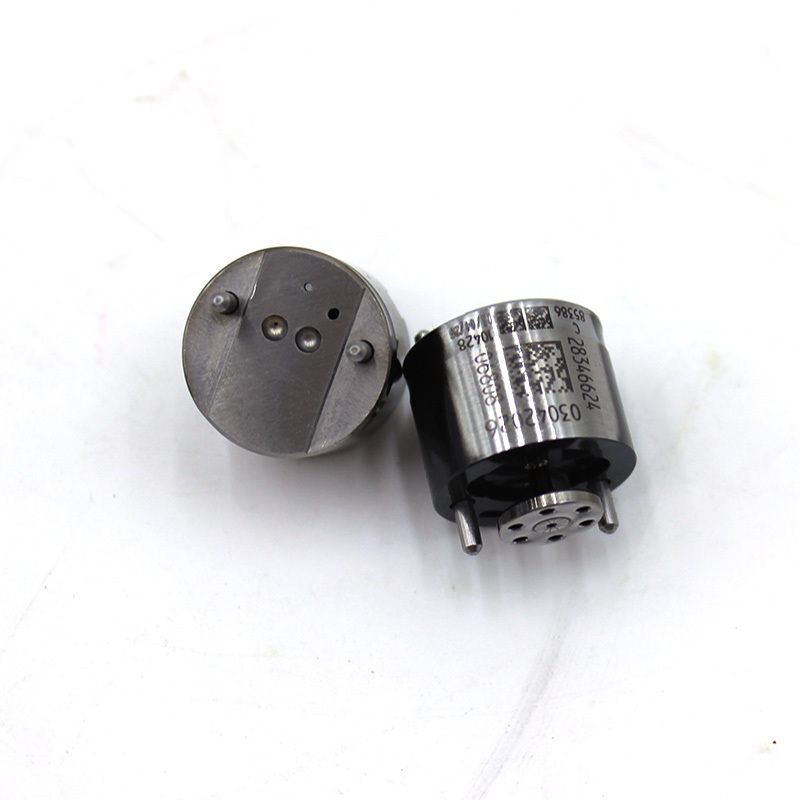

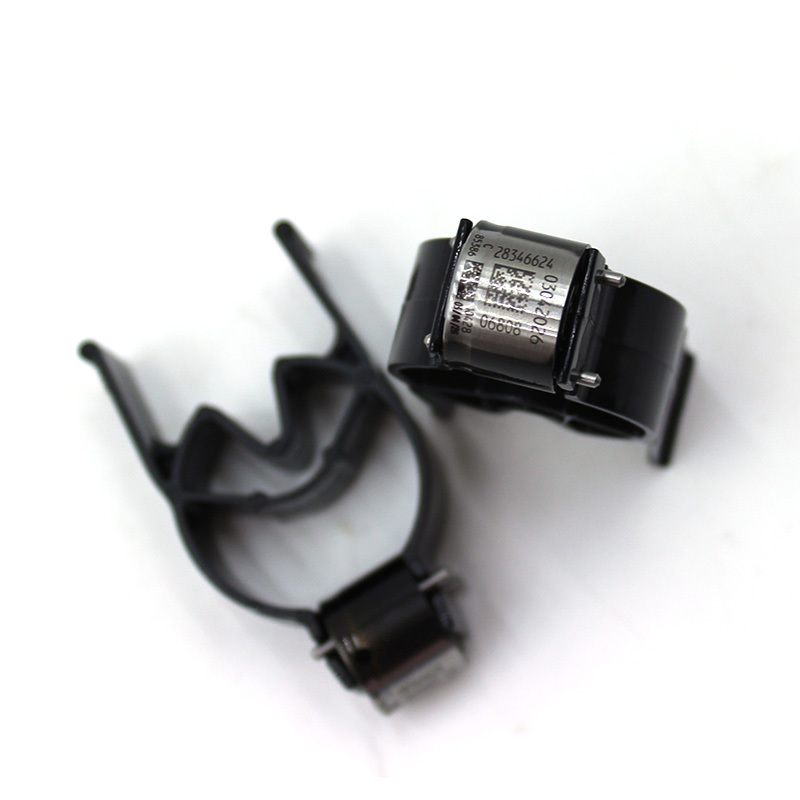

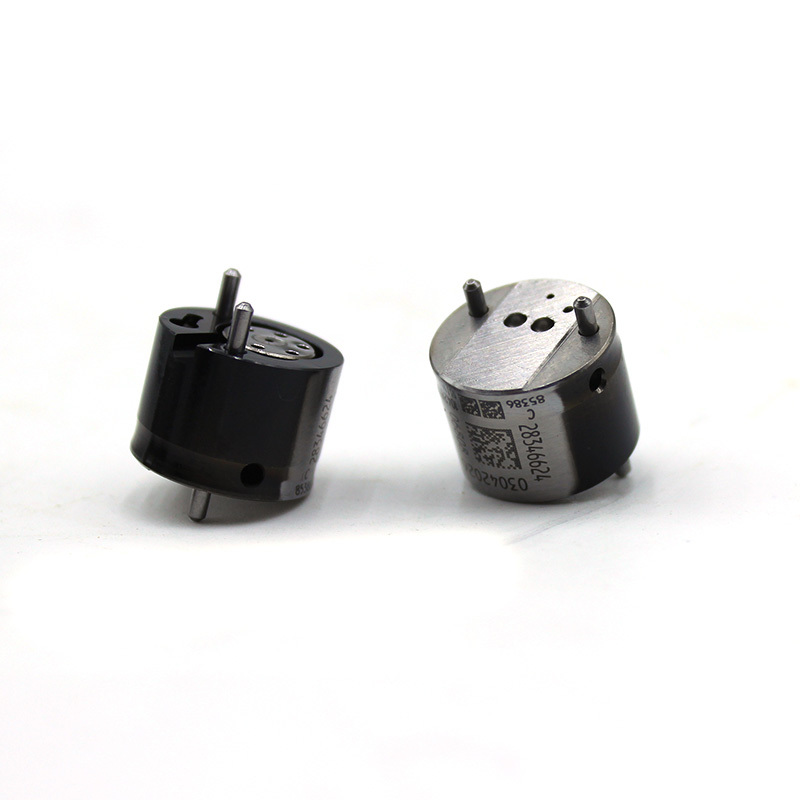

The metal sticker is engraved with the 28346624 part number and the identification QR code, which is resistant to diesel soaking and wiping without the characters falling off. It is convenient for warehouse storage and maintenance verification when distinguishing specifications during model comparison, avoiding incorrect installation and resulting in disorder in fuel injection timing.
The one-piece molded snap-fit installation bracket is firmly and securely assembled without loosening.

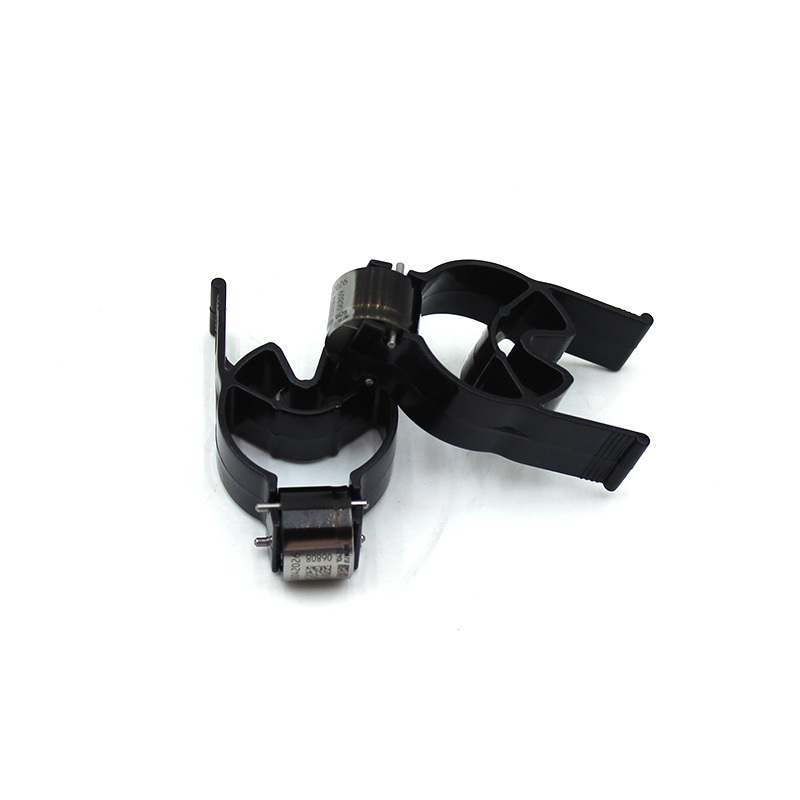

The matching U-shaped snap-fit bracket of the same material has precise positioning dimensions. After wrapping the coil, it fits tightly with the injector housing. During vehicle vibration conditions, it will not shift or loosen, ensuring stable output of electromagnetic suction.
High-precision built-in electromagnetic winding, with sensitive and uniform opening and closing response.
The internal neatly wound high-temperature-resistant enameled winding is standardized for electromagnetic suction. It quickly opens the needle valve upon power-on and closes immediately upon power-off, without issues of insufficient suction or delayed fuel injection. The consistency of fuel injection in each cylinder is good.
Anti-aging sealing structure, long-lasting adaptation to complex conditions.
The sealing treatment at both ends of the coil is reinforced to prevent fine diesel impurities from entering the winding inside. It has a longer service life in dusty and humid environments in fields and construction sites, reducing the need for repeated maintenance.
Split replaceable design, lower maintenance costs.
Supports the separate replacement of the coil without replacing the entire injector assembly. This significantly reduces the customer's maintenance costs. The disassembly and assembly operation is simple, and no professional grinding equipment is required. List of Accessories
28346624 Electromagnetic coil body 1 piece
Matching snap-in mounting bracket 1 piece Applicable scenarios
Suitable for light-duty freight trucks with high-pressure common rail injection systems, diesel commercial buses, small wheeled construction machinery, and small diesel generators. It is applicable for urban commuting, short-distance field operations, and outdoor dusty diesel environments with alternating cold and hot temperatures and electric control common rail diesel engines. The product is for replacing the fuel injector drive components in these engines.
Product Basic Parameters

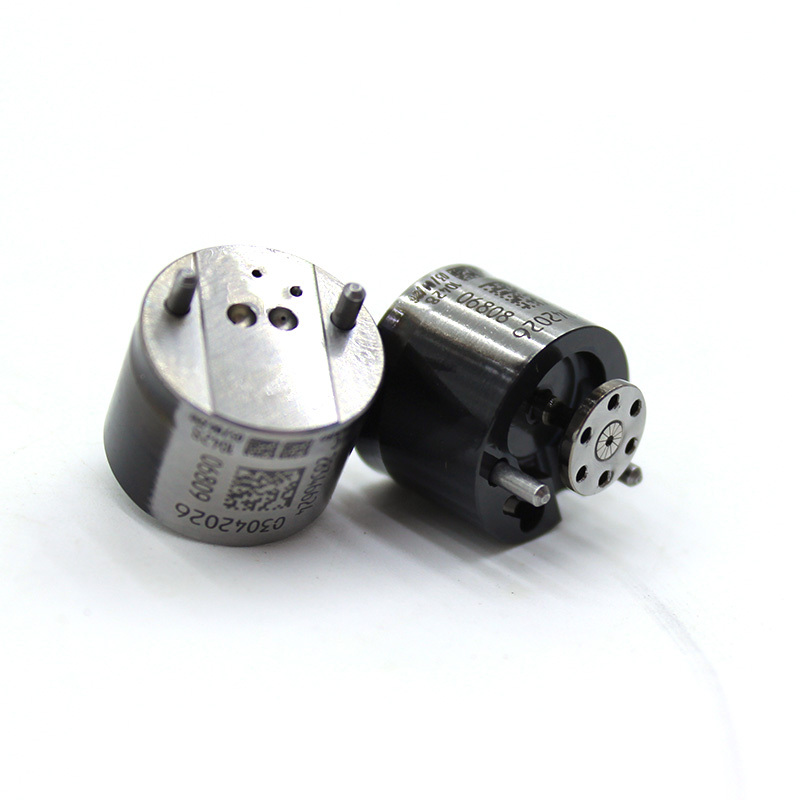

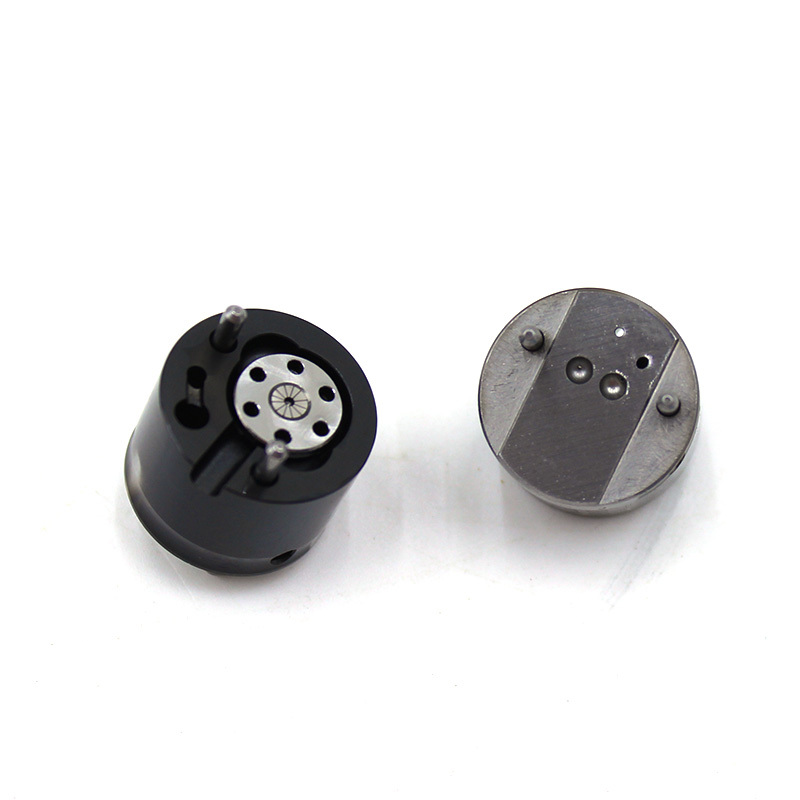

Product Name: Fuel Injector Electromagnetic Coil Assembly
Part Number: 28346624
Main Materials: High-temperature resistant insulating engineering plastic, high-purity enameled electromagnetic coils, metal identification nameplate
Structural Features: Black plastic-sealed coil housing, metal encoded nameplate, integrated snap-fit mounting bracket
Operating Conditions: Frequent power-on and power-off, engine compartment alternating cold and hot temperatures, diesel steam corrosion of light-duty electric control common rail diesel engines
Product Status: New and complete coil assembly, factory completed with insulation withstand voltage, electromagnetic pull force, and power-on durability full testing
Packaging: Single set of independent plastic-sealed packaging, surface protective film to avoid marking of nameplate and damage to coil during transportation, supporting single-piece retail, bulk purchase in cases, and compatible with cross-border small items and full-case logistics 28346624 Light-duty commercial vehicle, construction machinery common rail fuel injector dedicated electromagnetic coil assembly, a precise driving core component for controlling fuel injection opening and closing. Integrated black high-temperature resistant insulating plastic-sealed housing, central metal nameplate engraved with part number and QR code identification code, paired with integrated molded snap-fit mounting bracket, factory completed with coil insulation durability, electromagnetic pull force, and power-on opening response full testing, solving problems such as poor fuel atomization, cylinder shortage vibration, cold start difficulty, fault light alarm, coil burnout without fuel injection, etc., paired and matched to the fuel injector needle valve pair, no need for separate processing, can be directly replaced and repaired.
