Description
Product Overview
The electronically controlled common rail injector receives the ultra-high pressure fuel from the common rail pipe and, relying on the top electromagnetic component, receives the electrical control unit's signal to drive the internal precision valve core to open and close rapidly. It splits the high-pressure fuel into fine oil mist and injects it into the cylinder to complete combustion and power generation. Under long-term road driving, continuous erosion by impurities in diesel, and alternating vibrations in the engine compartment, the sealing surface of the internal valve core, the nozzle's spray holes, and the internal sealing components will age and leak. This may result in imbalance in the fuel supply flow of a single cylinder, rapid pressure relief in the high-pressure oil circuit, attenuation of engine power output, and excessive black smoke emissions from the exhaust. This product has standardized processing for installation dimensions, oil circuit interface specifications, and electromagnetic signal matching parameters. During maintenance, the entire set of injectors can be directly replaced, eliminating the cumbersome process of disassembling and debugging the internal precision components. It is suitable for the maintenance of light pickup trucks, light freight vehicles, small construction machinery, and small diesel generator sets.
Core advantages of this product:
The slender segmented composite alloy steel integrated cylinder body is rust-resistant, withstands pressure, and is not prone to deformation or oil leakage.
The cylinder body is segmented and formed by CNC machining of alloy steel, with surface passivation protection treatment. It is suitable for narrow cylinder head installation space and can withstand the continuous impact of high-pressure fuel for a long time, resisting diesel medium corrosion, and withstanding temperature differences in the engine compartment. The threads are not prone to slippage, and the cylinder body is not prone to cracking or leaking. It maintains the high-pressure sealing performance of the oil circuit for a long time.
The side-mounted integrated dual oil inlet and outlet interfaces ensure smooth and stable oil pressure in the circuit.
The side-side integrated and formed inlet and return oil dual pipelines interface has no splicing gaps, reducing the resistance of high-pressure fuel flow, and allowing excess fuel to quickly return and relieve pressure. It stabilizes the base oil pressure of the common rail system and eliminates problems such as excessive oil pressure at idle speed and excessive single-shot fuel injection volume causing carbon deposits and black smoke in the cylinder.
The top integrates an electromagnetic drive component, with synchronous response to the electrical control signal without delay.
The upper end is pre-assembled for the precise electromagnetic drive mechanism, ensuring sensitive transmission of the electrical control signal, no delay in the valve core's reciprocating opening and closing action, precise control of the single-shot fuel injection volume and the timing of the injection opening, and ensuring smooth engine idle speed and linear acceleration power without jolts.
The front-end multi-level stepped limit nozzle has coaxial positioning for uniform atomization particles.
The multi-level stepped limit positioning structure automatically locks when installed in the cylinder head installation hole, without deviation. The internal is equipped with precise multi-micro-hole atomization spray holes, with fine and uniform high-pressure fuel atomization particles, thorough oil-gas mixture, reducing carbon deposits in the cylinder and lowering fuel consumption.
The internal has multiple layers of oil-resistant sealing structures, blocking leakage and air backflow.
The cylinder body is equipped with multiple specifications of oil-resistant fluorine rubber sealing gaskets, which separate the high-pressure and low-pressure oil circuits, preventing high-pressure fuel from leaking out through the assembly gap, and also preventing air from backflowing into the oil circuit after shutdown, avoiding slow oil pressure build-up when starting next time.
The entire machine is factory-tested under all working conditions, and installation on the vehicle does not require secondary calibration.
The entire injector is independently tested on the machine for electromagnetic response speed, high-pressure sealing and pressure retention time, uniformity of atomization, and standard fuel injection flow. The factory performance parameters are unified, and after assembly, it quickly restores the engine's standard power output, significantly reducing the time for oil circuit maintenance and debugging. List of Accessories
295050-0210 Complete Electronic Control Common Rail Injector Assembly 1 piece
Front end adapter sealing gasket, nozzle dust protection plug pre-installed
Top electromagnetic end dust protection cover pre-installed Applicable scenarios
This product is suitable for light-duty freight vehicles, pickups, small wheeled construction machinery, and small stationary diesel generators equipped with high-pressure common rail fuel supply systems. It is applicable for short-distance urban transportation, light construction site operations, rural road driving, and the replacement of the fuel injection system of light electronic control common rail diesel engines operating in corrosive environments with impurities in diesel fuel.
Product Basic Parameters

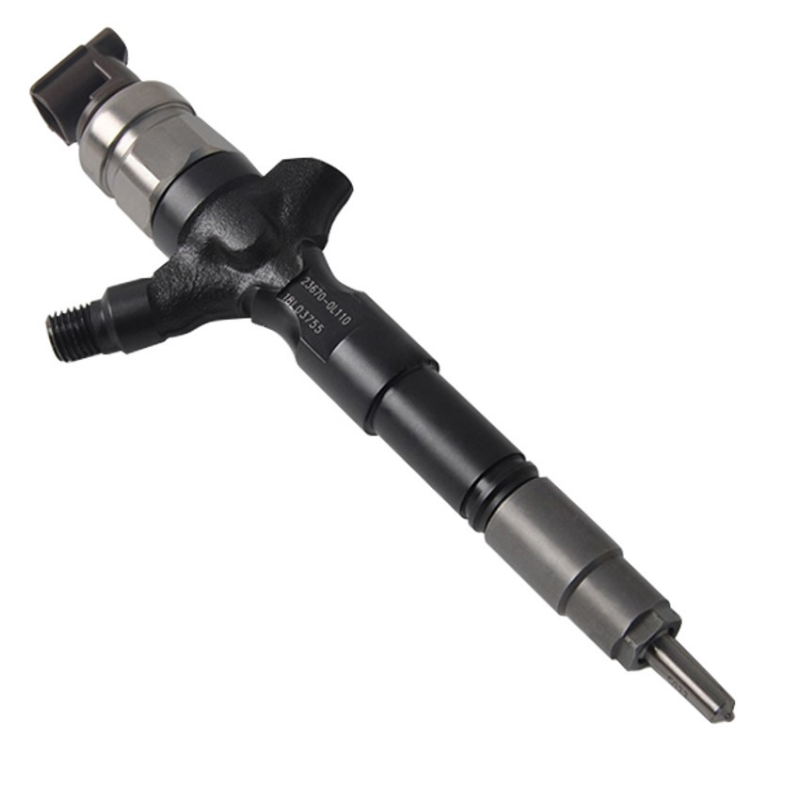

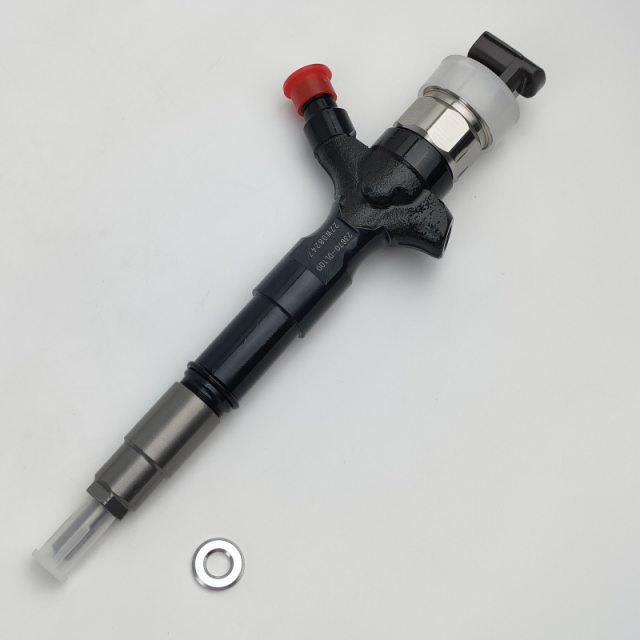

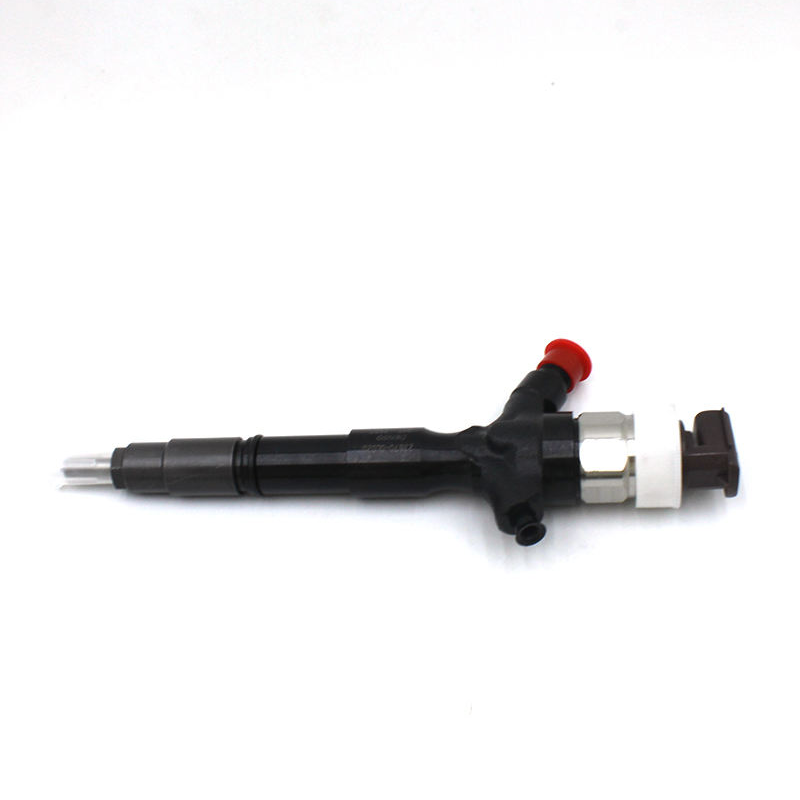

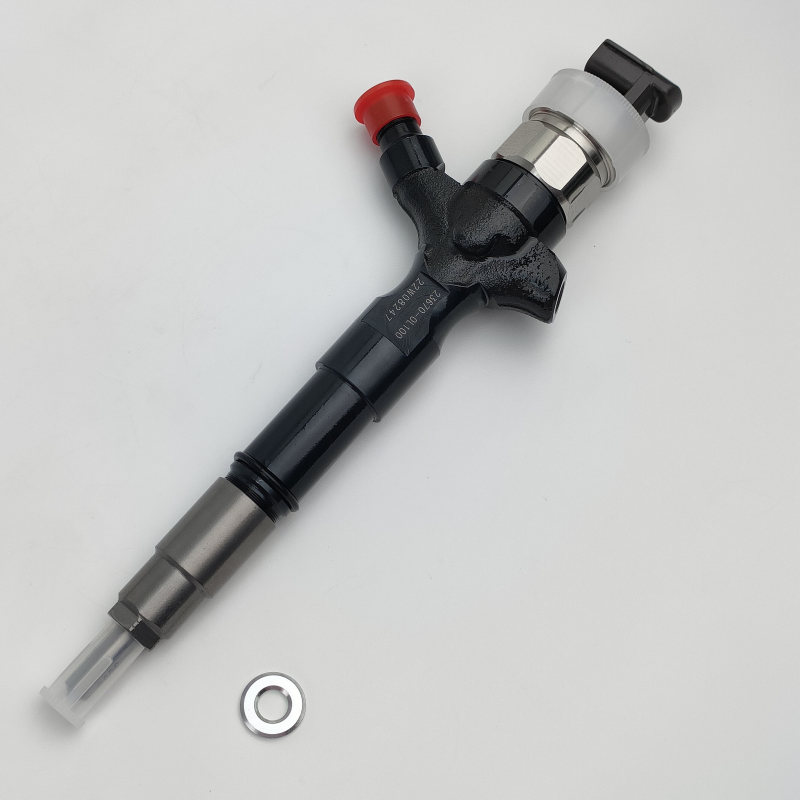

Product Name: 295050-0210 Electronic Control Common Rail Injector Assembly
Part Number: 295050-0210
Main Material: Segmented composite alloy steel housing, hardened alloy steel internal valve core and atomizing nozzle, alloy electromagnetic drive component, oil-resistant fluororubber multi-layer sealing ring
Structural Feature: Thin and long segmented metal cylinder, side-mounted integrated oil inlet and outlet dual oil circuit interface, top-mounted integrated electromagnetic control drive end, front-end multi-stage stepped limit atomizing nozzle, built-in layered high and low pressure sealing structure
Application Conditions: Ultra-high pressure fuel electronic control quantitative atomization injection, cabin alternating hot and cold continuous vibration, diesel medium corrosion of light electronic control common rail diesel engine core injection system
Product Status: New and complete injector assembly, factory completed with electromagnetic response, high-pressure sealingity, and atomization flow complete bench test calibration and detection
Packaging: Independent thickened shockproof hard tube packaging, all nozzles, oil circuit interfaces, and electromagnetic ends are equipped with dust-proof protective plugs, foam buffer protection to avoid transportation bumps and scratches of internal precision components, supports single-piece retail, bulk purchase in cases, and is compatible with cross-border small package logistics.
