Description
Product Overview
The inline six-cylinder fuel injection pump uses six sets of internal plungers to synchronously reciprocate and compress the fuel to establish high pressure. It quantitatively delivers the high-pressure fuel to the fuel injectors in accordance with the sequence of cylinder ignition, and uses the side-speed regulating linkage mechanism to adjust the circulating fuel supply volume in real time, matching the equipment with different load conditions such as no-load, medium-load, and heavy-load. Under long-term mining conditions, 24-hour continuous heavy-load, long-distance bumpy transportation, high-temperature vibration in the engine compartment, and impurities in diesel erosion conditions, the plunger mating surfaces may wear, the oil outlet valve seals may fail, the speed regulating spring may fatigue and get stuck, resulting in fuel supply leakage, acceleration power breakdown, speed drift, multiple ignitions required for startup, and diesel seeping into the engine oil to dilute the lubricating oil. This product has standardized processing for the flange installation holes, plunger stroke, oil outlet spacing, and speed regulating stroke. Maintenance can be directly replaced the oil pump as a whole, eliminating the need for disassembly, adjustment, and debugging procedures, and is suitable for maintenance of six-cylinder heavy-duty trucks, large mining excavators, heavy-duty wheeled loaders, and high-power stationary diesel generators.
Core advantages of the single product
Thickened integral cast aluminum pump body, lightweight, high-strength, and resistant to deformation and leakage
The entire cast aluminum is integrally pressed, with strengthened pump body wall thickness, seamless and integrated internal oil channels, low self-weight, excellent heat dissipation performance, capable of continuously withstanding high-pressure fuel impact, not cracking in alternating cold and hot, internal and external oil leakage, and stable base oil pressure for fuel supply.
Six independent high-pressure oil outlets, balanced fuel supply for each cylinder without cylinder failure
Top six independent high-pressure oil threaded ports, with unified standard thread specifications, each equipped with a sealing protection screw cap, preventing high-pressure fuel from leaking from the interface after assembly; the six-cylinder plungers are precisely machined synchronously, with extremely small flow differences for each cylinder, ensuring smooth engine operation without cylinder failure and jitter.

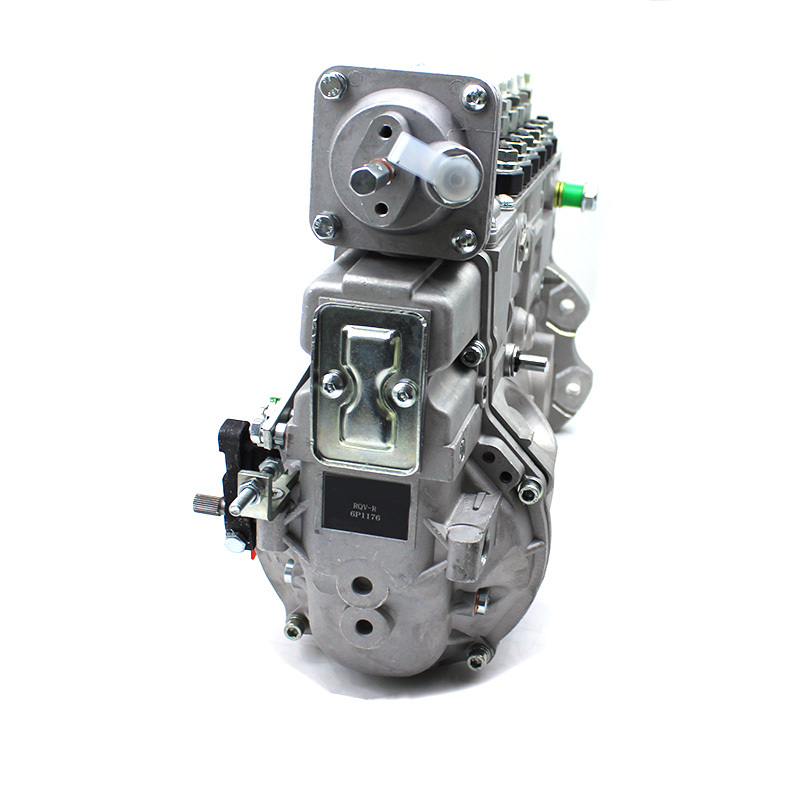

The left side integrates a complete mechanical speed regulating assembly, linearly regulating fuel injection volume to adapt to full load
The left side integrates a complete set of mechanical speed regulating linkage, adjusting lever, and elastic spring structure, which can linearly adjust the fuel injection volume in no-load idle, medium-speed driving, and heavy-load climbing conditions, eliminating power breakdown and fluctuating speed problems, and meeting the needs of multiple scenarios of heavy-load work.
Multiple specifications of oil circuit process holes, convenient for maintenance and pressure relief operations
The outer wall of the pump body is reserved multiple sets of standard oil circuit maintenance holes, pressure relief holes, and installation fixing holes. Maintenance personnel can quickly empty the air in the oil circuit, test the oil pressure, and simplify the process of troubleshooting the oil pump failure.

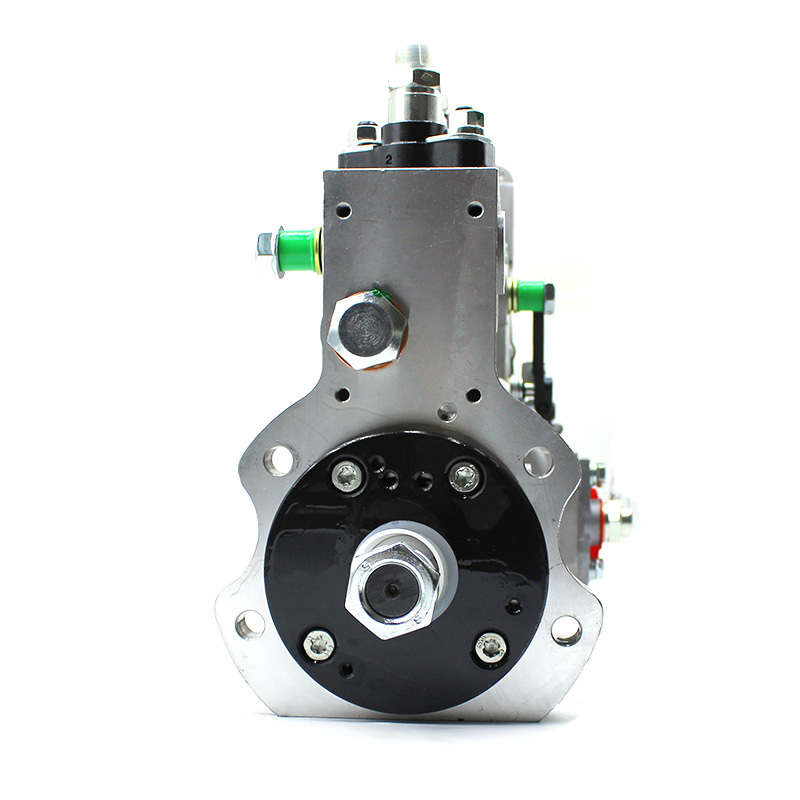

Standard front drive flange base, stable installation alignment without eccentric wear
The front end of the pump head is reserved a standard flange drive installation structure, with precise positioning holes, ensuring no radial shaking of the oil pump during operation, no eccentric wear of the plungers during reciprocating motion, and maintaining the balance of six-cylinder fuel supply over the long term.
The whole machine's six-cylinder synchronous flow bench calibration, no need for secondary adjustment during installation
The entire pump is independently tested on the machine to determine the uniformity of six-cylinder fuel supply, high-pressure sealing, speed regulation response speed, and idle stability. The factory parameters are unified, and after assembly, the equipment has stable idle speed and balanced power output, significantly reducing the maintenance and debugging time for heavy equipment.
Accessory list
4945792 Complete six-cylinder inline high-pressure fuel injection pump assembly 1 piece
Pre-installed sealing protection screws for six-way oil outlets Applicable scenarios
This product is suitable for long-distance heavy-duty freight trucks with six-cylinder mechanical direct injection fuel system, large mining excavators, heavy-duty wheeled loaders, high-power stationary diesel generators. It is applicable for 24-hour continuous heavy-duty operations in mines, long-distance trunk transportation, construction site high-temperature dust and impurity diesel corrosion environments. The six-cylinder mechanical direct injection diesel engine fuel supply boost components replacement is suitable for this product.
Product Basic Parameters

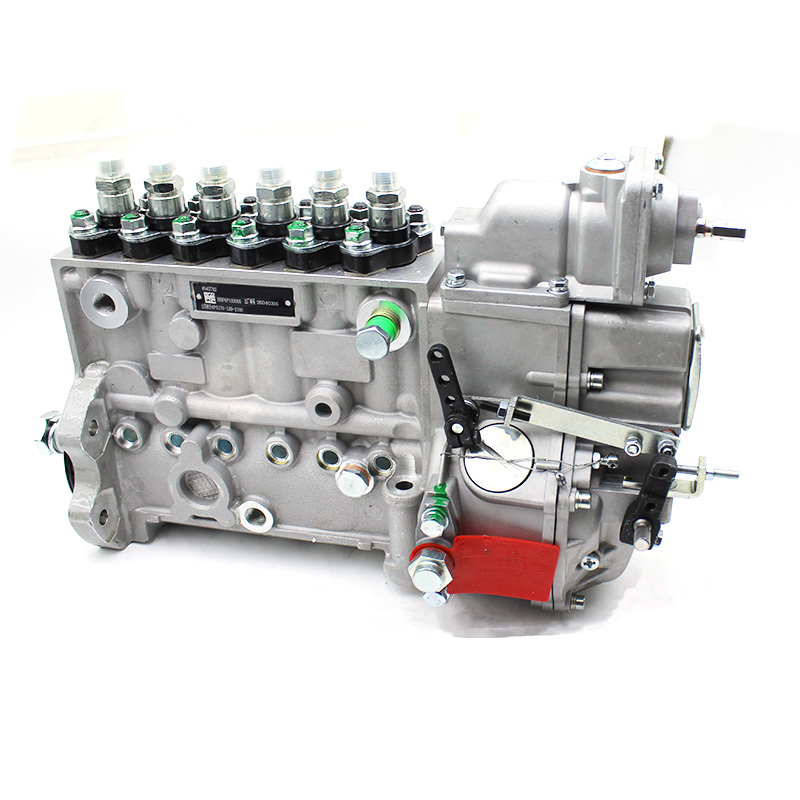

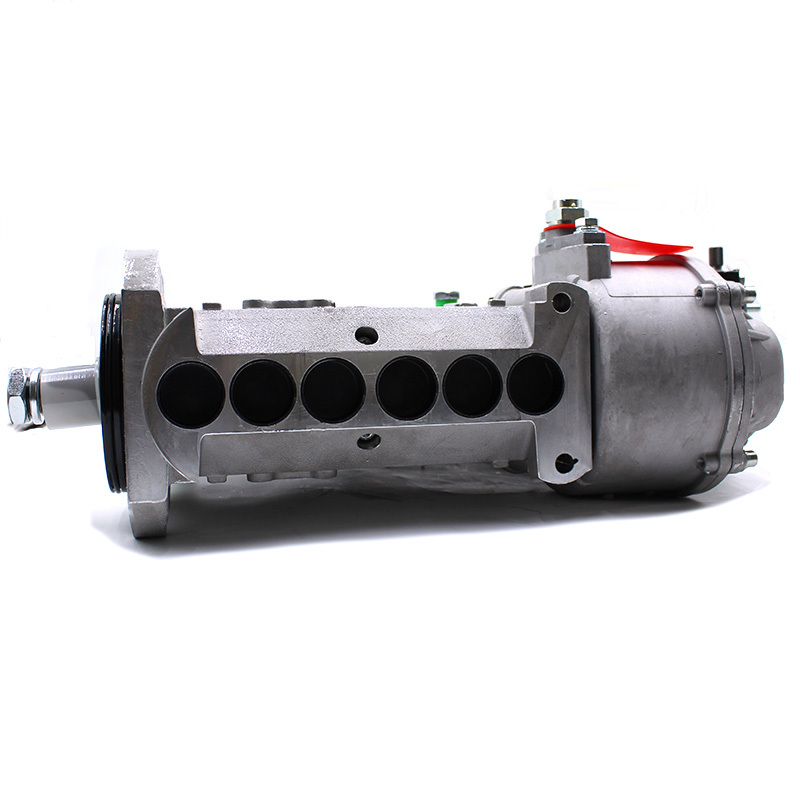

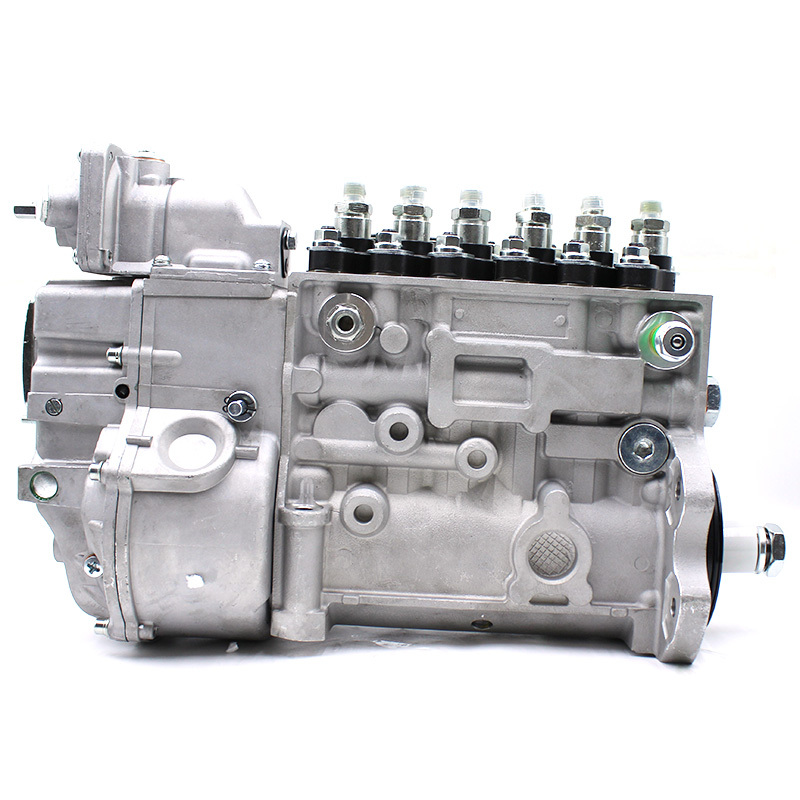

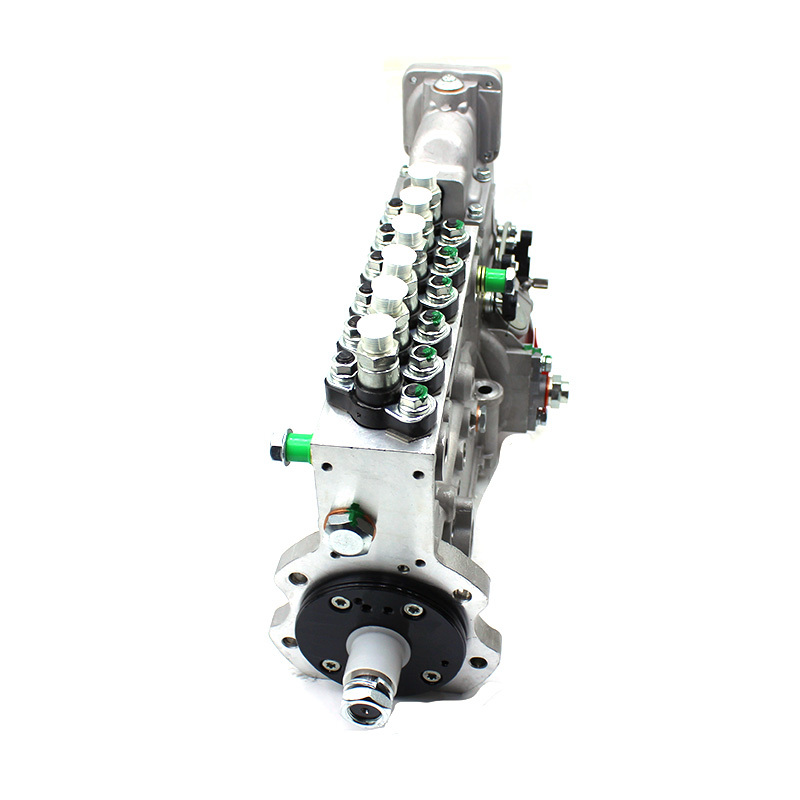

Product Name: 4945792 Six-Cylinder In-Line Mechanical High-Pressure Injection Pump Assembly
Part Number: 4945792
Main Material: Thickened integral cast aluminum pump body, hardened mirror-finished piston pair, oil-resistant rubber sealing gasket, metal speed regulating linkage assembly
Structural Feature: Six-cylinder in-line stepped pump body, top six high-pressure outlet ports, front end drive installation flange, left side integrated mechanical speed regulating mechanism, multiple sets of oil passage processing holes on the outer wall
Application Conditions: Medium-high pressure reciprocating cylinderized fuel supply, engine compartment high temperature vibration, impurity diesel corrosion six-cylinder mechanical direct injection diesel engine
Product Status: New and complete injection pump assembly, factory completed with complete bench test calibration and detection for six-cylinder fuel supply uniformity, high-pressure pressure bearing, speed regulation response
Packaging: Independent thickened shock-proof wooden tube packaging, all outlet ports and drive end equipped with plastic dust-proof plugs, foam buffer protection to avoid transportation impact damage to the threads and precise mating surfaces of the piston and cylinder, supports single-piece retail, bulk purchase in cases, suitable for cross-border large-sized logistics.
