Description
Product Overview
The M11 single injector operates continuously for 24 hours at full load in mines and construction sites. Over time, the rubber sealing ring will age and leak due to high temperatures, the pressure regulating spring will fatigue and lose its elasticity, and the single-direction steel balls and valve seat will wear out and fail to provide a tight seal. This will result in poor fuel atomization, uneven fuel supply in each cylinder, black exhaust smoke, dilution of engine oil by diesel, and a significant decline in equipment power. This complete maintenance package covers all the sealing and pressure regulating loss components of the injector needle valve chamber, pressure regulating mechanism, and housing installation position. During major repairs, all failed components are replaced at once, restoring the original factory fuel atomization and supply pressure, extending the injector's lifespan, and being suitable for heavy mining machinery, long-distance heavy-duty trucks, and high-power generator sets that require M11 injector maintenance.
Core advantages of the package
Multi-color layered fluorine rubber O-ring, covering all multi-chamber sealing points
Equipped with blue, white, green, black, and brown multi-sized oil-resistant sealing rings, suitable for different sealing positions of the injector housing, needle valve chamber, and pressure regulating chamber. The fluorine rubber material is resistant to diesel swelling, high temperature and high pressure, and is not prone to hardening and leakage under heavy load operation. It blocks internal fuel pressure relief.
Integrated metal positioning tabs, precisely limiting oil flow distribution
Long strip metal positioning tabs with standard oil passage slots, fixed the internal oil flow structure after assembly, preventing internal components from shifting during the reciprocating motion of fuel injection, ensuring uniform and stable fuel injection volume per cycle.
Two-length adjustable pressure regulating springs, precisely calibrated oil pressure
Equipped with two alloy pressure regulating springs of different thicknesses, respectively matching the needle valve opening and reset mechanism. The spring elasticity is uniformly calibrated at the factory. After replacing the worn-out old springs, the fuel injection opening pressure returns to the standard value, improving the atomization effect.
Single-direction steel ball + hard sealed valve seat, blocking fuel backflow
The metal wear-resistant steel ball combined with hardened valve seat forms a single-direction sealing structure, tightly blocking the backflow of high-pressure fuel, solving the problem of oil leakage after engine shutdown and difficulty in secondary startup. It is wear-resistant and resistant to impurities erosion.
Metal buffer flat washer, assembly for buffering and leak prevention
A steel flat washer is provided, assembled between the spring and the housing to buffer vibrations, disperse high-pressure impact, and assist in sealing, preventing oil leakage at the gap of the spring assembly position.
Standardized assembly components, completing the major repair of a single injector in one step
A single set includes all the sealing, pressure regulating, and single-direction components required for M11 injector maintenance. It eliminates the cumbersome process of separately purchasing gaskets, springs, and steel balls, reducing the inventory pressure of maintenance stores and improving the repair efficiency.

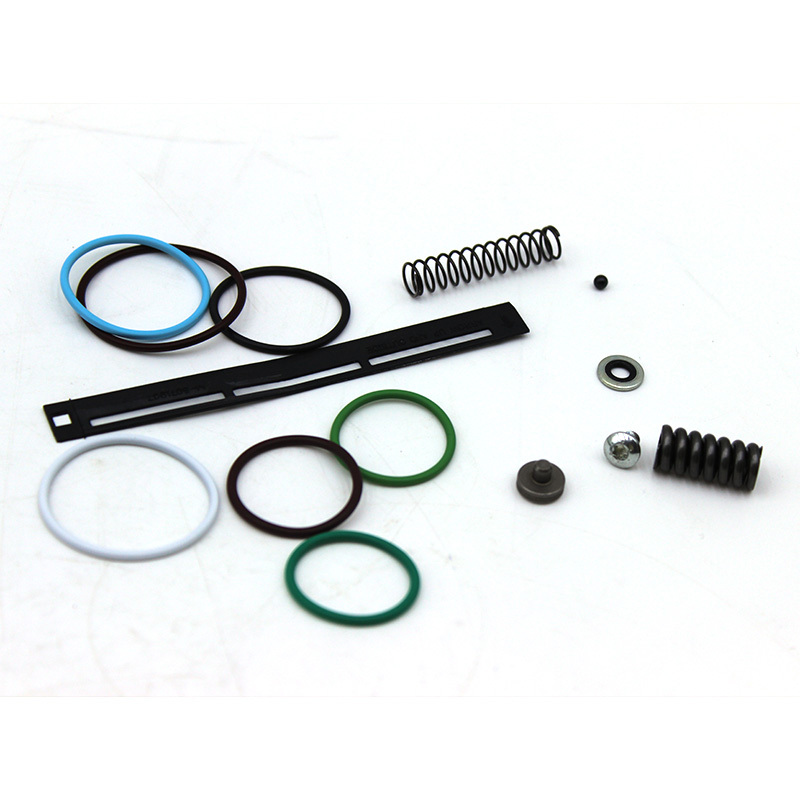

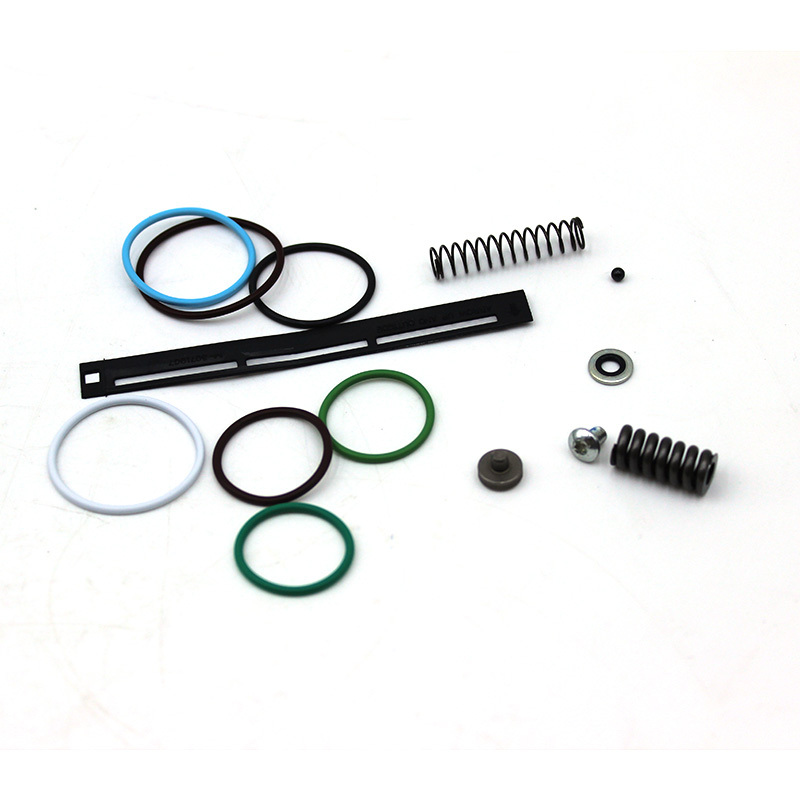

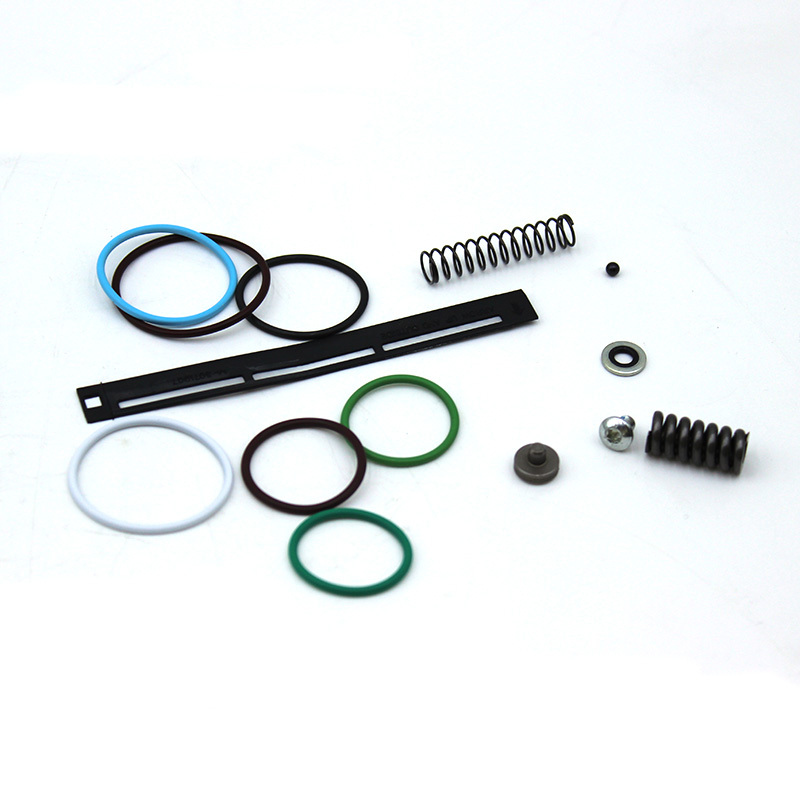

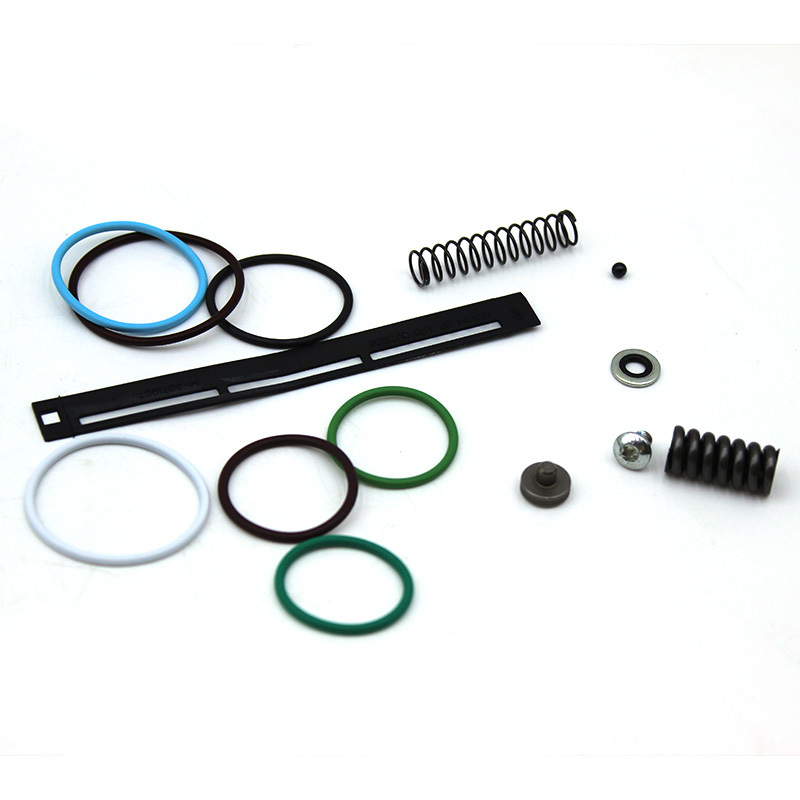

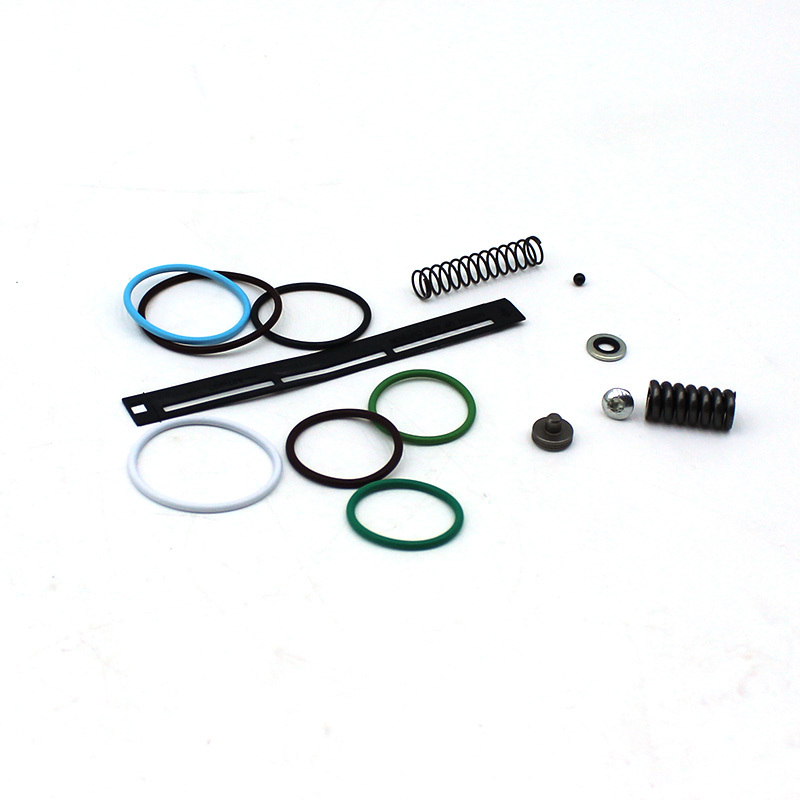

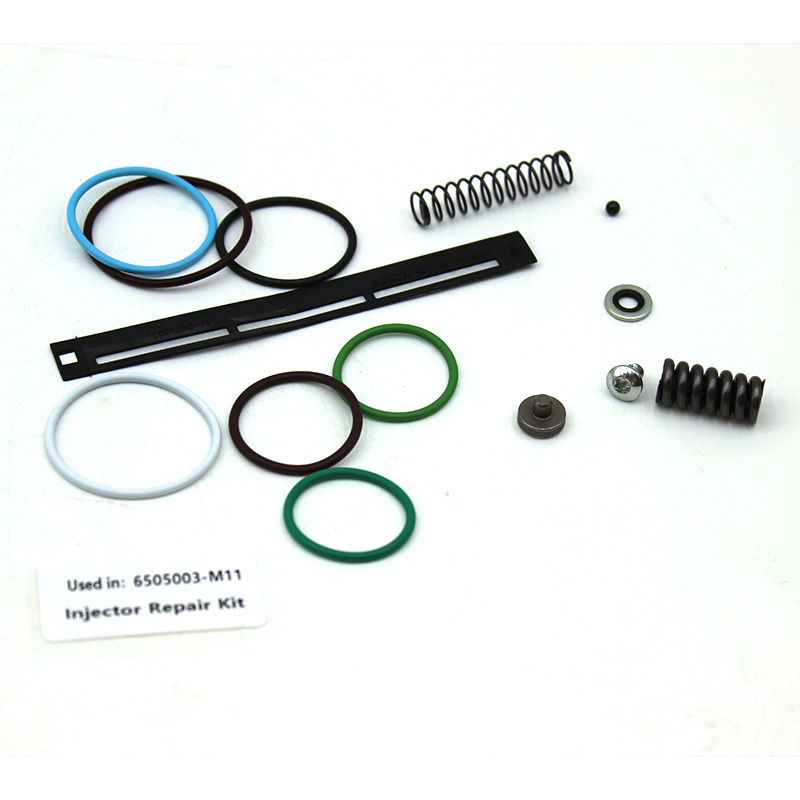

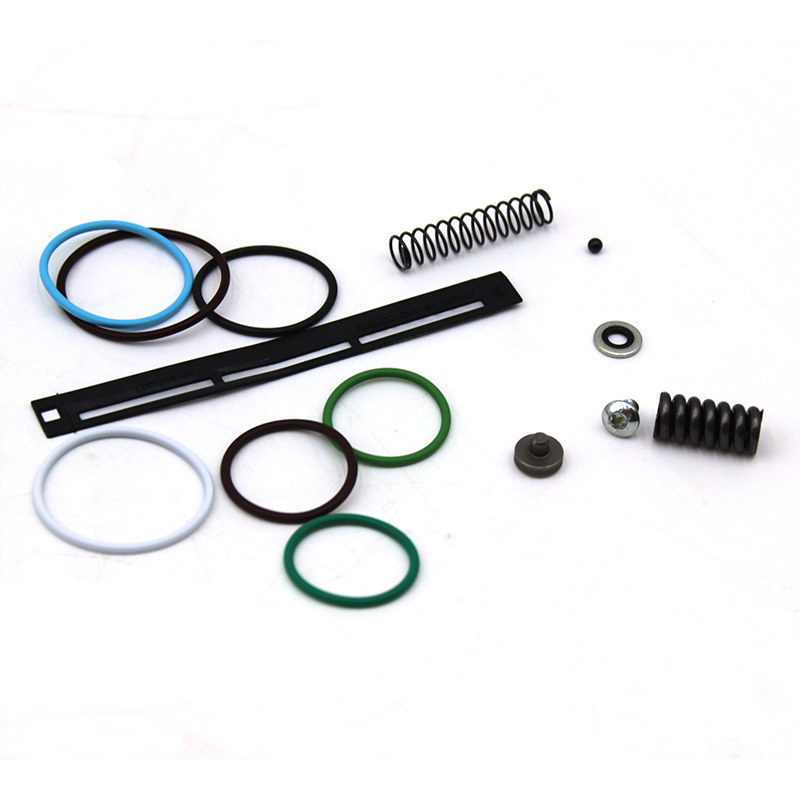

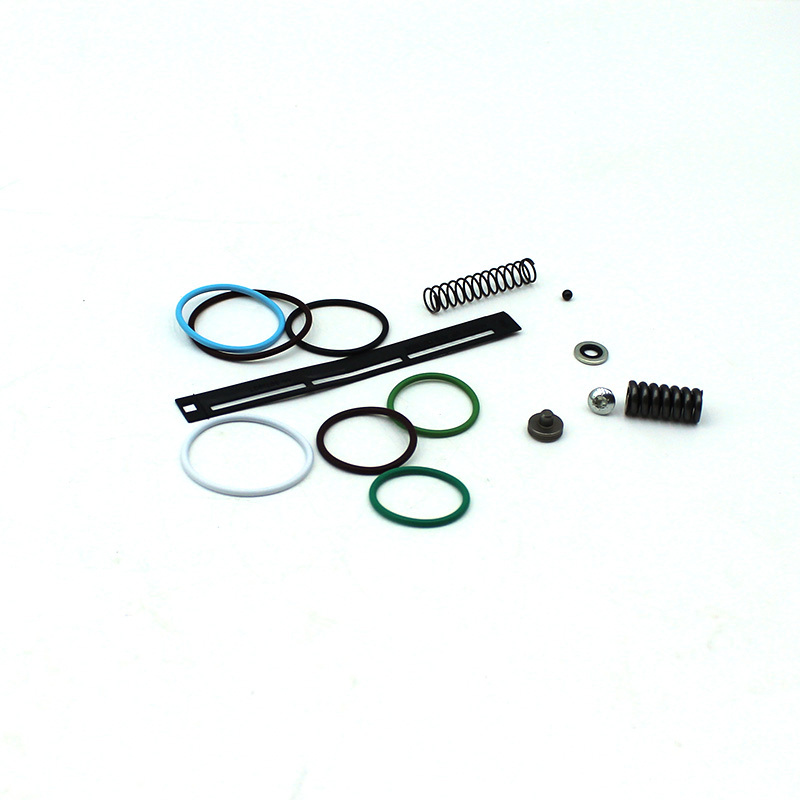

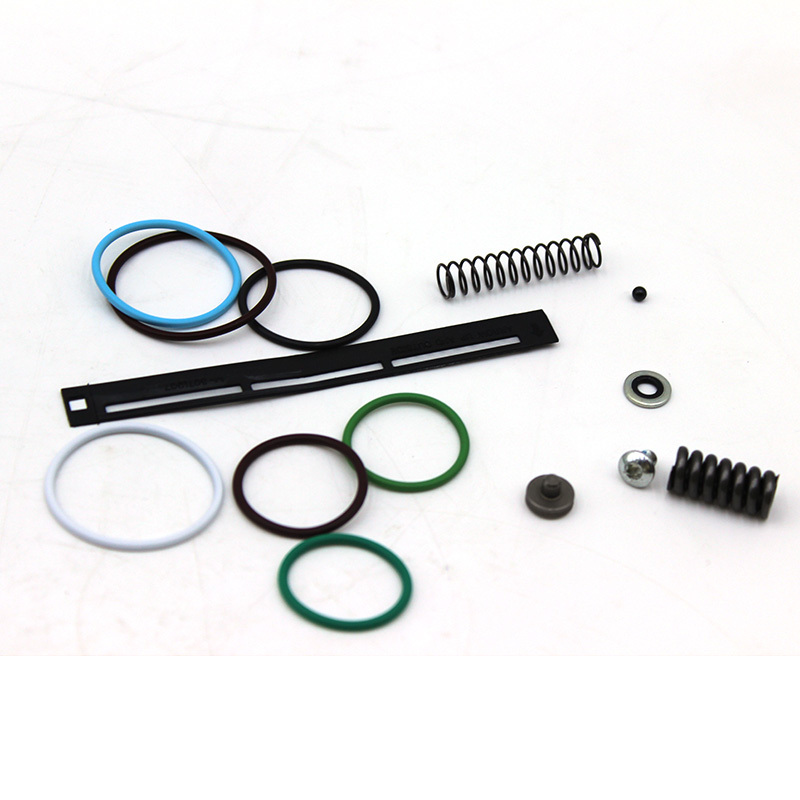

Assembly component details
Multi-sized colored oil-resistant fluorine rubber O-ring set
Black metal oil passage positioning tab 1 piece
Two adjustable pressure regulating reset springs
Single-direction sealing steel ball and hard valve seat assembly
Metal buffer flat washer Applicable scenarios
This product is suitable for large mining excavators, heavy-duty freight trucks, and high-power fixed diesel generators equipped with the M11 PT single injector system. It is applicable for the internal major repair of diesel engine injector components in heavy-duty diesel engines operating in mining environments with 24-hour continuous heavy loads, long-distance freight transportation, high-temperature and vibration in the engine compartment, and dusty and impure diesel conditions.
Product Basic Parameters
Product Name: 6505003-M11 M11 Injector Repair Kit
Compatible Injector Model: M11 Series PT Single Injector
Sealing Material: High-temperature resistant fluororubber
Spring / Steel Ball / Valve Seat Material: Quenched and tempered alloy steel
Metal Diaphragm Material: Rust-proof cold-rolled steel plate
Application Conditions: Ultra-high pressure reciprocating injection, continuous high-temperature vibration in the engine compartment, corrosion from impure diesel in the heavy-duty diesel engine injector repair environment
Product Status: New complete set of repair parts, factory completed with high-pressure sealingity, spring elasticity, and oil aging resistance full testing
Packaging: Independent sealed plastic packaging set, components placed in separate zones to prevent scattering and loss, supports single-piece packaging, bulk purchase of full cases, and is compatible with cross-border small items / full-case logistics.
