Description
Product Overview

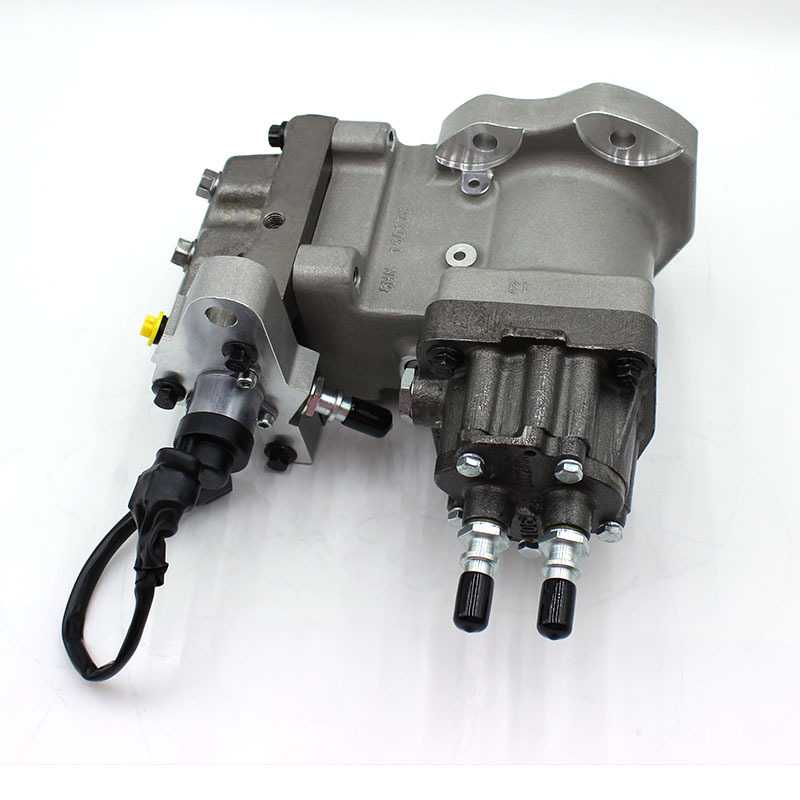

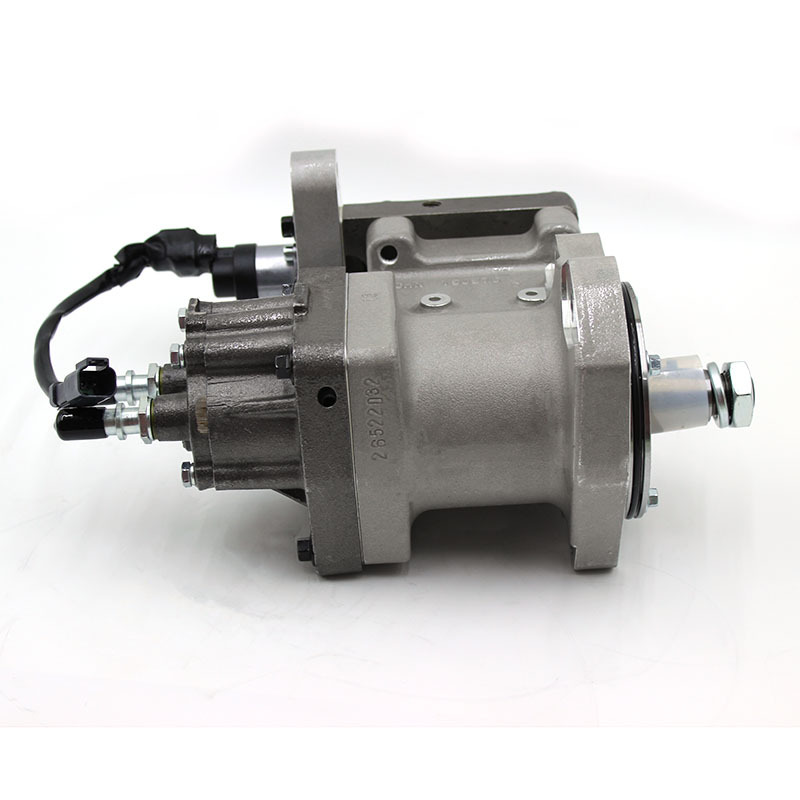

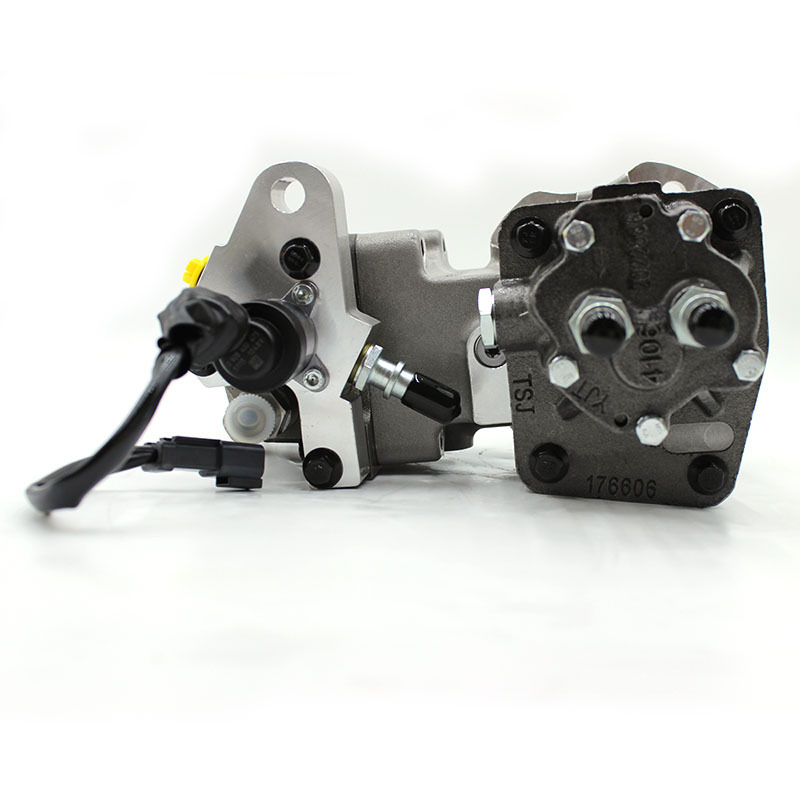

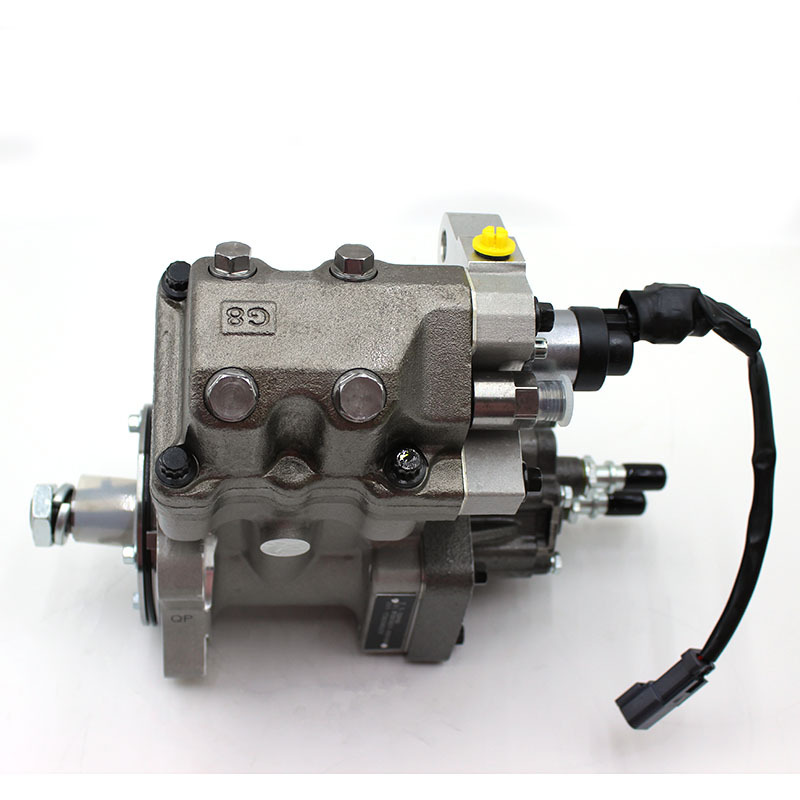

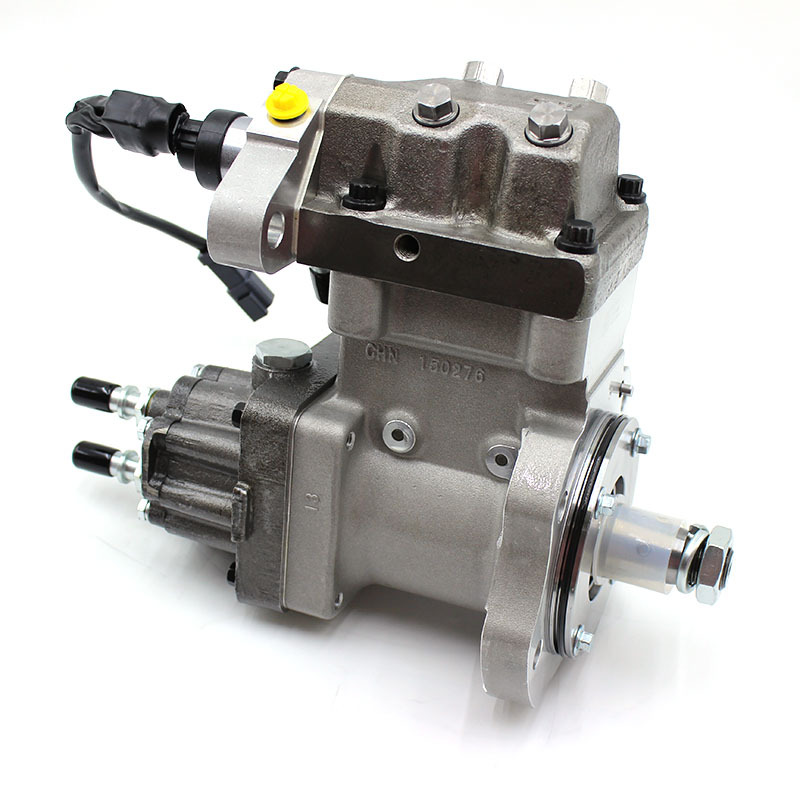

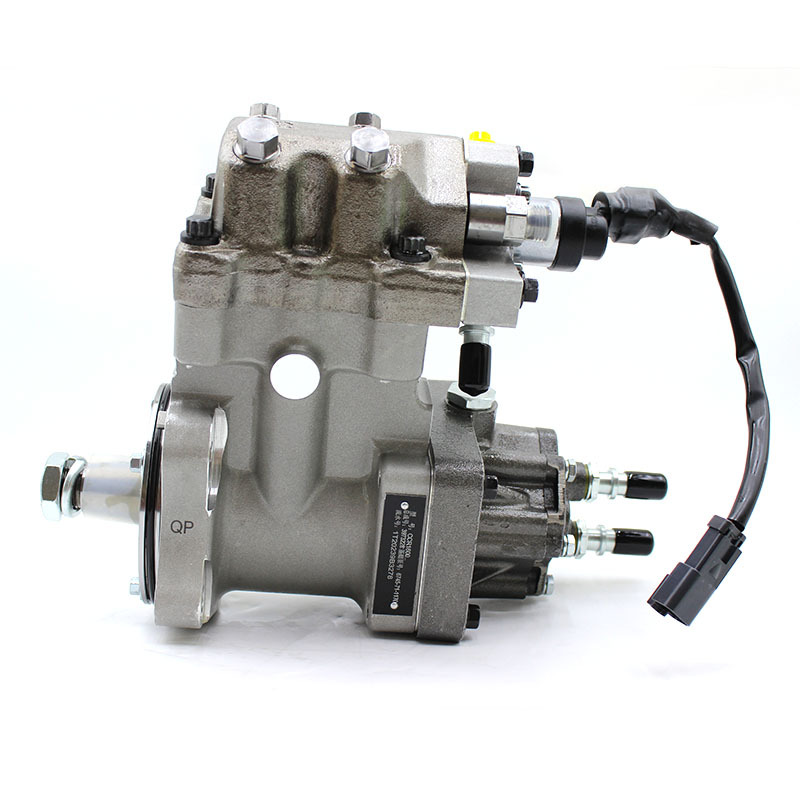

6745-71-1170 Common Rail High-Pressure Oil Pump is a fuel supply and boosting assembly for large-displacement heavy-duty diesel engines. It integrates a low-pressure oil chamber and a high-pressure boosting chamber into a single unit. It is equipped with an external electronic pressure regulating valve to adjust the rail pressure in real time, continuously supplying stable high-pressure fuel to the high-pressure oil rail. When the old oil pump experiences internal piston wear, pressure regulation failure, pipeline leakage, or fuel supply flow attenuation, the entire set can be replaced at once to restore the overall fuel supply condition of the machine, significantly reducing the downtime and maintenance time for large construction machinery.
Unique Core Features of the Single Product
Aluminum-cast dual-chamber pump body, integrated oil extraction and boosting chambers
The entire machine is formed by die-casting with a dual-chamber structure. One side completes fuel extraction and transportation, while the other side realizes high-pressure boosting. The internal oil circuit is cast as a whole without any joint gaps, resulting in low fuel loss and stable fuel supply flow under high-speed and heavy-load conditions. There is no fuel supply interruption.
External wired electronic pressure regulating valve, rapid oil pressure adjustment response
An independent electronic pressure regulating valve body is assembled on the side of the pump body, and it is equipped with an integrated waterproof connector. It can collect oil circuit pressure in real time and dynamically adjust the output oil pressure. When the throttle load changes, the rail pressure is adjusted synchronously, precisely matching the fuel supply requirements of the engine under different conditions.

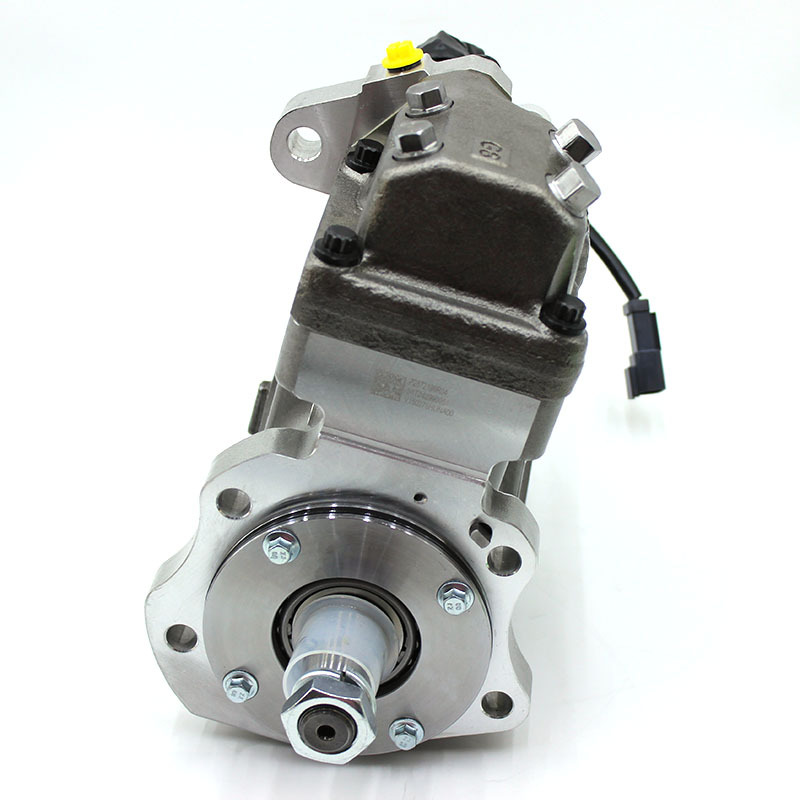

Thickened front end flange transmission shaft, synchronous transmission without slipping
The front end solid thickened transmission shaft is combined with a circular positioning flange. The flange is reserved with standard fixing holes, and the assembly is evenly stressed. The pump body is less likely to shift under long-term high-frequency vibration operation, and the main shaft transmission bites tightly without slippage or pressure leakage.
Two independent threaded oil ports, clear inlet and outlet oil circuit division
Two separate threaded connectors are set below the pump body, corresponding to the inlet and return oil pipelines. The connector has a stepped sealing structure, and with a sealing gasket, it can achieve high-pressure anti-leakage. The pipe layout is flexible, suitable for various machine oil circuit layouts.
Uniformly distributed multiple-point bolts locking, long-lasting pump body sealing without oil leakage
The joint surfaces of the pump body are evenly pressed by multiple fastening bolts, and internal high-temperature and oil-resistant sealing pads are provided. Under long-term high-temperature and high-pressure operation of the cylinder, the sealing parts are less likely to age and fail, and there is no oil leakage or dirt accumulation at the joint gaps. Applicable scenarios
It is compatible with six-cylinder large-displacement heavy-duty diesel power units and is widely used in large mining excavators, heavy-duty loaders, mining tunneling equipment, fixed high-power diesel generators, and is suitable for overall replacement of the oil circuit system of equipment used for full-load continuous operation around the clock in mining areas and outdoor construction sites.
Product Basic Parameters
Product Name: Dual-chamber Integrated High-pressure Common Rail Fuel Pump Assembly
Part Number: 6745-71-1170
Main Material: Cast aluminum integrated pump body, alloy transmission shaft, metal electronic control pressure regulating valve body, high-temperature resistant sealing components
Structural Feature: High and low pressure dual-chamber integrated pump body, external-mounted wire harness electronic control pressure regulating valve, flange transmission shaft, dual-path inlet and outlet threaded interfaces
Application Conditions: High-power continuous high-pressure heavy load, cylinder body high temperature, high dust outdoor industrial working environment
Product Status: New and complete fuel pump assembly, completed with full factory tests for fuel supply flow, high-pressure sealingity, and electronic control pressure regulating response
Packaging: Thickened and reinforced shock-proof wooden box packaging, providing comprehensive protection for the transmission shaft, pressure regulating valve body, and threaded interfaces to prevent transportation impacts and damages, suitable for cross-border long-distance large-piece logistics.
