Description
Product Overview
The pressure sensor is threaded and assembled at the oil passage position of the high-pressure common rail pipe. The internal high-precision sensing chip continuously captures changes in fuel pressure and converts them into voltage signals recognizable by the electronic control unit. The electronic control system dynamically adjusts the oil pump supply pressure and injection timing based on these signals. Under long-term ultra-high oil pressure erosion, cabin temperature alternation, and diesel medium corrosion conditions, the sensing element ages and the internal seal fails, resulting in distorted rail pressure data, power surges, rapid oil circuit pressure relief after engine shutdown, and the need for multiple ignitions to start the vehicle. This product has standardized thread dimensions, signal output parameters, and pressure-bearing thresholds. The sensor can be simply replaced during maintenance to fix abnormal oil pressure signal faults. It is suitable for the maintenance of electric control common rail diesel engines for light pickup trucks, light trucks, and small passenger diesel vehicles.
Core advantages of this product:
The middle stainless steel hexagonal metal clamping section is pressure-resistant, rust-proof, and easy to disassemble and assemble.
The central integrated stainless steel hexagonal limit platform has a finely polished metal surface, which can withstand continuous high-pressure fuel impact, prevent water vapor and diesel corrosion, and is compatible with standard socket wrenches. The force during disassembly is uniform, and it will not compress the internal sensing element, causing damage.
The black insulation protective shells at both ends provide double protection for the internal precision components.
Both the oil inlet and outlet ends are equipped with black oil-resistant plastic casings, which isolate the cabin's high-temperature radiation, oil stains, and dust, protecting the sensing chip and conductive terminals, delaying aging, and extending the sensor's service life.

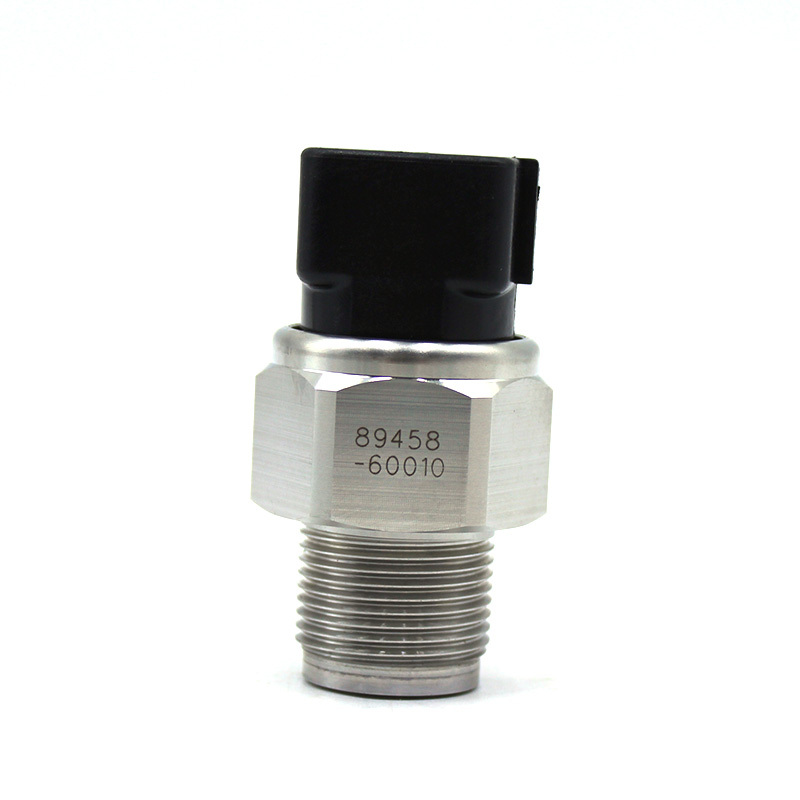

The metal end face is engraved with the part code for quick matching during storage and maintenance.
The hexagonal metal surface is laser-engraved with the serial number 89458-60010, which is resistant to diesel soaking and repeated wiping without the characters falling off. During maintenance and stock preparation, it can quickly distinguish the specifications to avoid incorrect installation and abnormal oil pressure collection, power failure, and other faults.

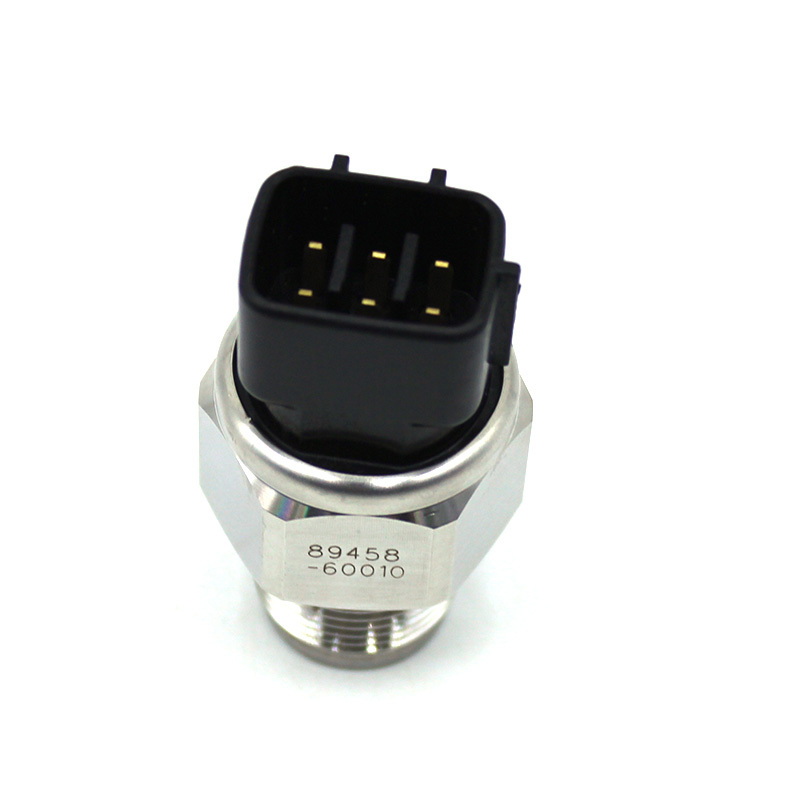

The waterproof integrated electrical control plug is placed on the side and ensures stable signal transmission and resistance to interference.
The black sealed socket has a dust-proof and waterproof rubber ring inside, which isolates the cabin's water vapor and oil stains, preventing short circuits and signal loss. The oil pressure signal transmission is without delay and no numerical drift under all working conditions.
The built-in high-precision sensing chip detects oil pressure within the entire range with small errors.
It matches a dedicated pressure sensing element, and the oil pressure collection line is linear and stable from no-load to heavy-load throughout the process. The electronic control unit can precisely adjust the rail pressure, eliminating idle speed wobble and acceleration jolts.
The entire machine is uniformly calibrated for oil pressure at the factory, and no secondary debugging is required during installation.
Each sensor is independently calibrated for oil pressure - voltage corresponding curves. The factory signal parameters are unified, and after assembly, it directly adapts to the original vehicle's electronic control system, quickly restoring the vehicle's smooth power output.
Parts list:
89458-60010 Complete Common Rail Pressure Sensor 1 unit
Pre-installed built-in oil-resistant fluorine rubber sealing gasket 1 sheet Applicable scenarios
This product is suitable for light-duty freight trucks, diesel pickups, small passenger vans, and small fixed diesel generators equipped with high-pressure common rail fuel supply systems. It is applicable for short-distance urban deliveries, rural road transportation, and lightweight electronic common rail diesel engines operating in outdoor environments with alternating temperatures, dust, and diesel corrosion.
Product Basic Parameters

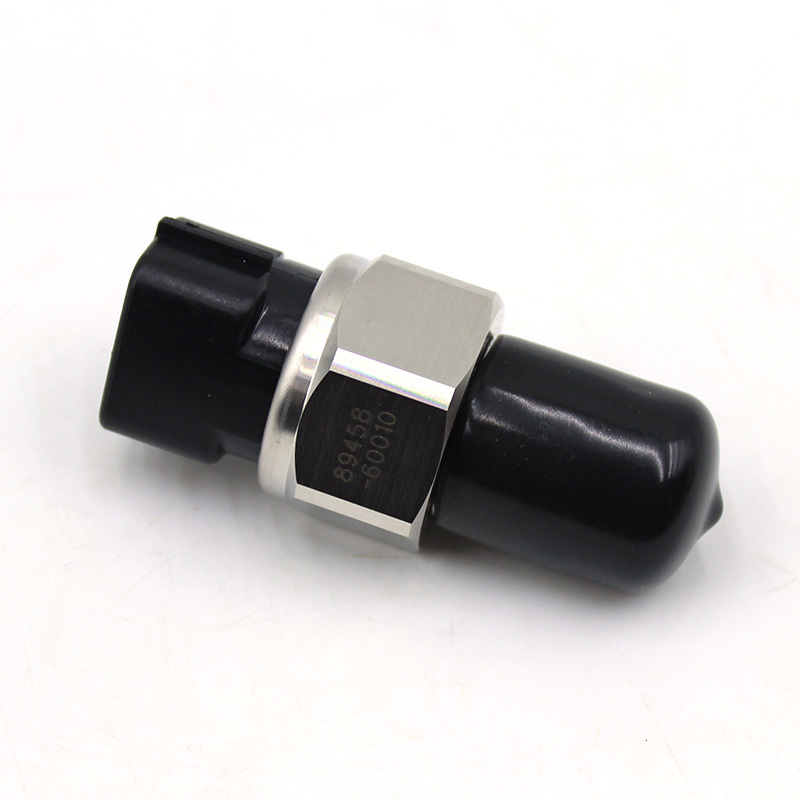

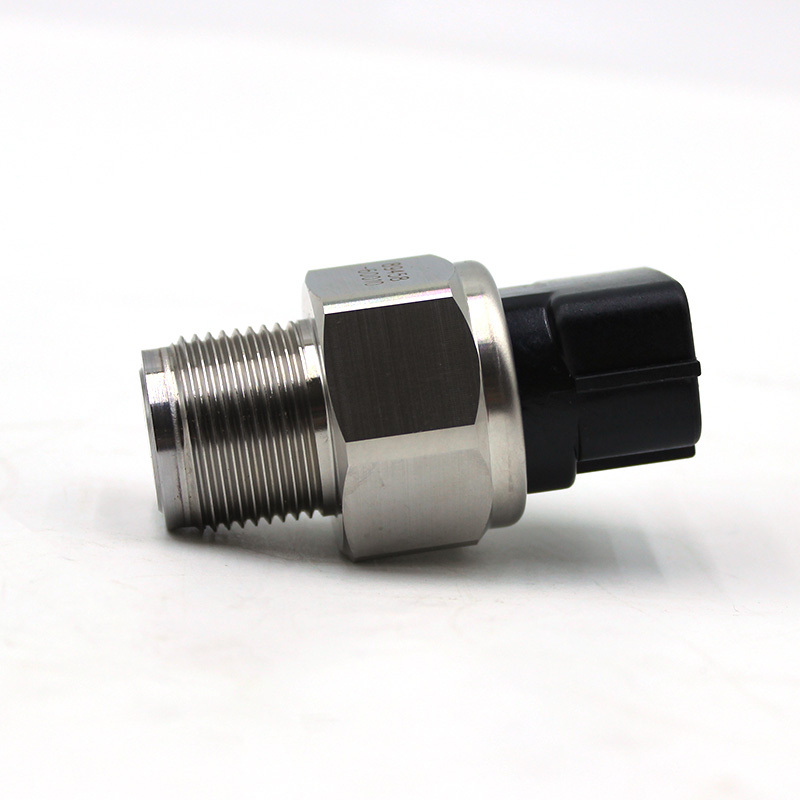

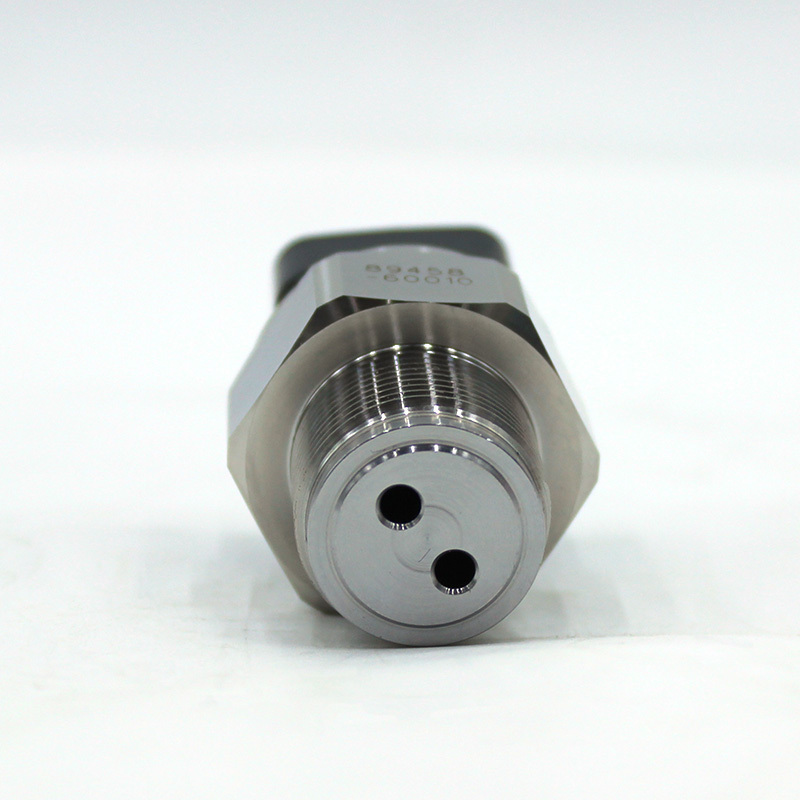

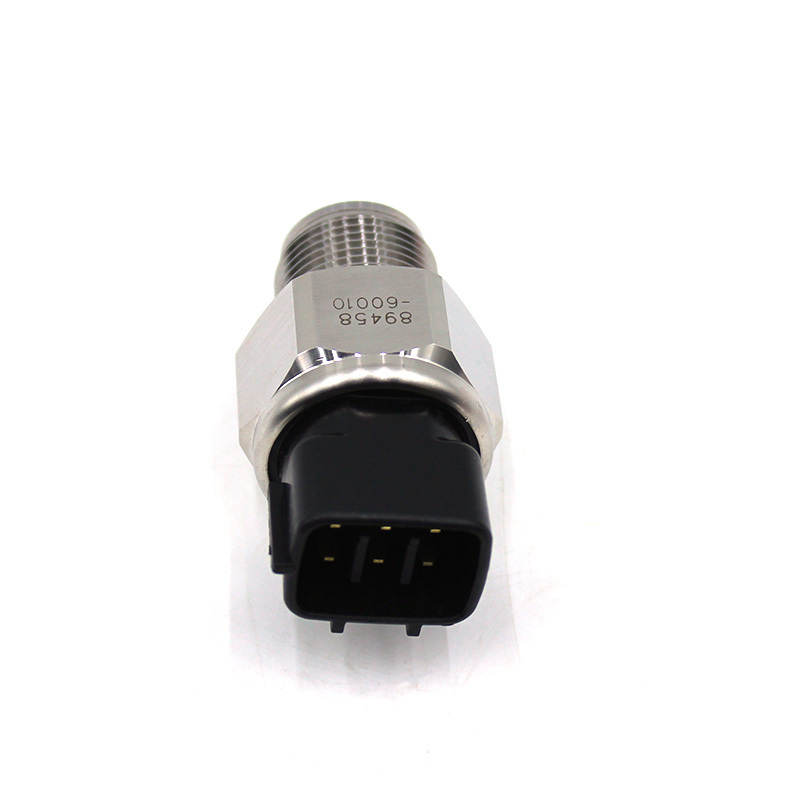

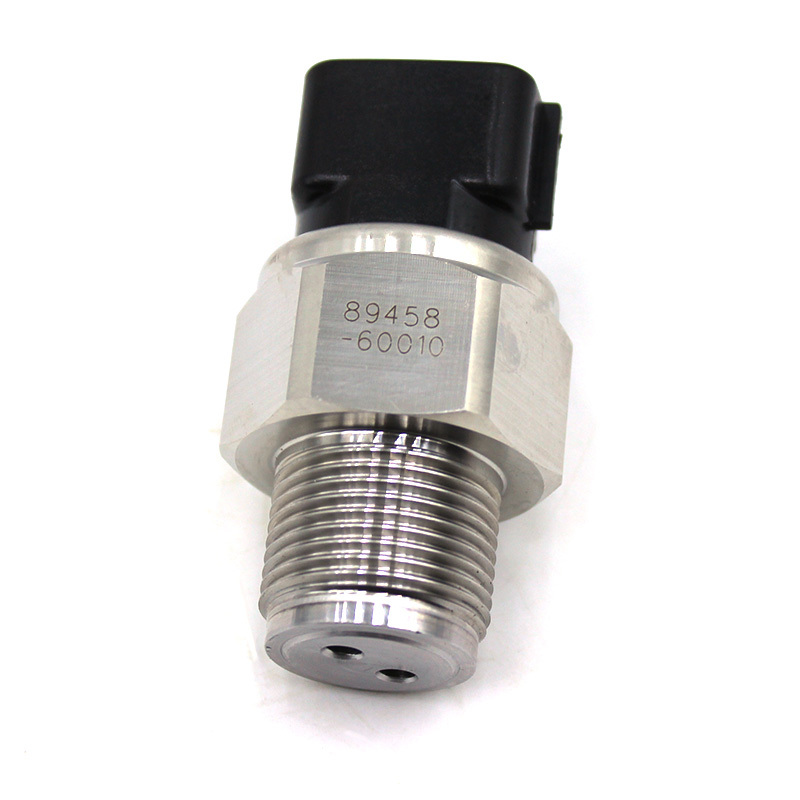

Product Name: 89458-60010 Common Rail Fuel Pressure Sensor
Part Number: 89458-60010
Main Material: Stainless steel hexagonal clamping section, oil-resistant insulating plastic housing, waterproof electronic control plug, high-precision pressure sensing chip, fluorine rubber built-in seal
Structural Feature: Middle section hexagonal metal disassembly platform, black insulated protective shells at both ends, side-mounted waterproof electronic control plug-in socket, metal surface engraved with part code
Application Conditions: Ultra-high fuel pressure real-time collection, engine compartment alternating cold and hot vibrations, diesel medium corrosion lightweight electronic common rail diesel engine
Product Status: New and complete sensor assembly, factory completed with oil pressure collection accuracy, high-pressure sealingity, and signal transmission stability full bench calibration and testing
Packaging: Single-piece independent hard tube protection packaging, threaded end, electronic control plug equipped with plastic dust-proof protective cover, foam buffer protection to avoid transportation磕碰划伤 threaded and conductive terminals， supports single-piece retail， bulk purchase in cartons， and is compatible with cross-border small package logistics.
