Description
Product Overview

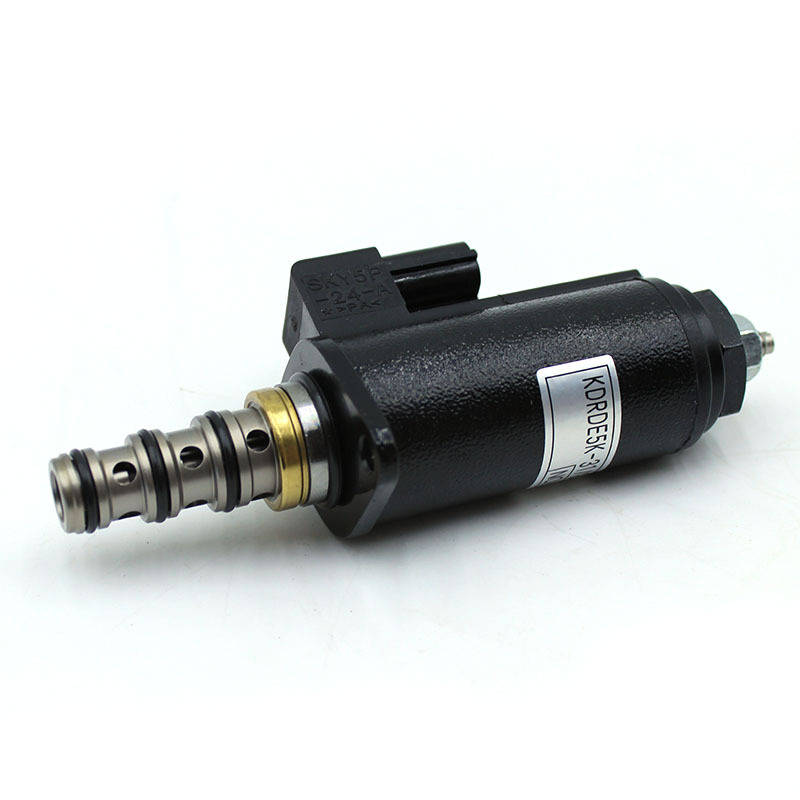

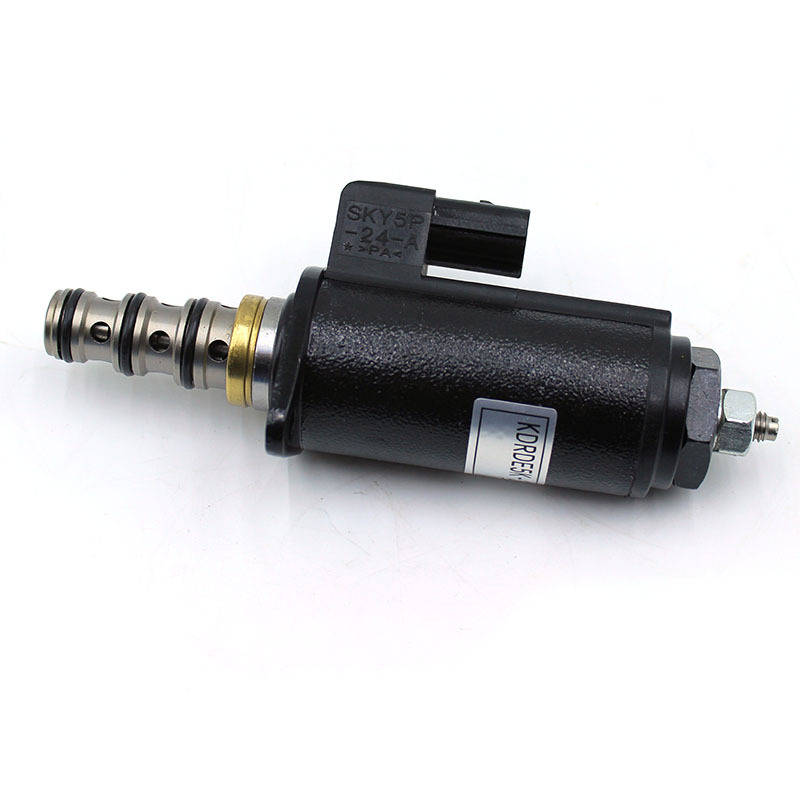

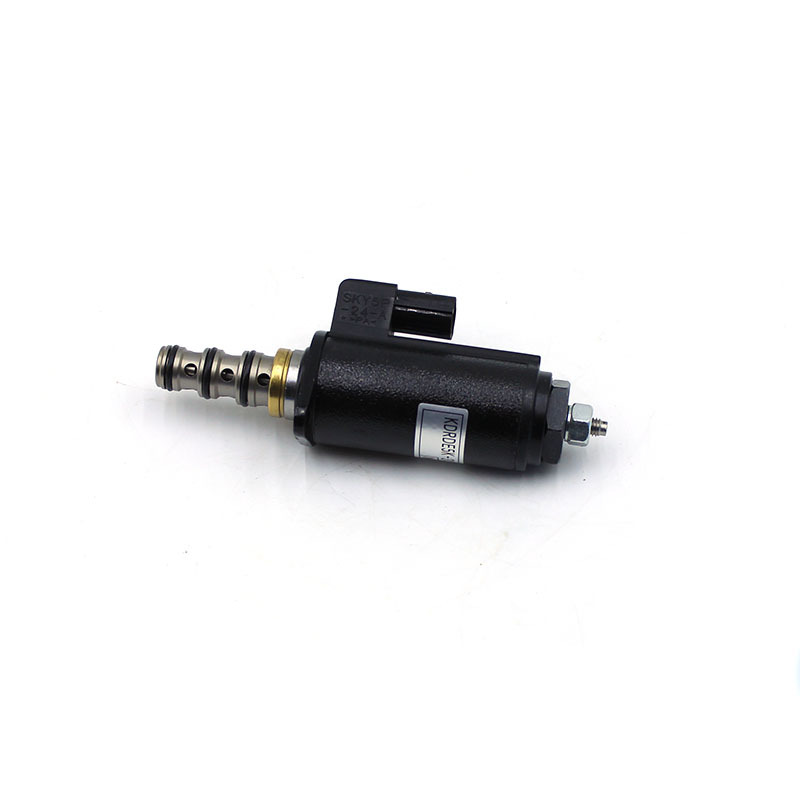

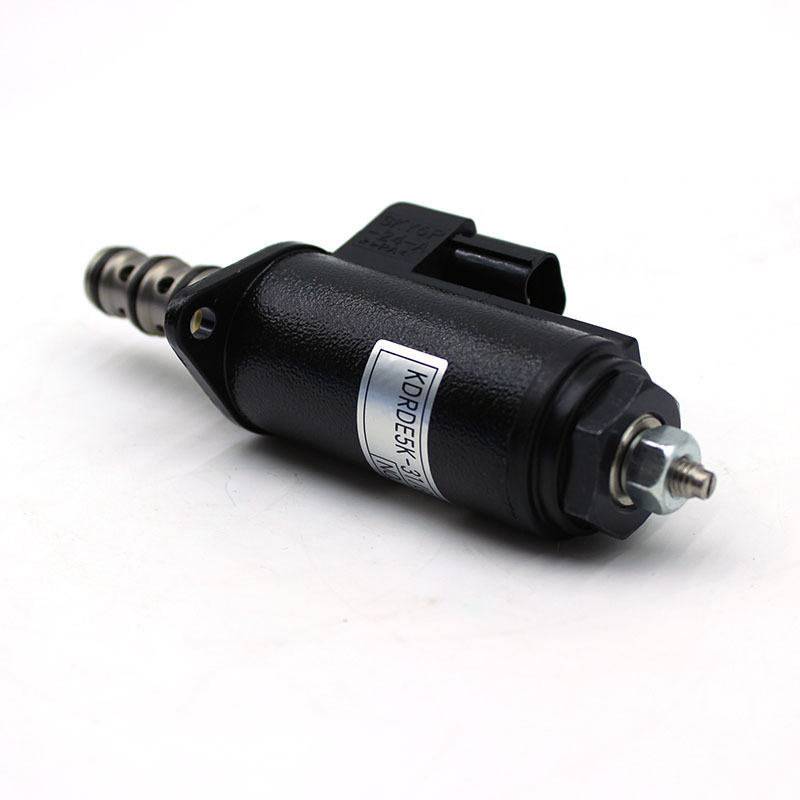

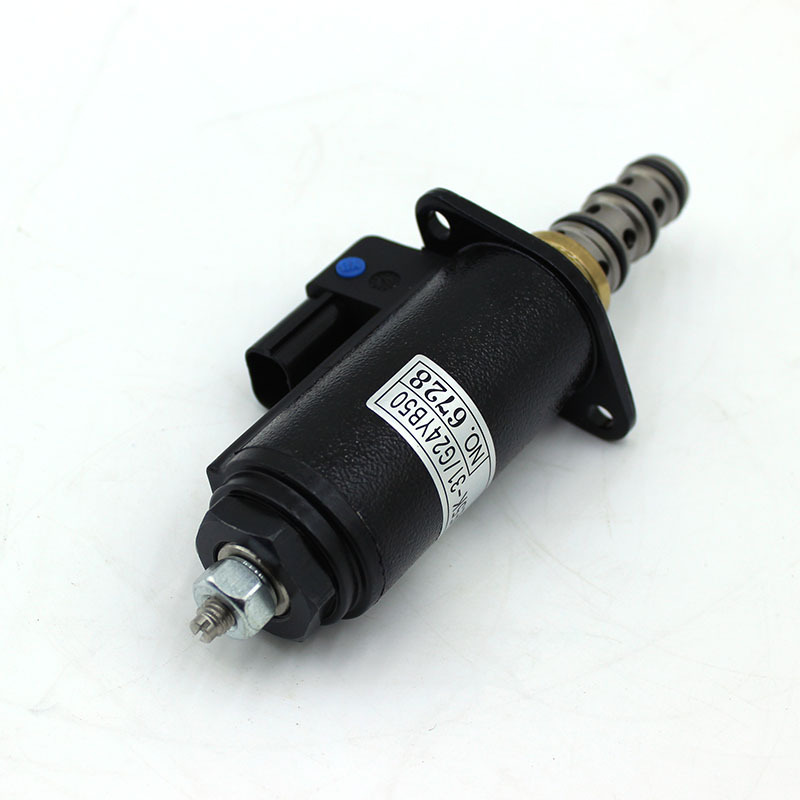

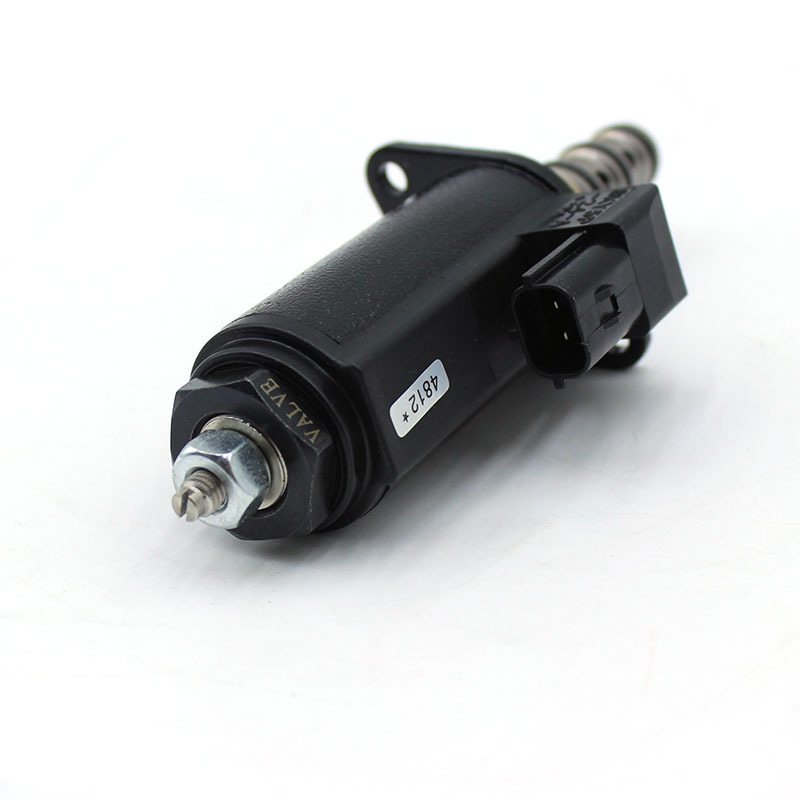

G24YB50 is a dedicated electromagnetic control valve for the hydraulic system of construction machinery. It is specifically designed for 24V equipment circuits and features a split multi-stage slide valve structure, which is different from simple direct-through electromagnetic valves. It controls the opening and closing of the oil circuit and the adjustment of the flow rate through electromagnetic signals. It is mainly used to address faults such as sluggish or weak equipment movements, malfunctioning oil circuit switching, etc. The complete assembly of this part does not require additional accessories. It is compatible with corresponding models of construction machinery equipment.
Material and exclusive processing techniques

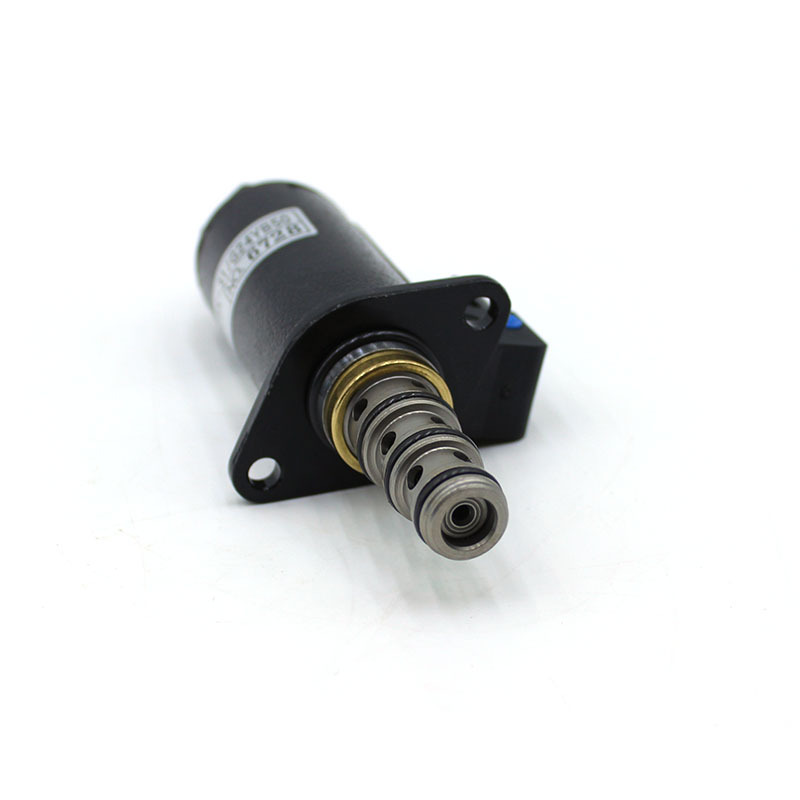

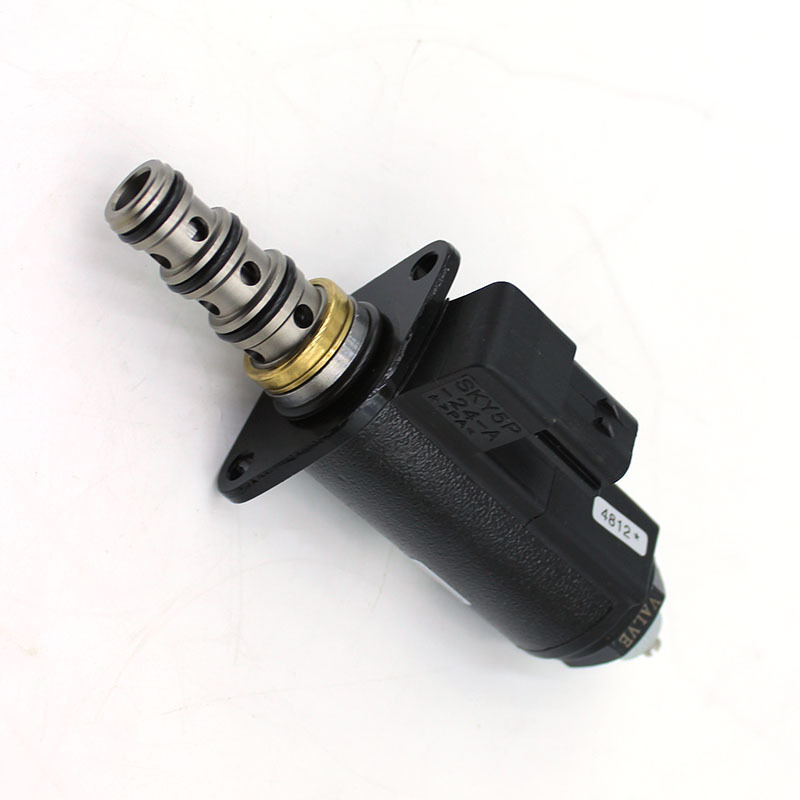

Multi-level alloy slide valve core
The front-end multi-slot valve core is precisely machined from high-hardness alloy steel, then polished to a mirror finish. Multiple circular sealing grooves are combined with oil-resistant sealing rings, which can withstand long-term high-pressure flushing from hydraulic oil, reducing the probability of sticking and internal leakage.
Anti-corrosion and dust-proof valve body shell
The main shell's metal substrate is coated with matte finish on the outer layer, preventing erosion by oil, mud and water. It is suitable for dusty and humid working environments in construction sites; the internal electromagnetic coil is wound with high-temperature-resistant insulation wire, reducing the probability of overheating faults during long-term operation.
Standard integrated assembly structure
Integrated plug positioning on the side, unified standardization of both ends' oil circuit threaded interfaces. Copper isolation gaskets buffer the impact of oil pressure, and the entire assembly is formed as one piece. There is no need to disassemble internal components for disassembly.
Product Usage Characteristics
24V Standard Electronic Control Compatibility
Compatible with mainstream construction machinery's 24V power supply lines. The electromagnetic signal transmission is sensitive, and the oil circuit switching response is smooth, alleviating phenomena such as equipment operation jitter and sluggish response.
Multi-stage Sliding Valve Reduces Hydraulic Internal Leakage
Multiple sections of annular sealing grooves layer by layer block the hydraulic oil, reducing internal leakage under high-pressure conditions, maintaining stable hydraulic output, and ensuring uniform equipment operation feel.
Universal Standardized Installation Interface
The side electrical plug and the inlet and outlet oil thread ends are uniformly matched with the corresponding hydraulic valve blocks. No need to modify the wiring or oil circuit. The replacement and installation process is simple, shortening the equipment downtime for maintenance.
Independent Protective Packaging Compatible with Export
Each unit is equipped with a shock-proof independent packaging to avoid damage to the valve core due to transportation bumps and scratches.
