Description
Product Overview

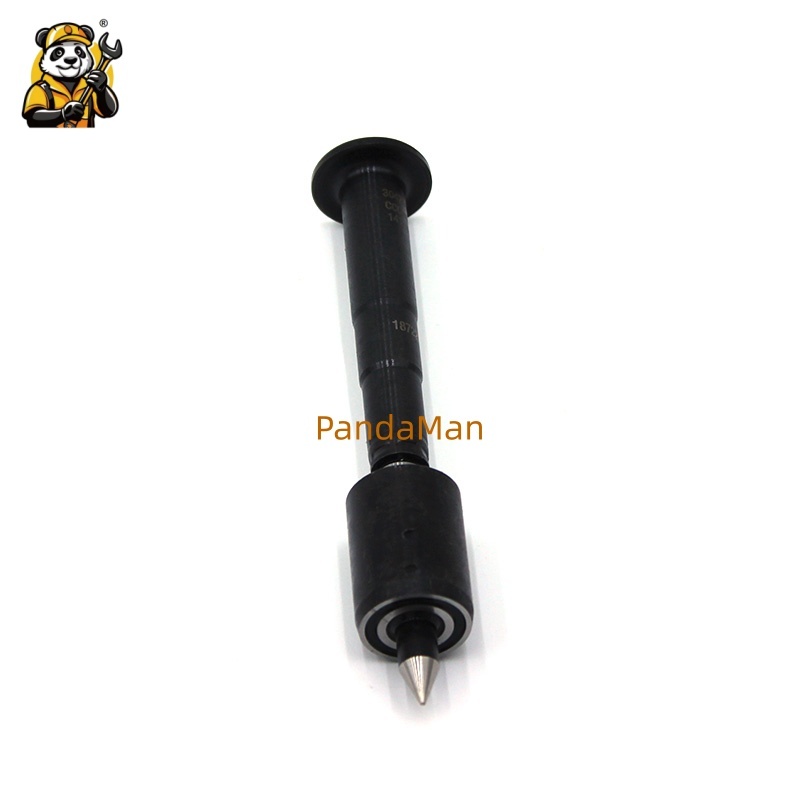

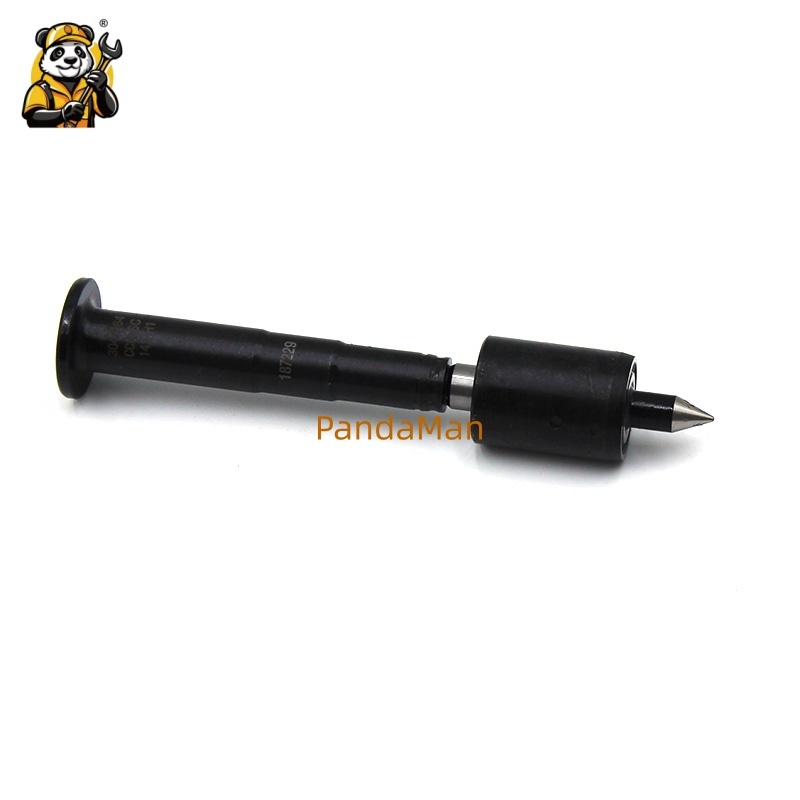

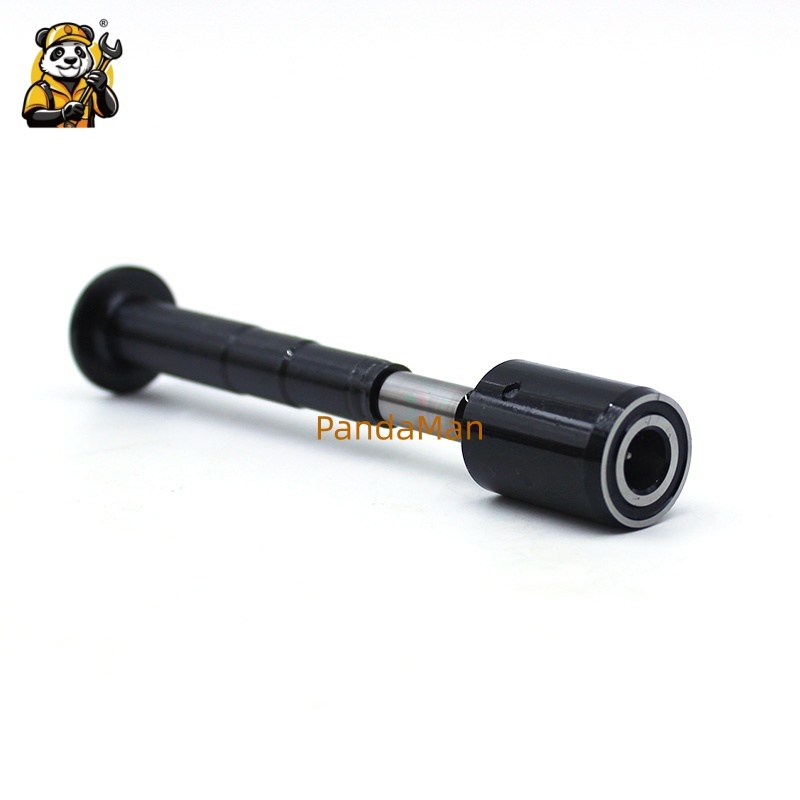

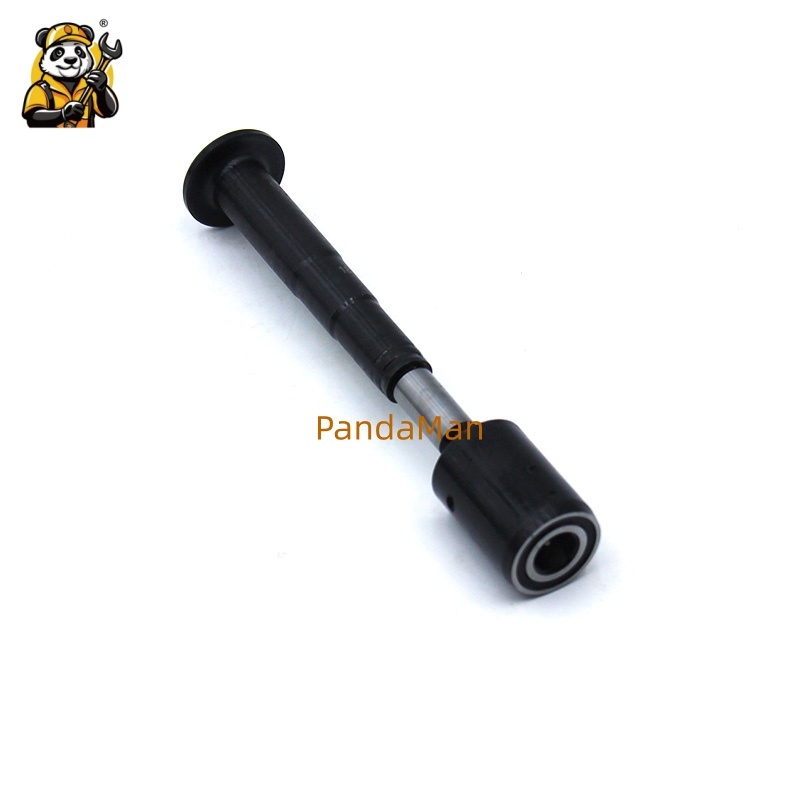

The piston pair is assembled inside the pump chamber of the high-pressure oil pump and is driven to reciprocate up and down by the cam. It compresses the low-pressure fuel to establish an ultra-high oil pressure, precisely measuring the fuel volume for each delivery to the fuel injection system. Under the long-term conditions of thousands of bar of high-pressure fuel flushing, impurities in diesel particles grinding, and continuous high-temperature vibration of the engine compartment, the sealing surface between the piston and the sleeve will develop scratches, and the mating clearance will increase. This may result in internal fuel pressure leakage, slower pressure generation by the oil pump, imbalance in fuel supply for each cylinder, difficulties in cold start of the equipment, lack of power in a single cylinder, and power breakdown during heavy-load climbing. This product has all the dimensions of the piston and sleeve, such as total length, inner diameter of the sleeve, and the size of the variable diameter segments, standardized for processing. After disassembling the high-pressure oil pump, the entire set of piston and sleeve can be replaced to repair the failure of boost supply. It is suitable for large mining excavators, heavy-duty wheeled loaders, and long-distance heavy-duty freight trucks with diesel engines for high-pressure oil pump maintenance and servicing.
Core Advantages of the Single Product
The quenched and tempered alloy steel is fully precision ground. It has high hardness and is resistant to high-pressure flushing and wear.
Both the piston rod and the pressure-bearing sleeve have undergone high-temperature quenching and hardening treatment. All sealing mating surfaces are micrometer-level mirror-polished. They are not prone to scratches or deformation of the hole diameter under long-term high-pressure fuel and impurity particle flushing, maintaining a precise sealing gap for a long time and preventing internal fuel pressure leakage.
The segmented variable-diameter piston rod design optimizes fuel flow and reduces vortex wear.
The piston rod adopts a segmented thick-thin variable-diameter structure to guide the uniform分流 of high-pressure fuel， reducing the impact loss on the sealing contact surface and minimizing local wear， thereby extending the overall service life of the piston pair.
The thickened integrated pressure-bearing sleeve is less likely to deform or crack under high-pressure conditions.
The sleeve wall is integrally thickened for one-piece molding， providing higher pressure-bearing strength. It will not undergo micro deformation of the sleeve body under long-term ultra-high oil pressure impact， maintaining the coaxiality of the piston reciprocating motion and avoiding single-sided wear-induced sticking and sealing failure.
One-to-one matching mirror grinding of the piston and sleeve ensures a completely locked sealing of the fuel return.
Each set of piston and sleeve is individually matched and ground， with uniform gap between the closed mating surface， no fuel leakage or backflow during the compression stroke， ensuring stable pressure generation by the oil pump， and residual oil pressure remaining after engine shutdown， improving cold start performance.

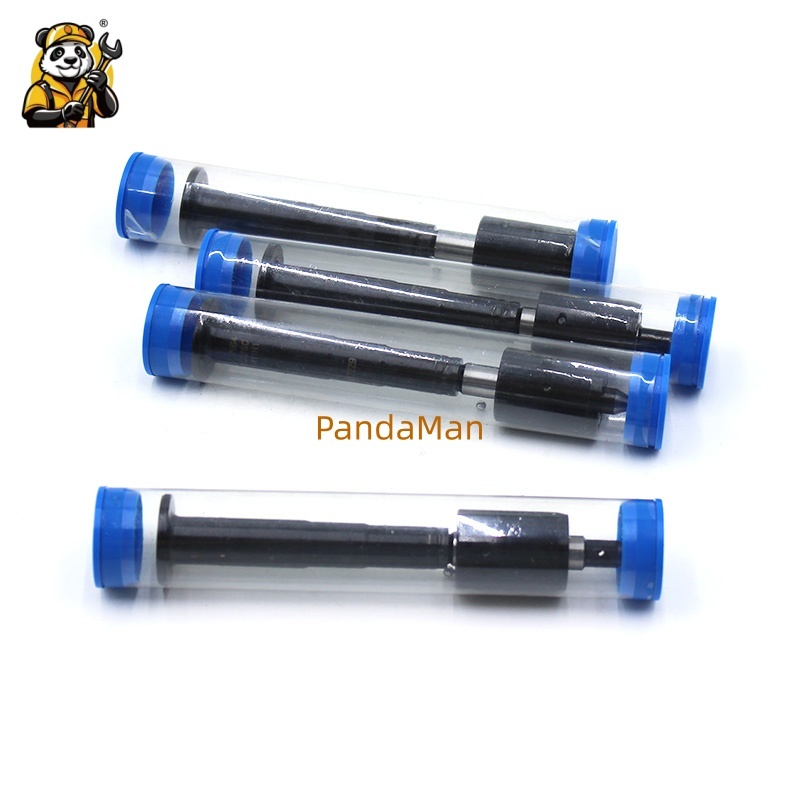

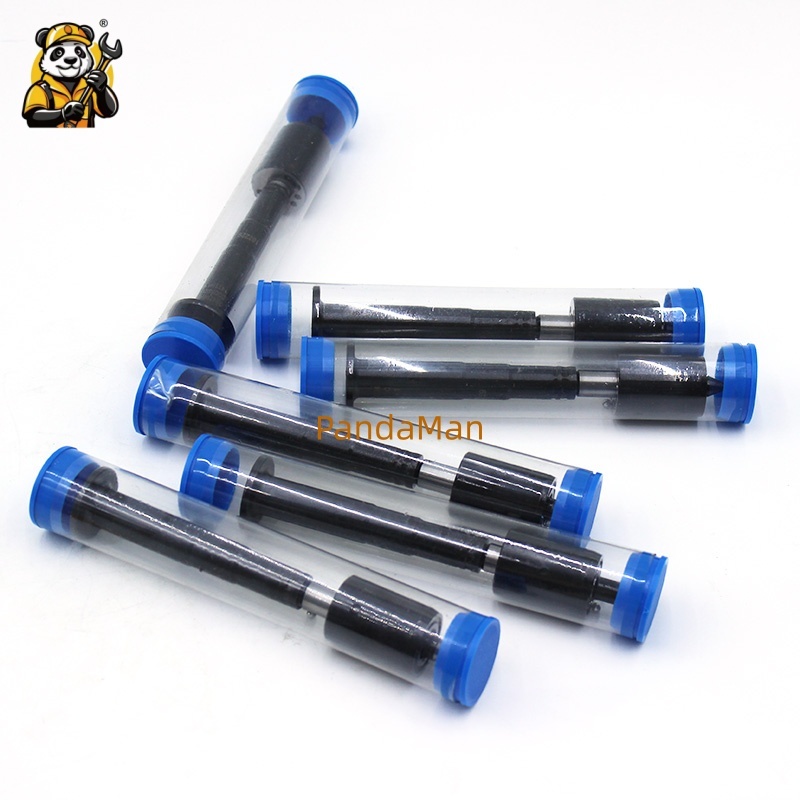

Transparent hard pipe protection is independently encapsulated and sealed throughout the process.
Each unit is equipped with a transparent plastic pipe protector + blue dust-proof end cover for separate packaging. It isolates dust， bumps， and oil stains， providing full protection of the mirror-ground sealing surface during storage， transportation， disassembly， and before assembly， avoiding damage from transportation that could lead to leakage failure after assembly.
Each unit undergoes independent flow and pressure factory calibration， and assembly does not require manual grinding and matching.
Each set of piston pair is independently tested on the machine for the duration of high-pressure pressure retention， standard fuel supply flow rate， and smoothness of piston reciprocation. The factory performance parameters are unified， directly matching the pump chamber of the oil pump， eliminating the need for on-site manual grinding and matching， significantly reducing the time for disassembling and repairing the oil pump. List of Accessories
3047964 Complete set of piston sleeve components (segmented variable-diameter piston rod 1 piece + thickened pressure-bearing sleeve 1 piece), independently sealed and packaged with transparent tubes Applicable scenarios
It is suitable for large-scale mining excavators with high-pressure common rail and mechanical direct injection fuel supply systems, heavy-duty wheeled loaders, long-distance heavy-duty freight trucks, high-power fixed diesel generators. It is applicable for 24-hour continuous heavy-duty operations in mines, long-distance trunk transportation, hot and dusty environments at construction sites, and the core components of heavy-duty diesel engine high-pressure oil pumps for replacing impurities in diesel and corrosion from heavy-duty diesel engines.
Product Basic Parameters
Product Name: 3047964 High-Pressure Oil Pump Piston Sleeve Complete Set of Components
Part Number: 3047964
Main Material: Tempered and hardened alloy steel, the piston and sleeve are all mirror-finished and precisely ground
Structural Feature: Segmented variable-diameter piston rod, thickened integrated pressure-bearing sleeve, one-to-one matching sealing mating surface, transparent tube protection for independent protective packaging
Application Conditions: Ultra-high pressure fuel compression boost, precise metering fuel supply, continuous vibration in engine compartment due to alternating hot and cold, corrosion of impurities in diesel for heavy-duty diesel engine high-pressure oil pump core fuel supply boost component
Product Status: New complete set of piston components, factory completed with high-pressure sealing, fuel supply metering accuracy, and reciprocating smoothness full calibration and testing
Packaging: Independent transparent hard protective cover + blue dust-proof end cover for sealed packaging, isolating dust and oil, buffering protection to avoid transportation knocks and scratches on the mirror-finished sealing working surface, supporting single-piece retail, bulk purchase in bags, and compatible with cross-border small package logistics.
