Description
Product Overview
The electronically controlled common rail injector receives ultra-high pressure fuel from the common rail pipe and relies on the top electromagnetic component to receive the electrical control unit's signal, driving the internal precision valve core to open and close rapidly, splitting the high-pressure fuel into fine oil mist and injecting it into the cylinder to complete combustion and work. Under long-term continuous heavy-load operation, continuous erosion by impure diesel fuel, frequent alternating high and low temperatures and vibrations, the internal valve core sealing surface will wear, the nozzle spray holes will deform, and the internal sealing components will age and leak, which will cause imbalance in the fuel supply flow of a single cylinder, continuous pressure loss in the high-pressure oil circuit, significant reduction in engine power, and increased black smoke emissions from the exhaust. This product is standardized in terms of installation dimensions, oil circuit interface specifications, and electromagnetic signal parameters. During maintenance, the entire injector can be directly replaced, eliminating the need for disassembling and debugging the internal components separately. It is suitable for maintenance of large construction machinery and heavy diesel power equipment.
Core Advantages of the Single Product
Thickened segmented alloy steel cylinder body, high strength, pressure resistance, and resistance to deformation, and less oil leakage
The cylinder body is precisely machined by CNC from thickened alloy steel, with surface passivation for rust prevention. It is suitable for installation on the heavy engine cylinder head structure, capable of enduring continuous impact from ultra-high pressure fuel for a long time, resisting corrosion from diesel medium and significant temperature differences, and the cylinder body is less likely to crack, and the threads are less likely to slip. It can maintain stable high-pressure oil circuit sealing performance over a long period.
Side-mounted integrated oil circuit interface, smooth and stable oil pressure track
The side-mounted integrated oil circuit connector has no splicing gaps, reducing the resistance of high-pressure fuel flow, and excess fuel flows back and discharges quickly to stabilize the common rail system oil pressure, improving the phenomenon of excessive fuel injection causing carbon deposits in the cylinder and black smoke emissions from the exhaust.
Top-mounted direct-insert precision electromagnetic driving component, stable signal transmission and rapid response
The upper end is equipped with a direct-insert structure electromagnetic actuator, with a compact and stable structure, stable electrical control signal transmission, timely valve core opening and closing action response, precise control of fuel injection volume and timing, ensuring smooth idle operation of the engine, and continuous smooth power output in heavy-load conditions.
Front-end multi-level stepped limit nozzle, precise positioning and uniform atomization
The front-end stepped limit structure automatically aligns and clamps during assembly without deviation; combined with multiple micro-hole precision spray holes, the high-pressure fuel is atomized finely and evenly, ensuring adequate oil-gas mixture, reducing carbon deposits in the cylinder, and optimizing fuel consumption levels in heavy-load conditions.
Multi-layer oil-resistant sealing structure, bidirectional anti-leakage and anti-air reverse suction
The cylinder body is equipped with multiple specifications of fluorine rubber oil-resistant sealing rings, which isolate the high and low-pressure oil circuits separately to prevent high-pressure fuel from leaking outward; at the same time, it prevents air from reversing suction into the oil circuit after shutdown, solving the problems of starting oil circuit intake and slow oil pump pressure building.
Full-item factory test of the entire machine, no need for secondary adjustment during installation
Each injector independently completes electromagnetic response, high-pressure pressure retention, atomization effect, and injection flow detection and calibration, with unified performance parameters. After assembly, it quickly restores the original power performance of the engine, significantly reducing the time for oil circuit maintenance and debugging.
Accessory List

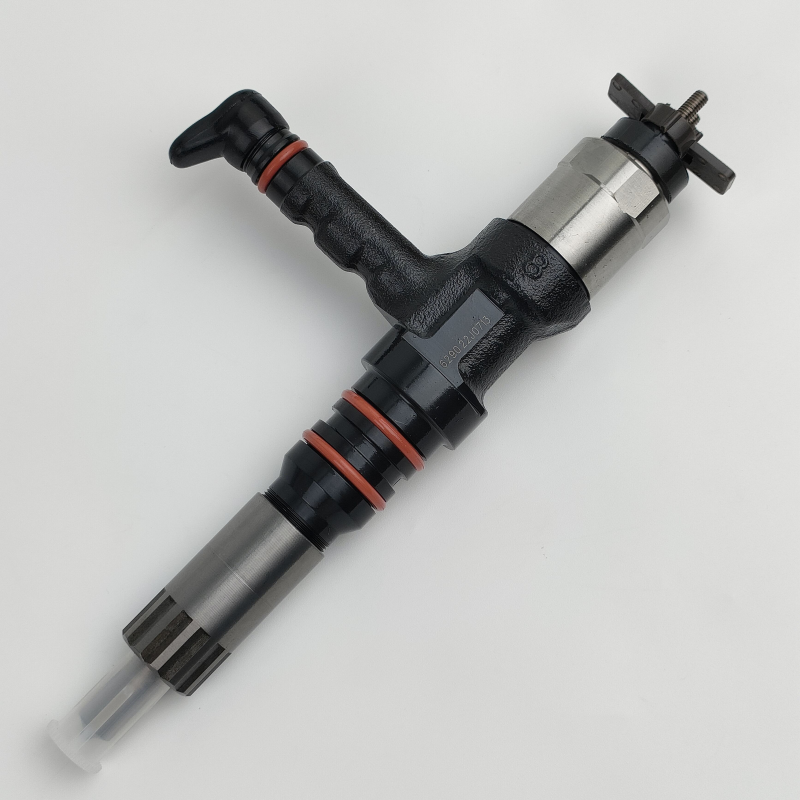

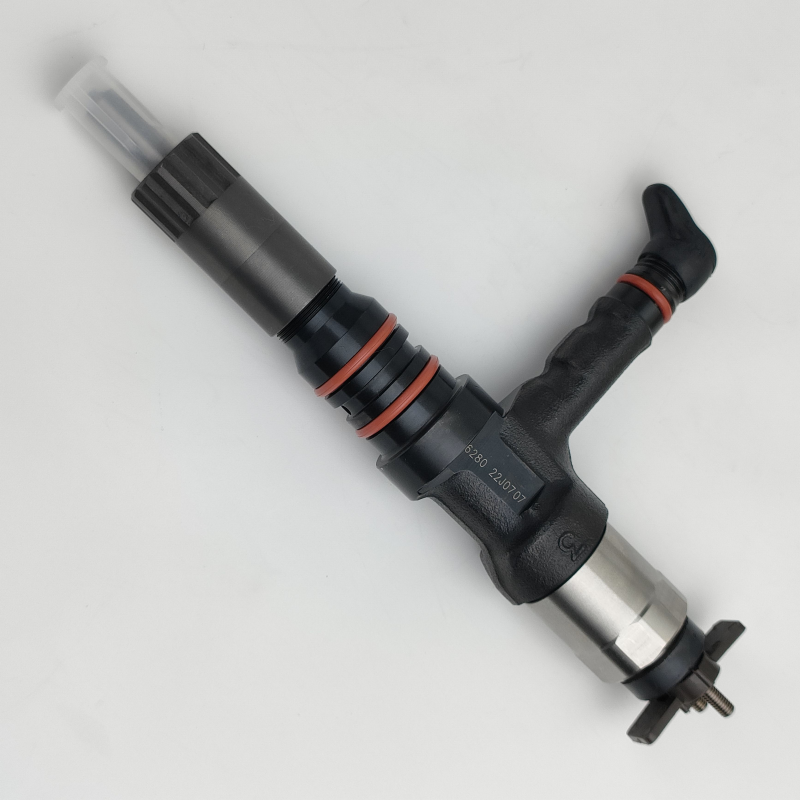

095000-6140 (6261-11-3200) Complete electronically controlled common rail injector assembly 1 unit
Front nozzle dust-proof protective cover pre-installed
Port protection dust-proof plugs pre-installed Applicable scenarios
This product is suitable for large construction machinery equipped with high-pressure common rail fuel supply systems, as well as fixed high-power diesel generators. It is applicable for overall replacement and maintenance of heavy-duty electronically controlled diesel engine fuel injectors under conditions of intense and continuous operations at construction sites, heavy-load conditions in mines, harsh outdoor road conditions, and poor oil quality situations.
Product Basic Parameters
Product Name: Electronic Control Common Rail Injector Assembly
Part Number: 095000-6140, Ancillary Part Number: 6261-11-3200
Main Material: Thickened segmented alloy steel housing, hardened alloy steel valve core and atomizing nozzle, alloy electromagnetic components, oil-resistant multi-layer fluorine rubber sealing ring
Structural Feature: Thickened segmented metal cylinder, side-mounted integrated oil circuit interface, top plug-in type electromagnetic drive end, front multi-level limit atomizing nozzle, built-in layered high and low pressure sealing structure
Applicable Conditions: Ultra-high pressure fuel electronic injection, long-term continuous load vibration, wide temperature difference harsh conditions for heavy-duty electronically controlled common rail diesel engine fuel injection assembly
Product Status: New and complete injector assembly, factory completed with electromagnetic response, high-pressure sealingity, and atomizing flow full bench calibration and testing
Packaging: Independent thickened shock-proof tube packaging, all nozzle, oil circuit interface, and electromagnetic connector are equipped with dust-proof plugs to protect against internal precision parts from transportation impacts; supports single-piece retail and bulk purchase in cases, and is compatible with cross-border logistics transportation.
