Description
Product Overview
The single-hole nozzle is assembled at the front end of the mechanical fuel injector, relying on the precise needle valve inside to complete the high-pressure fuel injection. The high-pressure fuel is torn into uniform fine oil mist and sent into the cylinder for combustion. Under the long-term erosion of impurities in diesel, high-temperature radiation in the combustion chamber, and continuous vibration conditions, the nozzle hole wears out, the sealing surface develops scratches, resulting in fuel leakage, coarse atomization, insufficient combustion, decreased equipment power, and difficulties in cold start. This product has unified standard dimensions for outer diameter, step limit dimensions, and nozzle hole diameter. After disassembling the fuel injector, the nozzle can be replaced separately to repair the injection failure. It is suitable for maintenance of small tractors, micro trucks, light diesel pickup trucks, and small generator sets that are equipped with mechanical direct injection diesel engines.
Core advantages of this product
The quenched and tempered alloy steel is processed as a whole, with excellent wear resistance and resistance to high-temperature erosion.
The overall steel is treated with high-temperature quenching and hardening, with no splicing structure. It can withstand continuous high-pressure fuel flushing and high-temperature radiation in the combustion chamber. It is unlikely to deform the nozzle hole or scratch the sealing surface over a long period of use, maintaining stable atomization performance.
The double-step limit design on the top and bottom ensures precise assembly and no offset.
The two-stage stepped outer diameter structure precisely limits when the nozzle is installed in the fuel injector housing, eliminating radial shaking and ensuring the coaxiality of the internal needle valve reciprocating motion, avoiding fuel leakage caused by single-sided wear.
The standard single micro-hole atomization hole on the end face, with fine oil mist, burns thoroughly.

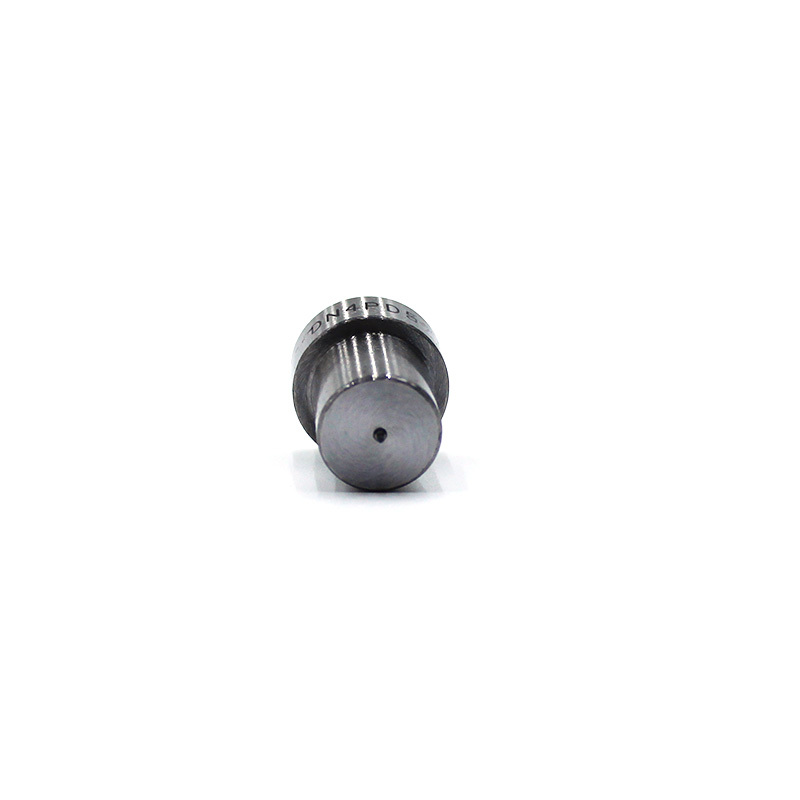

The front-end precise micro-hole injection structure forms uniform and fine oil mist after high-pressure fuel is ejected, fully mixes with air for combustion, reducing carbon accumulation in the cylinder, and lowering exhaust black smoke and fuel consumption.
The model code is permanently engraved on the outer wall, allowing for quick identification during storage and maintenance.

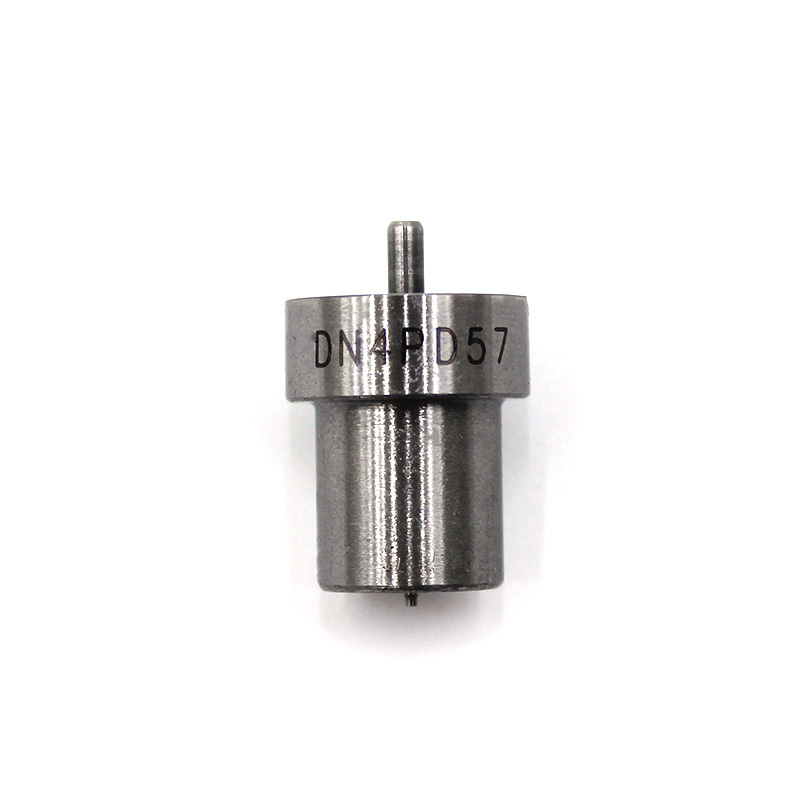

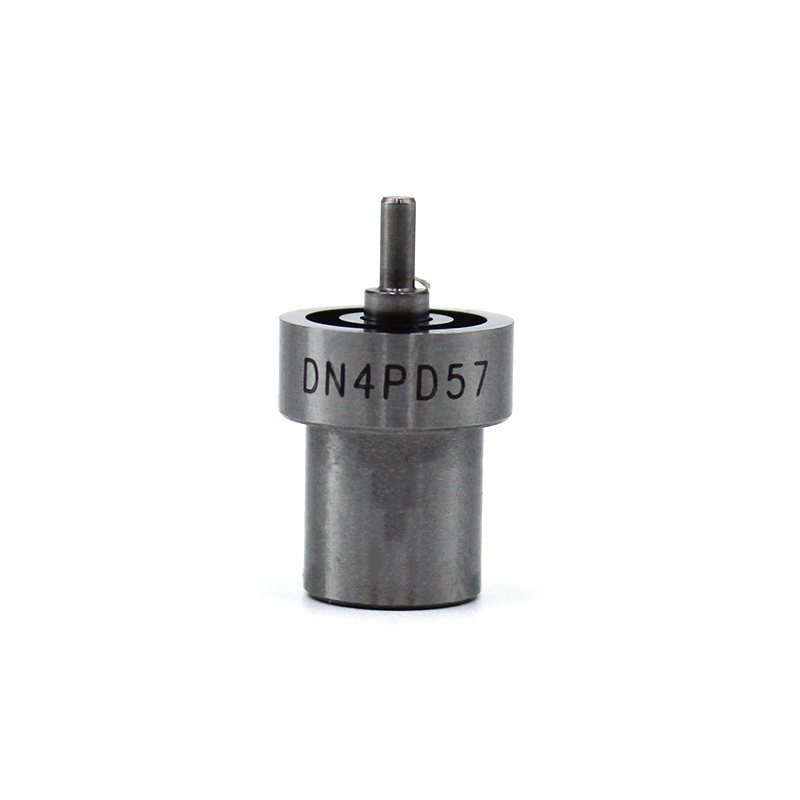

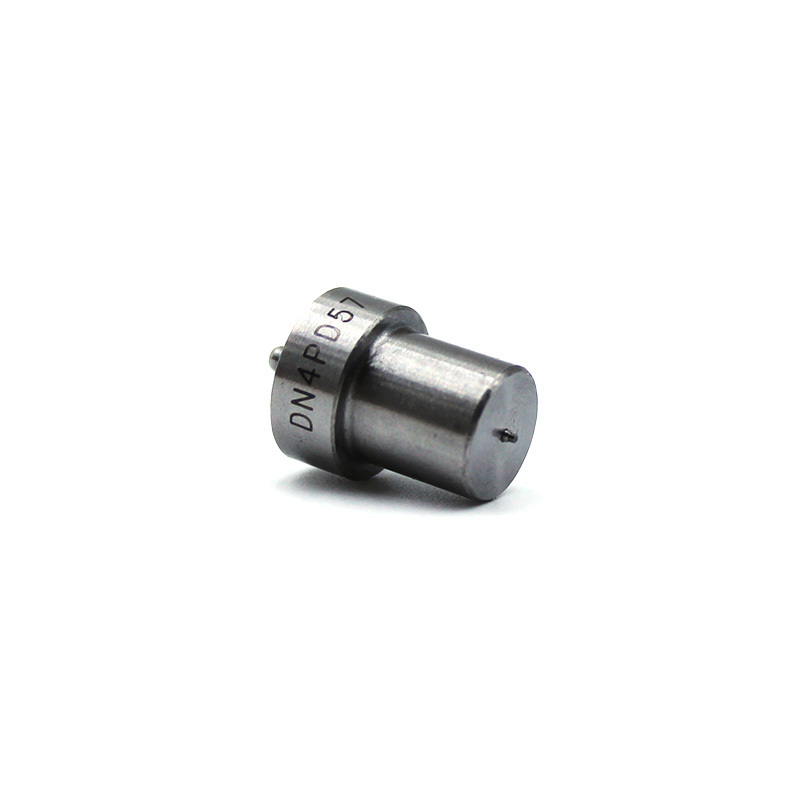

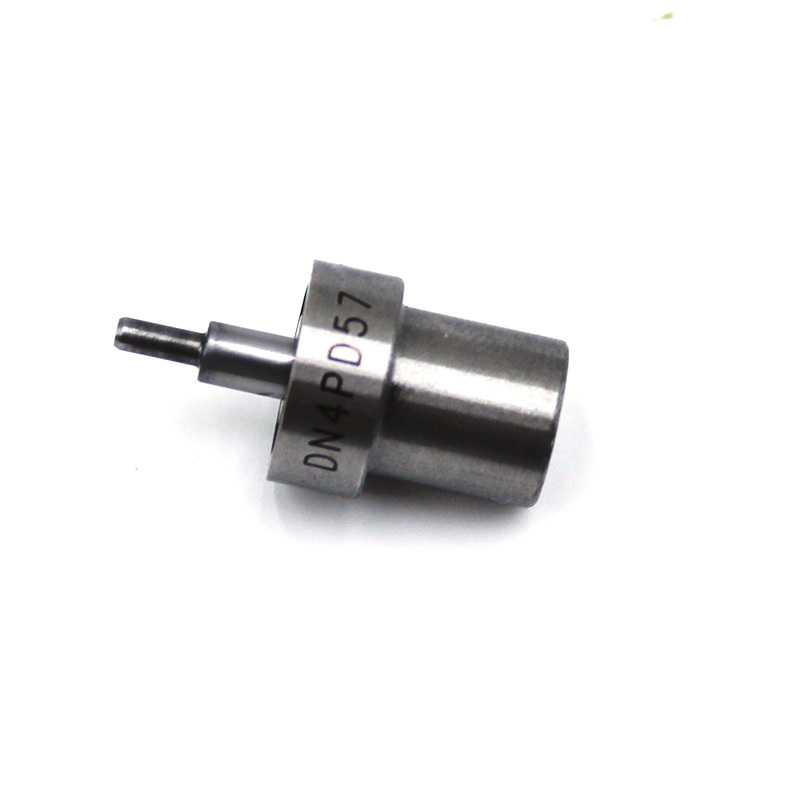

The DN4PD57 model identifier is laser-engraved on the outer side of the cylinder body, resistant to diesel soaking and repeated wiping without fading, enabling quick matching of models during inventory, on-site disassembly, and assembly, and avoiding incorrect installation.
The precise inner cavity with a mirror surface ensures smooth needle valve movement without sticking.
The entire inner cavity is mirror-ground, with a smooth inner wall free of burrs, and the needle valve lifting resistance is small, with quick opening and closing response, eliminating injection lag and idle vibration problems.
Each nozzle is independently calibrated for atomization flow, and no secondary calibration is required during installation.
Each nozzle is individually tested for fuel injection volume, high-pressure pressure retention, and atomization effect before leaving the factory. The factory parameters are unified, and after disassembly, it can be directly matched with the corresponding fuel injector, reducing maintenance and debugging time.
Accessory list
1 set of DN4PD57 integrated fuel injector pair (including a built-in precision needle valve) sealed separately Applicable scenarios
This product is suitable for small agricultural tractors with mechanical direct injection fuel supply system, mini freight trucks, light diesel pickup trucks, small stationary diesel generators. It is applicable for light agricultural cultivation, short-distance urban-rural distribution, small equipment at construction sites, and replacement of the atomization components of small diesel engine fuel injectors in corrosive environments with impurities in diesel fuel.
Product Basic Parameters
Product Name: DN4PD57 Single-Port Mechanical Fuel Injection Nozzle Assembly
Part Number: DN4PD57
Main Material: Tempered and hardened alloy steel
Structural Feature: Double-step upper and lower limit cylinder body, integrated built-in needle valve, end face micro-hole atomization hole, outer wall engraved model code, mirror-polished inner sealed cavity
Application Conditions: High-pressure fuel atomization injection, combustion chamber high-temperature radiation, alternation of cold and hot in the engine compartment, small mechanical direct injection diesel engine fuel injector front spray component corrosion by impurities in diesel fuel
Product Status: New and complete fuel injection nozzle assembly, factory completed with full calibration and testing for atomization accuracy, high-pressure sealing, and flow matching
Packaging: Independent vacuum-sealed plastic bag packaging, isolated from dust and oil, hard tube protection for cushioning to avoid transportation bumps and scratches to the precise seal and end face of the spray hole, supports single-unit retail, bulk purchase of the entire bag, and is compatible with cross-border small package logistics.
