Description
Product Overview

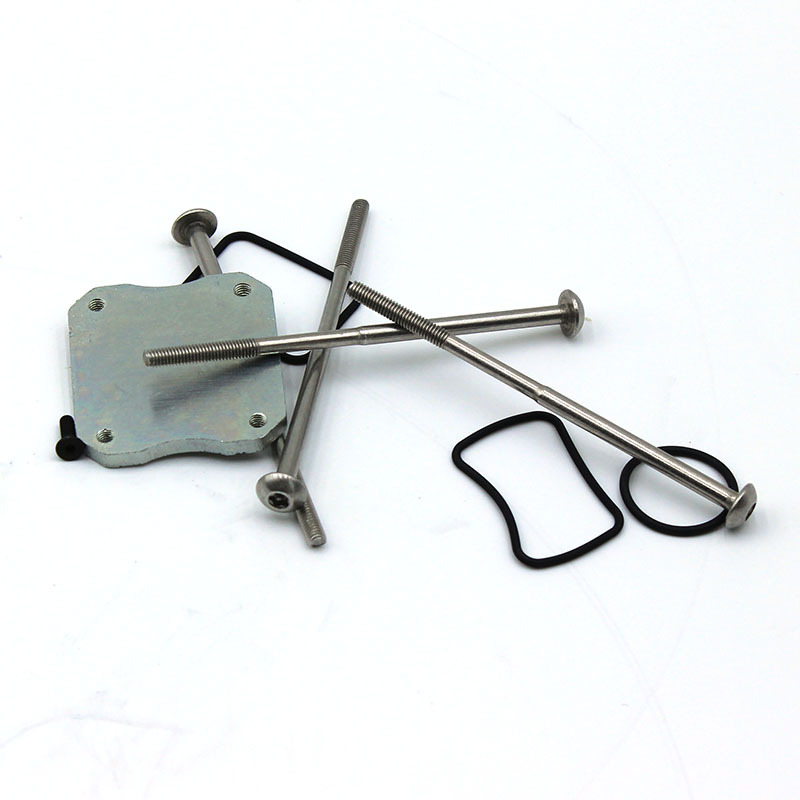

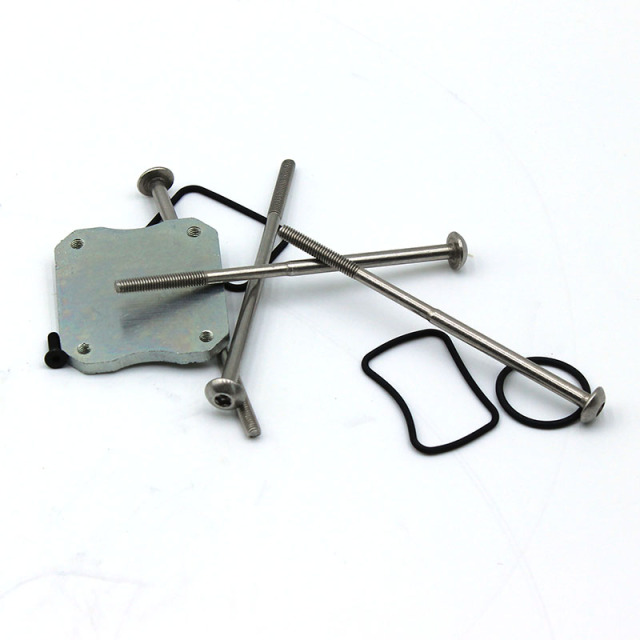

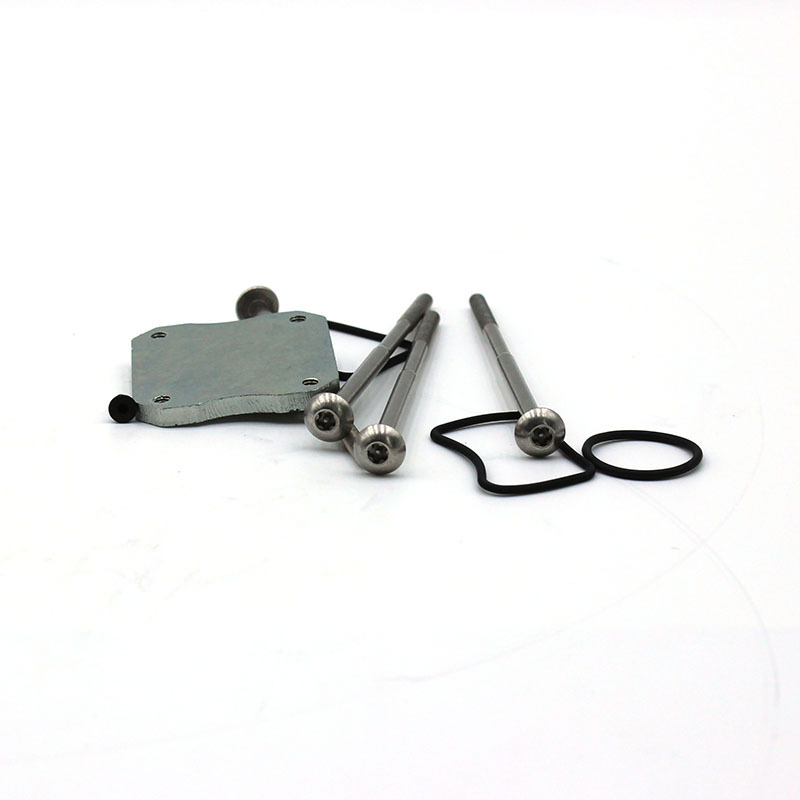

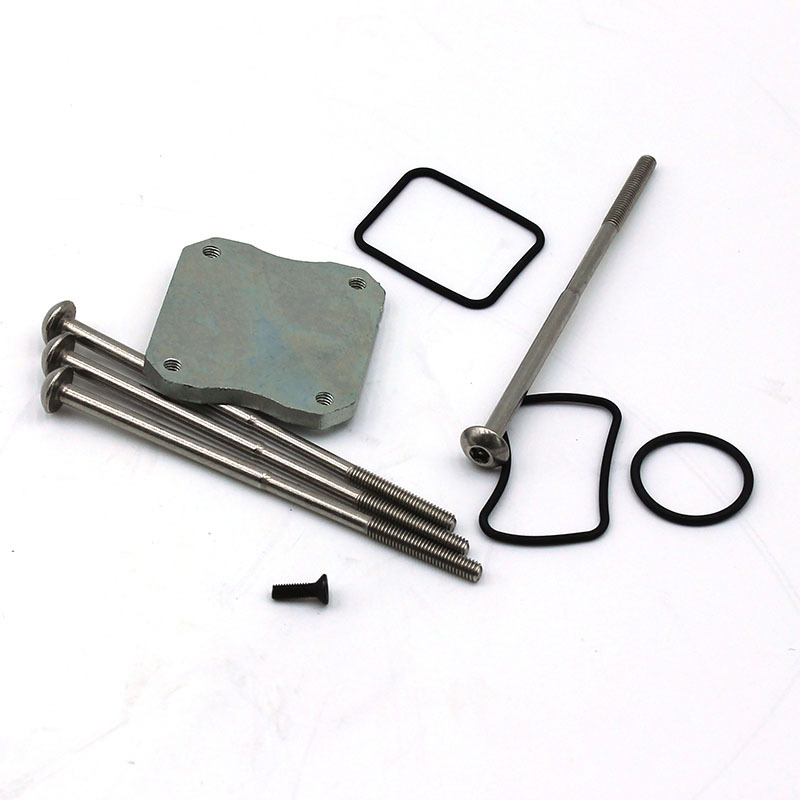

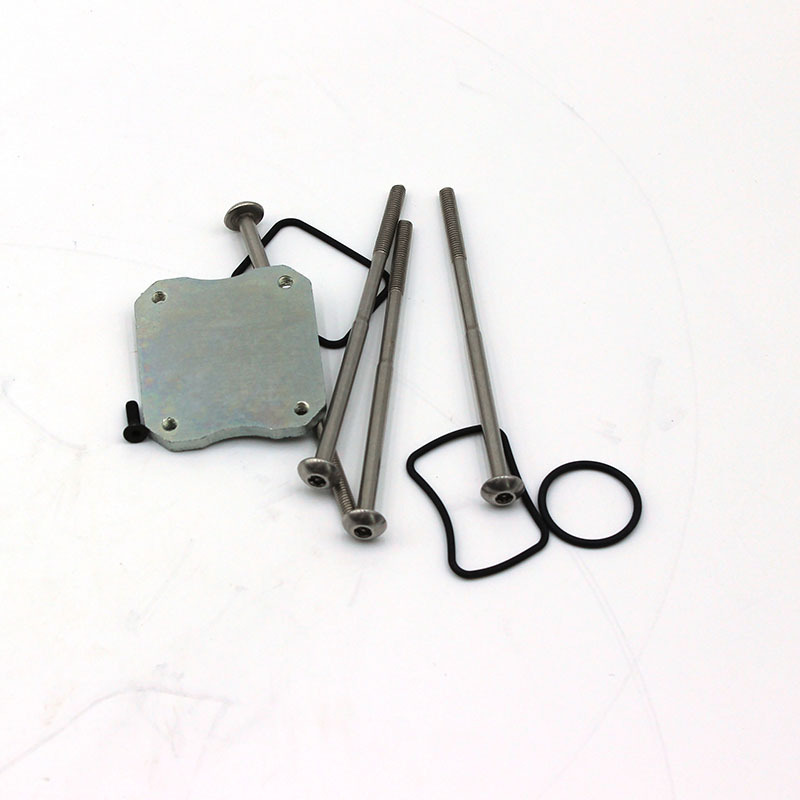

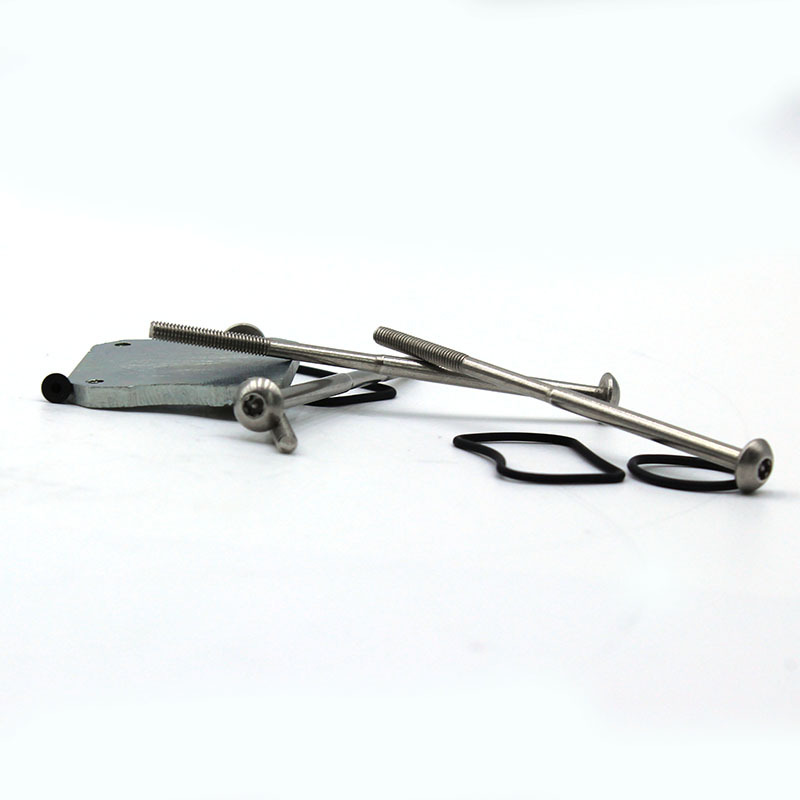

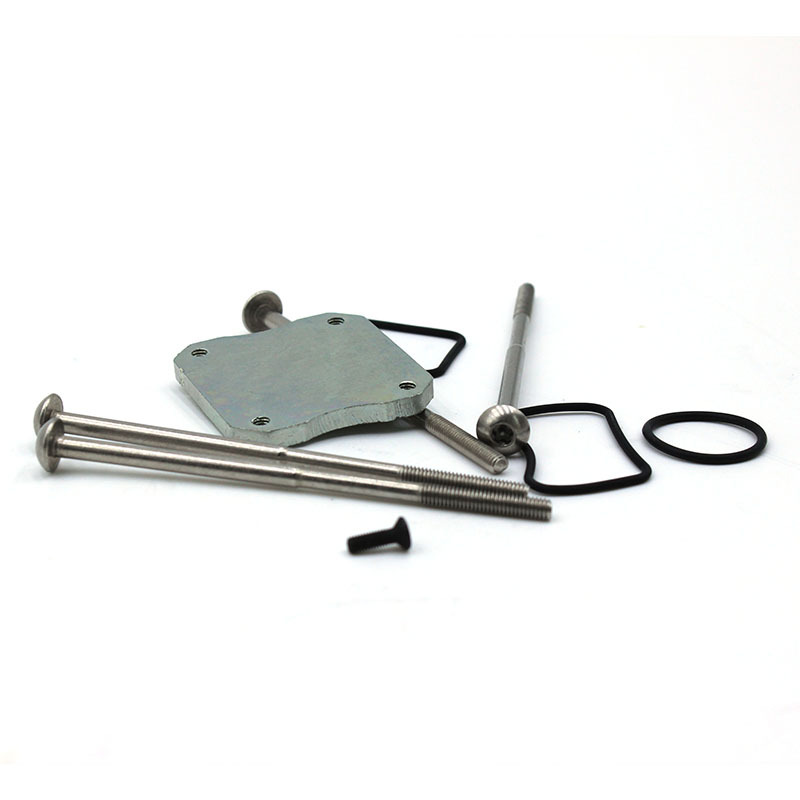

F00041P051 is a dedicated integrated sealing maintenance kit for high-pressure common rail injectors. It differs from a single sealing gasket. It includes a metal sealing plate, various lengths of fastening bolts, multiple special-shaped sealing gaskets, and auxiliary screws. This set covers all the replacement parts for the injector sealing position. It is used to solve common faults such as oil leakage at the injector cover, aging and hardening of the sealing gasket, and loose fastening screws. There is no need to separately purchase scattered parts. It is suitable for the maintenance of corresponding models of common rail injectors.
Material and exclusive processing techniques
Metal clamping plates and bolt anti-rust treatment
The sealing cover plate is made by cold-rolled steel sheet stamping and undergoes surface passivation anti-rust treatment; the long and short tightening bolts are made of stainless steel, with precise thread rolling processing, ensuring stable engagement and not prone to rust and jamming when in long-term contact with diesel, suitable for repeated disassembly conditions.
Various specifications of oil-resistant rubber seals
The square-shaped irregular pads, square-shaped sealing rings, and circular O-rings in the kit are made of oil-resistant rubber materials, capable of withstanding the high-temperature environment of the engine, and do not expand or crack when immersed in diesel for a long time, maintaining the elastic sealing effect.
Integrated matching design
The spacing of the clamping plate screw holes, the length of the bolts, and the inner and outer diameters of the rubber rings are uniformly corresponding to the installation positions of the fuel injectors, and the dimensions of each part are mutually matched to avoid the inability to assemble due to incompatible part specifications during maintenance.
Product Usage Characteristics
Comprehensive set, one-stop maintenance and inventory preparation
A set of integrated seals and fixations includes all necessary parts. During maintenance and replacement, there is no need to separately purchase pressure plates, screws, or gaskets, reducing errors in component pairing and simplifying inventory management in stores.
Multi-layer sealing structure reduces the risk of oil leakage
Multiple-shaped sealing pads are placed in different zones to fit the contact surfaces of the injector cover plates. Multiple barriers prevent fuel leakage, improving the problem of oil leakage and oil pressure loss at the cover plate during equipment operation.
Standard assembly dimensions, convenient disassembly and assembly
The positioning of pressure plate screw holes, the specifications of bolts and screws, and the shape of gaskets all follow the assembly standards for the matching injector. Replacement can be completed without grinding or cutting, shortening the maintenance operation time.
Protection for small items that are not easily lost
The entire set of accessories is independently packaged and stored. Long and short bolts, and small screws are placed separately. This ensures that small parts are not lost during transportation and storage.
