Description
Product Overview

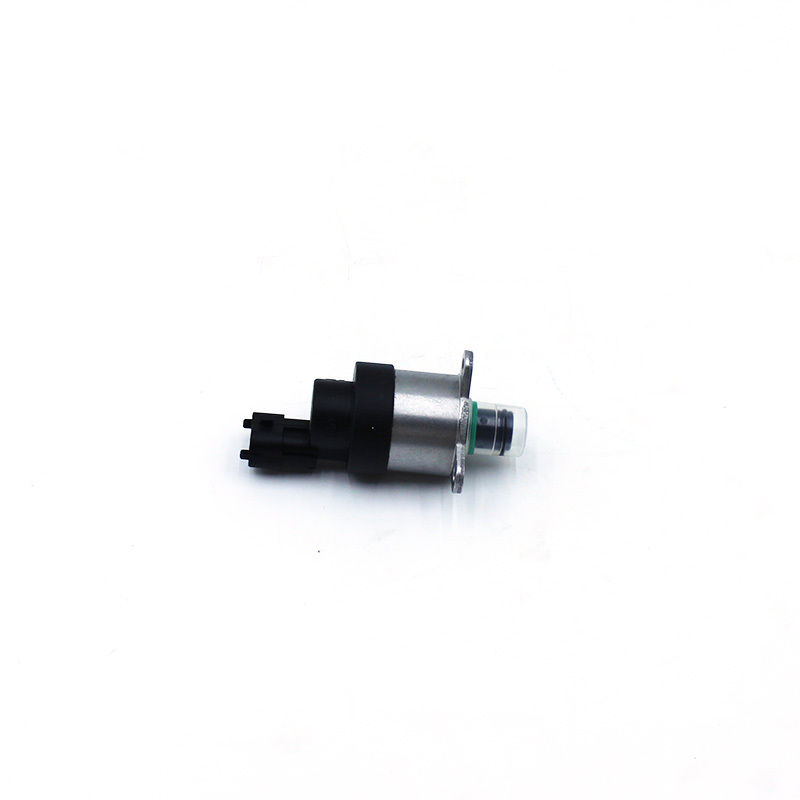

The fuel metering unit is installed on the fuel inlet pipeline of the high-pressure fuel pump. It controls the fuel flow entering the pump through the opening degree of the electromagnetic valve core, and cooperates with the electronic control system to dynamically adjust the oil pressure in the rail, ensuring the matching of fuel injection under various working conditions. Under long-term conditions of high cabin temperature and impure diesel washing, the valve core may get stuck, the seal may age, and the electromagnetic coil may fail. This will result in uncontrollable fuel supply flow, fluctuating rail pressure, delayed engine start-up, power loss, and increased fuel consumption. This complete integrated metering valve assembly ensures factory testing of flow regulation accuracy, high-pressure sealing, and stability in high and low temperatures. The installation holes and thread dimensions are standardized to be compatible with various direct injection common rail fuel pumps for maintenance and replacement.
Unique core advantages of this product

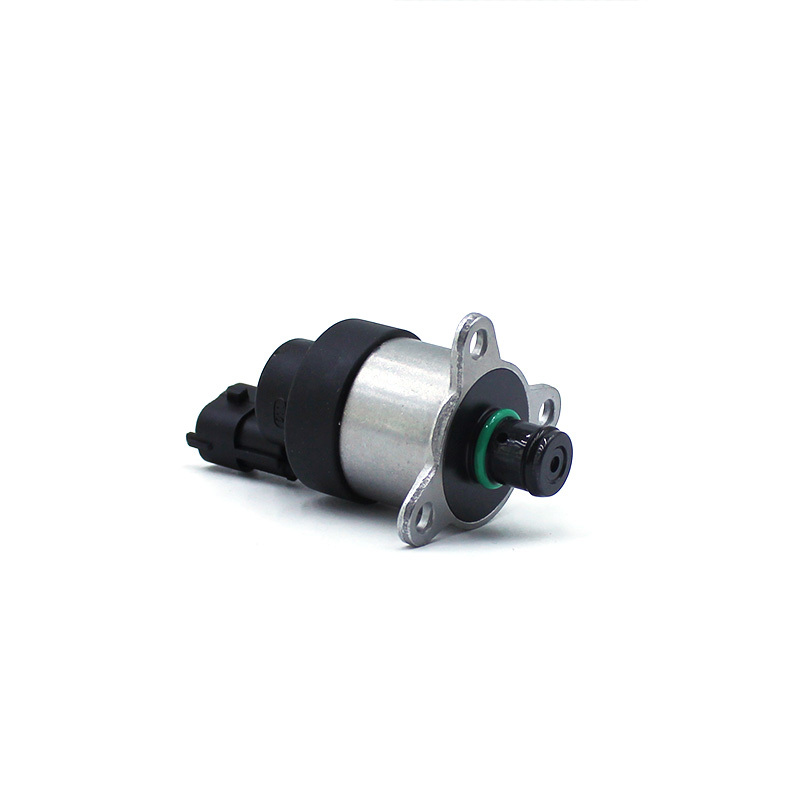

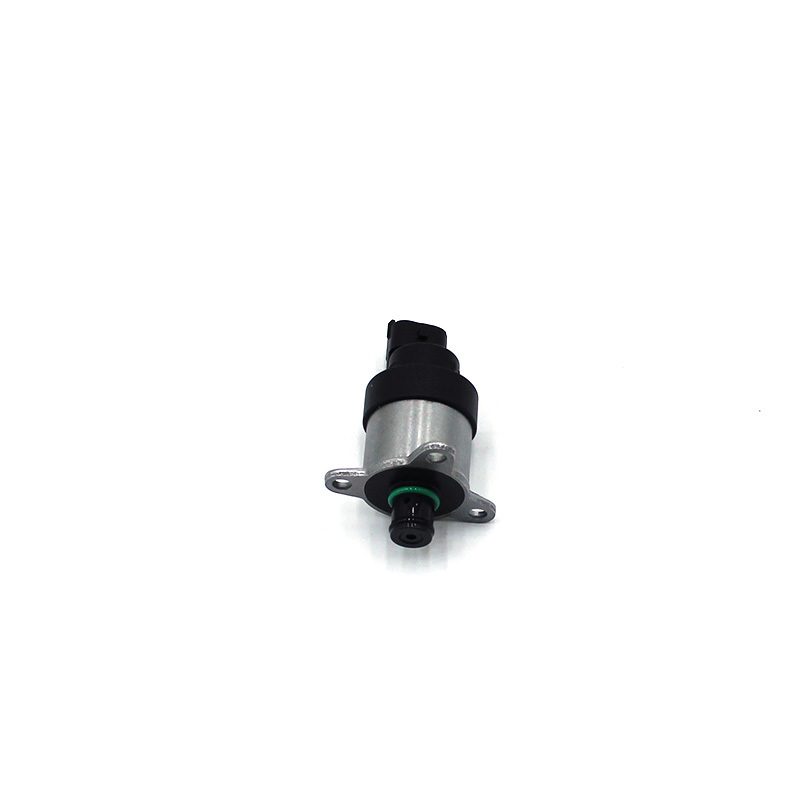

Side-mounted single-hole metal flange base, firmly assembled without displacement
The valve body side edge is integrally formed with a metal sleeve for fixation, and the screws are locked to fit the fuel pump housing. The vehicle will not shift due to long-term jolting and vibration, ensuring stable valve opening degree and no drift or distortion in oil pressure regulation.

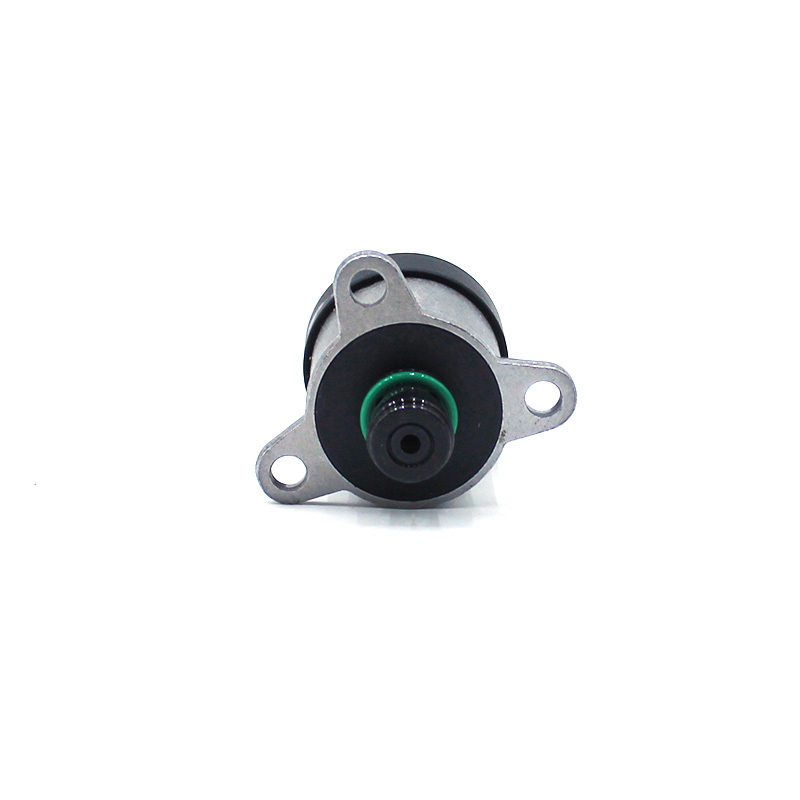

Green multi-layer oil-resistant high-pressure sealing ring, preventing fuel leakage and pressure relief
The oil circuit connector is equipped with a thickened green fluorine rubber sealing ring, resistant to diesel and engine oil corrosion, capable of withstanding the fuel inlet pressure, and the multi-layer sealing prevents fuel from leaking through assembly gaps, ensuring stable fuel supply flow.
Integrated thickened alloy valve body, resistant to pressure and wear, and not prone to deformation
The middle section metal pressure-bearing shell is integrally forged, capable of withstanding continuous fuel impact without bulging or deformation. The valve core and valve sleeve have a micrometer-level fit, and impurities will not cause unilateral wear or sticking.

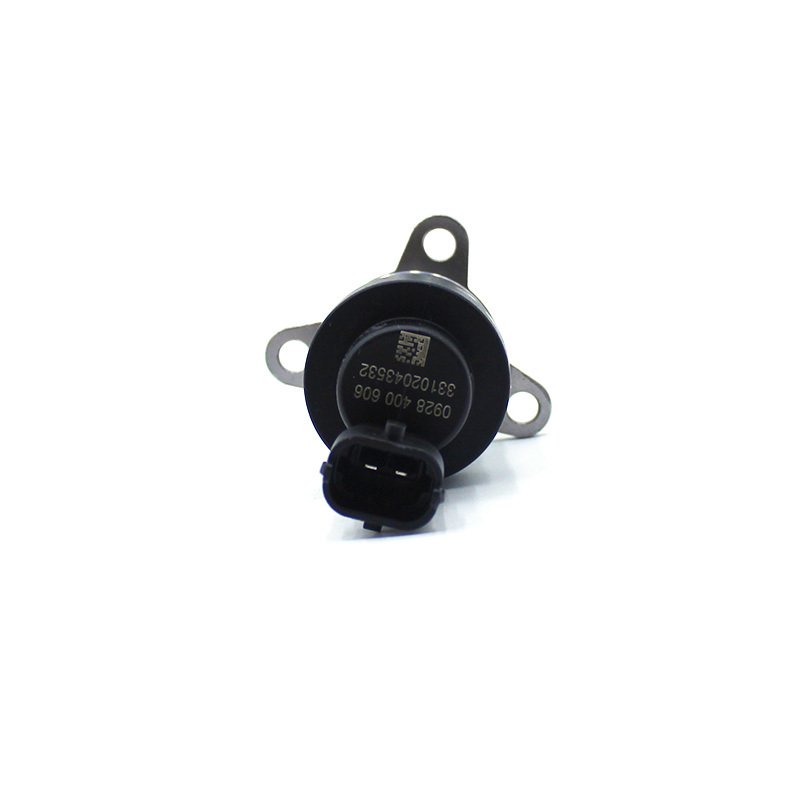

Snap-lock waterproof electronic control plug, stable anti-interference signal
The black injection molded wiring connector at the tail end has a built-in locking clip, filled with waterproof and oil-resistant rubber core, isolating cabin water vapor, oil stains, and electromagnetic interference from wiring. During vehicle jolting, the pins will not be disconnected, and the flow control signal transmission is continuous without interruption.
Precise segmented flow valve core, linear and smooth fuel quantity adjustment
The internal multi-stage stepped flow valve core has sensitive and linear response to opening degree, adjusting fuel supply smoothly under idle, heavy load, and high-speed working conditions, eliminating acceleration jolts, large speed difference, and idle running jitter problems. Applicable scenarios
It is suitable for light/heavy-duty freight diesel vehicles with electronic fuel injection common rail supply system, mining excavators, wheeled loaders, fixed diesel generator sets. It is applicable for urban freight transportation, 24-hour full-load operation at mining sites, small and medium-sized, heavy-duty electronically controlled diesel engines with high-pressure fuel pumps in hot and cold environments with high dust.
Product basic parameters
Product name: Fuel metering unit / Fuel inlet metering solenoid valve
Part number: 0928400606
Main material: Rust-proof alloy valve body, fluororubber high-pressure sealing ring, oil-resistant and high-temperature engineering plastic electronic control plug, high-precision electromagnetic flow valve core
Structural features: Side-mounted single-hole flange installation base, green ring-shaped high-pressure sealing rubber ring, integrated metal pressure-bearing valve body, snap-fit waterproof electronic control plug
Application conditions: Continuous light/maintenance load, engine compartment alternating hot and cold, outdoor high-dust electronically controlled common rail diesel engine high-pressure fuel pump
Product status: New and complete metering valve assembly, factory completed flow calibration, high-pressure sealingity, high-temperature aging full set of tests
Packaging: Independent shock-proof small cardboard box packaging, oil circuit connectors and electronic control plugs are isolated for protection at both ends to avoid damage to the valve core and pins during transportation, supports single-piece, multi-box batch purchases, and is compatible with cross-border small package logistics.
