Description
Product Overview
The oil outlet valve is installed at the outlet of the high-pressure oil pump. It achieves one-way pressure retention through conical surface sealing. When the piston compresses, it opens to deliver high-pressure fuel. When the piston returns, it closes to lock the oil pressure in the pipeline, preventing backflow of high-pressure fuel. Under long-term heavy-load high-pressure impact and impurities from diesel washing conditions, the sealing conical surface may wear and become loose, resulting in oil leakage in the circuit, difficulty in starting, poor atomization, insufficient power, and mixing of diesel with engine oil to dilute the lubricating oil. This product has unified standard dimensions and sealing conical surface angles both inside and outside. The oil outlet valve can be replaced separately for maintenance, without the need to replace the entire oil pump assembly. It is suitable for maintenance and servicing of agricultural machinery, heavy-duty trucks, and small and medium-sized construction machinery with inline piston oil pumps.
Core Advantages of the Single Item
The overall material is high-quality quenched and tempered alloy steel, which is resistant to pressure and wear and does not deform.
The entire valve body is treated with integrated quenching and hardening, and the sealing conical surface is finely ground to a mirror finish. It can withstand continuous high-pressure fuel impact and is not easily worn by dust and impurities from diesel. It maintains one-way sealing performance for a long time.
The high-precision conical surface structure blocks fuel backflow and ensures stable pressure retention.
The end face has precise conical surface matching, with no fine gaps after closing. In high-pressure conditions, it completely locks the oil circuit, eliminating problems such as engine stalling and pressure loss, and multiple starts and starts. It provides stable fuel supply pressure.

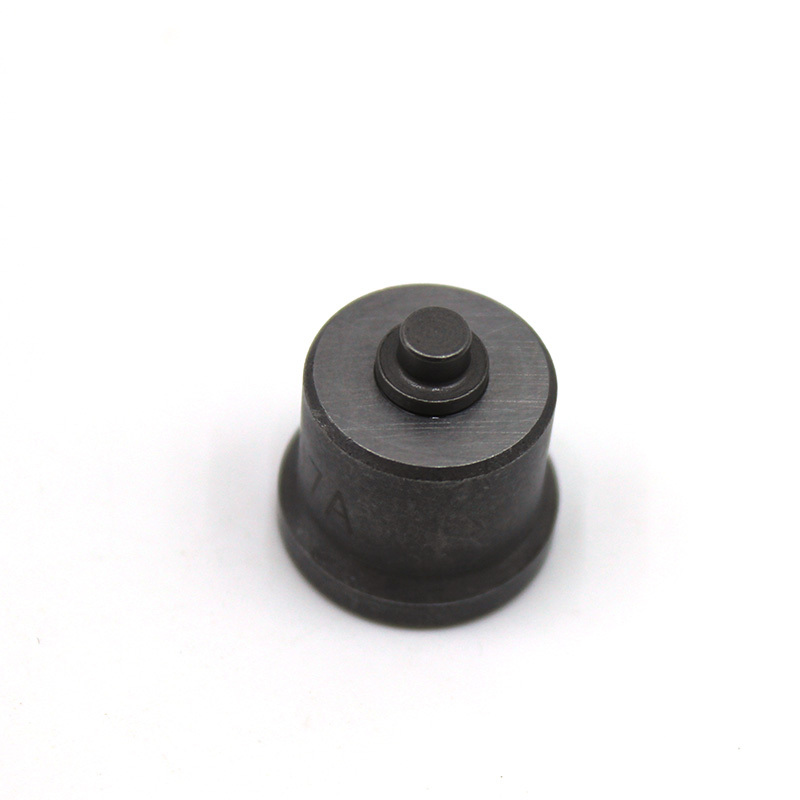

The top has a standard positioning boss for assembly alignment without deviation.
The front small positioning boss precisely matches the assembly hole of the oil outlet valve seat, ensuring no radial shaking after installation. The sealing surface will not shift and leak under vehicle jolting conditions.
The outer wall is engraved with specification markings, allowing for quick identification of models during inventory and maintenance.

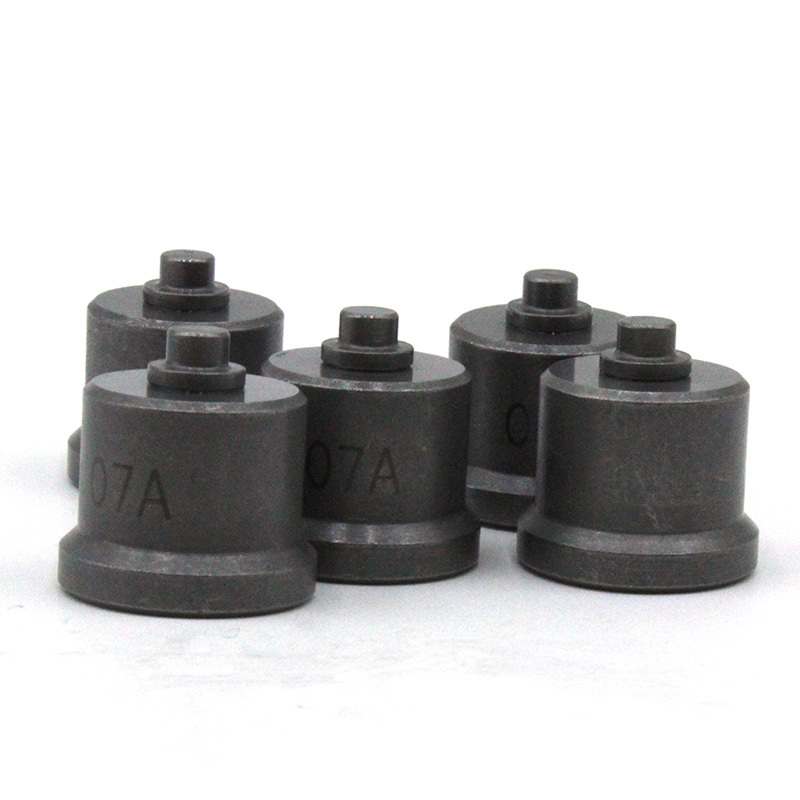

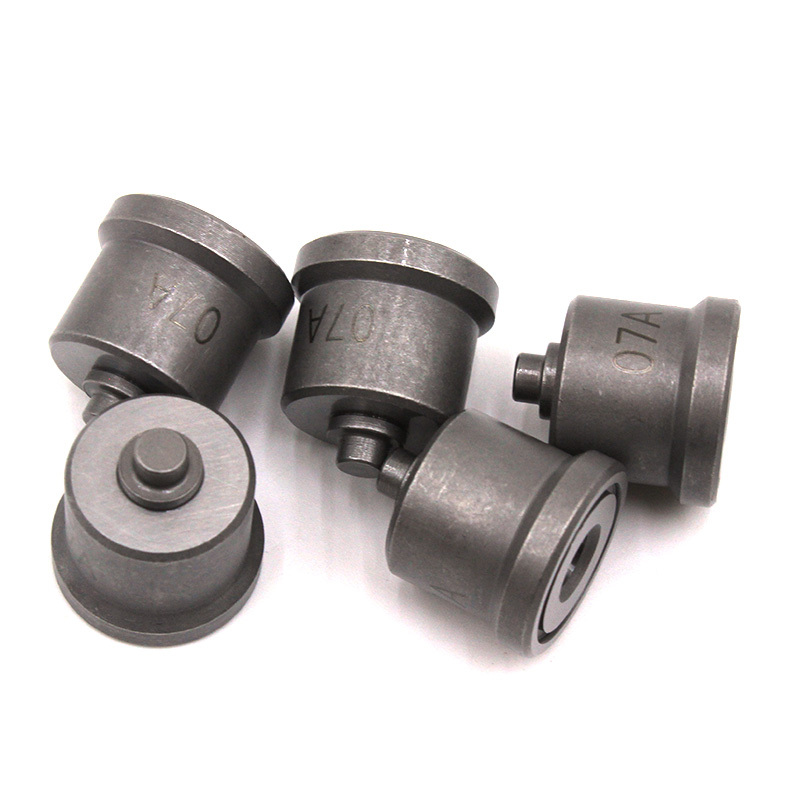

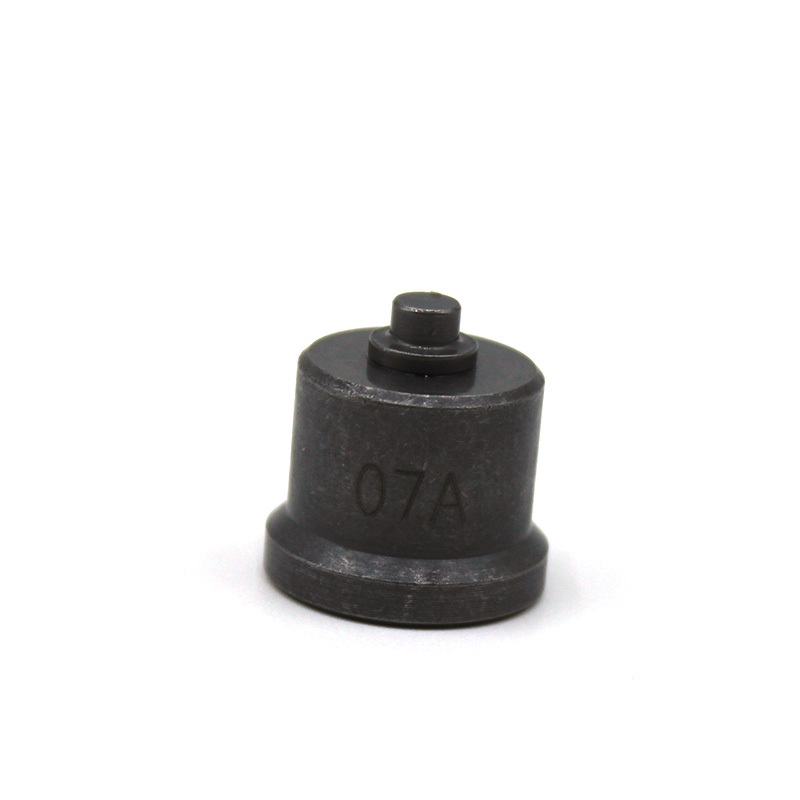

The side of the valve body is engraved with the 07A specification marking. It is resistant to diesel soaking and wiping without removing the marking. This makes it convenient for storage, maintenance, and model verification, avoiding incorrect installation of abnormal oil pressure.
The center is regular and smooth oil flow channels, ensuring smooth fuel supply and balanced atomization.
The internal center hole is smooth without burrs, reducing fuel flow resistance, and minimizing the flow difference between each cylinder. The engine runs smoothly, reducing vibration and black smoke from exhaust.
Each oil outlet valve is independently tested on a stand, and no secondary adjustment is required for assembly.
Each valve is individually tested for sealing performance and flow parameters before leaving the factory. The standards are unified, and it can quickly restore the normal oil supply condition of the oil pump after replacement. Applicable scenarios
This product is suitable for heavy-duty freight trucks with inline mechanical plunger injection systems, large and medium-sized agricultural tractors, small and medium-sized mining wheeled loaders, fixed diesel generators, and is applicable for long-distance freight transportation, high-intensity field operations, continuous construction work, high-temperature and vibration in engine compartments, and mechanical direct injection diesel engines operating in environments with impure diesel corrosion. The one-way pressure retention component of the high-pressure oil pump for this product is for replacement.
Product Basic Parameters

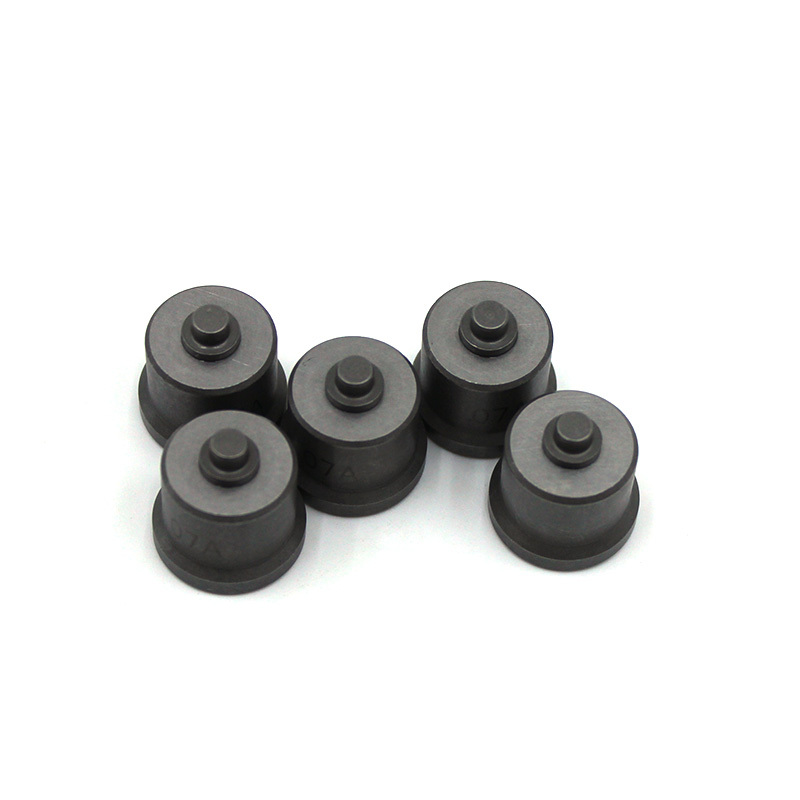

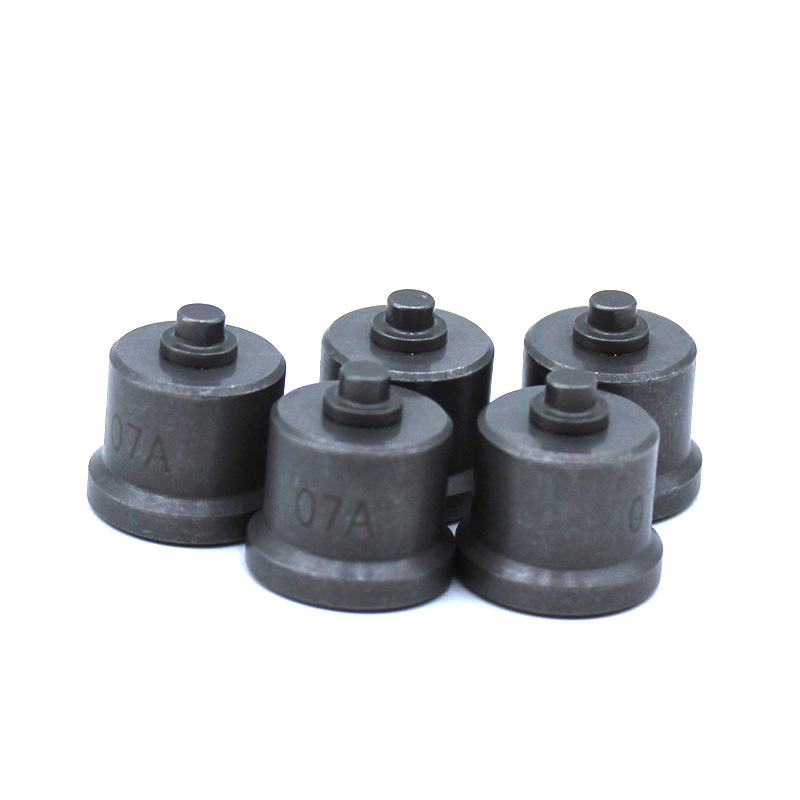

Product Name: 07A Oil Outlet Valve Assembly
Part Number: 07A
Main Material: Tempered and hardened alloy steel

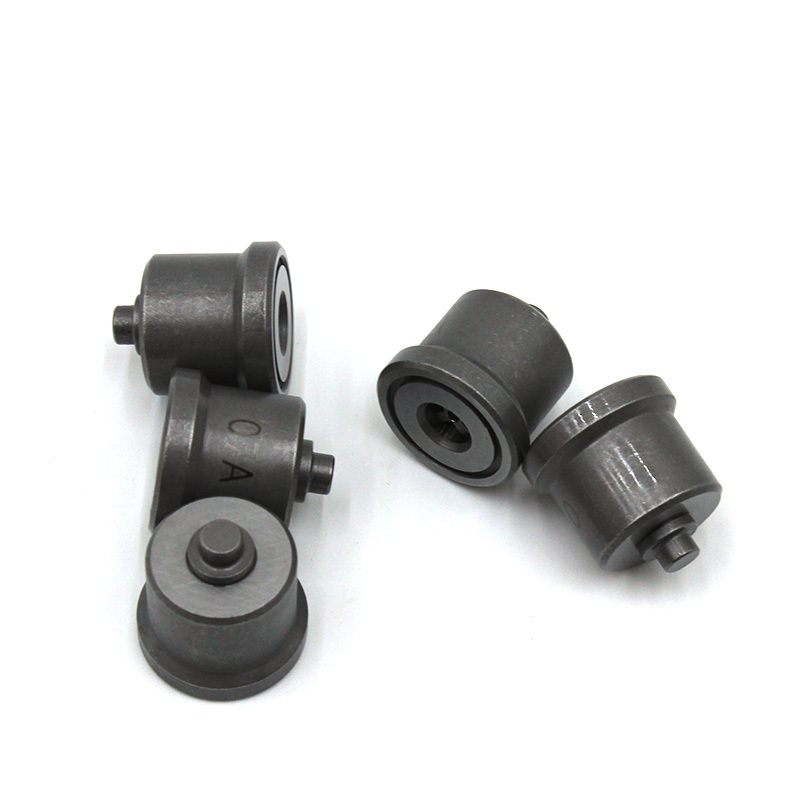

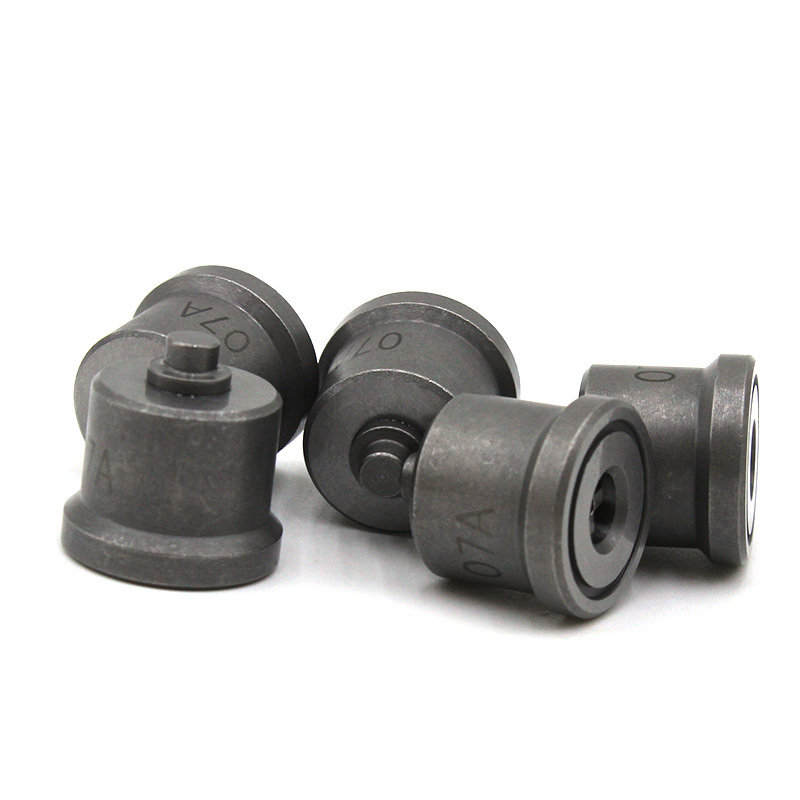

Structural Feature: Step positioning valve body, precise conical sealing end face, central through-hole oil passage, external wall specification marking
Application Conditions: Medium-high pressure reciprocating oil supply, engine compartment alternating cold and hot conditions, impure diesel corrosion environment for mechanical direct injection diesel engines
Product Status: New and complete oil outlet valve assembly, factory completed with high-pressure sealing, pressure-bearing durability full bench calibration and testing
Packaging: Single-piece independent protective packaging, dust-proof protective covers at both ends protect the sealing conical surface, avoiding transportation impacts and scratches on the precise sealing surface, supporting single-piece and bulk purchase in boxes, and compatible with cross-border small package logistics.
