Description
Product Overview
The rail pressure sensor is installed on the common rail oil pipe. It continuously monitors the oil pressure of the high-pressure fuel pipeline through internal sensing elements, converts the pressure signal into an electrical signal and transmits it to the vehicle's electronic control unit, thereby precisely controlling the oil pump's fuel supply and fuel injection volume. After long-term exposure to high-pressure fuel erosion and cabin high-temperature water vapor corrosion, the internal chips may age and the seals may leak, resulting in distorted pressure signals, rail pressure loss, and engine operating at limited power. This product is a complete integrated sensor assembly. It undergoes comprehensive testing for high-pressure resistance, signal accuracy, and sealing at the factory. The entire unit can be replaced without the need for secondary calibration. It is suitable for light trucks, construction machinery, and agricultural common rail diesel equipment fuel supply system maintenance.
Unique Core Features of the Single Product

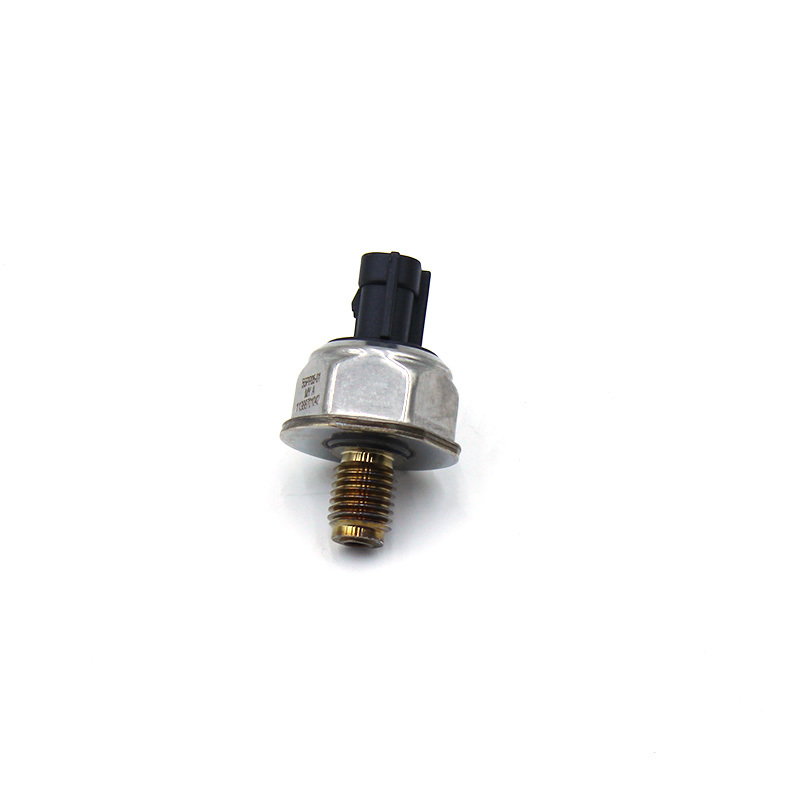

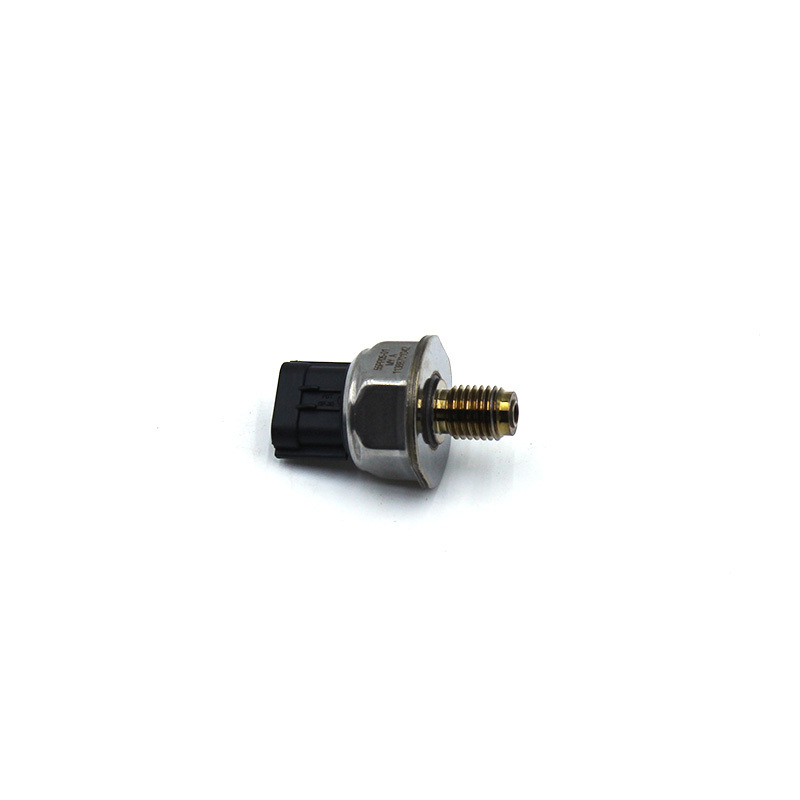

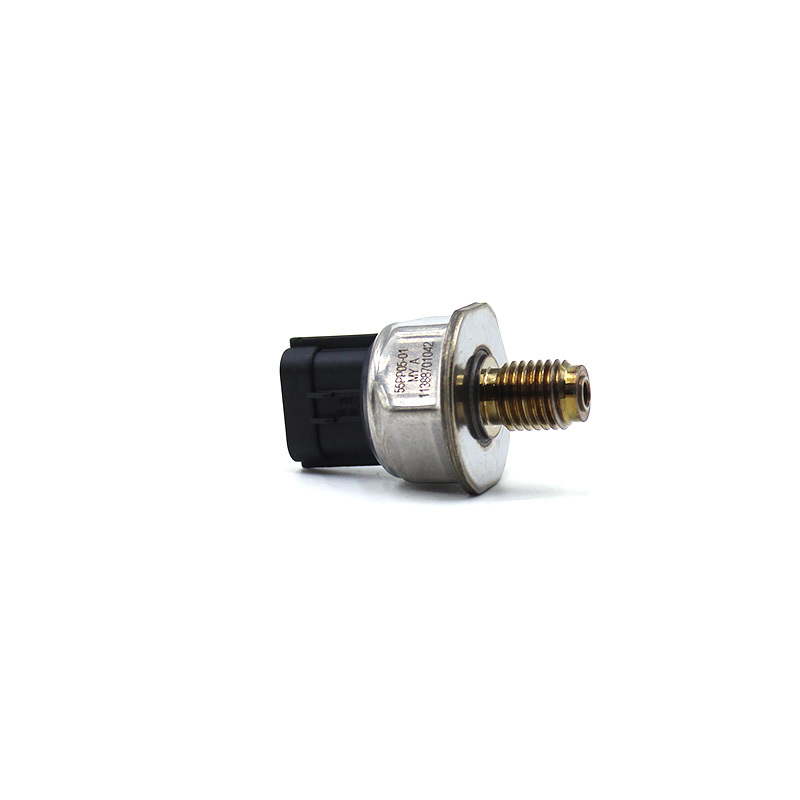

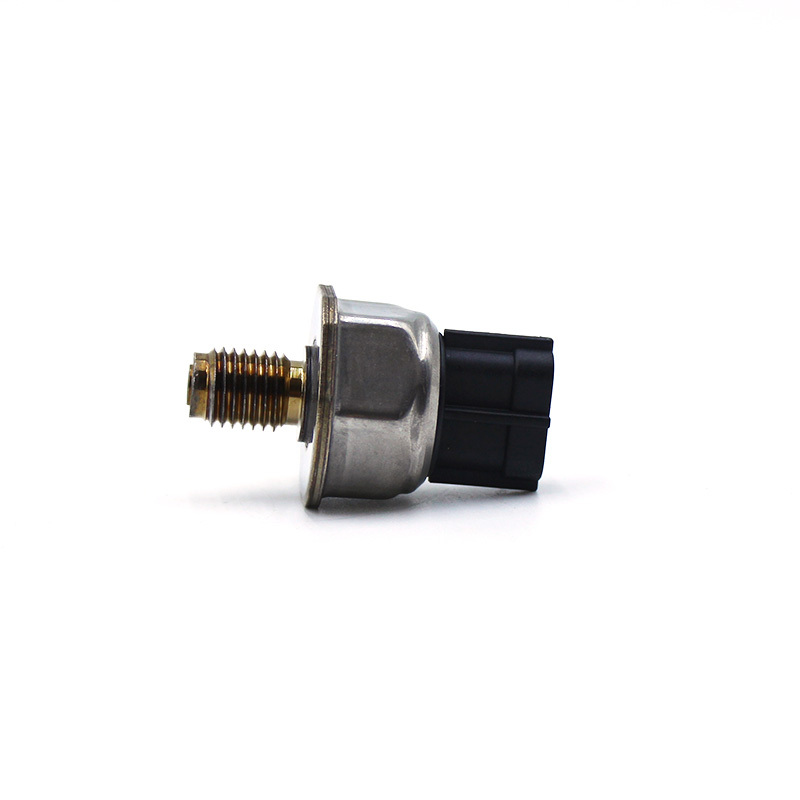

Hexagonal thickened metal pressure-bearing shell, resistant to high pressure without deformation or cracking
The main body is made of stamped stainless steel hexagonal shell, with sufficient pressure-bearing wall thickness, capable of withstanding continuous high-pressure impact from the common rail system. The surface is treated with anti-rust and passivation, resistant to diesel, engine oil, and water vapor corrosion, and prevents shell leakage and pressure loss.

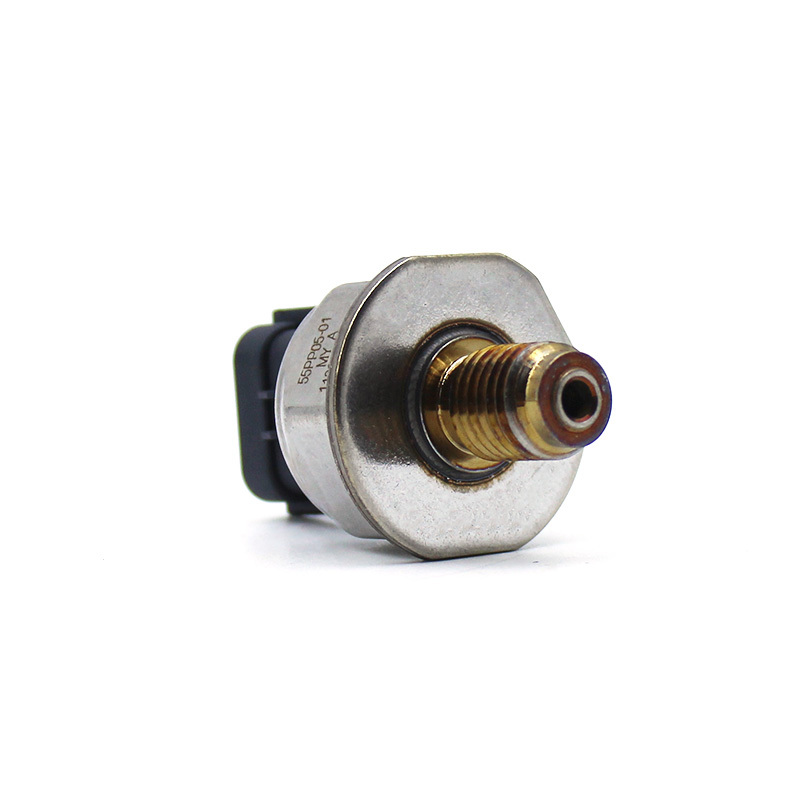

Precision brass high-pressure threaded connector, sealing fit without oil leakage
The bottom is an integrated brass external threaded oil nozzle, with standard uniform thread pitch, flat end face, and a locking effect after the sealing gasket is fitted. Under high-pressure conditions, there is no fuel leakage, and the thread is not prone to slippage, rusting, or getting stuck.
Top-mounted snap-in waterproof electronic control plug, stable signal transmission and anti-interference
The black plastic-sealed electric control connector at the top of the valve body is equipped with multiple layers of waterproof and dustproof rubber rings to isolate cabin oil, rain, and dust. Under vehicle jolting conditions, the pins are not prone to oxidation and false connection, and the electronic control signal has no delay or drift.
High-precision built-in sensing chip, linear pressure collection accuracy
The internal is equipped with a highly sensitive pressure sensing element, with a wide oil pressure detection range and stable pressure value feedback. The signal error is small under high and low load conditions, ensuring the ECU precisely regulates the fuel supply volume and eliminating black smoke and high fuel consumption problems.
Integrated sealing packaging process, preventing internal oil circuit short circuit failure
The sensor is fully sealed with epoxy resin inside, isolating fuel from damaging the chip, resistant to high-temperature aging, and not experiencing signal loss or sensor error faults in alternating high and low temperature environments. Applicable scenarios
Suitable for light-duty diesel freight vehicles, small wheeled excavators, agricultural tractors, mobile diesel generators, and are applicable for short-distance urban transportation, field farming, light-load construction sites, and maintenance of small-sized electrically controlled common rail diesel fuel supply systems in high temperature, high humidity and dusty environments.
Product Basic Parameters
Product Name: Common Rail High Pressure Pressure Sensor
Part Number: 55PP05-01
Main Material: Stainless steel pressure-bearing housing, brass high-pressure threaded connector, waterproof engineering plastic control plug, high-precision sensing chip
Structural Feature: Hexagonal metal pressure-bearing housing, brass high-pressure threaded connection, upright waterproof control plug, fully sealed built-in sensing chip
Application Conditions: Continuous light / medium-heavy load, cabin alternating high/low temperature, outdoor high dust small-sized electrically controlled common rail diesel engine high-pressure oil circuit
Product Status: New and complete pressure sensor assembly, factory completed high-pressure withstand test, signal accuracy detection, waterproof sealingity test
Packaging: Independent shock-proof hard packaging, threaded connector and control plug ends are protected to prevent磕碰， supports single piece / multiple pieces batch purchase， compatible with cross-border small-sized logistics
