Description
Product Overview
The pump head is the core pressure boosting and distribution unit of the CP3 high-pressure oil pump. It relies on the reciprocating compression of fuel within the cylinder to establish high pressure, and steadily delivers high-pressure fuel to the common rail pipeline. Under long-term mining conditions of 24-hour continuous heavy load, continuous impact of over 1000 bar oil pressure, and erosion by inferior quality diesel, the piston mating surface will wear and the internal sealing structure will fail, resulting in internal leakage of high-pressure fuel, engine acceleration failure, idle wobble and vibration, excessive black smoke in exhaust, and diesel seeping into the oil pan to dilute the lubricating oil. This product has standardized processing for the shell oil passage, piston pair, and installation hole spacing. Maintenance does not require on-site grinding and matching, significantly reducing maintenance time and being suitable for maintenance of CP3 common rail oil pumps for mining excavators, heavy-duty loaders, and long-distance trucks.
Core Advantages of the Single Product

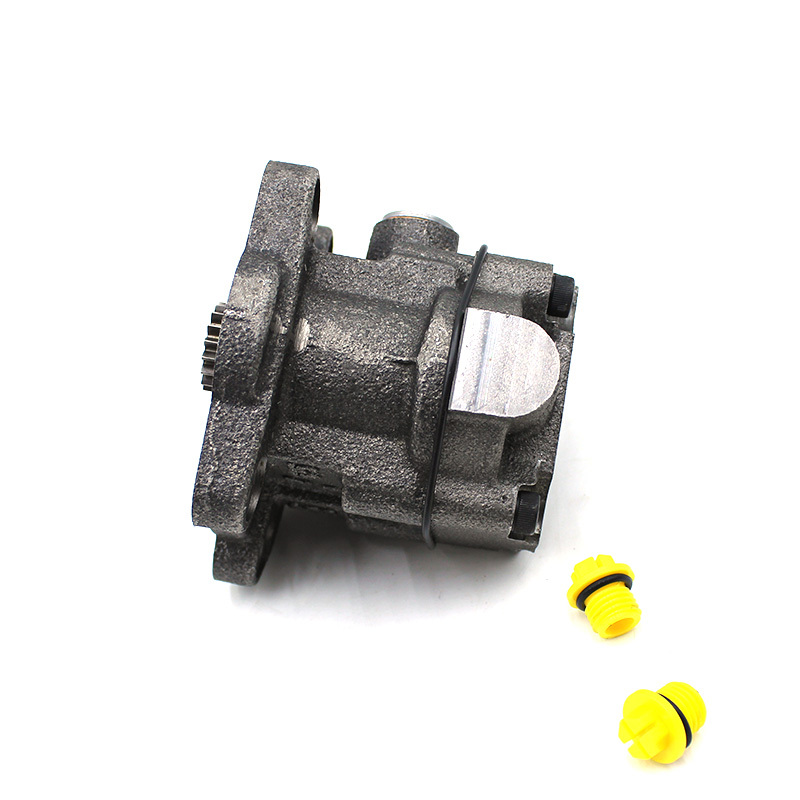

Thickened integral cast steel shell, high pressure-bearing, anti-deformation, and anti-leakage
The entire cast steel is integrated and cast, with strengthened shell wall thickness, seamless integration of internal oil passages, and resistance to long-term ultra-high oil pressure impact. It is less likely to crack or leak in the mining environment with high temperature and vibration, reducing leakage faults at the oil circuit source.

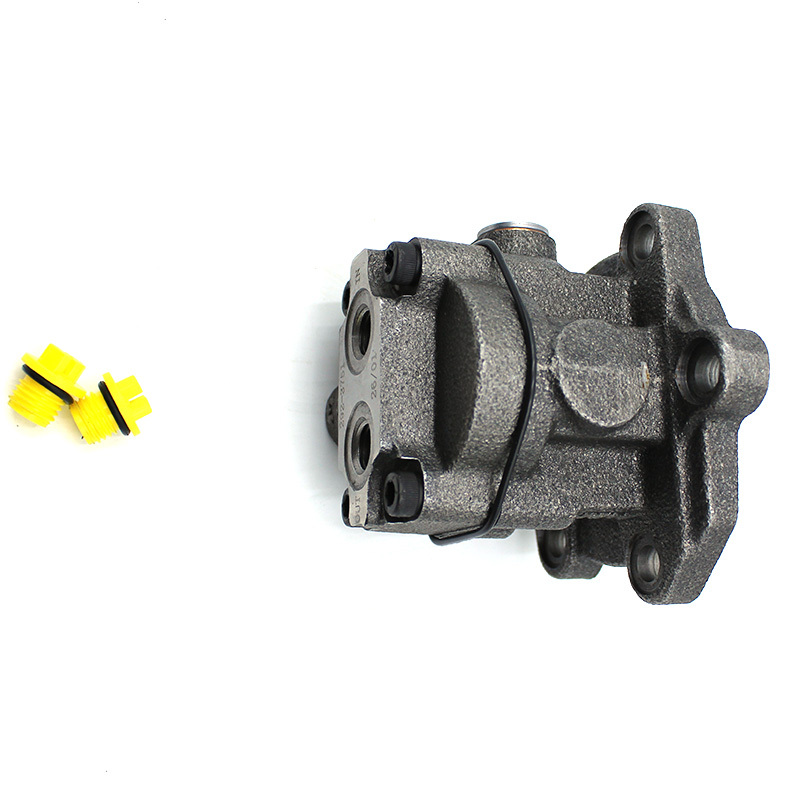

Four standard flange holes at the bottom for positioning, stable assembly without offset
The base is reserved with four standard fixed through holes, ensuring precise assembly alignment. The pump head has no radial or axial displacement, and the piston reciprocating motion has no eccentric wear. It can maintain the standard supply rail pressure stably for a long time.

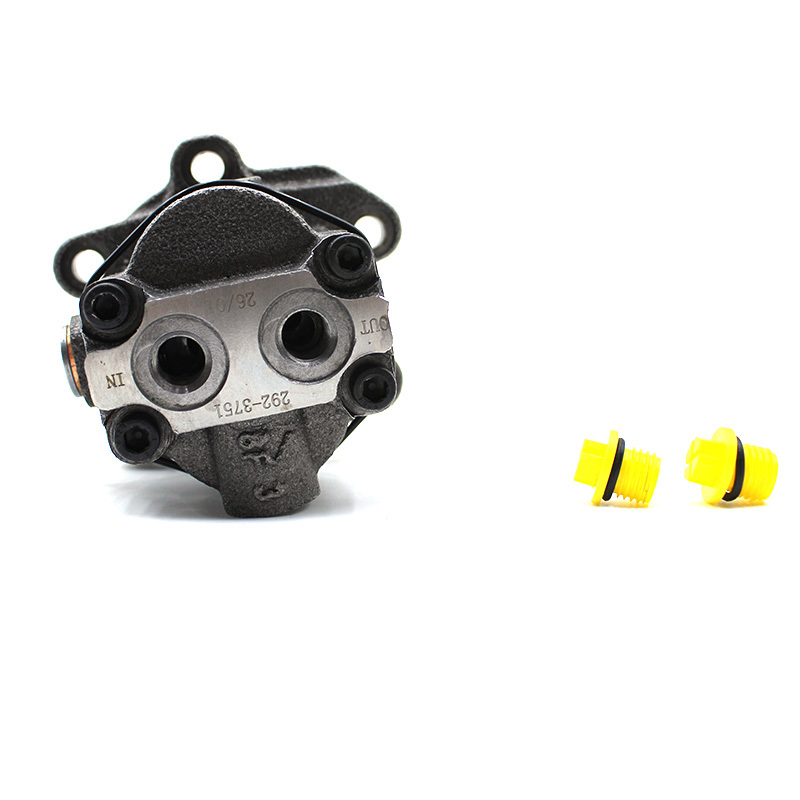

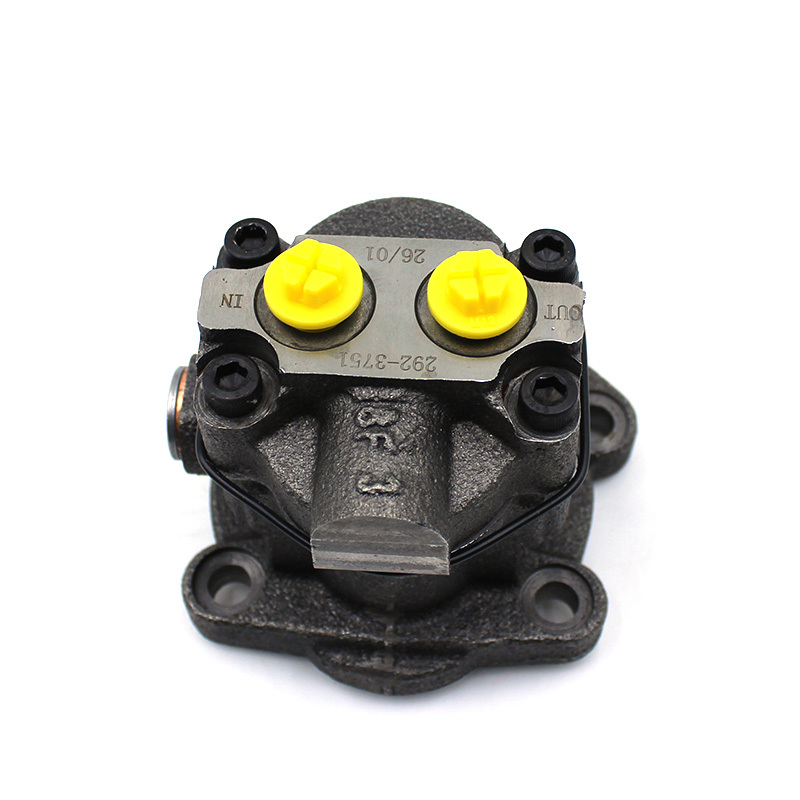

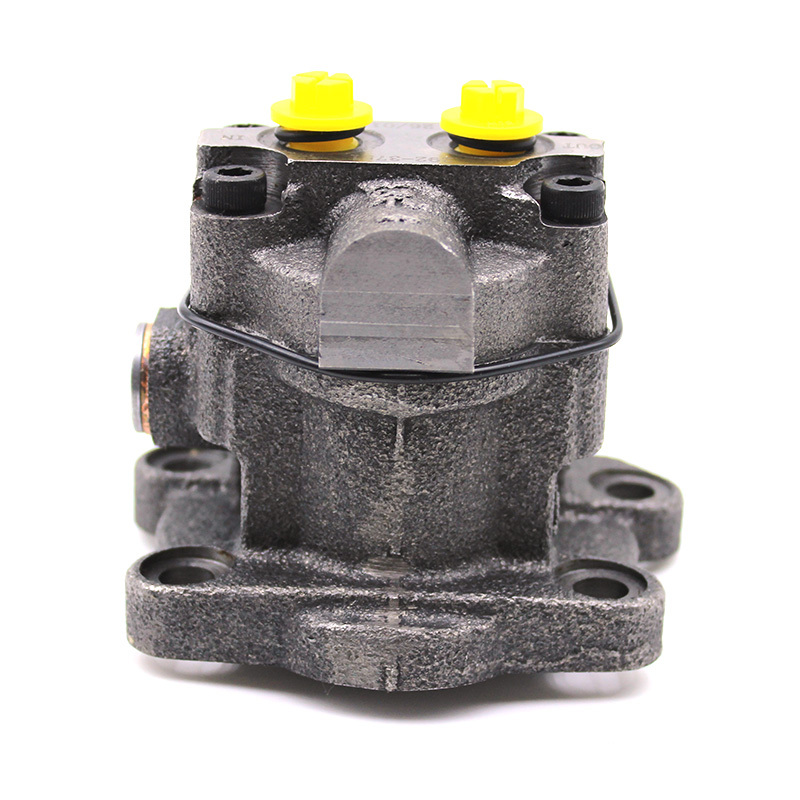

Double oil ports with yellow sealing caps at the top, providing comprehensive protection during storage and maintenance
The inlet and outlet oil ports are equipped with yellow oil-resistant plastic dust-proof caps. During storage, disassembly, and maintenance, dust and impurities are isolated, preventing fine particles from scratching the precise mating surface of the piston, and preventing high-pressure leakage and jamming faults after assembly.

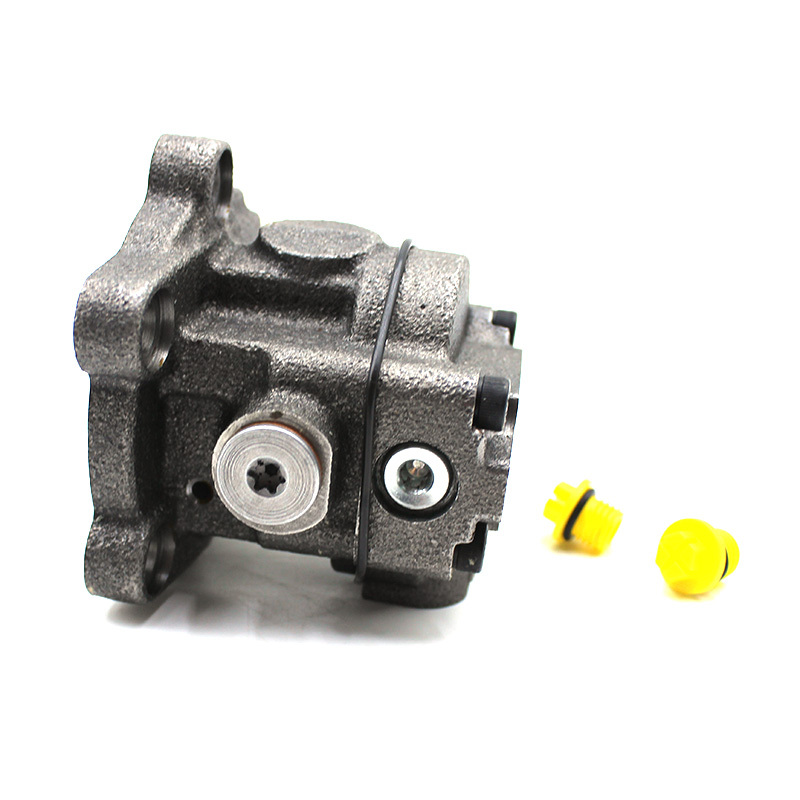

Independent high-pressure oil inlet threaded holes on the side, with threaded sealing locking to prevent pressure leakage
The threaded inlet for high-pressure oil is rolled on the side, combined with an internal sealing gasket for double locking. After screwing into the high-pressure oil pipe, it completely seals the gap, stabilizing the working oil pressure of the common rail system, and preventing fuel leakage and pressure drop.
Paired precision pistons for distribution, uniform fuel supply and stable rail pressure
The internal pistons are precisely matched and ground with the pump body mirror surface, with the mating gap strictly calibrated. The fuel leakage volume is extremely low under high and low load conditions, and the fuel supply difference between each cylinder is small, resulting in smooth engine operation and reduced carbon deposits and black smoke emissions.
Factory-mounted complete machine bench calibration, no need for secondary adjustment during assembly
Each pump head is independently tested for supply pressure, flow uniformity, and high-pressure sealing. The factory parameters are unified, and after assembly, it is directly matched with the electronic control system to quickly restore the standard power output of the equipment.
Accessory List
292-3751 Complete CP3 Oil Pump Pump Head Assembly 1 piece Applicable scenarios
This product is suitable for medium-sized mining excavators, heavy-duty wheeled loaders, long-distance heavy-duty freight trucks, and high-power fixed diesel generators equipped with CP3 electronic common rail fuel supply system. It is applicable for 24-hour continuous heavy-duty operations in mines, long-distance freight transportation, construction site high-temperature vibration, and dusty and impure diesel corrosion environments. The core boost component of the high-pressure oil pump is replaceable.
Product Basic Parameters
Product Name: 292-3751 CP3 Common Rail Oil Pump Pump Head Assembly
Part Number: 292-3751
Main Material: Thickened cast steel housing, hardened mirror-finished piston pair, oil-resistant built-in sealing components, plastic dust-proof cap
Structural Feature: Thickened cast steel integrated housing, four-hole flange installation position at the bottom, double oil circuit yellow dust-proof cap at the top, high-pressure oil inlet threaded hole on the side, built-in piston boost distribution mechanism
Application Conditions: Ultra-high oil pressure continuous boosting, engine compartment high-temperature vibration, heavy-duty dusty diesel corrosion heavy-duty electronic common rail diesel engine
Product Status: New and complete pump head assembly, factory completed high-pressure pressure-bearing, uniform oil supply, and sealing durability full bench testing
Packaging: Independent hard tube protection packaging, all oil ports equipped with protective plugs, foam buffer protection to avoid transportation磕碰划伤 threaded and piston precise mating surface， supports single-piece retail， bulk purchase in cartons， and is compatible with cross-border small items and carton logistics.
