Description
Product Overview
The pressure sensor is threaded and installed on the high-pressure common rail pipe. An internal high-precision sensing chip captures the fuel pressure in the pipeline in real time and converts it into voltage signals recognizable by the electronic control unit. The system dynamically adjusts the oil pump supply volume and injection timing based on the signals. Under long-term conditions of thousands of bar high-pressure fuel flushing, alternating temperatures in the engine compartment, and diesel water and oil corrosion, the sensing element ages, and the bottom seal fails, resulting in distorted rail pressure data, power output discontinuities, rapid pressure relief during engine shutdown, the need for multiple ignitions to start the engine, and excessive black smoke in the exhaust. This product has standardized specifications for the threaded installation, signal output range, and pressure-bearing threshold. The sensor can be simply replaced for repair of abnormal oil pressure signal faults during maintenance of electric control common rail engines for light trucks, diesel pickup trucks, and small passenger diesel vehicles.
Core advantages of this product:
Thickened segmented stainless steel pressure-bearing shell, resistant to pressure, rust, and medium corrosion
Multi-layer stepped stainless steel integrated precision processing, thickened tube wall to enhance pressure-bearing capacity, capable of withstanding continuous ultra-high oil pressure impact, isolating cabin water vapor, diesel oil and gas erosion, and providing long-term protection for the internal sensing chip from damage.
Integrated hexagonal clamping platform at the bottom, with uniform force during disassembly and assembly, and not prone to damage
Complete hexagonal limit structure at the lower end, compatible with standard sockets / open wrenches, during disassembly and assembly, it will not squeeze the internal precision sensing elements, avoiding shell deformation, thread slippage, and fuel leakage.
Black multi-pin waterproof insulated electronic control plug, stable signal and anti-interference
Multi-pin integrated sealing socket, built-in dustproof and waterproof rubber gasket, isolating cabin oil, water vapor, and dust, eliminating short circuits, loss of oil pressure signals, no data transmission delay or drift.

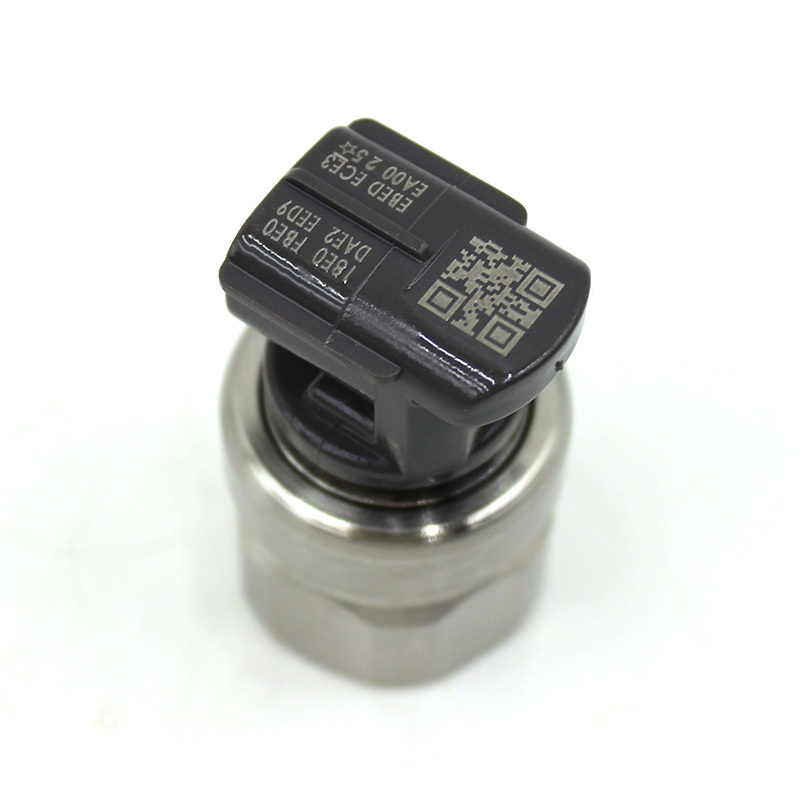

The plug is marked with characters + QR code identifier for quick matching of models during inventory and maintenance
The surface of the plug is laser engraved with multiple identification codes and QR codes, resistant to diesel soaking, repeated wiping without code loss, quick differentiation of specifications during warehouse storage and on-site maintenance, avoiding incorrect installation causing abnormal oil pressure collection.
Built-in precision sensing chip, with extremely small error in oil pressure collection over the entire range
High-precision pressure sensing element, capable of detecting oil pressure in all working conditions from no load to heavy load with linear stability, the electronic control unit can precisely adjust the rail pressure, eliminating vehicle acceleration jolts and speed fluctuations.
Factory calibration of the entire machine signal, no need for secondary adjustment during assembly
Each sensor is independently calibrated for oil pressure - voltage corresponding curves, factory signal parameters are unified, after assembly, it can directly match the original vehicle electronic control system, quickly restoring the vehicle's smooth power output.
Accessory list
23670-0L090 Complete common rail pressure sensor 1 unit
Pre-installed built-in oil-resistant fluorine rubber sealing gasket 1 sheet Applicable scenarios
This product is suitable for light-duty freight trucks, diesel pickups, small passenger vans, and small fixed diesel generators equipped with high-pressure common rail fuel supply systems. It is applicable for short-distance urban deliveries, rural road transportation, and lightweight electronic control common rail diesel engines operating in dusty and alternating hot and cold environments. The rail pressure signal acquisition components can be replaced.
Product Basic Parameters
Product Name: 23670-0L090 Common Rail Fuel Pressure Sensor
Part Number: 23670-0L090
Main Material: Thickened stainless steel pressure-bearing housing, insulated waterproof multi-pin electronic control plug, high-precision pressure sensing chip, fluorine rubber built-in sealing component

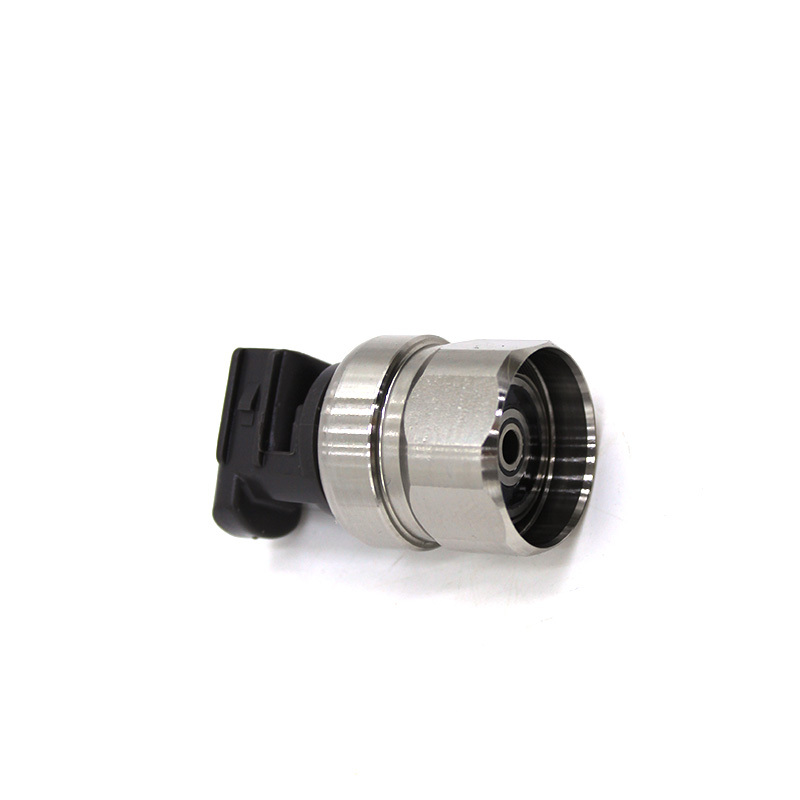

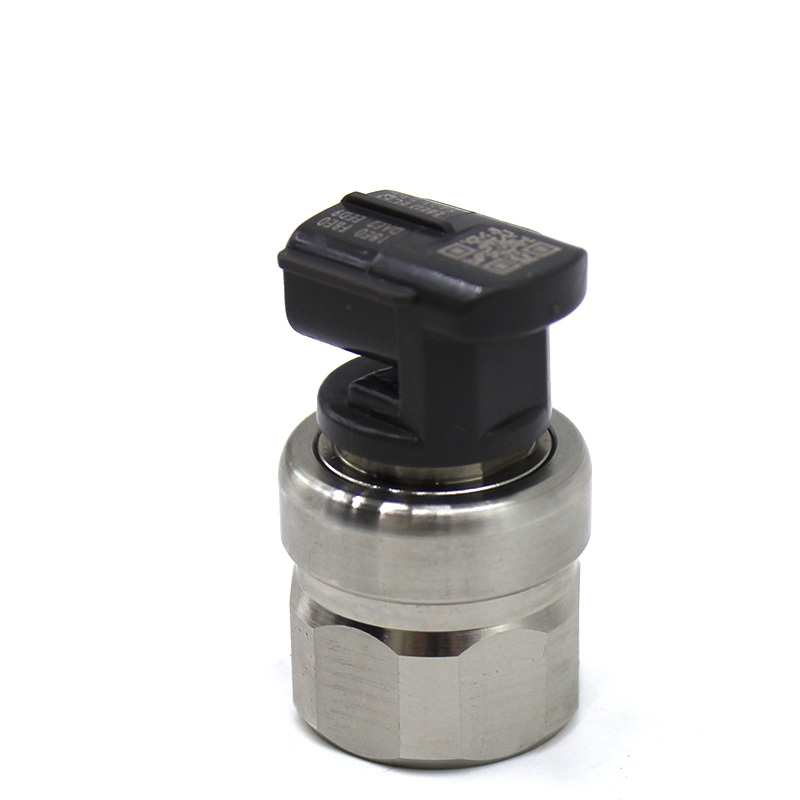

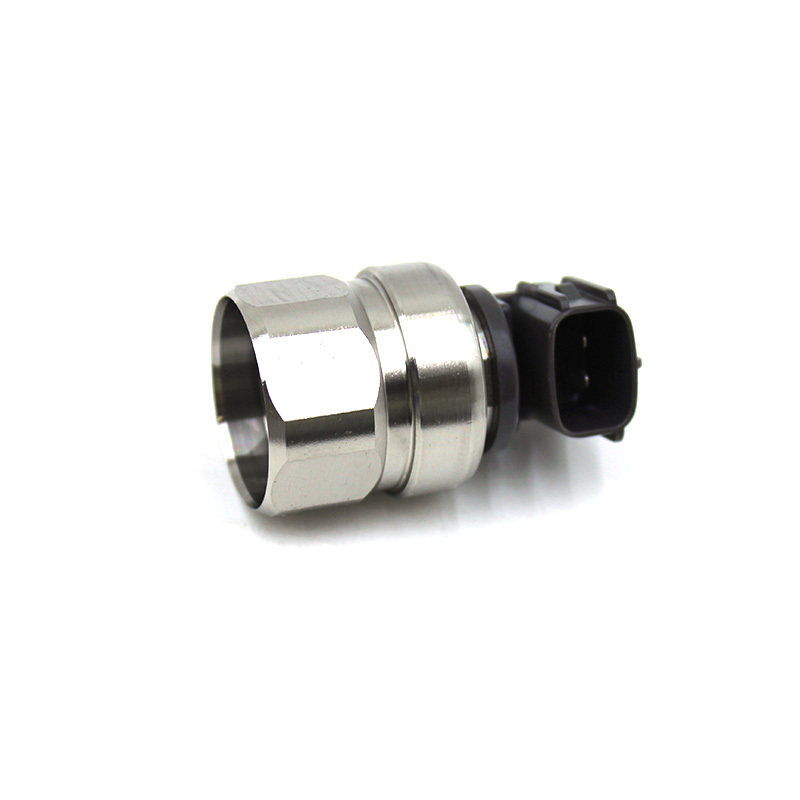

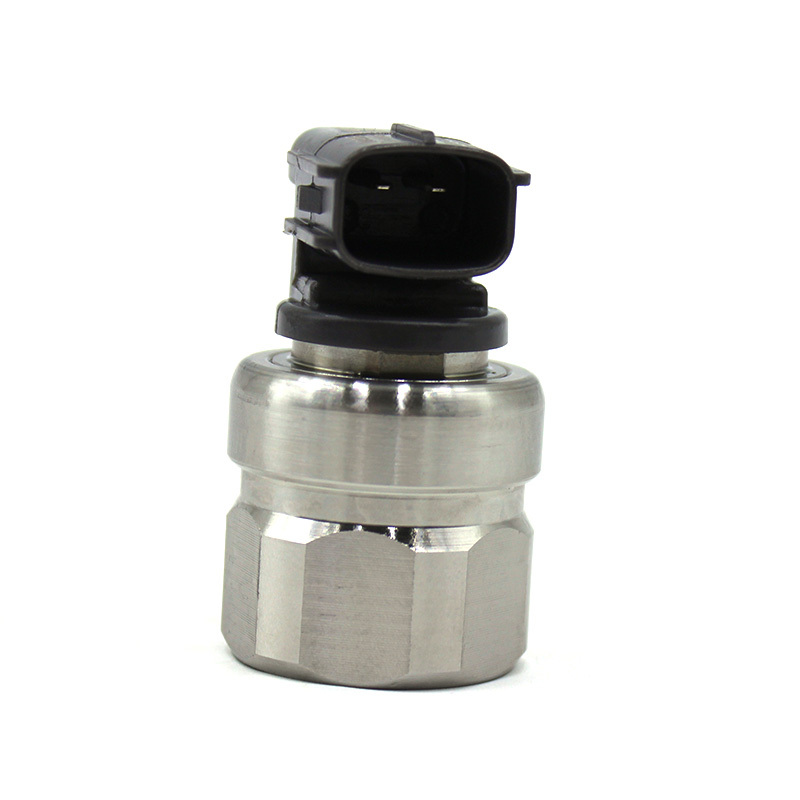

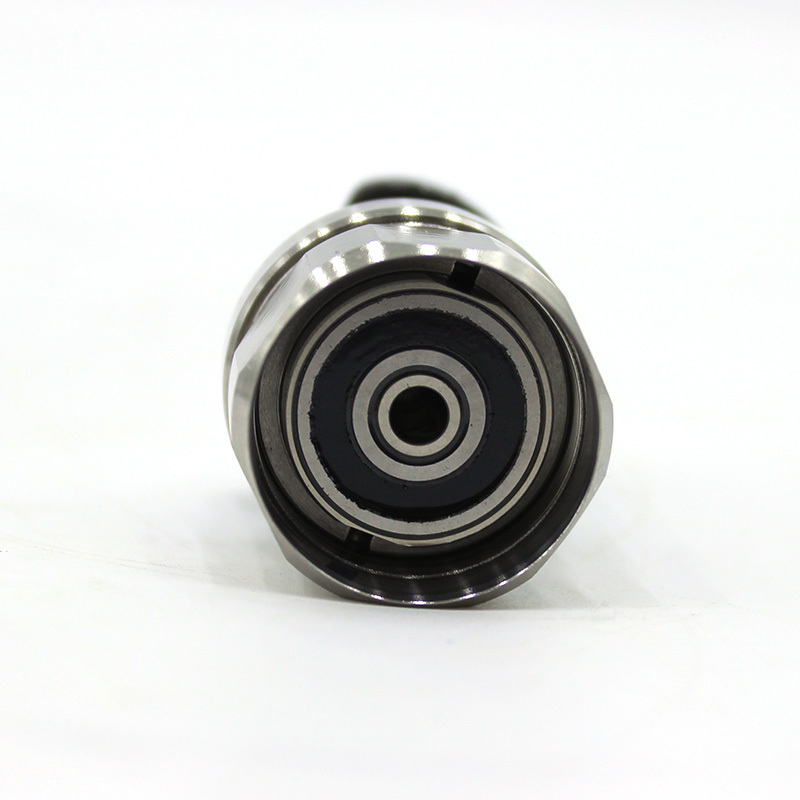

Structural Feature: Segmented stepped stainless steel cylinder, six-corner detachable clamping position at the bottom, multi-pin waterproof electronic control plug-in socket at the top, engraved identification characters and QR code on the plug
Application Conditions: Real-time collection of extremely high fuel pressure, cabin alternating hot and cold vibrations, diesel medium corrosion of lightweight electronic control common rail diesel engines
Product Status: New and complete sensor assembly, factory completed with full bench calibration and testing for fuel pressure collection accuracy, high-pressure sealingity, and signal transmission stability
Packaging: Single-piece independent hard tube protection packaging, plastic dust-proof covers for the threaded end and electronic control plug, foam buffer protection to avoid scratches and damages to the threaded end and conductive terminals during transportation. Supports single-piece retail and bulk purchase in cases, and is compatible with cross-border small package logistics.
