Product Overview

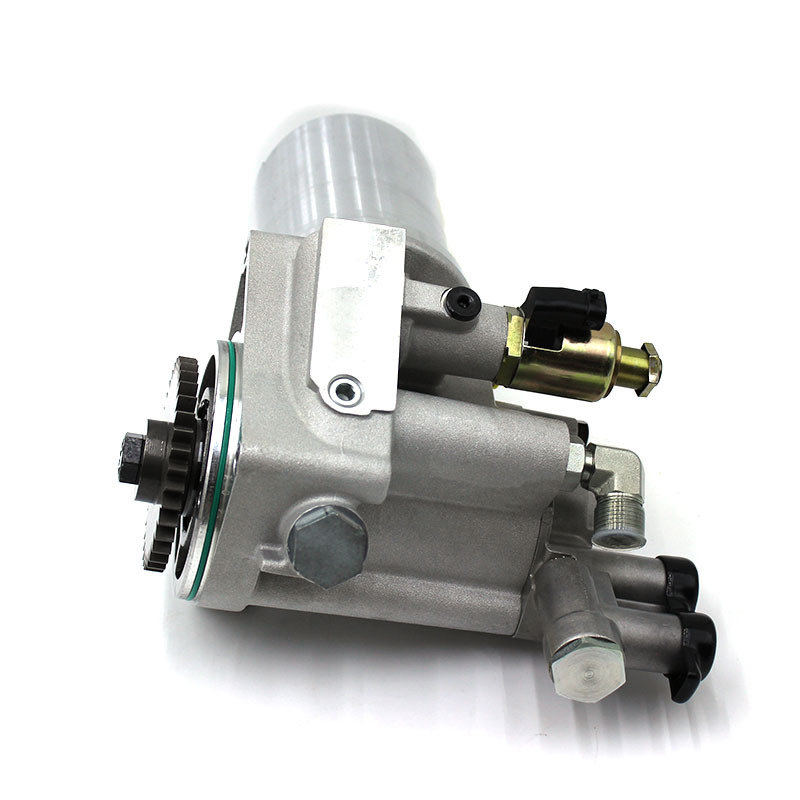

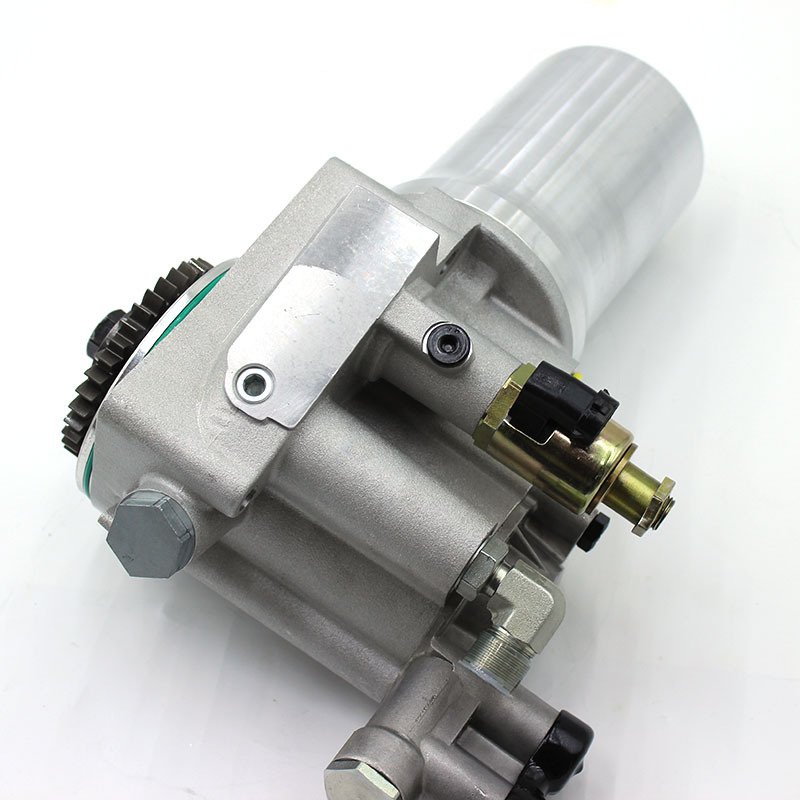

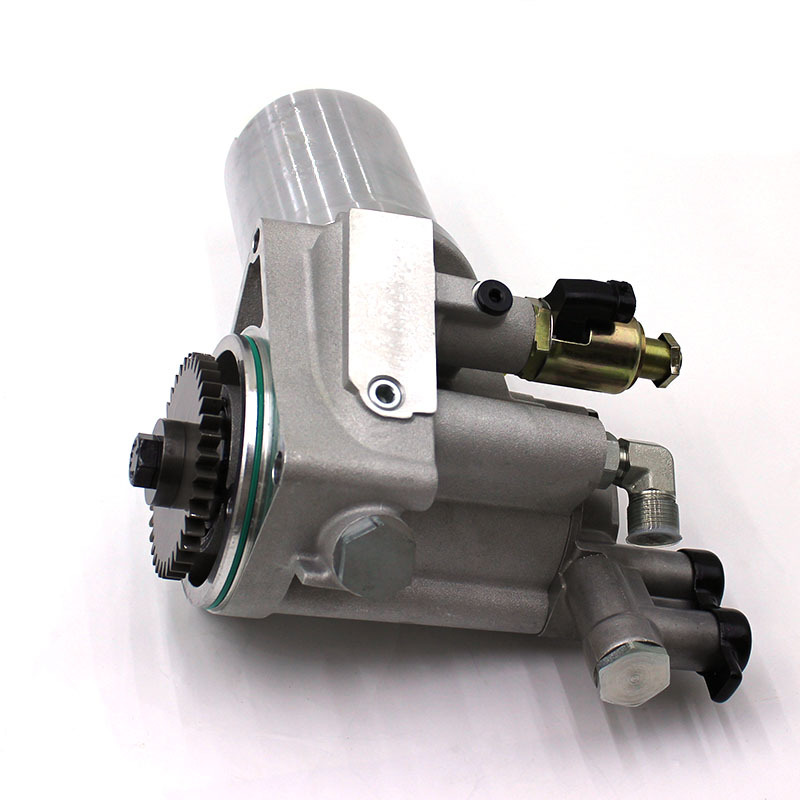

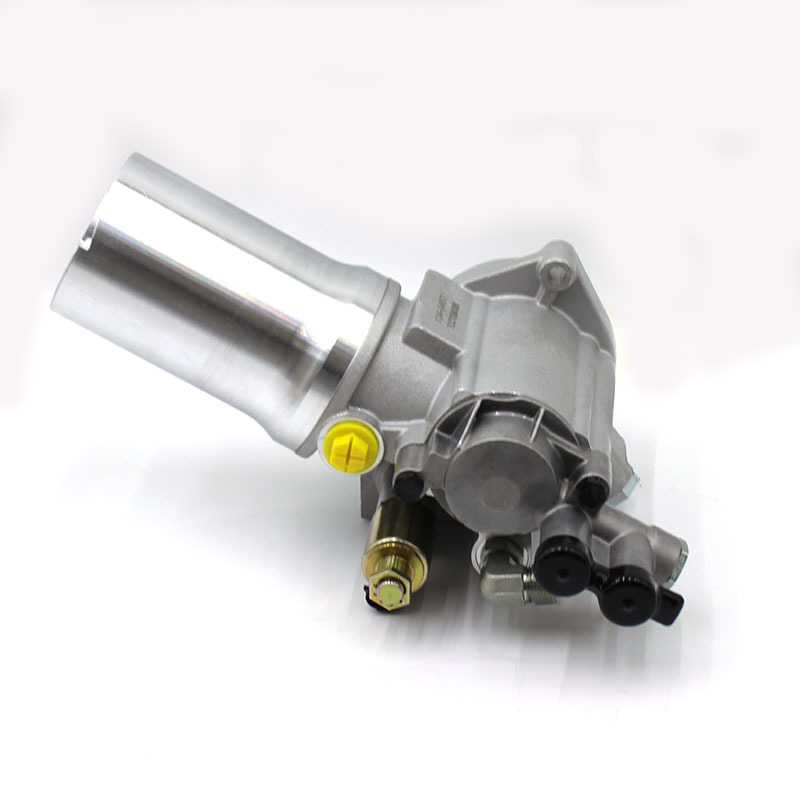

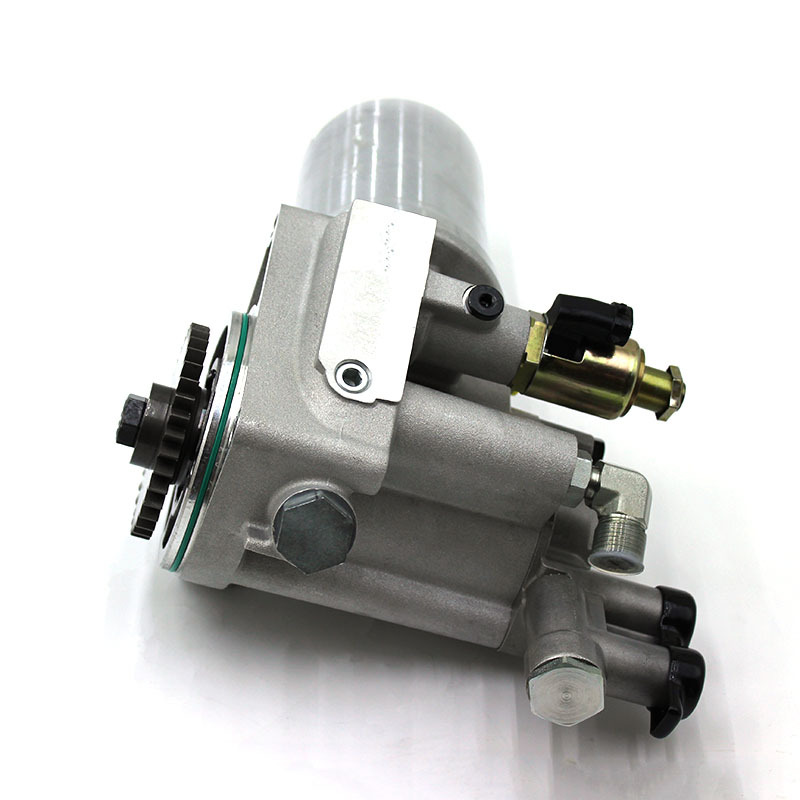

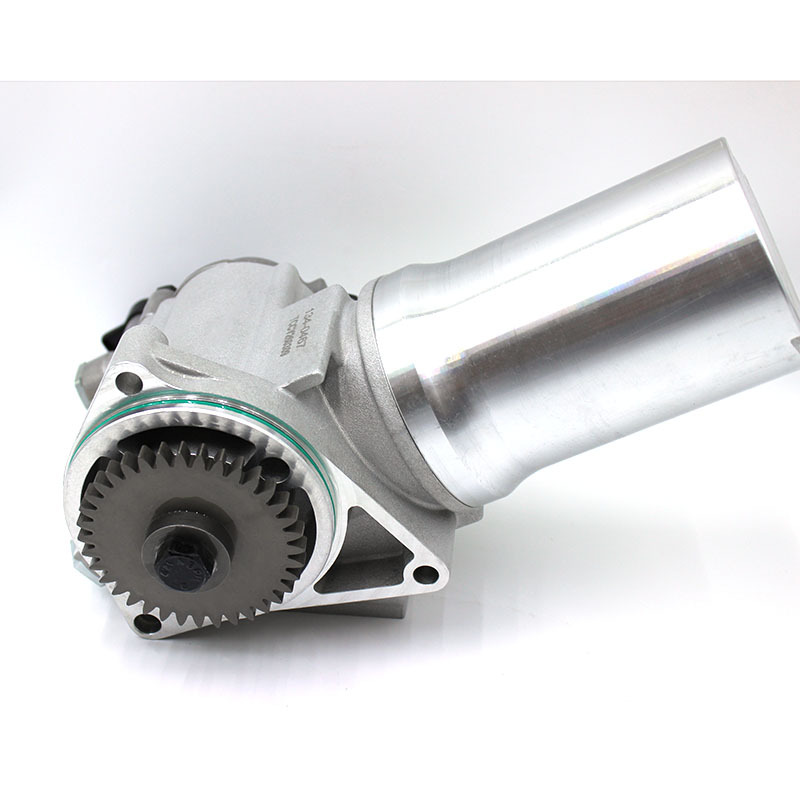

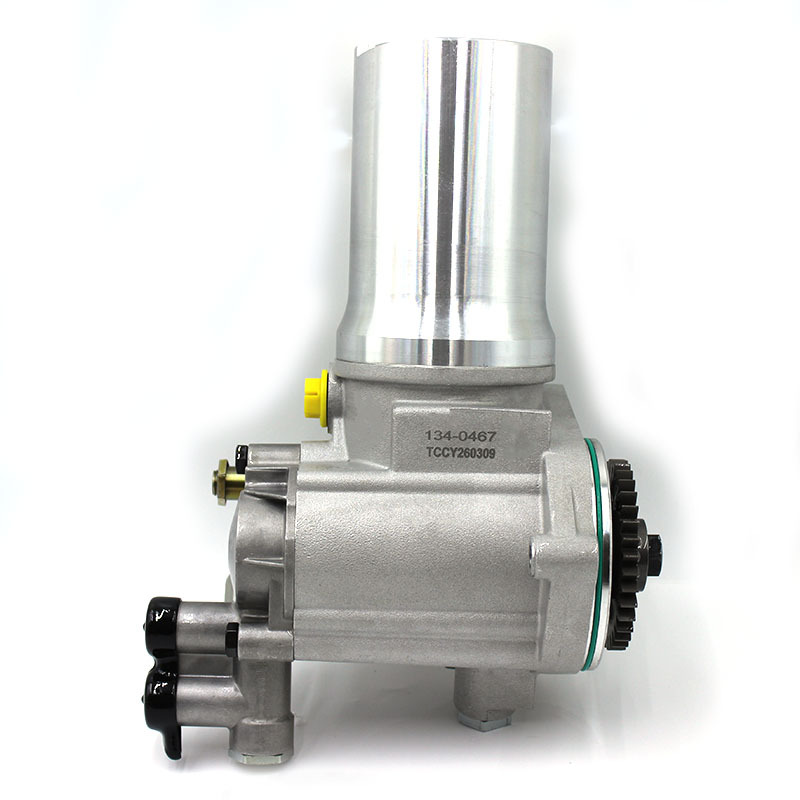

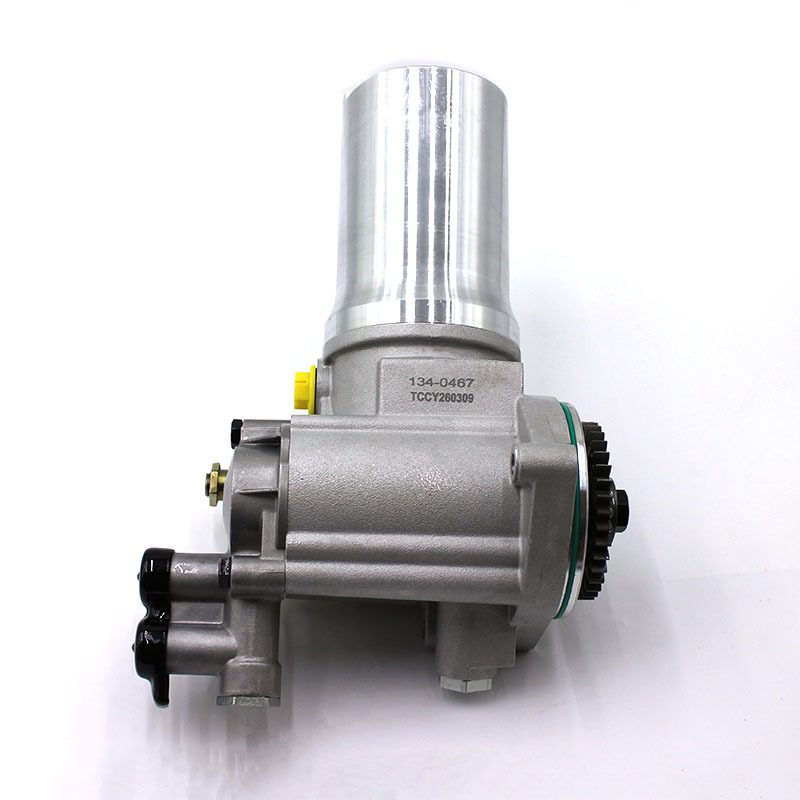

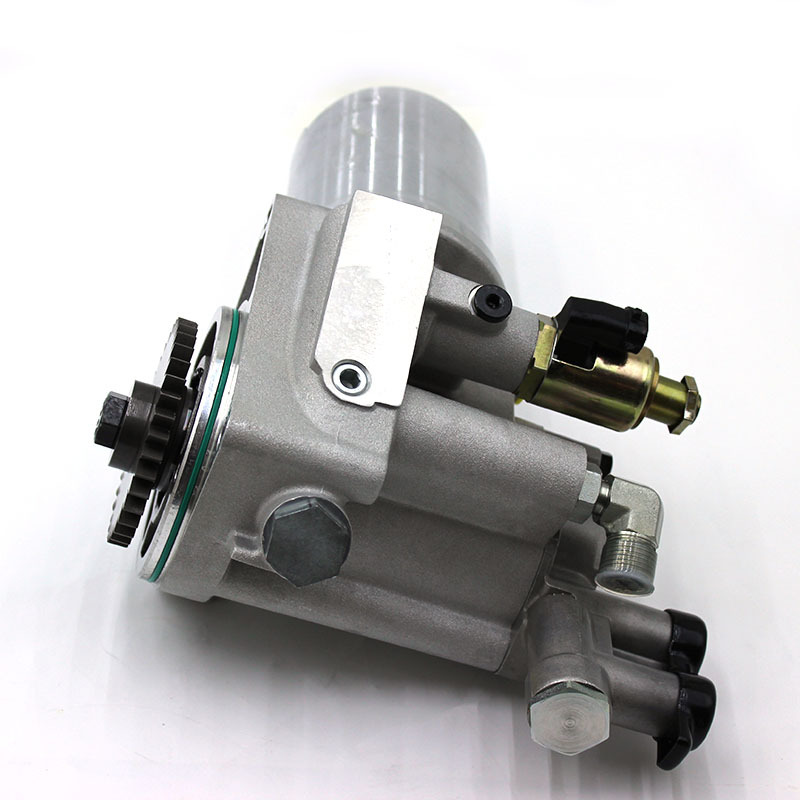

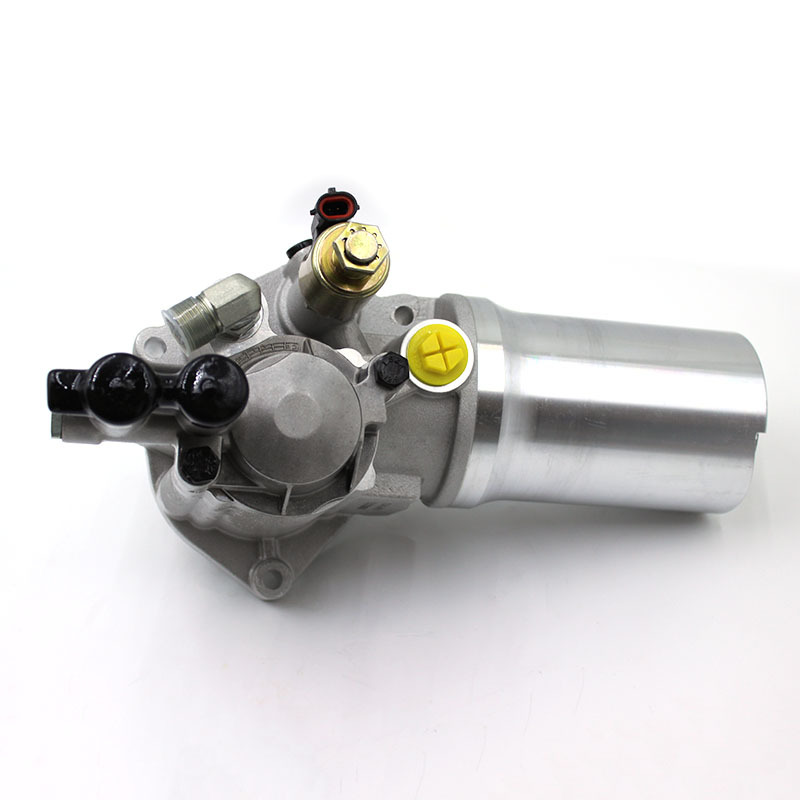

134-0467 Compound Fuel Pump is the core fuel supply assembly for diesel power systems, integrating a gear-driven pump body, a transparent fuel storage filter cup, and an electronic pressure regulation component. This single device simultaneously achieves multiple functions such as fuel extraction, impurity filtration, and oil pressure stabilization. When the old pump body experiences pressure leakage, oil path blockage, or pressure loss, the entire assembly can be replaced to simplify the oil path maintenance process, stabilize the continuous fuel supply demand for the engine, and be suitable for long-term operation of large-power engineering equipment.
Unique features of the individual product
Side transmission gear linkage structure, synchronous and stable power transmission
The input end is equipped with precise meshing gears, which are driven to rotate synchronously by the body's power. The transmission meshing gap is uniform, and there will be no fuel supply lag or interruption under high-speed rotation conditions. The power output is fully matched with the engine's operating rhythm.
Integrated transparent fuel filter cup, facilitating visual inspection of impurities
The upper part is equipped with a visible transparent filter cup, allowing for direct observation of impurities and water in the fuel. Without disassembling the pump body, the blockage of the filter element can be determined. Daily maintenance does not require frequent disassembly of the entire machine, significantly reducing maintenance time.
Exterior electric control pressure regulating valve body, automatically balancing the oil pressure in the oil path
The side integrates an electric control pressure regulating component, which can dynamically adjust the oil pressure in the pipeline according to the equipment load. During heavy-load operation, the supply pressure is automatically increased, and it stabilizes the pressure release under idle conditions, avoiding damage to the oil path components due to excessive oil pressure and preventing power loss due to insufficient oil pressure.
Multi-path standard threaded interface, suitable for multi-path oil path layout
The body is reserved multiple sets of standardized oil inlet and outlet threaded joints, which can be matched with multi-path oil supply circuits. The joint sealing step design allows for a leak-proof connection by simply pairing with a sealing gasket. This expands the flexibility of oil path layout.
Separate sealing flange combined with oil-resistant sealing ring, long-term leak-proof
A ring-shaped green oil-resistant sealing ring is configured at the connection point of the pump body. The flange surface is processed to be flat and closely fitted. Under long-term high-temperature and high-pressure operations, the sealing components are less likely to harden and fail, eliminating the problem of oil leakage or diesel leakage at the connection gap. Applicable scenarios
Suitable for high-power diesel power units, widely used in large loaders, mining equipment, fixed industrial power generators, and heavy engineering vehicles. It is suitable for replacing the oil circuits of equipment used in mining areas, construction sites, and outdoors for long-term full-load continuous operation. Product basic parameters
Product Name: Integrated Gear Oil Pump Assembly
Part Number: 134-0467
Main Material: Cast aluminum pump body, alloy transmission gears, transparent oil filter cup, electronic control pressure regulating component
Structural Features: Gear drive end, visible storage and filtration cup, electronic control pressure regulating valve, multi-way threaded oil ports, separate sealing flange
Application Conditions: High-power continuous heavy load, high dust content, alternating high and low temperature industrial outdoor environment
Product Status: New and complete assembly, completed with full item inspections for pump oil pressure, sealingity, and electronic control pressure regulating function
Packaging: Thickened shock-proof independent packaging, protecting gears, valve body, and transparent filter cup from being squeezed or bumped, suitable for cross-border sea and land long-distance logistics
