Description
Product Overview
The oil pump is driven by the engine power to rotate the spline shaft, which in turn drives the internal oil pumping components. It extracts low-pressure fuel from the fuel tank, filters it, and then delivers it steadily to the high-pressure oil pump, providing the basic fuel supply for high-pressure boosting. Under conditions such as long-term construction site high-temperature dust, long-distance bumpy driving, and continuous impurities in diesel washing the equipment, the internal oil pumping components may wear out, the sealing surfaces may leak, and the pressure regulating spring's elasticity may decline. This may result in insufficient oil supply flow, low low-pressure oil pressure, inability of the high-pressure oil pump to quickly establish rail pressure, multiple ignition failures before startup of the equipment, power loss during heavy-load climbing, and engine shutdown during driving. This product has standardized processing for the base installation holes, spline shaft specifications, and pressure regulating parameters. During maintenance, the entire oil pump can be directly replaced, eliminating the cumbersome process of disassembling and grinding the internal components. It is suitable for large-scale mining excavators, heavy-duty wheeled loaders, long-distance heavy-duty freight trucks, and large-power stationary diesel generator sets for maintenance.
Core Advantages of the Single Product
The pump body is made of cast iron and is black anodized for rust prevention and pressure resistance, and is not prone to cracking.
The entire cast iron is integrated and formed as a whole. The surface has a black anodized wear-resistant and rust-proof coating, which can withstand alternating high and low temperatures in the engine compartment and continuous vibration conditions. The pump body is less likely to leak, and the installation base is less likely to fracture or deform, maintaining long-term low-pressure oil circuit sealing performance.

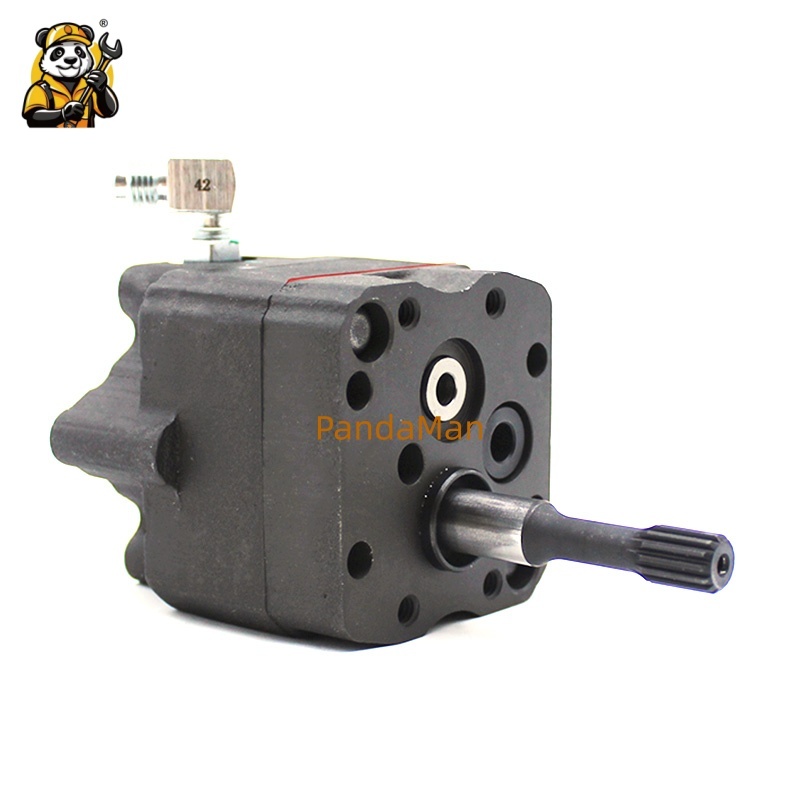

The top standard spline drive shaft is driven by power engagement transmission without slipping.
The upper end multi-tooth spline output drive shaft has regular tooth shapes and precise tolerances, which closely mesh with the engine power transmission components, ensuring stable power transmission without slipping or loss of rotation, guaranteeing continuous and stable fuel extraction and transportation, and eliminating fluctuations in the supply flow.

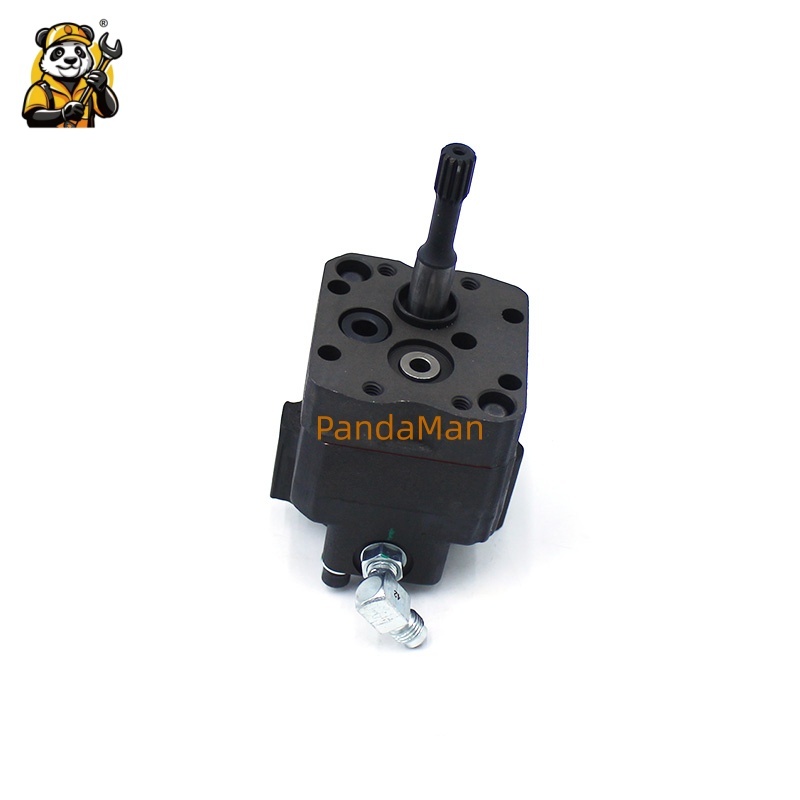

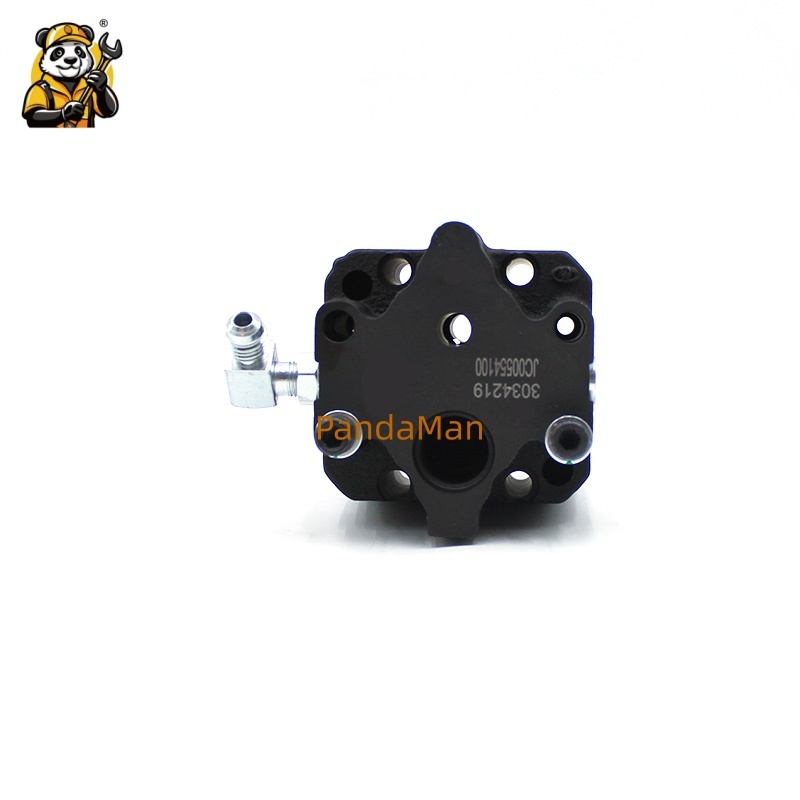

The base has multiple standard positioning installation holes, suitable for installation positions of various models.
The pump body base is equipped with multiple groups of standard threads and positioning holes on the bottom. The hole layout is universal and can be adapted to the corresponding model's installation flange. Installation and disassembly are convenient, without the need for additional modification or drilling. It is suitable for various series of diesel engines with assembly space.

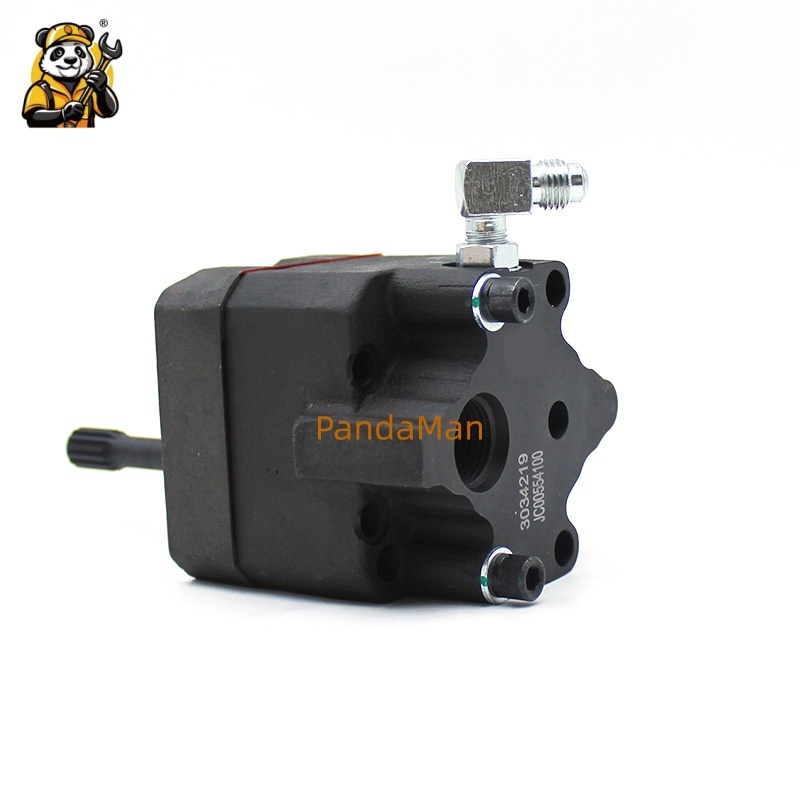

The external adjustable pressure regulating screw can be adjusted microscopically to the low-pressure oil supply pressure as needed.
The side is equipped with an oil pressure regulating screw with a locking nut. Maintenance personnel can adjust the low-pressure output oil pressure slightly according to the working conditions, adapting to the fuel supply requirements under different road conditions and loads, and flexibly matching the fuel supply requirements of the high-pressure oil pump.
The pump body has a multi-layer sealing structure to prevent fuel leakage and air backflow.
The pump body is equipped with multiple layers of oil-resistant sealing gaskets to prevent low-pressure fuel from leaking out through the gap of the housing and prevent air from backflowing into the oil circuit after shutdown, avoiding difficulties in starting the oil circuit and establishing pressure upon next startup.
The entire oil pump is factory-calibrated for flow and pressure, and no secondary calibration is required during installation.
The entire oil pump is independently tested on the machine for the supply flow, low-pressure output pressure, and housing sealing performance. The factory parameters are unified, and after assembly, the engine's fuel supply is stable, significantly reducing the time for oil circuit maintenance and debugging. List of Accessories
3034219 Complete low-pressure oil transfer pump assembly 1 unit, packaged in independent shock-proof tube protection
Pre-installed locking pressure regulating screws are provided as accessories Applicable scenarios
It is suitable for large-scale mining excavators with high-pressure common rail and mechanical direct injection fuel supply systems, heavy-duty wheeled loaders, long-distance heavy-duty freight trucks, high-power fixed diesel generators. It is applicable for 24-hour continuous heavy-duty operations in mines, long-distance trunk freight transportation, hot and dusty environments at construction sites, and the replacement of the entire machine for heavy-duty diesel engines with low-pressure fuel delivery in corrosive environments caused by impurities in diesel fuel.
Product Basic Parameters

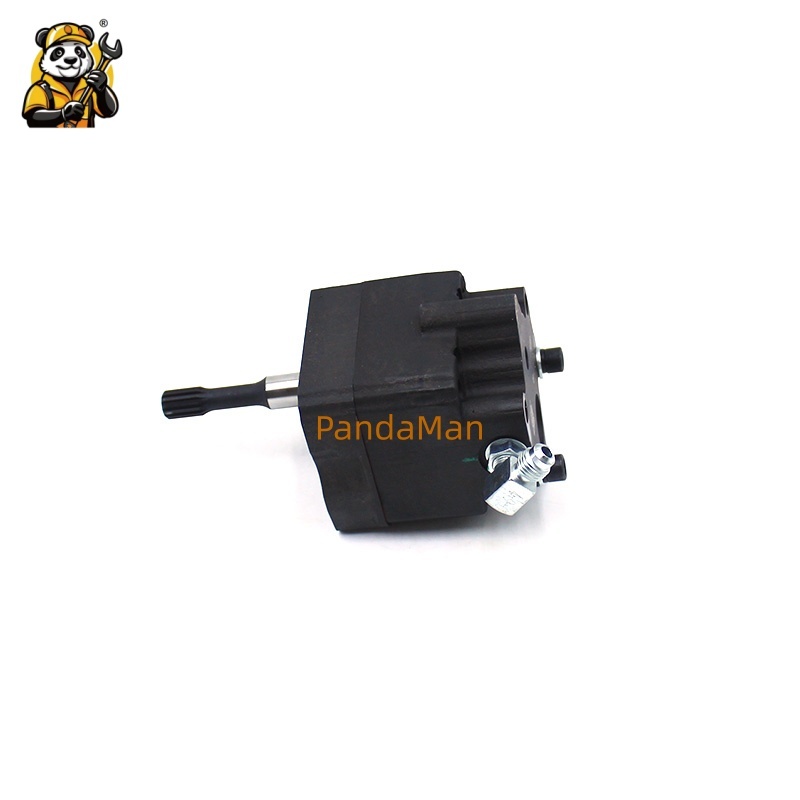

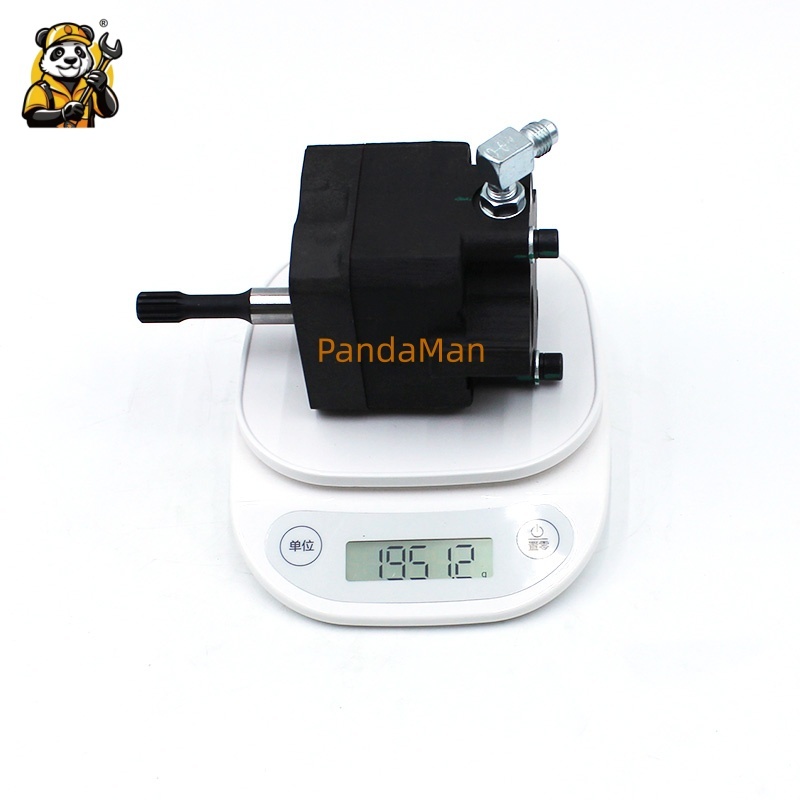

Product Name: 3034219 Diesel Engine Low-Pressure Fuel Pump Assembly
Part Number: 3034219
Main Material: Cast iron passivated pump body, alloy spline drive shaft, hardened alloy steel internal fuel pump components, oil-resistant fluororubber seals, steel regulating screws
Structural Feature: Integrated square cast iron pump body, top multi-tooth spline drive shaft, base multiple sets of standard installation positioning holes, side adjustable oil pressure regulating screws, built-in multi-layer oil circuit sealing structure
Application Conditions: Low-pressure fuel extraction and delivery, continuous vibration of engine compartment under hot and cold conditions, base fuel supply delivery for heavy-duty diesel engines corroded by impurities in diesel fuel
Product Status: New and complete fuel pump assembly, factory completed with full set of bench calibration and testing for fuel supply flow, low-pressure oil pressure, and shell sealingity
Packaging: Independent thickened shockproof hard tube packaging, spline shaft, threaded regulating screws equipped with dust-proof protective plugs, foam buffer protection to avoid internal fuel pump components from being damaged by transportation bumps and impacts, supports single-unit retail, bulk purchase in cartons, and is compatible with cross-border large-scale logistics.
