Description
Product Overview
The control valve is assembled inside the common rail injector. The valve body rises and lowers under the drive of electronic signals, precisely regulating the amount of fuel intake and outflow, directly determining the injection timing, injection volume, and atomization effect. Under long-term mining heavy-duty, continuous high-pressure fuel flushing at over 1000 bar, the valve body sealing surface wears out, the needle rod guide gap expands, resulting in single-cylinder fuel supply imbalance, weak acceleration, idle wobble, oil circuit pressure relief after engine shutdown, and the need for multiple starts to start the engine. This product features uniform standardization of valve body clearance, needle rod stroke, and thread positioning dimensions. After maintenance and disassembly, the control valve can be replaced alone to repair abnormal fuel injection faults, suitable for large-scale mining excavators, heavy-duty long-distance trucks, and large-power diesel generator sets for common rail injector maintenance and repair.
Core Advantages of the Single Item
Segmented quench-hardened mirror surface valve body, with extremely low leakage of high-pressure sealing
Double-layer separate metal shell, micro-micron mirror surface fine grinding of the inner and outer walls, overall quench-hardening treatment, capable of withstanding extremely high oil pressure for long-term impact, closely adheres under high-pressure conditions, significantly reducing fuel internal leakage and pressure relief.
Double-encoded marking on the outer wall, quick matching of models during inventory and maintenance

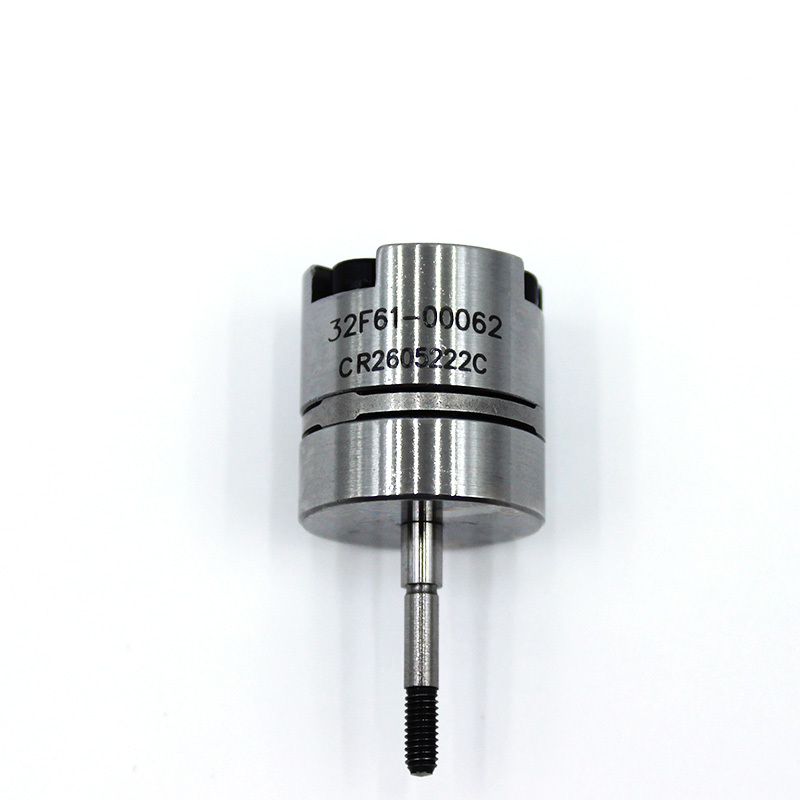

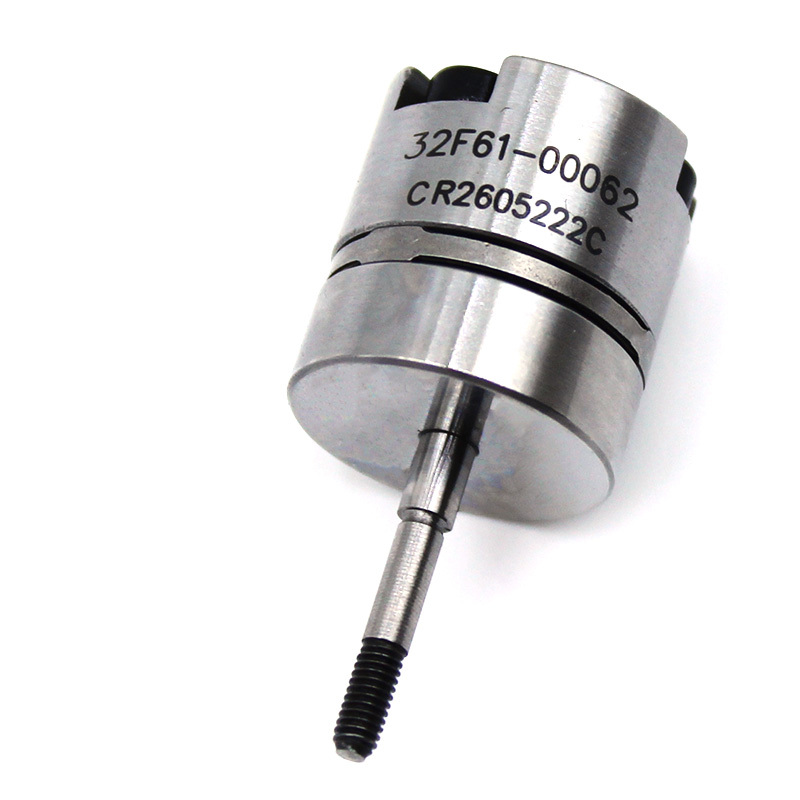

Metal surface engraved 32F61-00062 and the matching identification code, the characters are resistant to diesel soaking and repeated wiping without falling off, facilitating quick identification of specifications for storage and on-site maintenance, avoiding incorrect installation and causing disorder in fuel injection timing.
I-shaped slender precision guide needle rod, no offset or jamming during reciprocating motion
The lower end of the long guide needle rod is strictly calibrated for coaxiality, smooth and without jamming during up and down movement, precisely controlling the fuel flow cross-section, stable fuel injection volume under high and low loads, eliminating acceleration jolts and idle jitter.
Standard external thread at the end of the needle rod, fixed the valve body assembly depth after tightening, no displacement under vehicle vibration conditions, long-term ensuring stable fuel injection parameters.
Multi-layer interlocking sealing structure, blocking fuel leakage
The precision fitting of the segmented assembly surfaces of the valve body, no extra gaps, blocking the high-pressure fuel from entering the electromagnetic cavity through the valve body gap, avoiding coil short circuit and burnout.
Independent test stand flow calibration at the factory, no secondary adjustment required for assembly
Each control valve is individually tested for opening and closing response, fuel supply flow, and high-pressure sealing performance, with unified factory parameters. After replacement, it can quickly restore the engine's stable power output, reducing maintenance time.
Accessory List
32F61-00062 Complete Injector Control Valve Body 1 piece Applicable scenarios
It is suitable for large mining excavators with high-pressure common rail fuel supply system, heavy-duty wheeled loaders, long-distance heavy-duty freight trucks, and high-power fixed diesel generator sets. It is applicable for 24-hour continuous heavy-duty operations in mines, long-distance freight transportation, continuous high-temperature and vibration in the engine compartment, and dusty and impure diesel corrosion environments. The heavy-duty electronic common rail diesel engine fuel injector flow control components can be replaced.
Product basic parameters

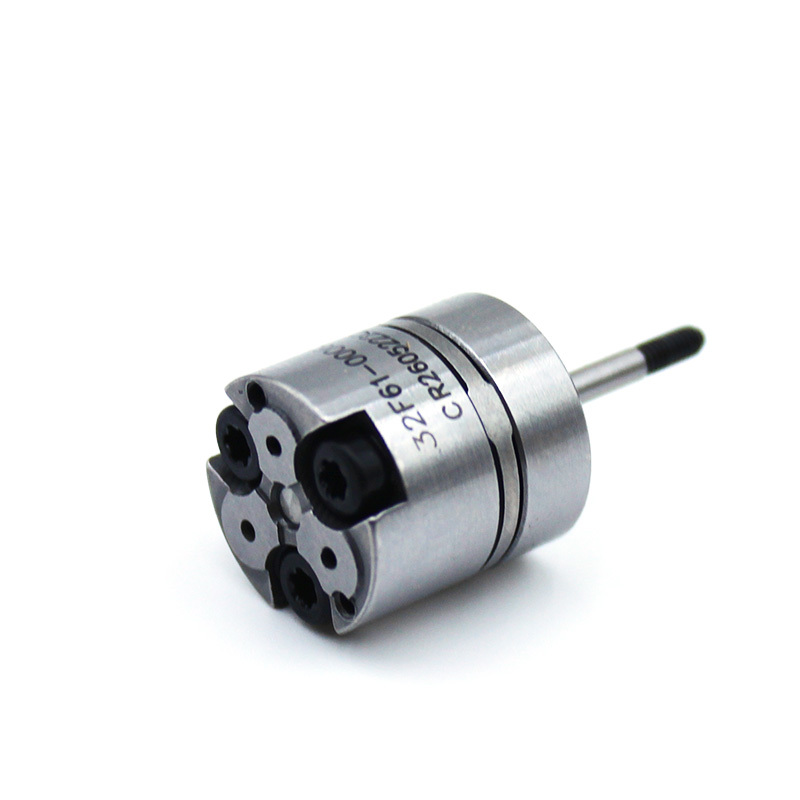

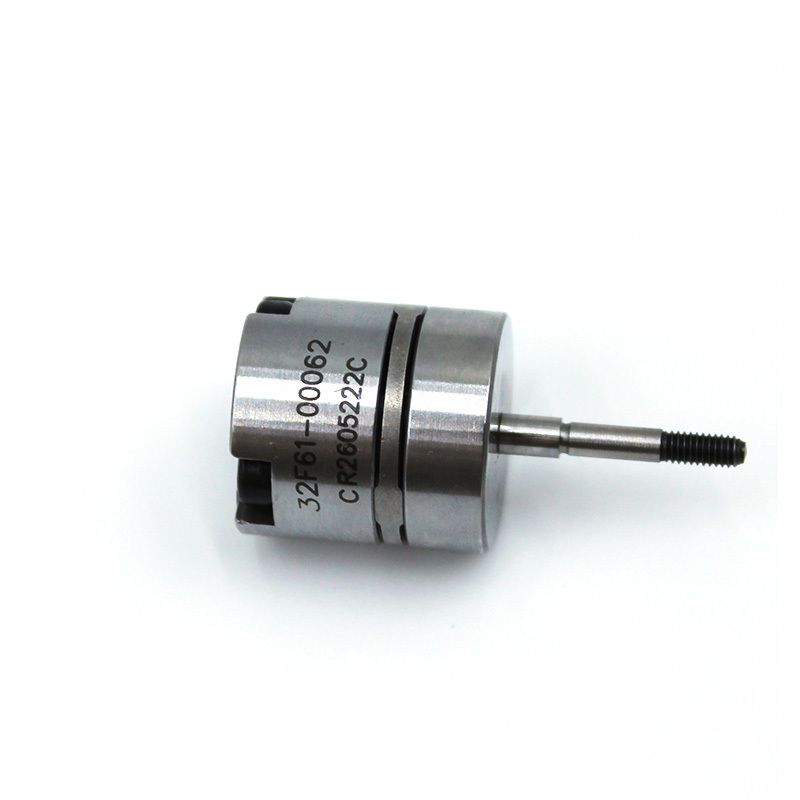

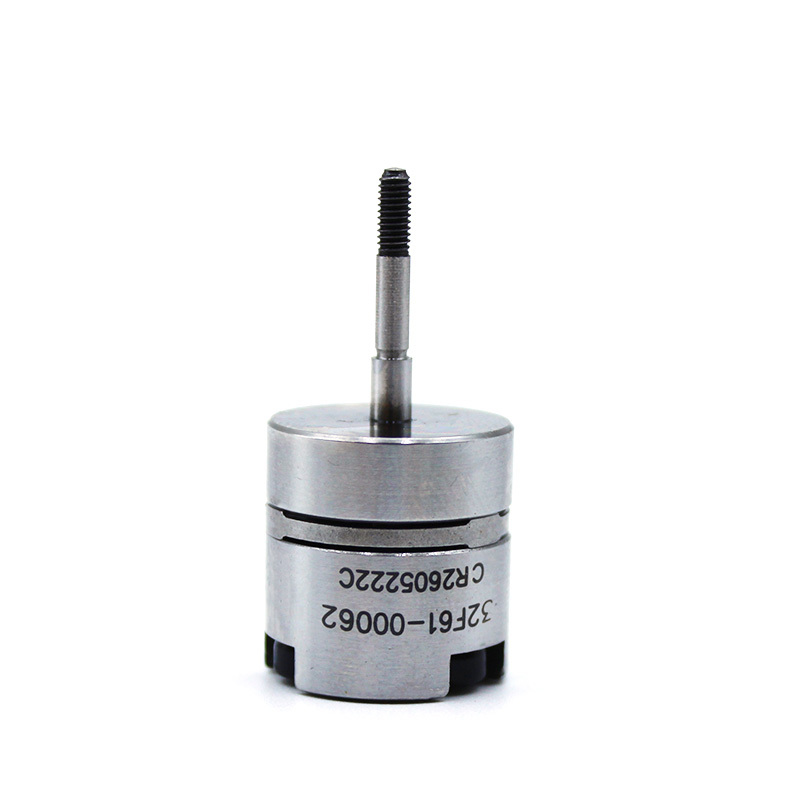

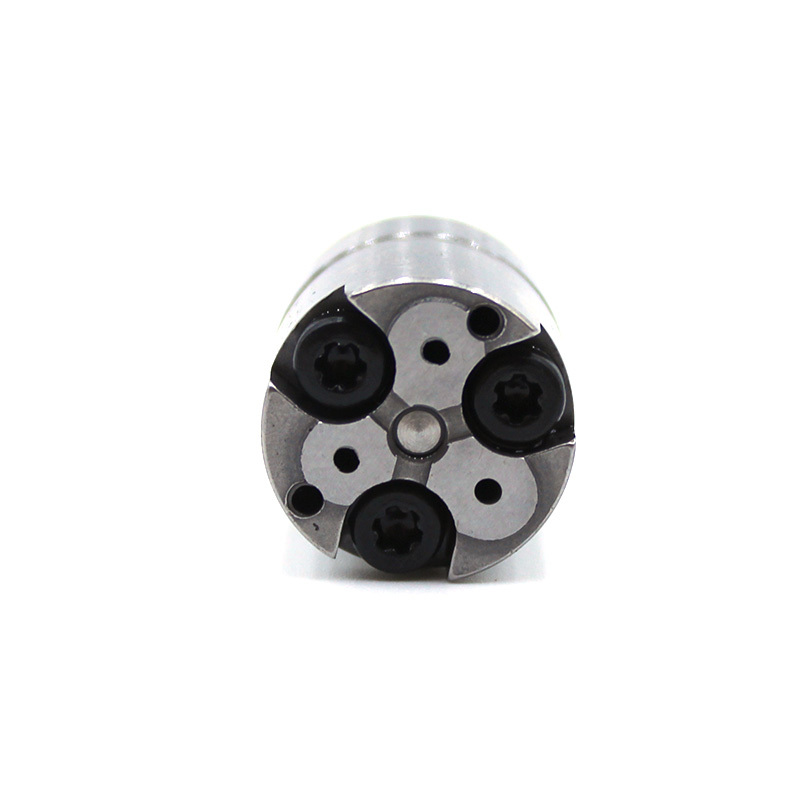

Product name: 32F61-00062 Injector Control Valve Assembly
Part number: 32F61-00062
Main material: Tempered hardened alloy steel valve body, precision guide pin rod
Structural features: Segmented double-layer metal valve body, double-layer encoded on the outer wall, slender guide pin rod, bottom end positioning thread
Application conditions: Ultra-high oil pressure reciprocating adjustment, engine compartment alternating cold and hot, impure diesel corrosion heavy-duty electronic common rail diesel engine
Product status: New and complete control valve assembly, factory completed with full bench calibration and testing for flow accuracy, high-pressure sealing, and opening/closing response
Packaging: Single-piece independent hard tube protection packaging, plastic dust protection sleeves at both ends of the pin rod, foam buffer protection to avoid scratches and damages to the precise sealing surface during transportation, supports single-piece retail, bulk purchase in cartons, and is compatible with cross-border small package logistics.
