Description
Product Overview
The oil outlet valve is assembled on the upper part of the high-pressure oil pump piston. It relies on the sealing cooperation between the valve seat and the piston. When the piston moves upward to pressurize the oil, it opens the channel to convey high-pressure fuel; after the piston moves downward and returns to its original position, it immediately closes to lock the oil passage, preventing the backflow of high-pressure fuel and reducing pressure loss. Long-term high-pressure fuel erosion, impurities from diesel particles wear down the sealing surface, and under the alternating hot and cold conditions of the engine compartment, scratches will occur on the sealing contact surface, causing fuel leakage, insufficient fuel supply pressure, rapid pressure loss after engine shutdown, and excessive black smoke in exhaust. This product has a unified standard for outer diameter size, piston stroke, and sealing end face specifications. After disassembling the oil pump, the oil outlet valve pair can be replaced separately to repair the failure of oil pressure holding and maintaining pressure. It is suitable for maintenance of agricultural machinery, light trucks, heavy trucks, small and medium-sized construction machinery, and direct injection diesel engines for agricultural machinery.
Core Advantages of the Single Product
The alloy steel is formed as a whole through quenching and tempering, with high hardness and wear resistance against high-pressure erosion.
The valve seat and piston are subjected to high-temperature quenching and hardening treatment, with a wear-resistant strengthening layer on the surface. They can withstand thousands of bar of high-pressure fuel reciprocating impact for a long time, and the sealing surface is less likely to develop scratches, maintaining the locking and holding pressure performance for a long time.
The pair of mirror surfaces are precisely matched and ground to a micro-gap seal to prevent fuel backflow.
The inner cavity of the valve seat and the end face of the piston are precisely matched and ground to mirror surfaces. In the closed state, they are completely tightly adhered, quickly locking the oil passage after engine shutdown, avoiding backflow of high-pressure fuel to the oil pump, and significantly improving the cold start performance at low temperatures.
The stepped limit piston structure ensures coaxiality and no offset jamming during reciprocating motion.
The piston is designed with segmented stepped limit, and after being installed in the valve seat, the radial positioning is precise. There is no eccentric shaking during reciprocating motion, and the fuel supply flow is uniform and stable, eliminating the engine vibration caused by uneven fuel supply to each cylinder.
The built-in guide and分流 oil channels ensure smooth fuel flow and reduce erosion loss.
The piston end face is equipped with standardized guide slots to disperse the impact force of high-pressure fuel， reduce the erosion wear of the sealing contact surface by the medium， and simultaneously reduce the fuel supply resistance. The oil pump builds pressure faster.
The outer diameter tolerance of the valve body is uniformly standardized， and disassembly and assembly are compatible without jamming.
The outer diameter size tolerance of the valve body is strictly controlled， and the gap between the valve body and the oil pump cavity is appropriate. Maintenance and disassembly are smooth， without the need for on-site grinding and enlarging holes， reducing the time for disassembling and debugging of the oil pump.
Independent flow and pressure holding detection for each set of oil outlet valve， no secondary adjustment required for assembly.
Each set of oil outlet valve is independently tested for holding pressure duration， fuel supply flow， and sealing performance before leaving the factory. The factory parameters are unified， and it can directly match the corresponding piston pair. After assembly， the oil pump can quickly restore the standard fuel supply pressure.
Accessory List

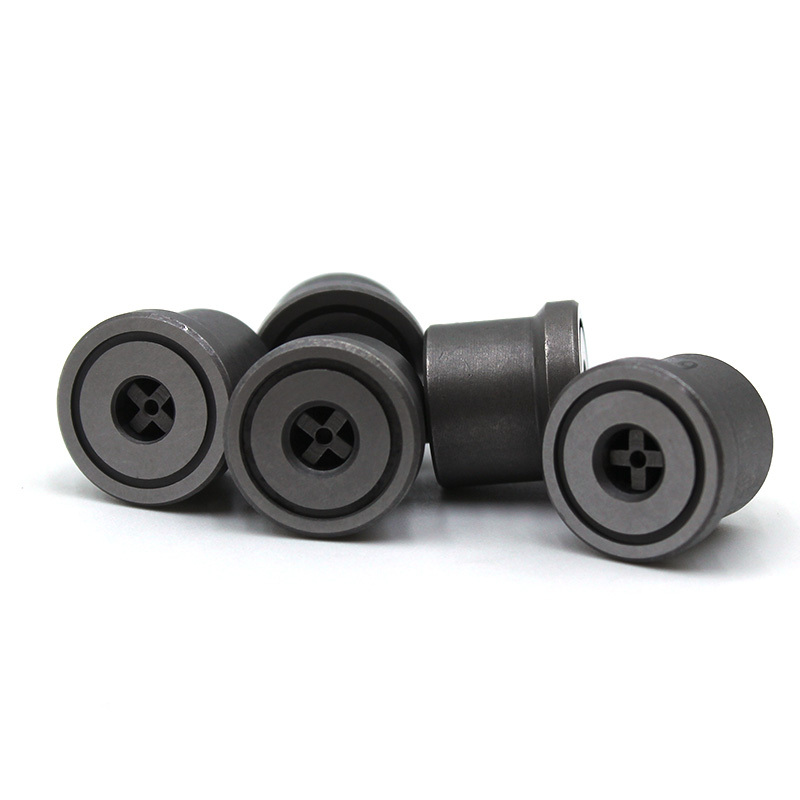

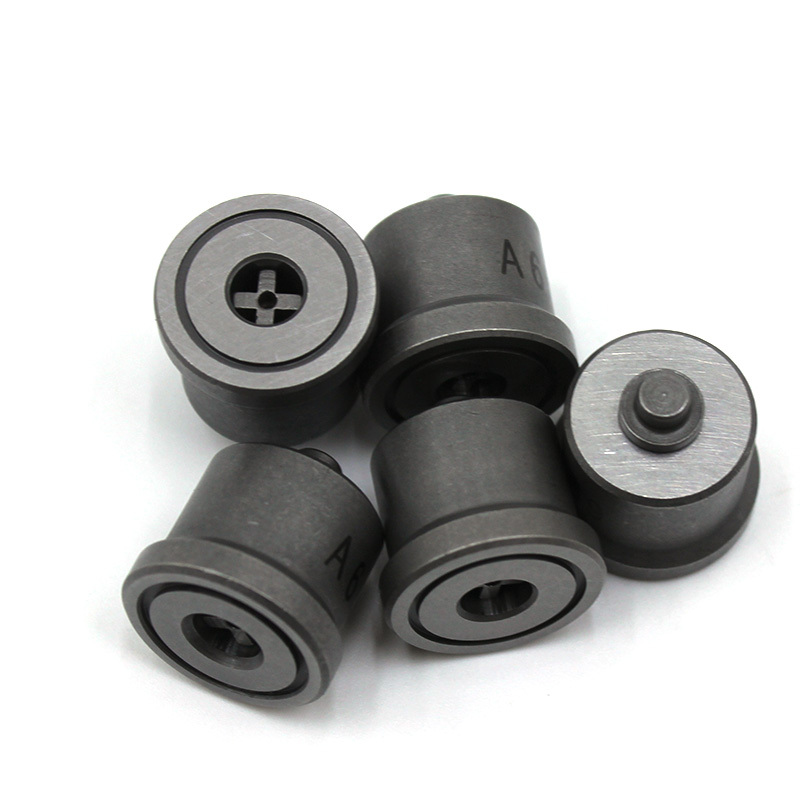

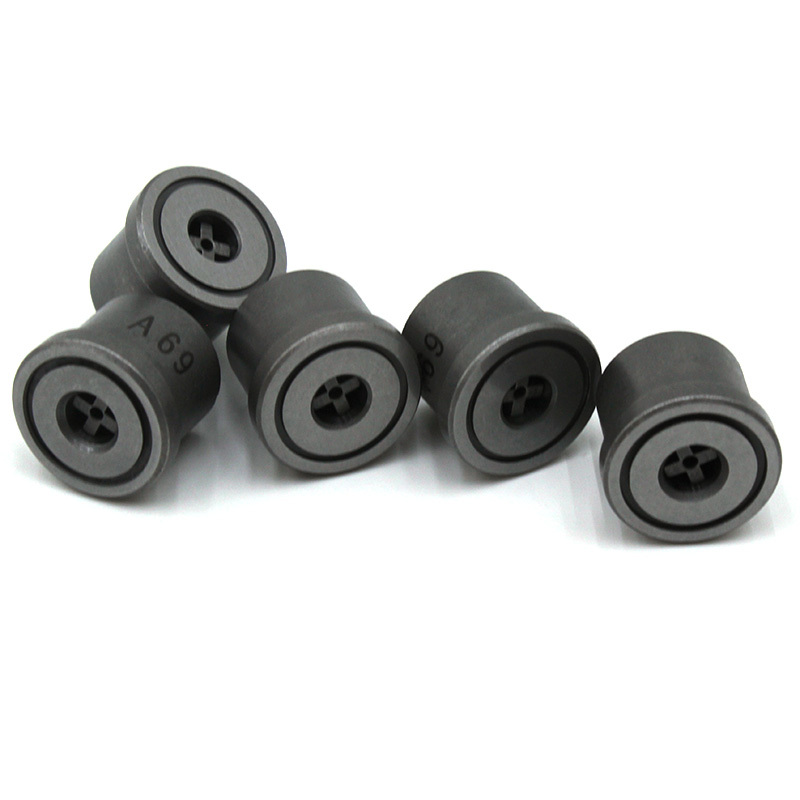

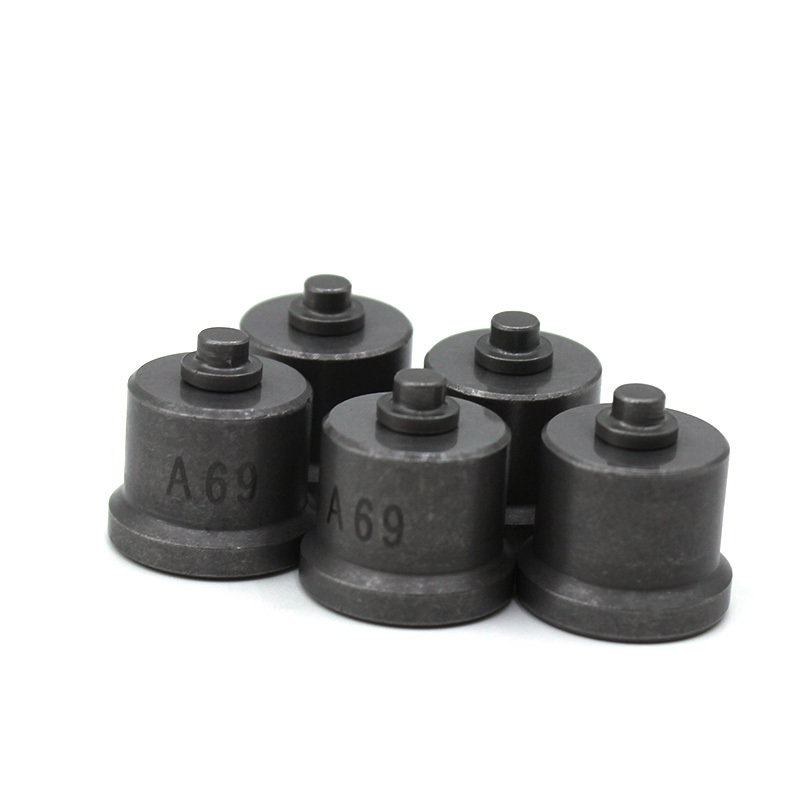

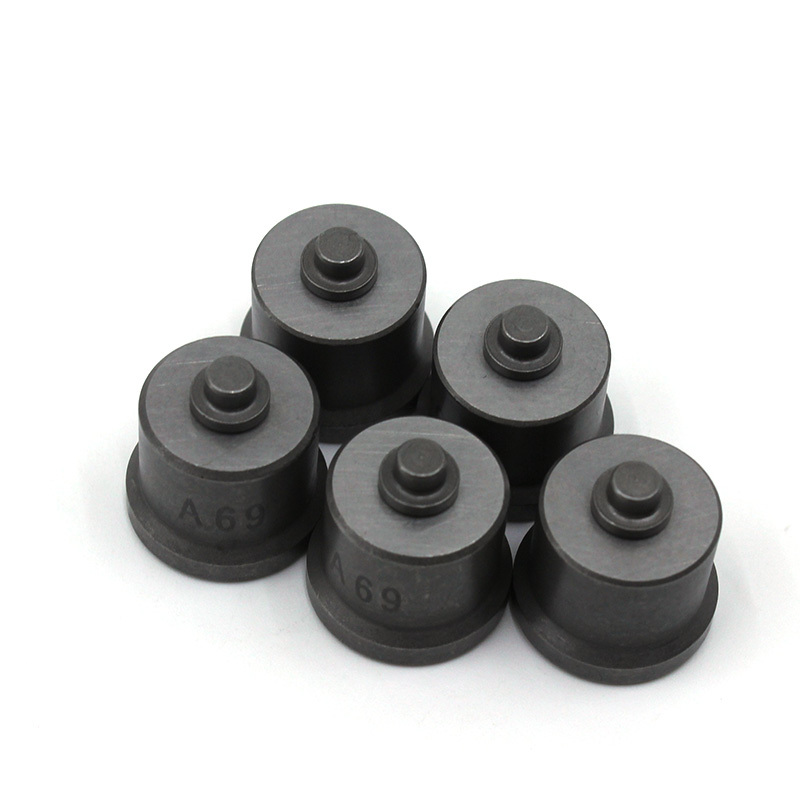

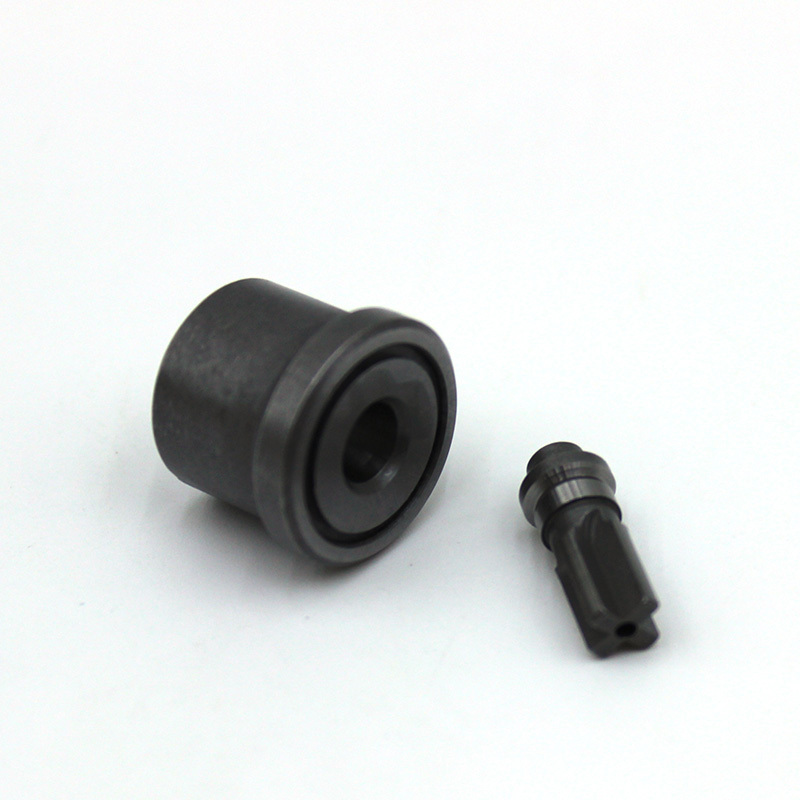

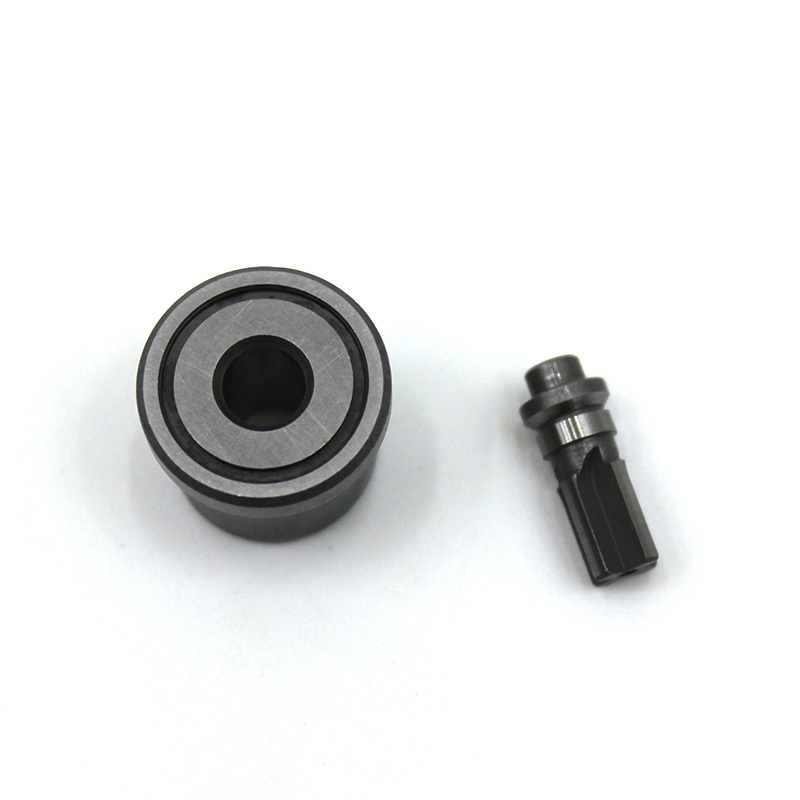

A69 Oil Outlet Valve Pair Set (1 cylinder-type valve seat + 1 stepped piston) Sealed Packaging
Application Scenarios
Suitable for agricultural tractors with mechanical direct injection fuel supply systems， light-duty freight trucks， long-distance heavy trucks， miniature wheeled excavators， fixed diesel generator sets. Suitable for high-intensity farming， urban and rural long-distance transportation， dust and high-temperature environments in construction sites， and diesel engines with direct injection for agricultural machinery with high-pressure oil pumps for pressure holding component replacement.
Product Basic Parameters
Product Name： A69 High-Pressure Oil Pump Oil Outlet Valve Pair
Part Number： A69
Main Material： Tempered and quenched alloy steel
Structural Feature： Cylinder-type stepped valve seat， segmented limit piston， end face mirror surface sealing contact surface， built-in guide and分流 oil channels
Application Conditions： One-way pressure holding for high-pressure fuel， alternating hot and cold conditions of the engine compartment， and corrosion of impurities from diesel in various mechanical direct injection diesel engines with high-pressure oil pumps
Product Status： New set of oil outlet valve pairs， factory completed with full calibration and testing for pressure holding， sealing performance， and fuel supply flow
Packaging： Independently vacuum-sealed plastic bag packaging， isolated from dust and impurities. Hard protective buffer to avoid scratches on the mirror surface sealing working surface during transportation. Supports single set retail and bulk purchase in bags， compatible with cross-border small package logistics.
