Description
Product Overview
The valve core of the control valve is assembled inside the electromagnetic valve of the electronic fuel injector, receiving electronic control electromagnetic signals to achieve rapid up and down movement, controlling the pressure relief and sealing of the high-pressure fuel inside the fuel injector, and precisely controlling the opening and closing times and the fuel injection volume of the fuel injector. Under long-term conditions of thousands of bar of high-pressure fuel flushing, impurities of diesel particles wear, and continuous high-temperature vibration of the engine compartment, scratches occur on the sealing section of the rod body, and the contact surface of the base is worn. This will lead to fuel leakage, drift of the rail pressure, and disorder in the injection timing. The equipment will experience power jerks, multiple starts are required to start, imbalance in single-cylinder operation, and excessive black smoke in exhaust emissions. This product has standardized processing for the total length of the rod body, the dimensions of the stepped sections, and the outer diameter of the base seal. After disassembling the fuel injector, replacing the valve core alone can repair the failure of fuel pressure control. It is suitable for the maintenance of large mining excavators, heavy-duty loaders, and long-distance trucks with electronic common rail diesel engines.
Core advantages of this product:
The overall grinding of the quenched and tempered alloy steel is precise, with high hardness and resistance to high-pressure flushing and wear.
The entire valve core is made of high-temperature quenched and hardened alloy steel, and the entire rod body is mirror-polished. It is not prone to scratches or deformation under long-term continuous high-pressure fuel flushing, maintaining a micron-level precise sealing gap for a long time, and preventing fuel internal pressure relief and leakage.
The thickened bottom circular disk seal base completely blocks the fuel reflux.
The widened and thickened circular disk base at the lower end is precisely ground to a high-precision plane, and it is closely sealed with the electromagnetic valve seat, locking the internal high-pressure oil circuit in the closed state, preventing rapid loss of rail pressure after engine shutdown, and improving the performance of cold start at low temperatures.
The multi-stage stepped section rod body, with coaxial motion without offset and jamming
The rod body is equipped with multiple stepped limit structures, restricting the trajectory of the valve core's up and down movement, eliminating radial eccentric shaking, ensuring the valve core's full coaxial reciprocating motion throughout the process, and eliminating single-sided wear and needle valve jamming faults.
The segmented variable diameter rod body design optimizes fuel flow and reduces vortex wear
The segmented and variable diameter structure of the rod body guides the uniform分流 of fuel， reduces the impact loss of high-pressure medium on the sealing contact surface， and improves the long-term durability of the valve core.
The precise sealing end at the top， with a small end that is precisely ground for matching and grinding， has a fast response to the opening and closing of the electronic signal， and precisely controls the injection volume， allowing the engine to idle smoothly and accelerate with linear and uninterrupted power.
Single-piece independent high-pressure flow calibration， no need for manual matching， grinding and assembly
Each valve core is independently tested on the machine for the duration of high-pressure pressure retention， the response of electromagnetic opening and closing， and the flow of fuel circulation. The factory performance parameters are unified， directly matching the corresponding electromagnetic valve cavity of the fuel injector， shortening the disassembly and debugging time of the fuel injector. List of Accessories
F00RJ02466 Electronic fuel injector control valve spool 1 piece, vacuum-sealed and independently packaged Applicable scenarios
It is suitable for large mining excavators with high-pressure common rail fuel supply system, heavy-duty wheeled loaders, long-distance heavy-duty freight trucks, and high-power fixed diesel generators. It is applicable for 24-hour continuous heavy-duty operations in mines, long-distance trunk transportation, hot and dusty environments at construction sites, and heavy-duty electric control common rail diesel engines with diesel fuel contaminated by impurities. The internal oil pressure control valve core parts of the fuel injector are replaced in such corrosive and dusty environments.
Product Basic Parameters

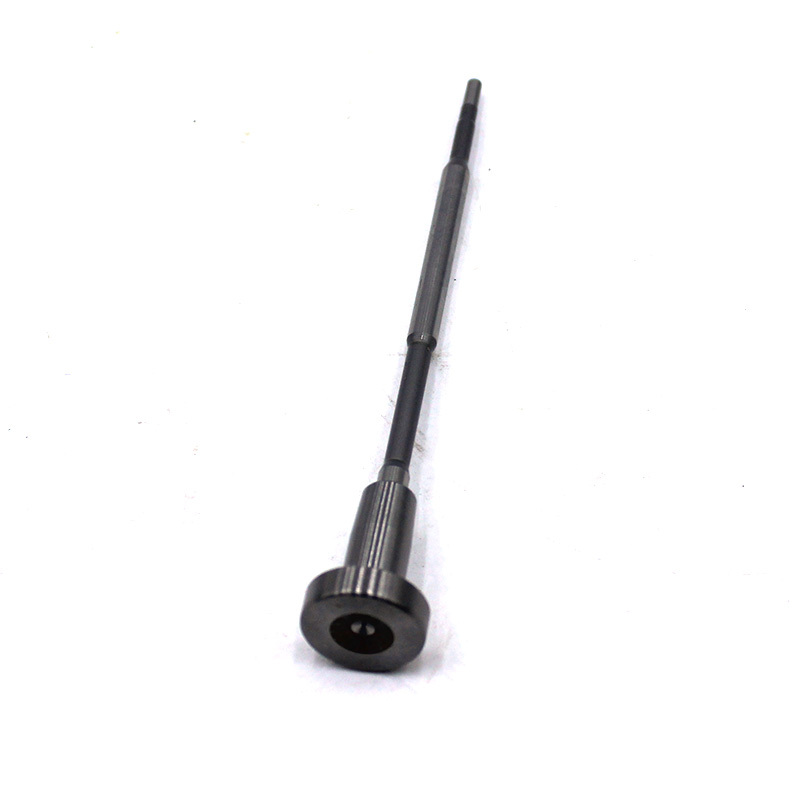

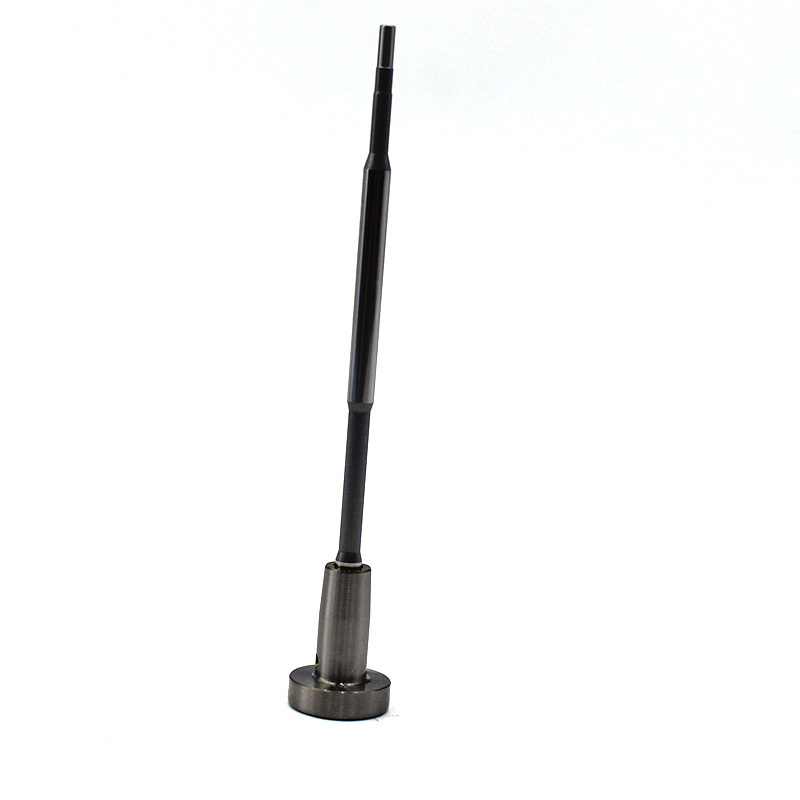

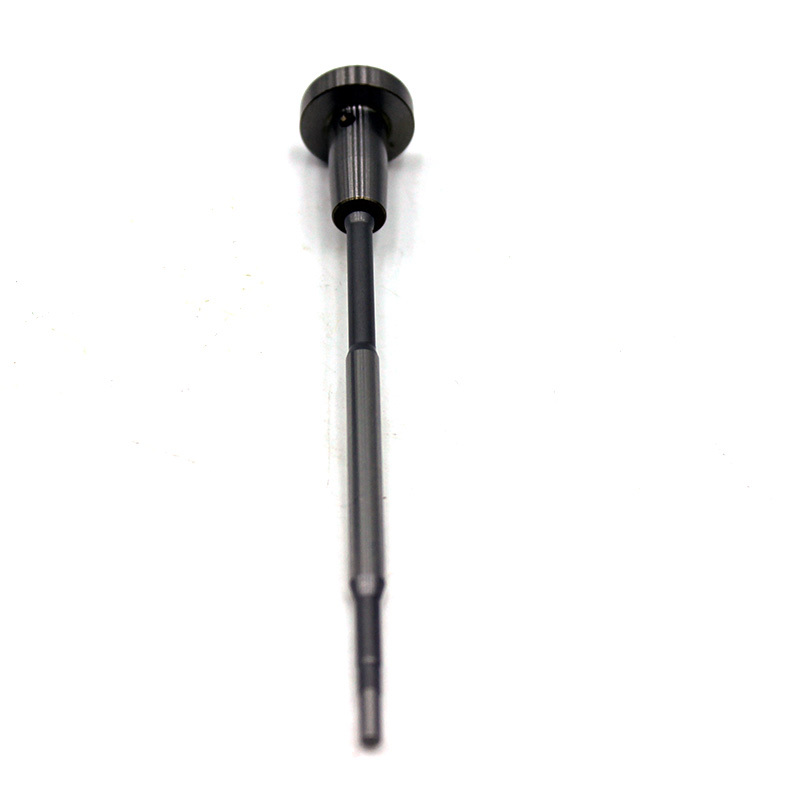

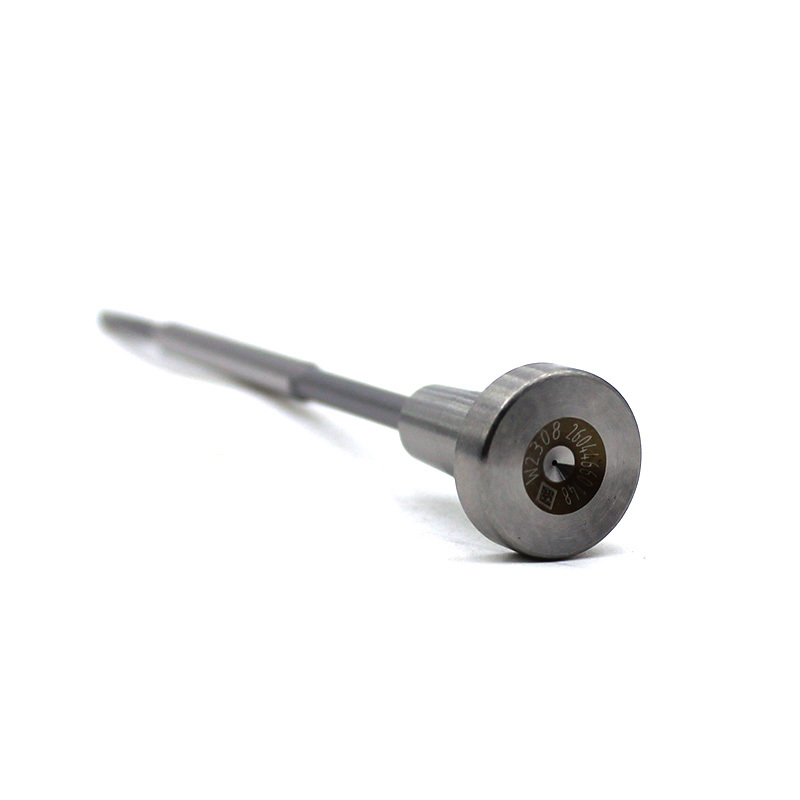

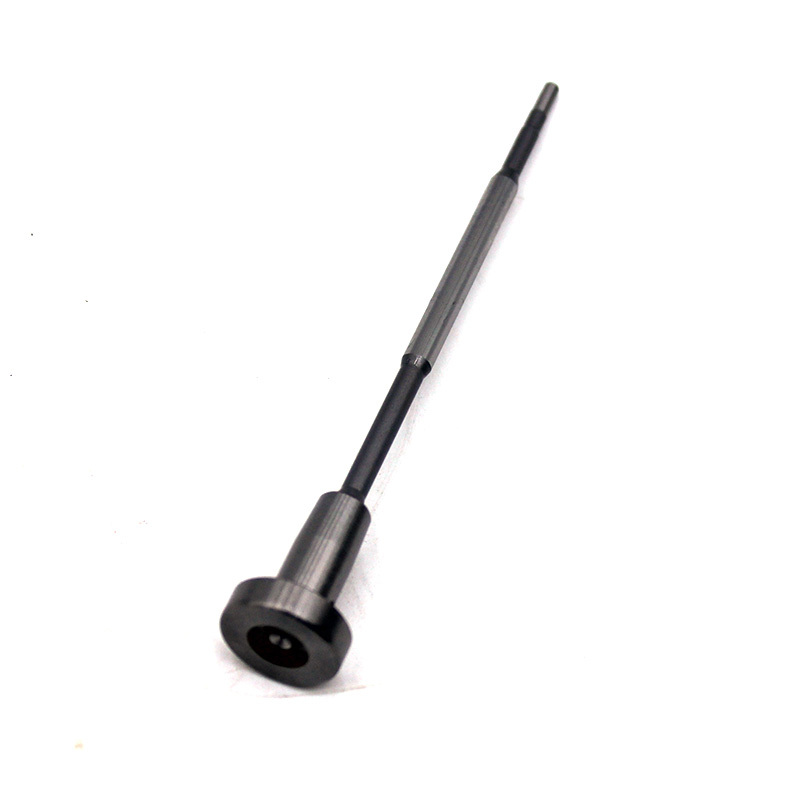

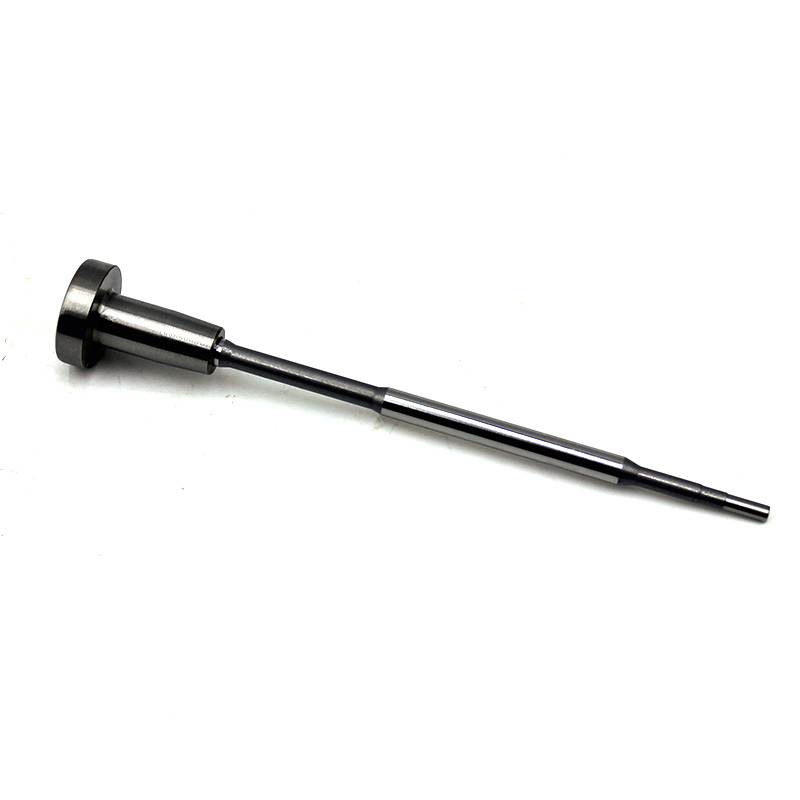

Product Name: F00RJ02466 Injector Control Valve Core
Part Number: F00RJ02466
Main Material: Tempered hardened alloy steel, fully polished mirror finish treatment of the entire rod
Structural Feature: Thickened bottom circular disk sealing base, multi-stage stepped segmented limit rod body, segmented variable diameter guide rod body, top precision sealing end
Application Conditions: High-pressure fuel injection timing control, continuous vibration of engine compartment under hot and cold conditions, core electric control valve core component of heavy-duty electric control common rail diesel engine corroded by impurities in diesel fuel
Product Status: New and complete control valve core, factory completed with full calibration and testing for high-pressure sealingity, electromagnetic response sensitivity, and flow matching
Packaging: Independent vacuum-sealed plastic bag to isolate dust and oil, hard protective tube for buffering and protection, avoiding scratches on the mirror-sealed working surface during transportation, supporting single-unit retail and bulk purchase in bags, and compatible with cross-border small package logistics.
