Description
Product Overview
The steel ball type fuel pump is assembled on the side of the mechanical fuel injection pump and is driven by the engine cam to drive the internal piston to convey low-pressure fuel. A manual plunger is provided as a companion to remove air from the fuel line, and a built-in steel ball one-way valve is included to prevent fuel backflow. After long-term field or construction site operations in dusty conditions, the steel ball seal may wear out and the plunger seal may leak, resulting in air entering the fuel line, insufficient fuel supply, and difficulty in starting. This product is fully equipped with an oil pipe connection fitting, and the entire machine can be replaced without the need for additional purchased parts. It is suitable for medium-sized trucks, agricultural tractors, and mechanical diesel engines of construction machinery for maintenance and servicing of fuel supply systems.
Unique Core Features of the Single Product

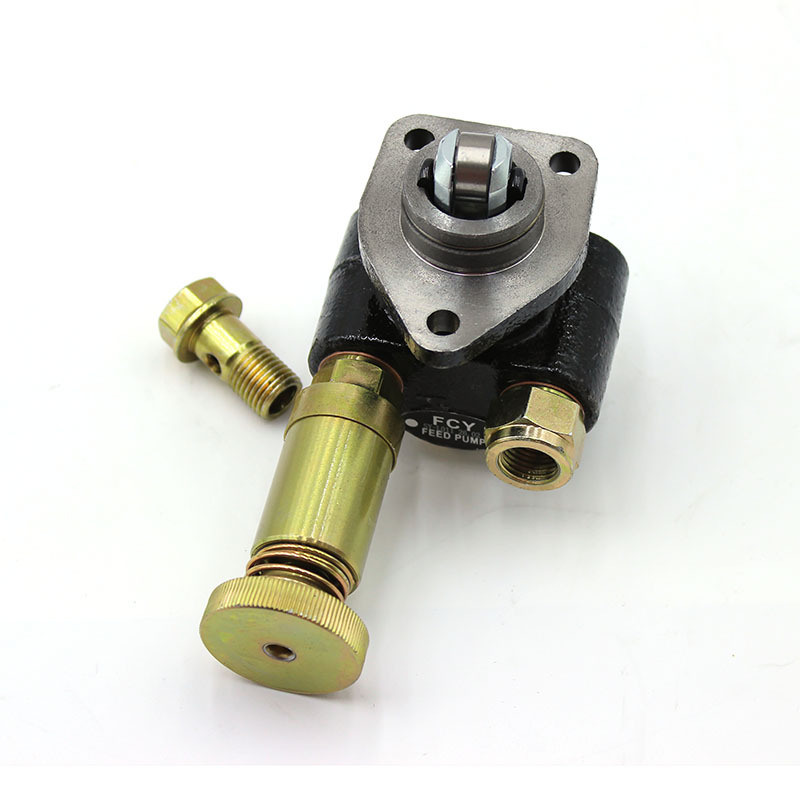

Triangular three-hole flange installation base, stable positioning without loosening
Top triangular metal flange disk, with three standard installation holes evenly distributed, fits the fuel pump housing and locks it tightly, preventing oil leakage and displacement under long-term vehicle vibration conditions, ensuring stable fuel supply without attenuation.

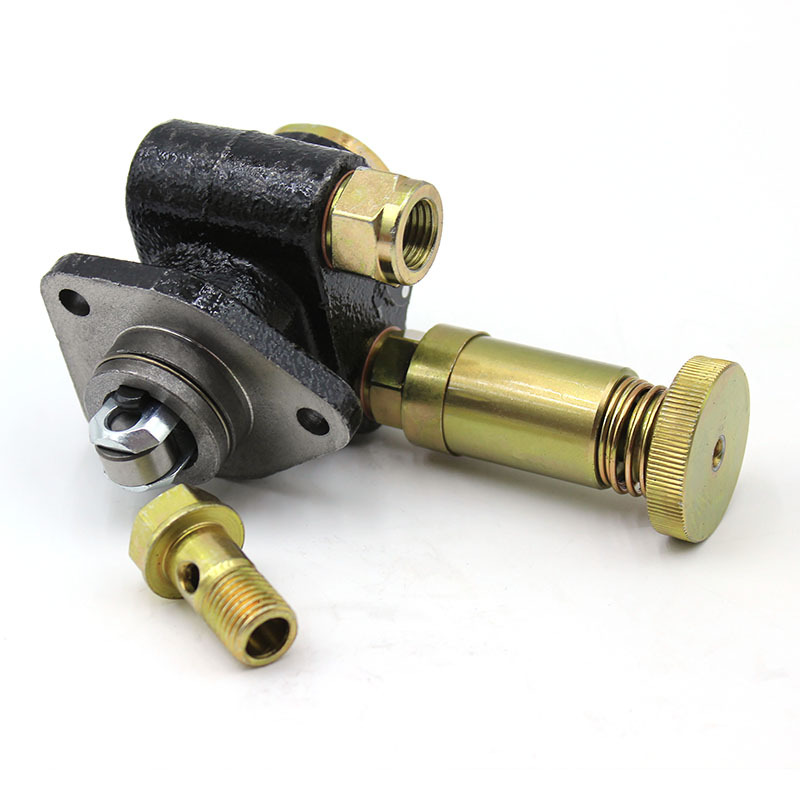

Extended brass manual fuel pumping plunger, more efficient for removing air from the fuel line
Front extended engraved brass manual pump head, with internal pressure-bearing spring, has sufficient stroke when pressing during cold engine exhaust, easily removing air inside the fuel line, significantly shortening cold start waiting time and improving difficult starting faults.
Split brass inlet and outlet oil threaded connectors, compatible with regular oil pipe assembly
The kit comes with an independent brass outer threaded connector, with standard internal threads for the inlet and outlet oil ports, compatible with common low-pressure diesel oil pipes. The brass material is rust-resistant and oil-resistant, with tight thread engagement without leakage, and convenient for disassembly, replacement, and assembly.
Built-in steel ball one-way valve structure, blocking fuel backflow and stabilizing fuel supply
The pump body adopts a steel ball one-way sealed structure, allowing fuel to flow in one direction, locking the oil circuit after shutdown to prevent diesel backflow, avoiding air intake in the pipeline and difficulty in secondary startup, and providing continuous stable low-pressure fuel supply.
Black anti-rust cast steel pump body, resistant to diesel corrosion and with strong sealing
The main body of the cast iron pump body is treated with anti-rust black paint on the outer layer, with uniform precise piston clearance, and is less prone to rust and leakage under long-term diesel soaking, high-temperature and low-temperature conditions in the engine compartment, and has a longer service life. Applicable scenarios
Suitable for medium-sized freight trucks, multi-cylinder agricultural tractors, wheeled loaders, fixed diesel generator sets. Applicable for long-distance transportation, field farming, and continuous heavy-load mechanical diesel-powered equipment with low-pressure oil circuits for maintenance.
Product Basic Parameters
Product Name: Ball-type Mechanical Oil Pump (Hand Oil Pump Assembly)
Part Number: 1157501980
Structural Type: Ball type one-way valve model
Main Material: Rust-resistant cast iron pump body, brass manual plunger, steel ball valve core, metal triangular flange, brass oil pipe joint
Structural Features: Triangular three-hole flange base, extended manual oil press plunger, split brass inlet and outlet oil joints, built-in ball one-way valve
Application Conditions: Continuous heavy-load, engine compartment alternating high and low temperatures, outdoor high-pollution mechanical diesel engine low-pressure oil supply system
Product Status: New and complete oil pump assembly, with independent oil pipe joints, factory completed with full testing of supply flow rate, one-way sealing performance, and manual exhaust performance

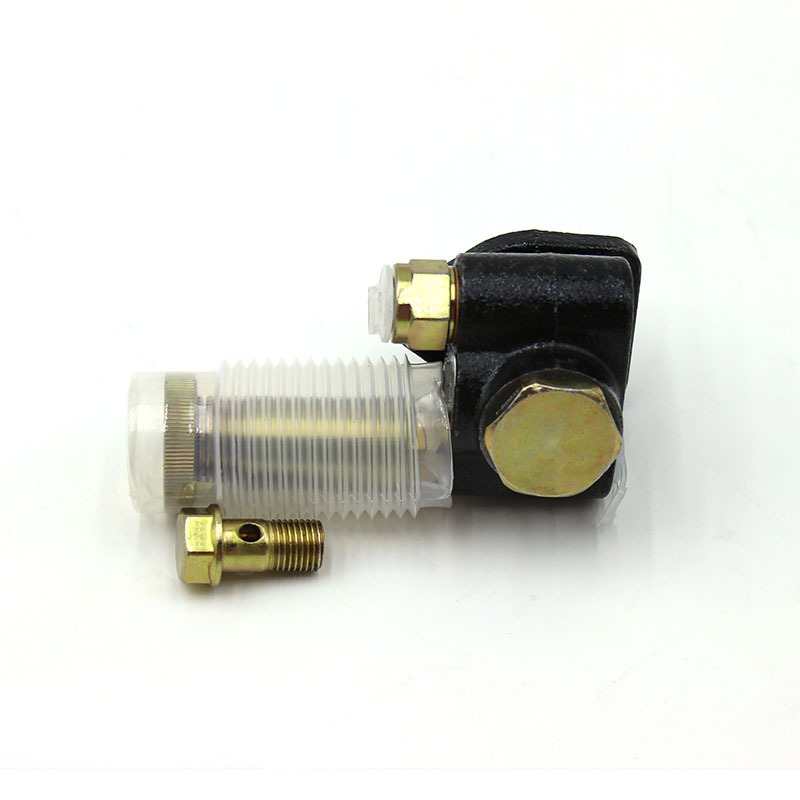

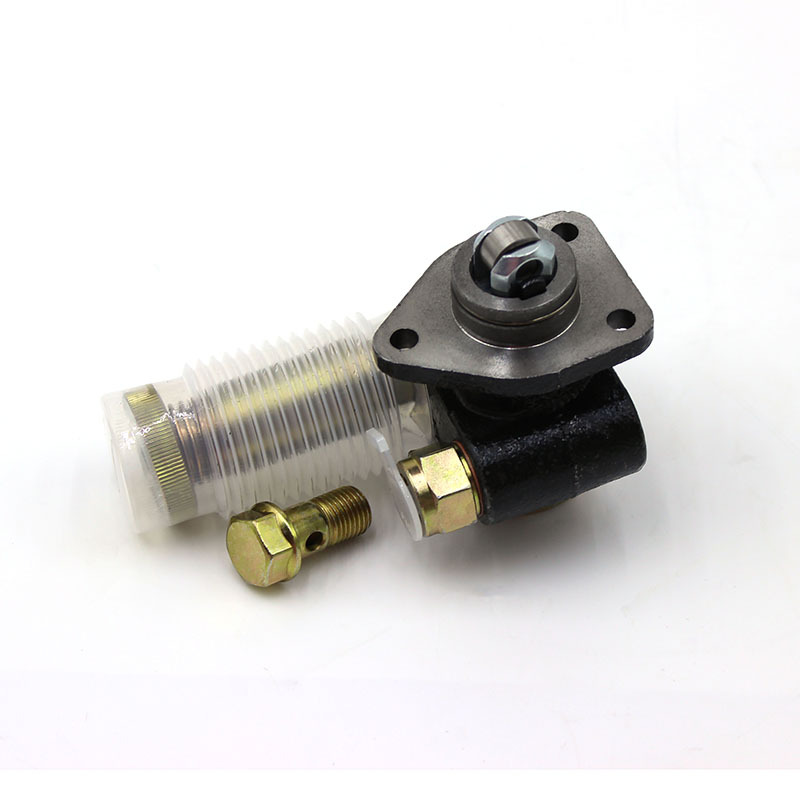

Packaging: Independent shock-proof packaging, separate protection for brass joints and plunger ends to avoid transportation磕碰划伤 threads， suitable for cross-border small-sized logistics.
