Description
Product Overview

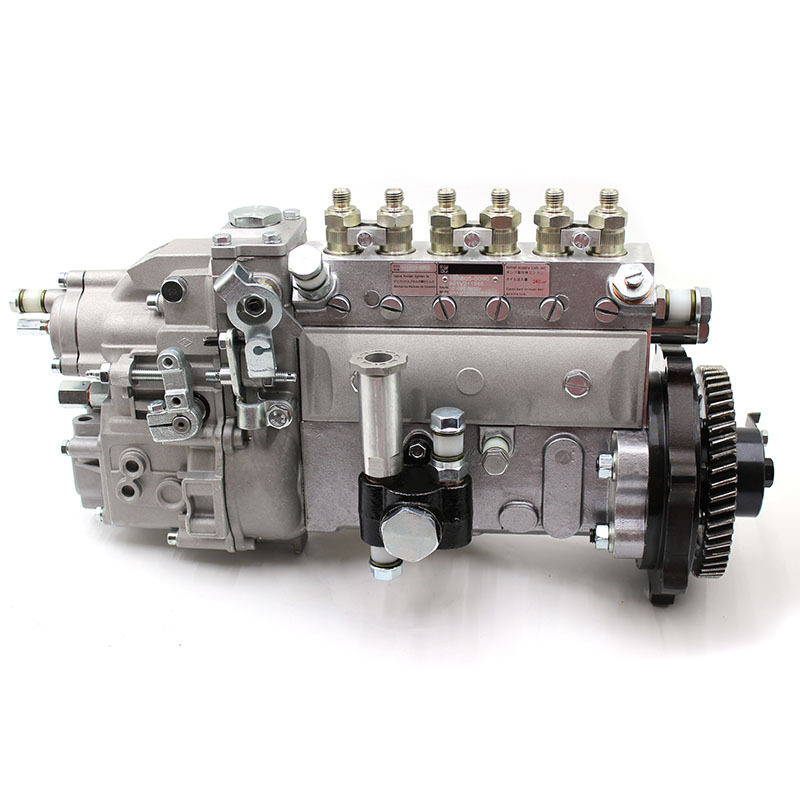

The inline mechanical fuel injection pump relies on the reciprocating motion of the internal piston to pressurize the low-pressure diesel fuel, and then distributes the high-pressure fuel through six independent oil channels. It is combined with a mechanical speed control mechanism to control the fuel supply volume, suitable for six-cylinder diesel power equipment without electronic control. After long-term heavy-duty field operations, the piston may wear, the speed control spring may fatigue, and the shell may leak. This may cause deviations in fuel supply for each cylinder, idle speed fluctuations, and a sharp increase in fuel consumption. This product has completed the calibration and testing of fuel supply volume, fuel injection pressure, and sealing performance during factory assembly. The entire machine does not require disassembling internal components for replacement, and is suitable for medium-sized trucks, agricultural six-cylinder tractors, large construction machinery, and fixed diesel generator sets for major overhaul of the fuel supply system.
Unique core features of the single product
Integrated thickened cast aluminum pump body, lightweight and pressure-bearing without deformation
The entire aluminum alloy is integrally formed by die-casting, with uniform shell wall thickness, and is not prone to deformation under the high-pressure impact of the piston; the surface is treated with passivation, rust prevention, and oil resistance, making it less prone to rust and leakage even under high-temperature engine compartments and diesel immersion, reducing the transmission load of the engine.
Six sets of independent standard high-pressure oil outlets, uniform and synchronous fuel supply for six cylinders

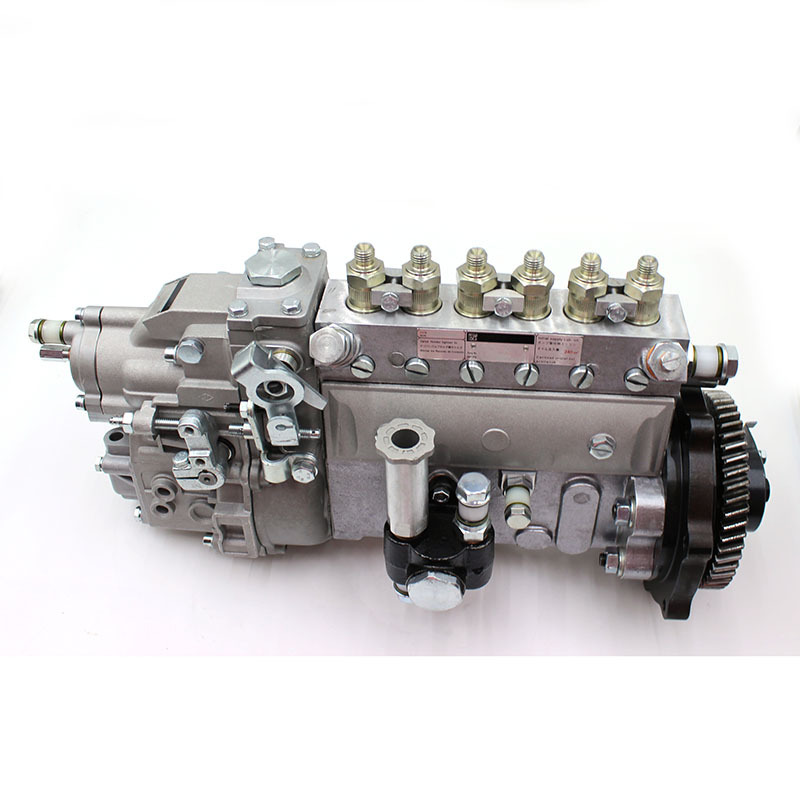

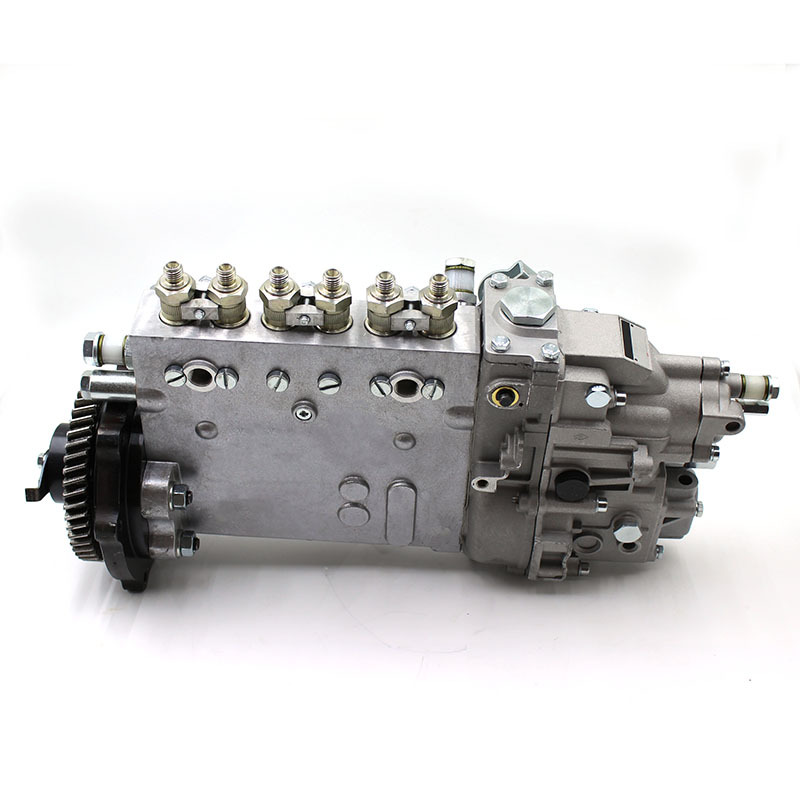

The upper part of the pump body is arranged with six sets of uniform-sized high-pressure threaded oil outlets, which are compatible with the high-pressure fuel pipes of six-cylinder engines. The pistons in the same batch are uniformly calibrated, and the difference in fuel supply volume for each cylinder is small, ensuring smooth operation without single-cylinder lack of power or body shaking.
Side gear-type synchronous transmission end, stable transmission without slipping

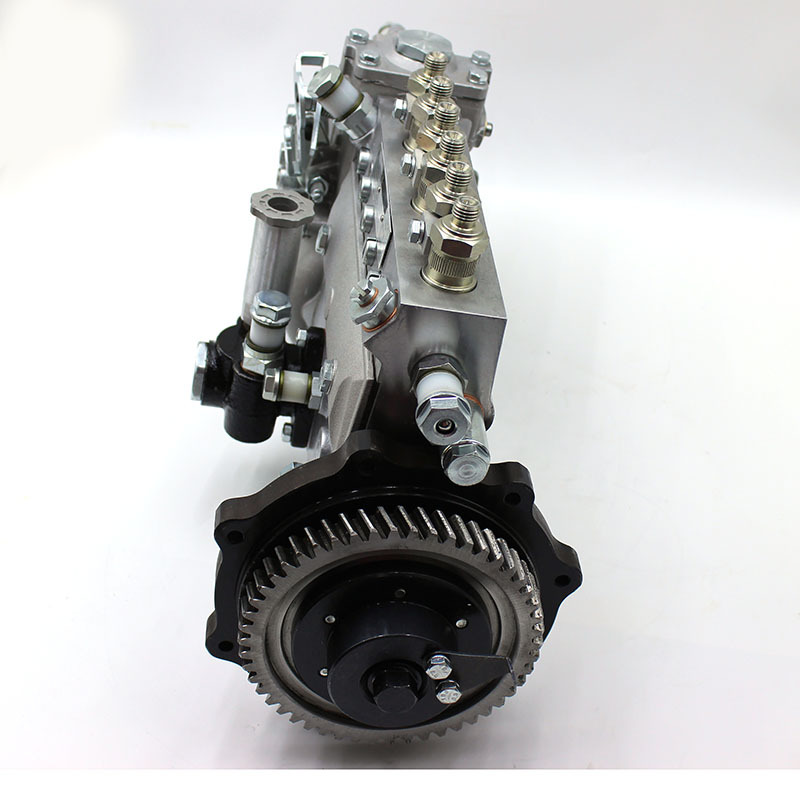

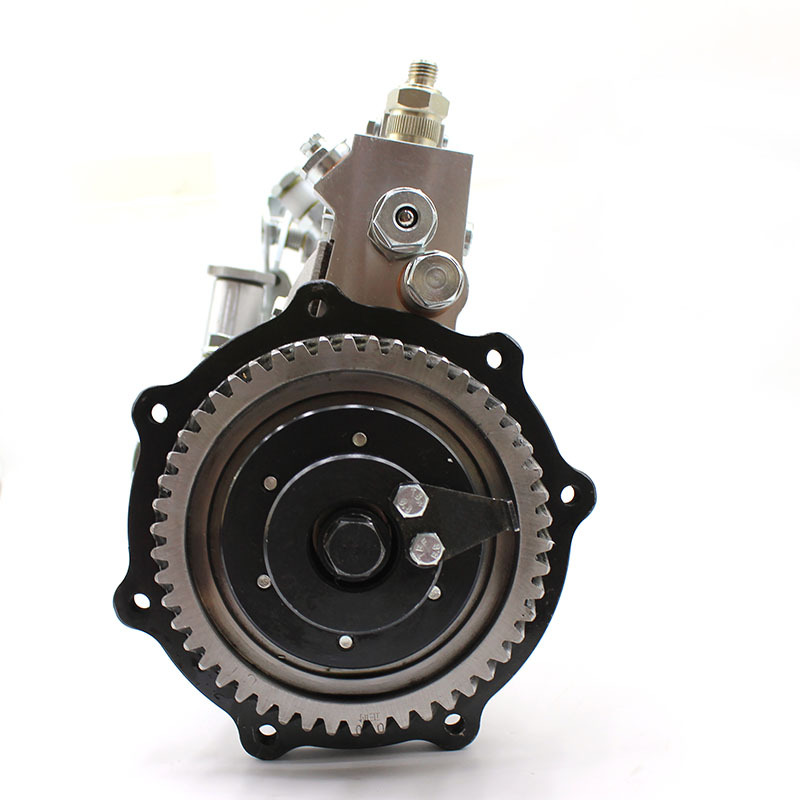

The oil pump tail is equipped with a precision-matched transmission gear for external mechanical speed control mechanism, which precisely matches the engine's timing gear, and the coaxial transmission has low vibration, ensuring no gap slipping during long-term continuous heavy-duty operation, and guaranteeing stable high-pressure fuel supply output.
Integrated external mechanical speed control actuator, manual adjustment with sensitive response
The left side of the oil pump is fully pre-installed with the mechanical speed control component, including the pull rod, spring, and limit bracket, which are integrated as a whole and can precisely control the fuel supply volume under different speeds. The fuel supply is smooth during idle, heavy load, and acceleration conditions, eliminating power jolts and excessive black smoke.
Integrated one-piece inlet and outlet oil valve body assembly, oil circuit sealed without leakage
The pump body is integrated with a high-pressure inlet and outlet oil connector assembly at the bottom, which is equipped with a thickened oil-resistant sealing gasket, evenly locked by multiple bolts, blocking the leakage of fuel from the bottom joint surface of the pump body, reducing the oil contamination fault in the engine compartment. Applicable scenarios
Suitable for six-cylinder medium-sized freight trucks, large agricultural tractors, medium-sized wheeled loaders, and high-power fixed diesel generator sets. It is applicable for long-distance transportation, field farming, continuous heavy-duty work at construction sites, and multi-temperature, dusty mechanical diesel-powered equipment with oil supply systems. It is suitable for maintenance of oil supply systems of six-cylinder mechanical diesel-powered equipment in various working conditions.
Product Basic Parameters
Product Name: Six-cylinder In-line Mechanical Injection Pump Assembly
Part Number: 1156033950
Main Material: Cast aluminum pump body, precision steel piston pair, steel transmission gears, cast iron speed regulation mechanism, oil-resistant composite sealing gasket
Structural Feature: Six outlet ports in-line pump body, side gear transmission end, external mechanical speed regulation assembly, bottom integrated oil inlet and outlet valve body, multi-bolt sealed housing
Application Conditions: Continuous medium-heavy load operation, alternating high and low temperatures in the engine compartment, outdoor high dust six-cylinder mechanical diesel-powered equipment
Product Status: New and complete oil pump assembly, factory completed calibration and testing of each cylinder's fuel supply volume, injection pressure, and housing sealingity. The six-cylinder supply parameters are uniformly matched.
Packaging: Thick shock-proof hard packaging box, separate protection for the oil outlet thread, transmission gears, and speed regulation mechanism to avoid damage to the precision piston and gears during transportation, suitable for cross-border large-sized logistics.
