Description
Product Overview
The inline fuel injection pump relies on the reciprocating motion of the internal plunger to compress the fuel to create high pressure, and then distributes the quantified fuel to the fuel injectors in sequence according to the cylinder order. At the same time, it controls the fuel injection volume through the speed control shaft to match the equipment load. Under long-term agricultural operations, short-distance construction work, high-temperature and vibration in the engine compartment, and impurities from diesel washing conditions, the plunger mating surface may wear out, and the oil outlet valve seal may fail. This may result in fuel supply pressure loss, accelerated engine operation, difficulty in starting with multiple ignitions, diesel seeping into the engine oil to dilute the lubricating oil. This product has standardized dimensions for the flange hole distance, plunger stroke, and oil outlet spacing. Maintenance can be carried out by directly replacing the oil pump as a whole, eliminating the need for disassembly and debugging procedures, and is suitable for maintenance of three-cylinder agricultural tractors, small construction machinery, and fixed diesel generator sets.
Core advantages of the product
Thickened integral cast steel housing, high pressure-bearing, anti-deformation, and anti-leakage
The entire cast steel is formed by a single pour, with strengthened shell wall thickness, seamless internal oil channels, and continuous resistance to high-pressure fuel impact. It is not prone to cracking or oil leakage in alternating hot and cold and jolting environments, ensuring stable fuel supply pressure.
Standard bottom flange base, stable and fixed assembly without offset
The base is reserved with multiple standard fixing holes, ensuring precise installation alignment, and the oil pump operates without radial shaking, with no eccentric wear during the reciprocating motion of the plunger. It maintains the balance of fuel supply for each cylinder over the long term.

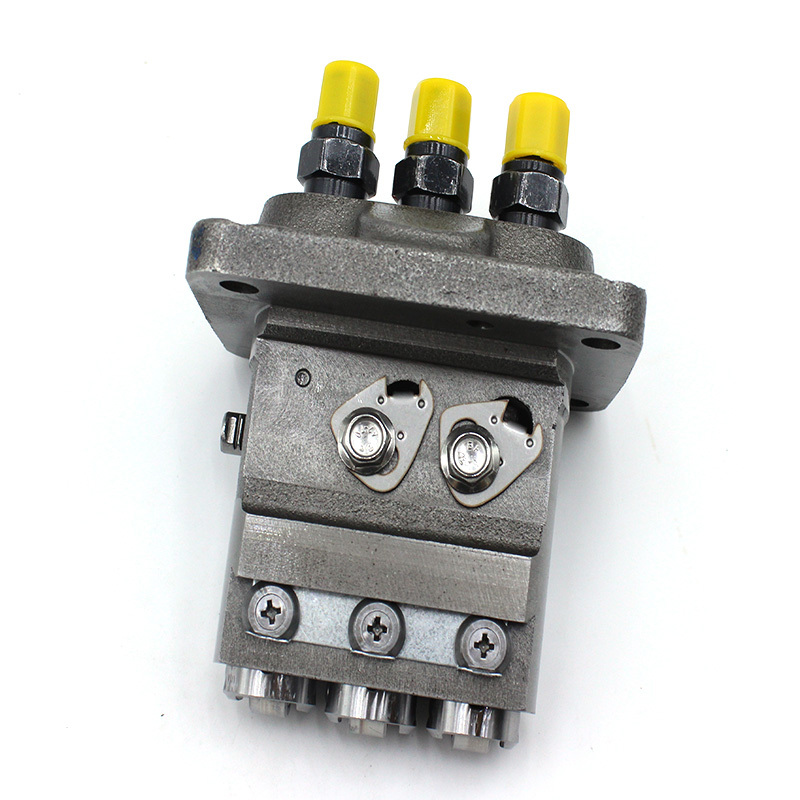

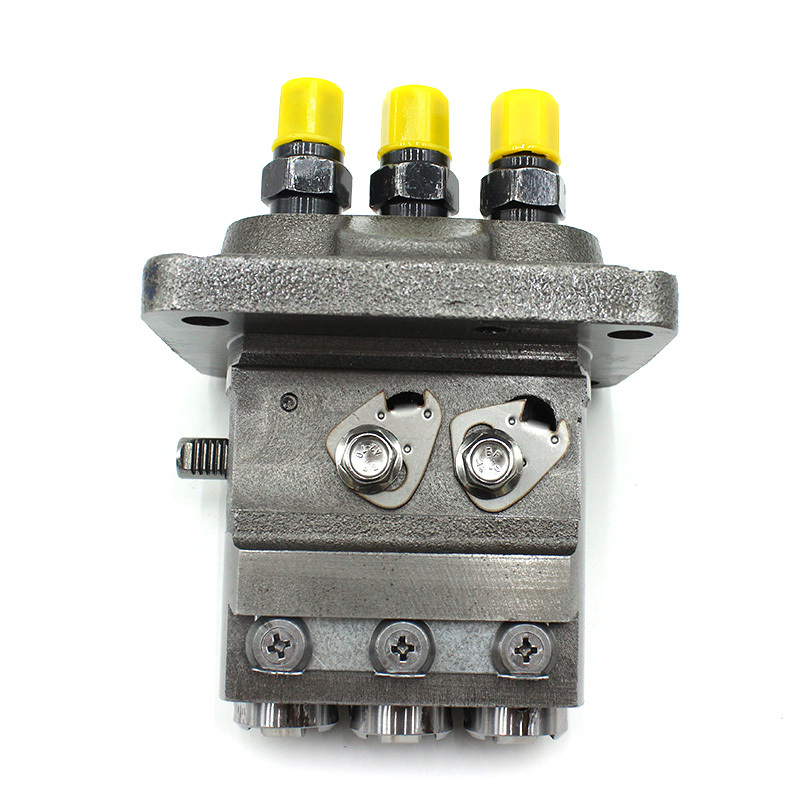

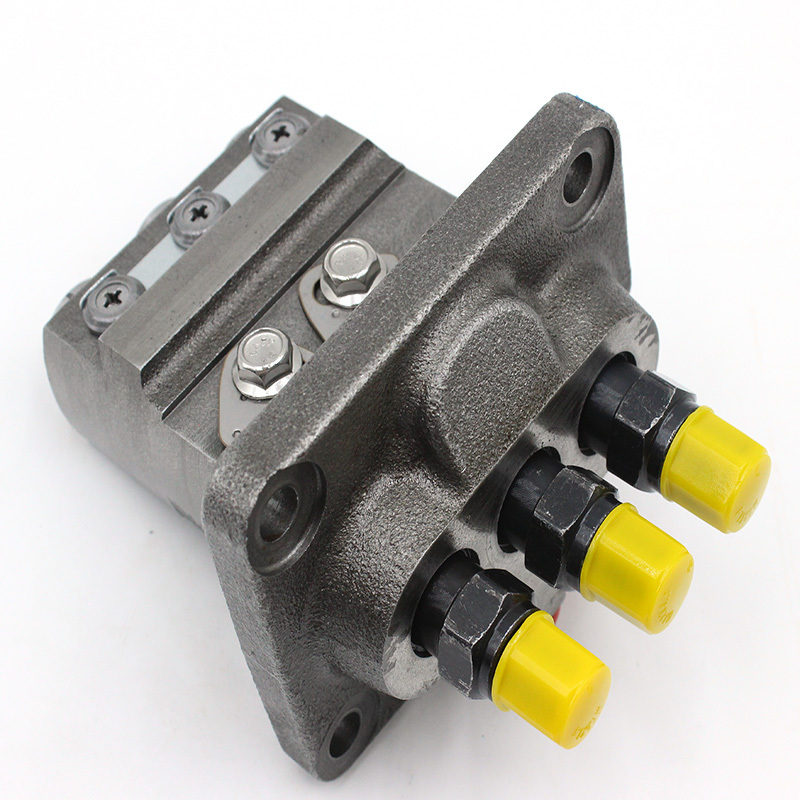

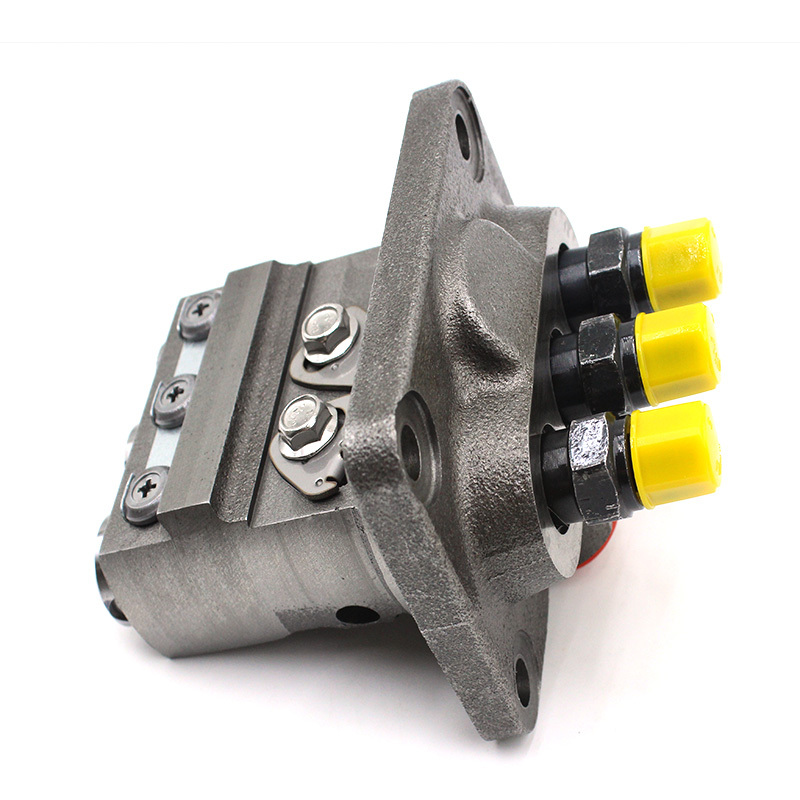

Three independent oil outlets + yellow dust-proof protective cap, precise oil outlet protection for storage and transportation
Three independent high-pressure oil outlet threaded ports at the top, paired with yellow oil-resistant plastic stop caps. During storage and transportation, dust and impurities are isolated, preventing fine particles from scratching the oil outlet valve seal surface, and preventing pressure loss and poor atomization after assembly.

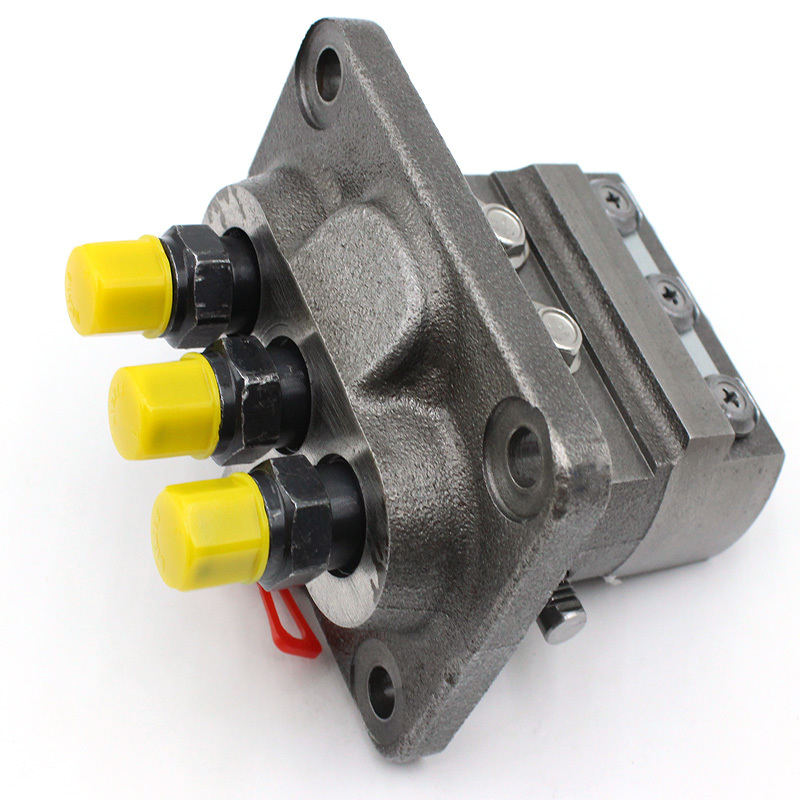

Red inlet oil sealing plug in the middle, isolating impurities to protect the internal plunger pair
The inlet channel is equipped with a red plastic sealing plug. The oil passage is sealed throughout the production process, preventing dust and water vapor from entering the pump body, reducing premature wear of the plunger, and extending the service life of the oil pump.
External adjustable speed control shaft on the side, precisely adjusting the fuel injection volume to match the load
The horizontal standard speed control shaft structure connects an external speed control mechanism, allowing linear adjustment of the single-cycle fuel supply volume. The fuel injection volume can be smoothly switched between no-load and heavy-load conditions, eliminating power discontinuity and speed drift of the equipment.
The entire machine is factory-calibrated for the flow difference of three-cylinder fuel supply, eliminating the need for secondary calibration during installation
The oil pump is independently tested on the machine to determine the difference in fuel supply flow, high-pressure sealing performance, and speed response speed. The factory parameters are unified, ensuring stable idle speed and balanced power output after assembly, significantly reducing maintenance and debugging time.
Part list
15321-51010 Complete three-cylinder high-pressure fuel injection pump assembly 1 piece
3 yellow oil outlet dust-proof protective caps
1 red inlet oil seal plug Applicable scenarios
This product is suitable for small-sized agricultural tractors with three-cylinder mechanical direct injection fuel system, small wheeled loaders, micro engineering excavation equipment, and small fixed diesel generators. It is applicable for high-intensity farming in fields, short-distance operations at construction sites, and small diesel engines operating in outdoor environments with alternating cold and hot temperatures and diesel corrosion. The product is used for replacing the fuel injection boost components of small diesel engines in such conditions.
Product Basic Parameters
Product Name: 15321-51010 Three-Cylinder In-Line High-Pressure Injection Pump Assembly
Part Number: 15321-51010
Main Material: Thickened cast steel housing, hardened mirror-finished plunger pair, oil-resistant plastic dust-proof cap

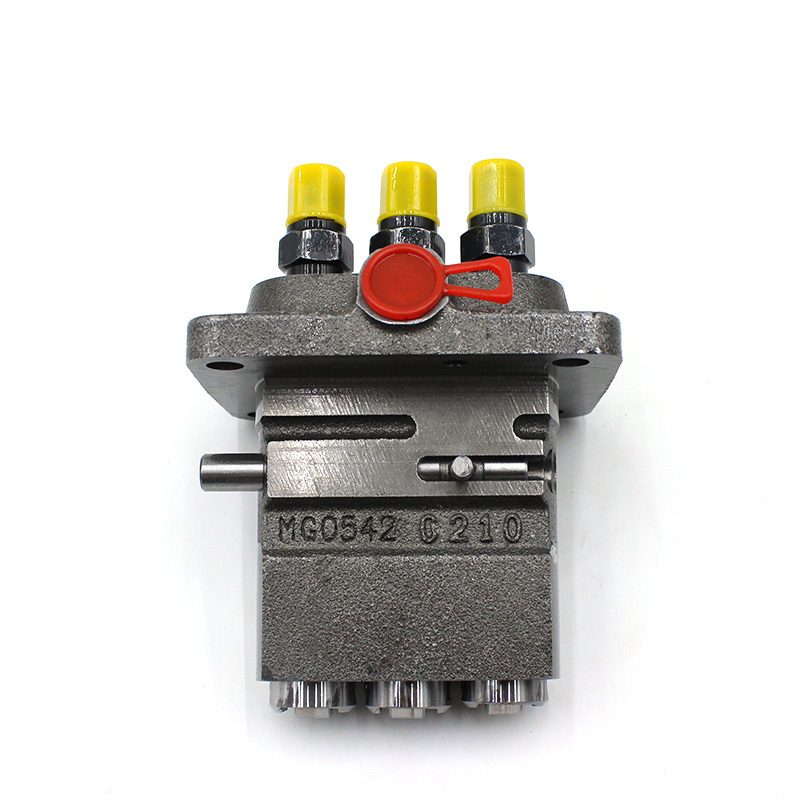

Structural Feature: Integrated cast steel pump body, bottom flange installation base, three-way top oil outlet, red oil inlet sealing plug, side-mounted external speed control shaft, shell engraved identification code
Application Conditions: Medium-high pressure reciprocating fuel supply, cabin high-temperature vibration, diesel with impurities corrosion small three-cylinder mechanical direct injection diesel engine
Product Status: New and complete injection pump assembly, factory completed with complete bench calibration and testing for cylinder-by-cylinder fuel supply uniformity, high-pressure pressure-bearing, and speed control response
Packaging: Independent thickened shock-proof tube packaging, all oil ports equipped with protective plugs, foam buffer protection to avoid transportation磕碰 damage to the threads and plunger precision mating surface, supports single-piece retail, bulk purchase in boxes, and is compatible with cross-border small items and full-box logistics.
