Description
Product Overview
The inline mechanical fuel injection pump relies on the reciprocating motion of the internal piston to pressurize the low-pressure diesel and distribute the high-pressure fuel to each cylinder. It is equipped with an external mechanical speed regulation component to adjust the fuel supply volume at different speeds in real time. The bottom is equipped with a hand oil pump that can quickly evacuate air from the oil circuit. In long-term field and construction heavy-duty working conditions, the piston may wear, the speed regulation spring may fatigue, and the shell may leak due to sealing. This can lead to large deviations in fuel supply for each cylinder, vehicle shaking, and a significant increase in fuel consumption. This product has completed the entire calibration of fuel injection pressure, fuel supply volume for each cylinder, and sealing at the factory. The entire machine does not require disassembly of the internal precision components for replacement. It is suitable for light-duty trucks, four-cylinder agricultural tractors, small loaders, and fixed diesel generator sets for major overhaul of the fuel supply system.
Unique Core Features of the Individual Product
Thickened integral cast aluminum pump body, lightweight and resistant to high pressure without deformation
The entire aluminum alloy is integrally formed through die-casting, with uniform wall thickness of the casing, capable of stably withstanding the high-pressure impact of the piston reciprocation; the surface is treated with passivation, rust prevention, and oil resistance, making it less prone to rust and oil leakage even under high-temperature engine compartments and diesel immersion, reducing the transmission load of the engine.
Four sets of independent standard high-pressure oil outlets, synchronous and balanced fuel supply for four cylinders
Four sets of uniform-sized high-pressure threaded oil outlet connectors are arranged horizontally along the upper edge of the pump body, suitable for high-pressure fuel lines of four-cylinder engines; the pistons in the same batch are uniformly calibrated, with small differences in fuel supply volume for each cylinder, ensuring smooth operation without single-cylinder lack of power, idle shaking, or excessive black smoke emissions.
Complete external mechanical speed regulation assembly on the side, with sensitive oil supply adjustment response
The mechanical speed regulation assembly on the right side of the oil pump is pre-installed, including adjusting rods, limit springs, and adjusting brackets, precisely matching the fuel supply volume for idle, medium-load, and heavy-load conditions, ensuring smooth and uninterrupted fuel supply, and improving the linearity of power output.
Integrated one-piece manual oil pump at the bottom, convenient oil circuit exhaust and maintenance
The pump body below integrates a manual oil pump assembly, equipped with brass inlet and outlet oil threaded connections, allowing for quick oil circuit air evacuation when the engine is cold and ready for maintenance by pressing the pump head, significantly reducing the cold start waiting time and resolving the problem of difficult start due to poor oil circuit intake.
Uniformly locked shell structure with multiple bolts, preventing high-pressure fuel leakage
The upper and lower shells of the pump body are evenly compressed by multiple locating bolts, and an added thick composite oil-resistant sealing gasket is used inside, with uniform force under high-pressure impact, effectively avoiding leakage at the pump body joint and continuous pressure loss faults. Applicable scenarios
Suitable for four-cylinder light-duty freight trucks, medium-sized agricultural tractors, small wheeled loaders, mobile diesel generators. It is applicable for short-distance transportation, field farming, continuous light-to-medium load on construction sites, and multi-temperature, dusty mechanical diesel-powered equipment with oil supply systems. It is for maintenance of oil supply systems of diesel-powered equipment with four cylinders, which are used in short-term transportation, field farming, continuous light-to-medium load on construction sites, and high-temperature, high-dust four-cylinder diesel-powered equipment.
Product Basic Parameters

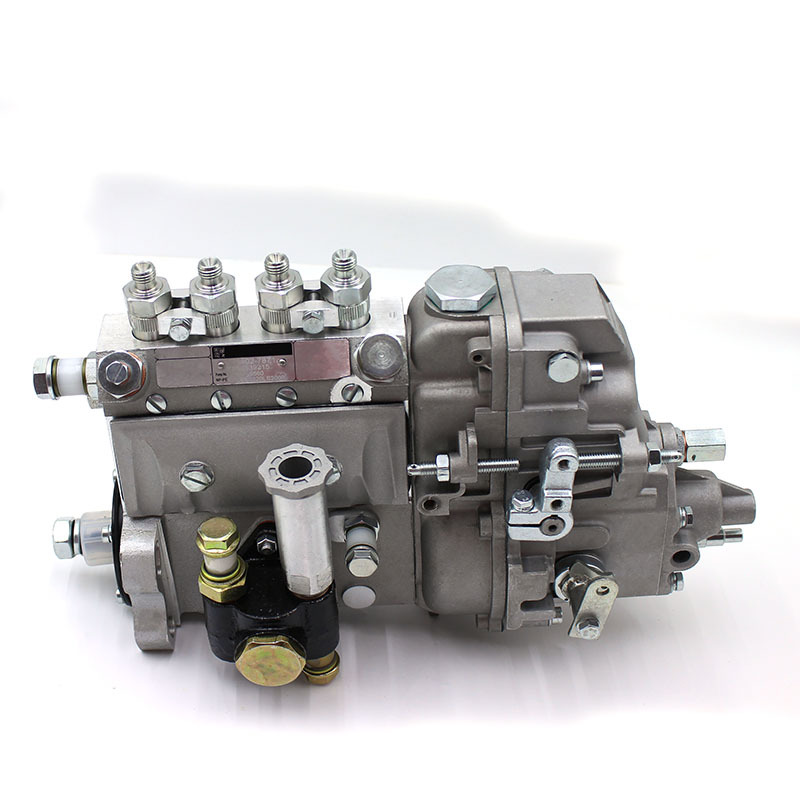

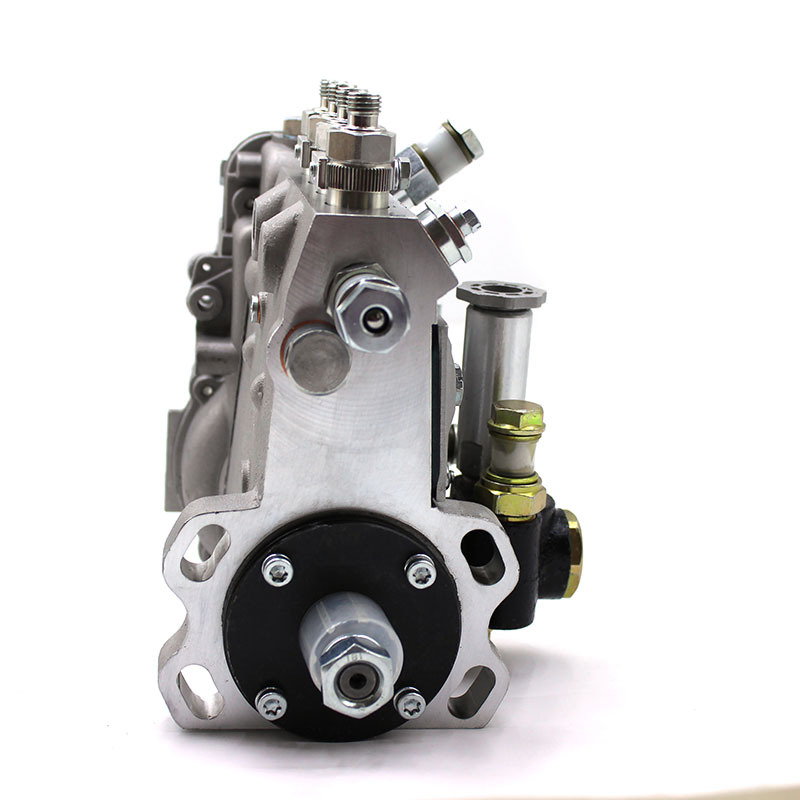

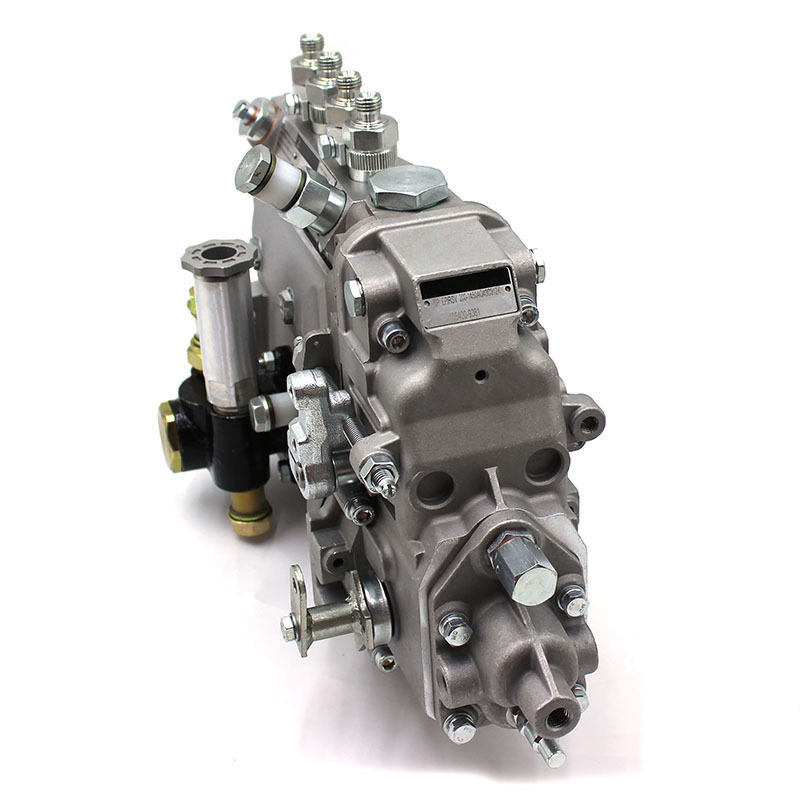

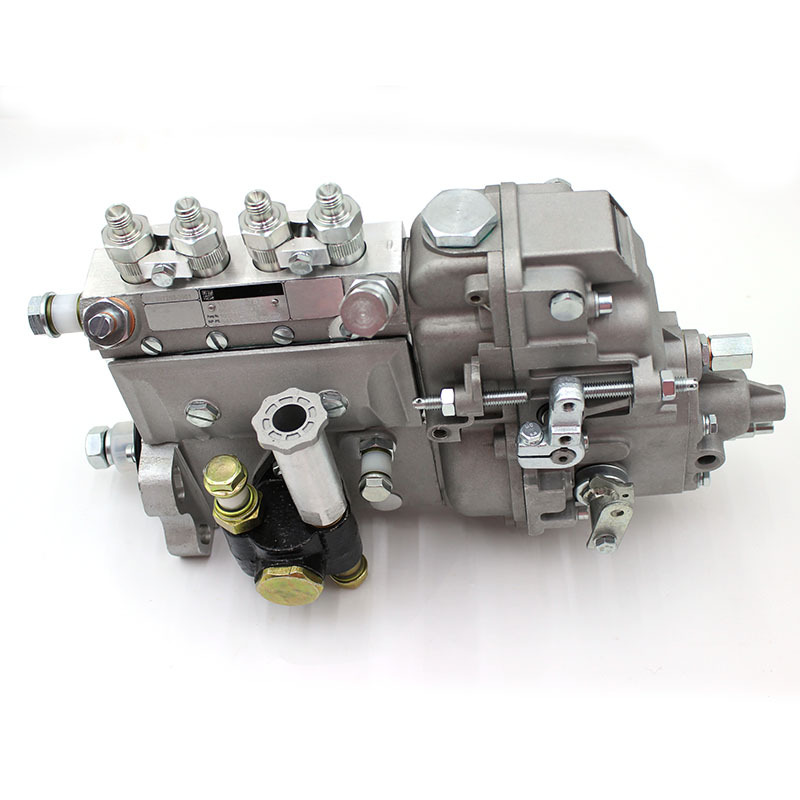

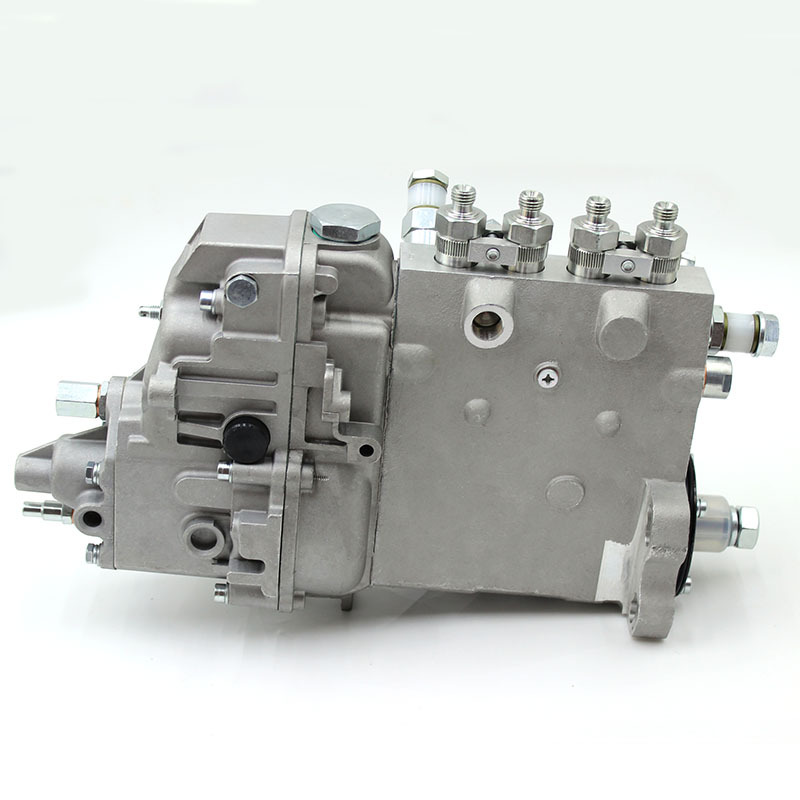

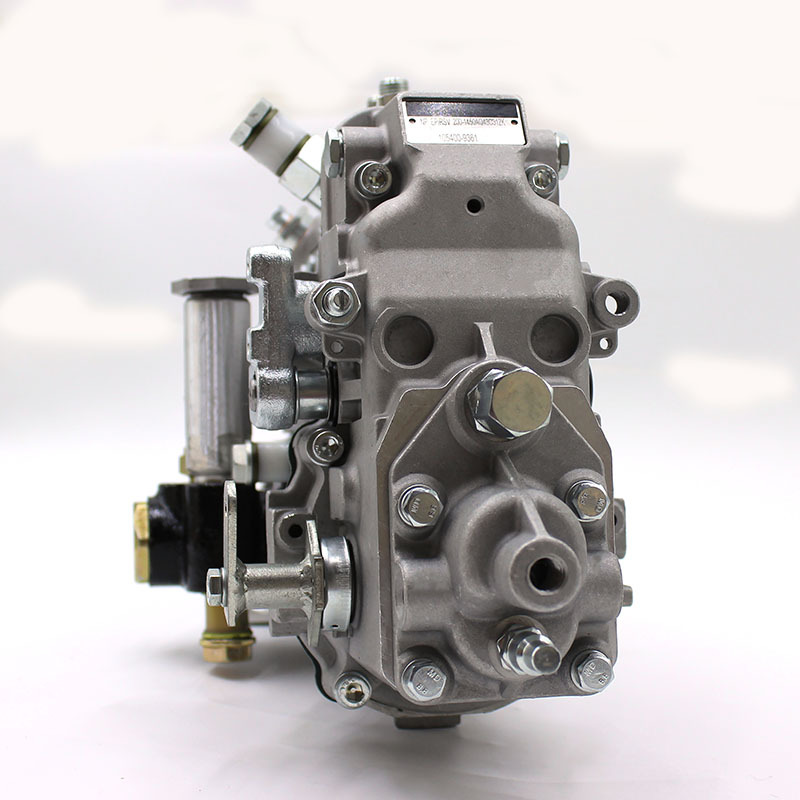

Product Name: Four-cylinder In-line Mechanical Injection Pump Assembly
Part Number: 8972633951
Main Material: Cast aluminum pump body, precision steel piston pair, cast iron mechanical speed regulation mechanism, cast iron hand oil pump, steel sealing bolts, oil-resistant composite sealing gasket
Structural Feature: Four outlet nozzle in-line pump body, side-mounted mechanical speed regulation assembly, bottom-integrated manual oil pump, multi-bolt sealed housing, standard timing transmission installation end
Applicable Working Conditions: Continuous light / medium-heavy load operation, alternating high and low temperatures in the engine compartment, outdoor high dust four-cylinder mechanical diesel-powered equipment
Product Status: New and complete oil pump assembly, factory completed with full calibration and testing of four-cylinder supply volume, injection pressure, and housing sealingity. The four-cylinder supply parameters are uniformly matched.
Packaging: Thick shock-proof hard packaging box, separate protection for the outlet thread, speed regulation mechanism, and hand oil pump to avoid damage to the piston and precision speed regulation components during transportation, suitable for cross-border large-sized logistics.
