Description
Product Overview

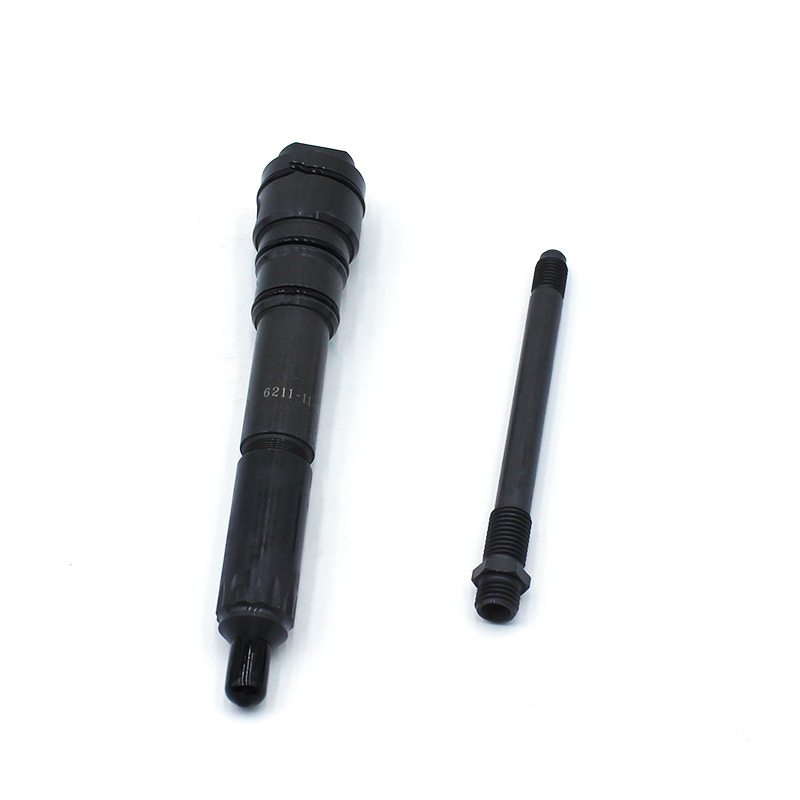

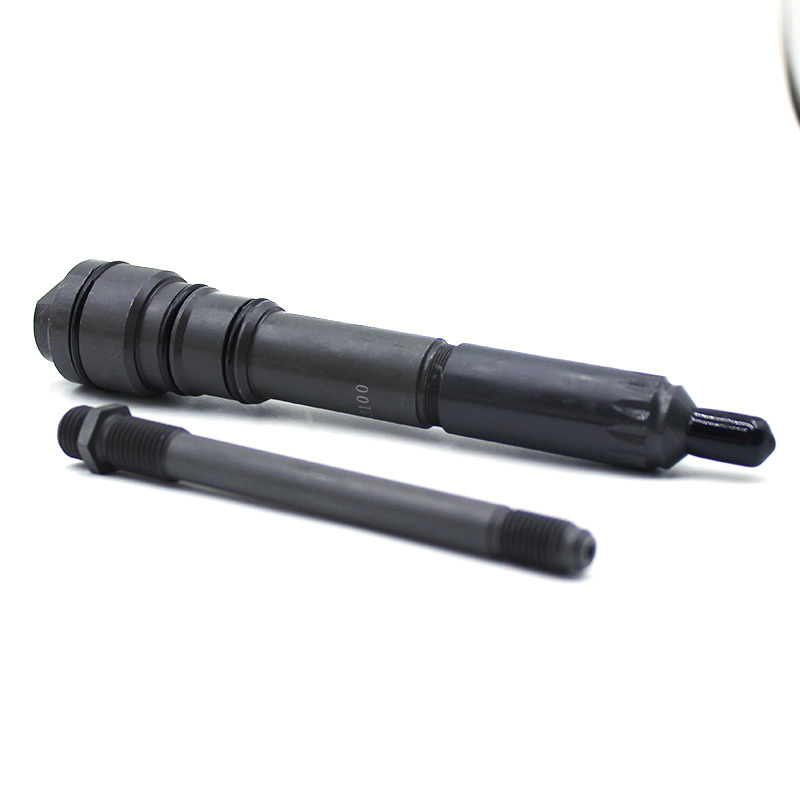

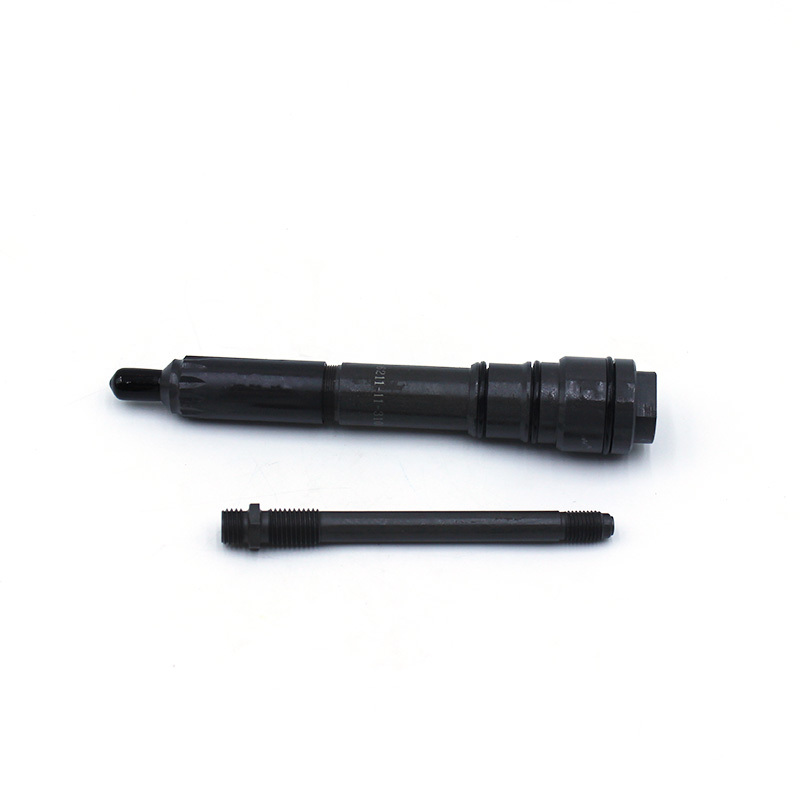

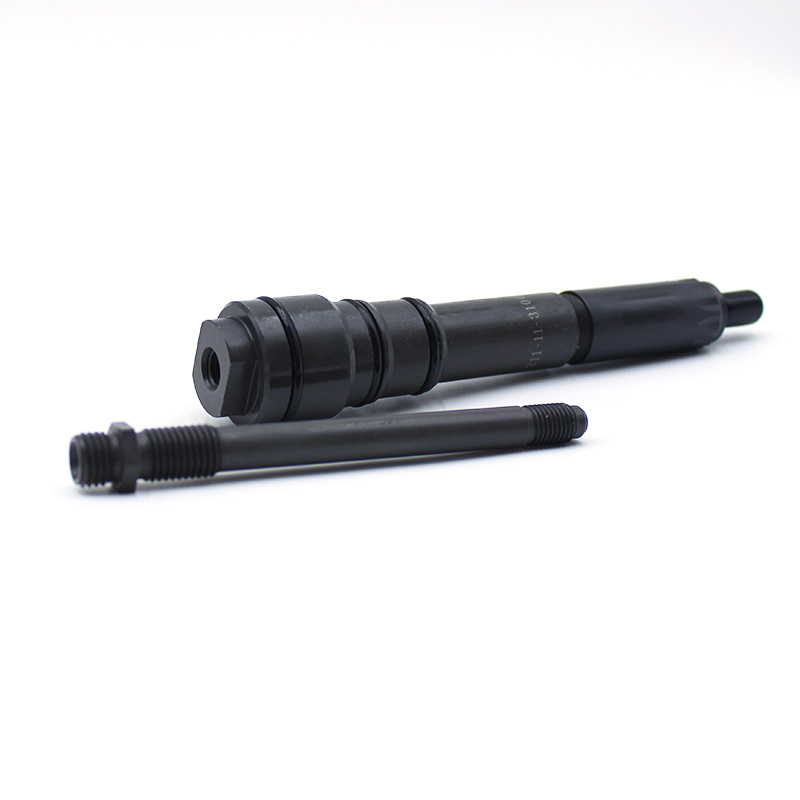

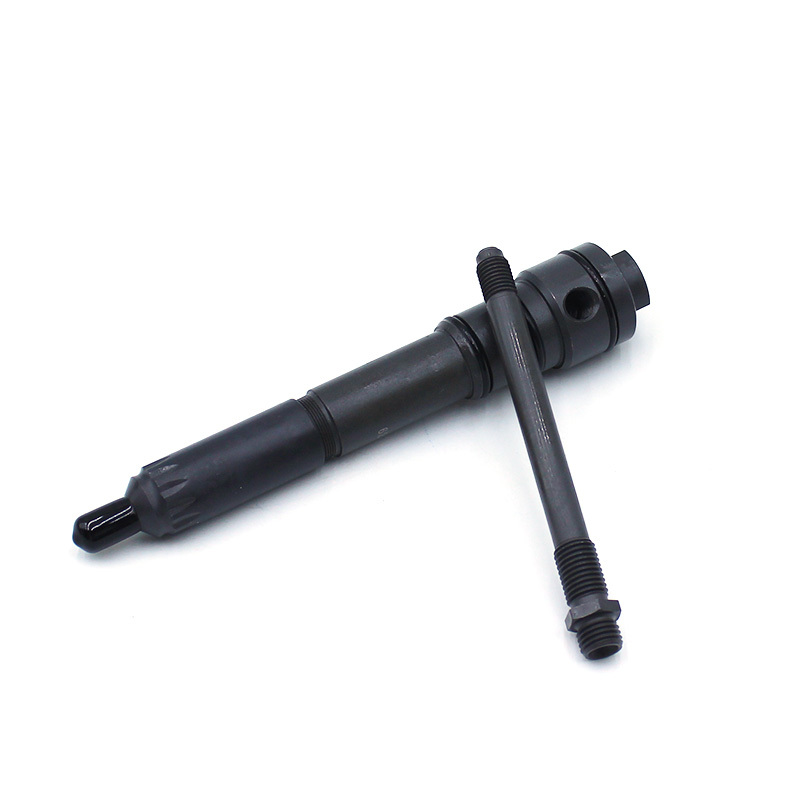

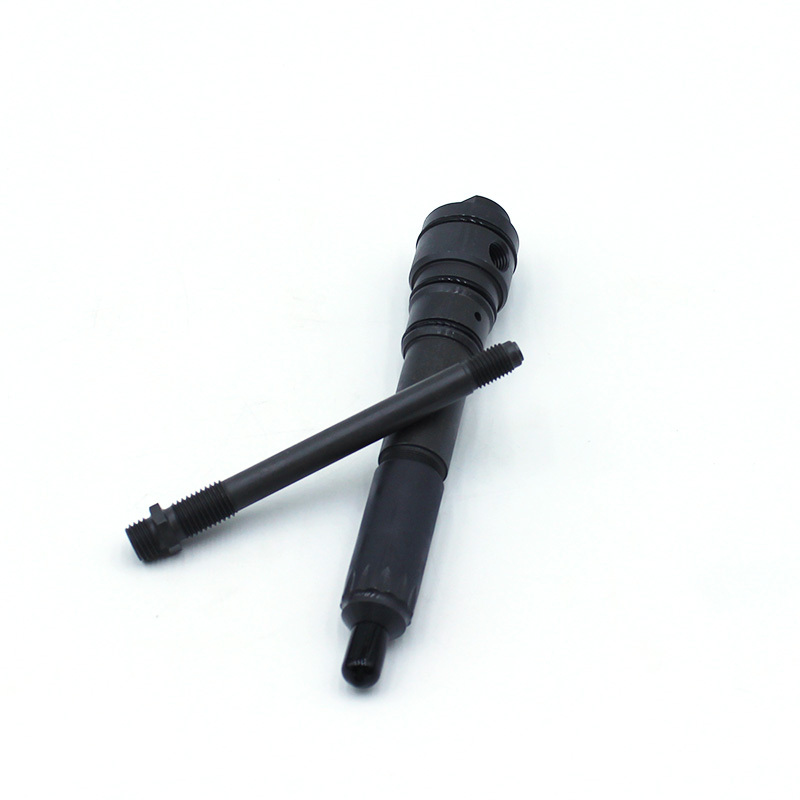

The mechanical fuel injector relies on the high-pressure fuel to push open the internal needle valve to achieve atomized injection. It is connected to the fuel pump and the injector through a high-pressure connecting rod, transmitting the high-pressure oil flow. In the mining area, under long-term 24-hour heavy-load and high-temperature conditions, the needle valve sealing surface wears out, the oil passage of the connecting rod gets clogged, and the seal leaks. This will result in a decrease in fuel supply pressure, poor atomization, and a decline in the overall power of the machine. This product is a complete set including the injector body and the high-pressure connecting rod. There is no need to separately select the connecting rod. The factory provides a complete set of oil pressure and atomization detection, suitable for large excavators, heavy-duty loaders, and large-power diesel generator sets with mechanical fuel injection systems for major overhauls.
Core Features of the Exclusive Set for Individual Products
Black nitrided and hardened integrated valve body, wear-resistant and resistant to high temperatures, with no internal leakage
The valve body is processed as a whole from alloy steel, with a surface nitrided blackening hardening treatment, resistant to diesel corrosion and high-temperature high-pressure, with a segmented stepped positioning structure assembly without offset, precise gap between the piston and the needle valve, and long-term high-pressure flushing is not prone to scratching or oil pressure leakage.
The matching double-head threaded high-pressure connecting rod, with a smooth oil passage for stable transmission
The complete set is equipped with an extended double-head external threaded high-pressure connecting rod, with a precise internal oil passage, no throttling dead corners, smooth high-pressure fuel transmission; the threads are standard and are respectively connected to the fuel pump and the injector, the threads are not prone to slippage, rusting, or leakage.
The front end has a closed precision injection end, eliminating oil dripping and carbon deposits during shutdown
The head has a closed needle valve sealing structure, with high accuracy of the needle valve fitting, locking the oil path at the moment of shutdown, avoiding continuous fuel dripping into the cylinder, causing carbon deposits and difficulty in cold start; the multi-hole fine spray holes have uniform atomization, burning is sufficient, reducing black smoke and fuel consumption.
The outer wall is laser engraved with the part number, with clear and non-fading markings for long-term use
The side of the valve body is permanently etched with the 6211-11-3100 model code, resistant to diesel soaking, wiping wear, making it intuitive for maintenance preparation, model verification, and preventing incorrect installation and rework.
Multi-ring sealing groove design, multi-layer protection to prevent fuel leakage
The valve body is reserved multiple sealing ring installation slots in segments, combined with the matching sealing gasket to form a multi-layer sealing barrier, preventing high-pressure fuel from leaking from the valve body connection gap, stabilizing the cylinder cover fuel supply pressure. Applicable scenarios
This product is suitable for large-scale mining excavators, heavy-duty loaders, and high-power fixed diesel generators equipped with mechanical direct injection fuel supply systems. It is applicable for the maintenance and replacement of heavy-duty diesel engine fuel injection systems in mining areas and construction sites, including 24-hour full-load operation under high temperature and high dust conditions.
Product Basic Parameters
Product Name: Mechanical Injector Assembly (including high-pressure connecting rod)
Part Number: 6211-11-3100
Main Material: Nitrided hardened alloy steel (injector body + high-pressure connecting rod)
Structural Feature: Segmented stepped positioning valve body, sealed atomization nozzle, matching double-head high-pressure connecting rod, outer wall engraved model, multiple ring-shaped sealing grooves
Application Conditions: 24-hour continuous full-load operation, long-term high-temperature in engine compartment, outdoor high-dust heavy-duty mechanical diesel engine
Product Status: New complete set of injector components, factory completed with opening pressure, atomization effect, and high-pressure sealingity comprehensive testing
Packaging: Independent shock-proof hard packaging, protective covers added to the nozzle end and both ends of the connecting rod to avoid scratches on the precise oil channels and spray holes during transportation, supports single set and multiple sets of batch purchases, and is compatible with cross-border small package logistics.
