Description
Product Overview
The sealed fuel injector nozzle is assembled at the very front of the mechanical fuel injector. The internal needle valve and the central micro-hole of the nozzle are in close cooperation. The high-pressure fuel passes through the micro-hole and is torn into fine oil mist, which is then sprayed into the cylinder. The bottom circular plane presses the purple copper gasket to achieve the sealing of the combustion chamber. Under long-term high-temperature gas radiation, high-pressure fuel erosion, and abrasive diesel particle grinding conditions, the central nozzle hole wears out and the bottom sealing surface develops indentations. This may result in engine stalling and dripping oil, coarse atomized particles, reverse flow of high-temperature gas, carbon deposition, and multiple ignition failures, single-cylinder power deficiency, and excessive black smoke in exhaust. This product has standardized processing for the conical positioning outer diameter, central nozzle hole diameter, and bottom sealing ring size. After disassembling the fuel injector, the nozzle head can be replaced alone to repair the failure of the injection sealing. It is suitable for large mining excavators, heavy-duty loaders, and long-distance heavy-duty freight trucks for the maintenance of mechanical direct injection diesel engines.
Core Advantages of the Product
Quenched and tempered alloy steel + black wear-resistant coating, resistant to high temperature and erosion
The overall steel is subjected to high-temperature quenching and hardening, and the surface is strengthened with black wear-resistant treatment. It can withstand the instantaneous high-temperature radiation of the combustion chamber. Under long-term high-pressure fuel and abrasive particle erosion, the nozzle hole does not expand, and the sealing surface does not develop scratches. It maintains standard atomization and sealing performance for a long time.
Conical stepped positioning housing, assembly alignment without deviation, fits the sealing gasket
Multi-layer stepped conical shape, automatically limits and positions when installed in the fuel injector housing, does not rotate or tilt during assembly. The bottom circular plane fully fits the purple copper sealing gasket, without local gaps causing gas leakage or fuel leakage.
Central high-precision fine spray holes, fine atomization for complete combustion
The front center precision micro-hole is precisely ground and matched. After the high-pressure fuel is sprayed out, it disperses into uniform fine oil mist. The oil and gas are fully mixed, reducing carbon deposition in the cylinder, reducing exhaust black smoke and fuel consumption.

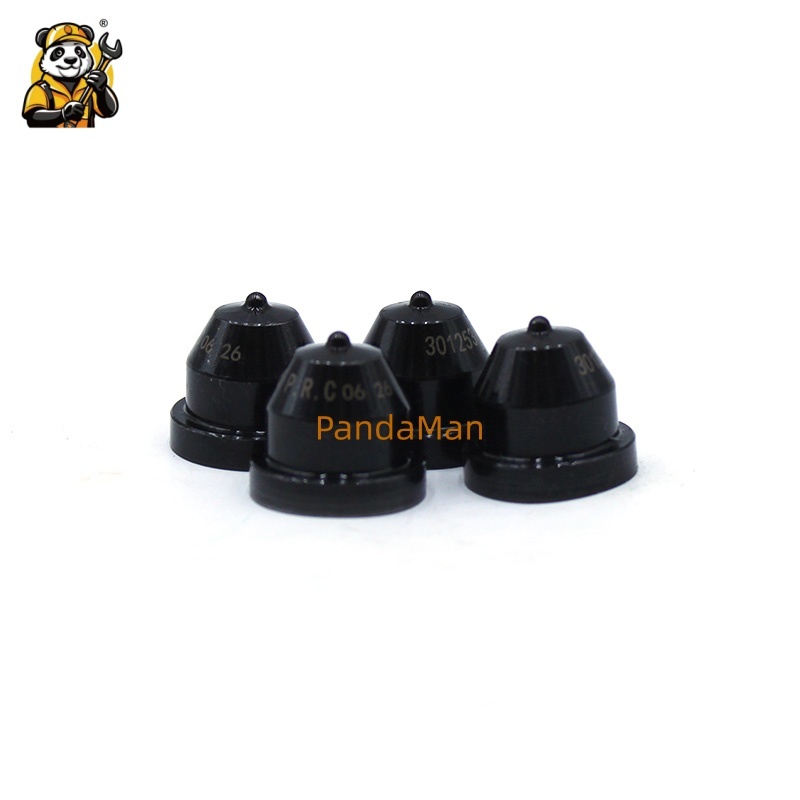

The outer wall is engraved with model identification, allowing for quick identification of specifications during storage and maintenance.
The shell side is laser-engraved with model code, resistant to diesel soaking and repeated wiping without the characters falling off. During inventory, on-site disassembly and assembly, it can quickly match the model, eliminating the risk of incorrect installation causing abnormal atomization and insufficient power.
Integrated smooth and precise processing without burrs, no metal debris contaminating the cylinder oil circuit
CNC turning, micro-hole drilling, and then full edge polishing to remove burrs. No metal shavings fall off during disassembly and replacement, avoiding scratches on the internal needle valve of the fuel injector and blocking of the engine intake and oil circuits.
Each nozzle head is independently tested for factory calibration of the opening spray pressure, uniformity of atomization, and duration of high-pressure pressure retention. The factory parameters are uniform, allowing for direct replacement and assembly, eliminating the need for manual grinding and adjustment, and shortening the disassembly and maintenance time of the fuel injector. List of Accessories
3012536 Injector Sealing Atomizing Nozzle 1 piece. Vacuum-sealed and separately packaged in individual plastic bags. Multiple pieces can be packed in a set bag as an option. Applicable scenarios
It is suitable for large-scale mining excavators with mechanical direct injection fuel supply system, heavy-duty wheeled loaders, long-distance heavy-duty freight trucks, and high-power fixed diesel generators. It is applicable for heavy-duty diesel engines with direct injection for continuous heavy-load operations in mines, long-distance trunk transportation, construction sites with high-temperature dust and impurity-damaged diesel environment. The front-end atomization sealing core component of the fuel injector needs to be replaced.
Product basic parameters
Product name: 3012536 Mechanical Fuel Injector Sealing Atomizer Head
Part number: 3012536
Main material: Tempered hardened alloy steel, surface black wear-resistant and strengthened treatment

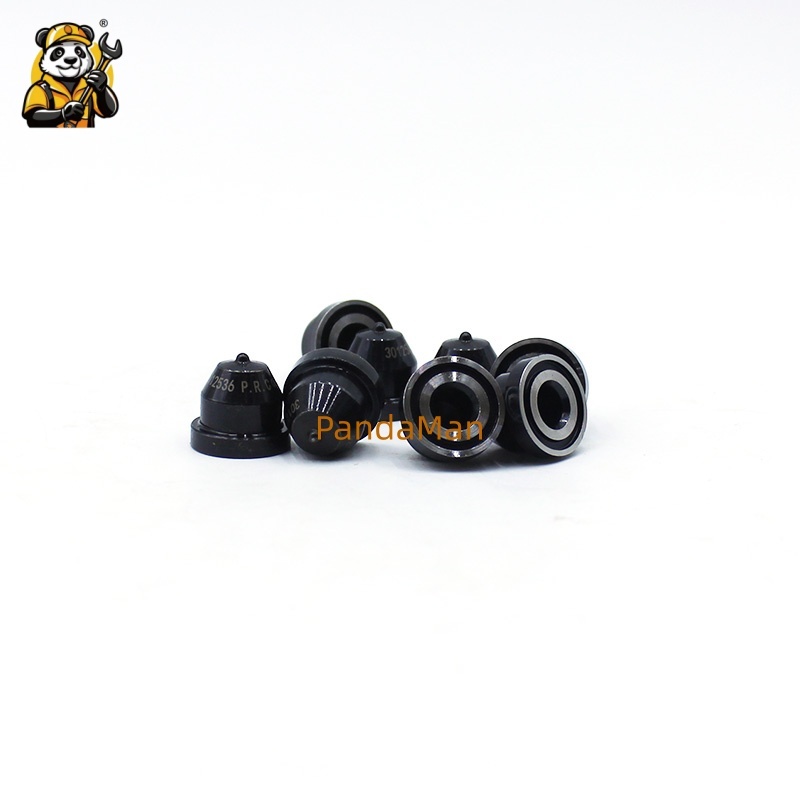

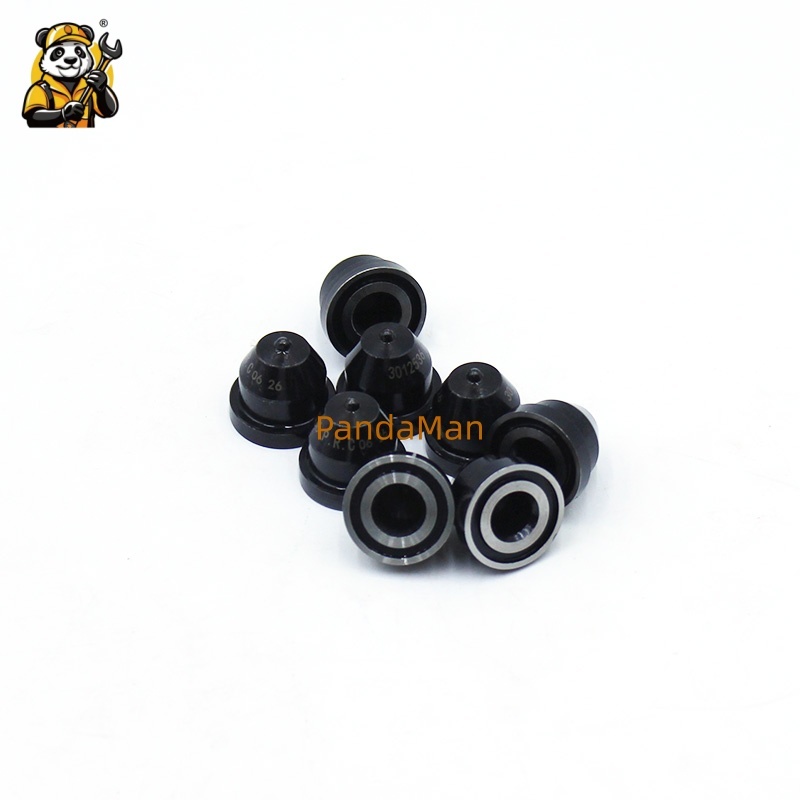

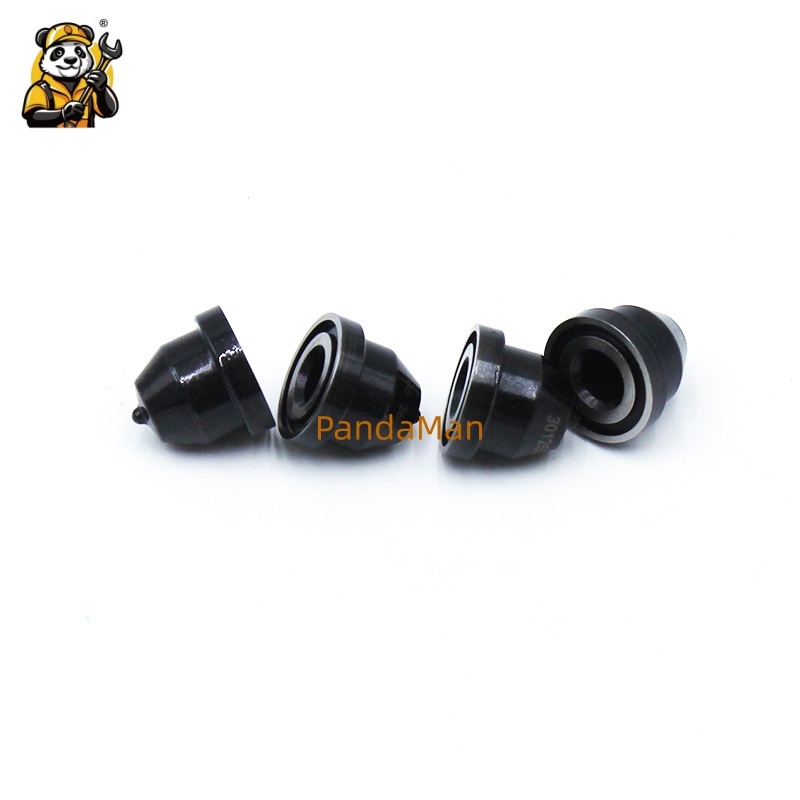

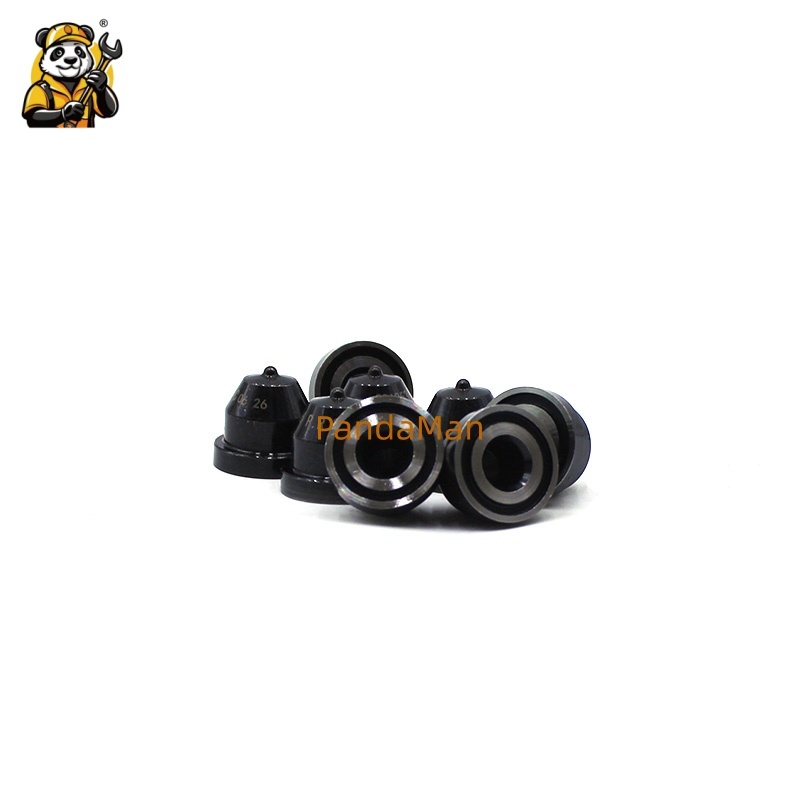

Structural features: Conical stepped positioning housing, center fine spray holes, bottom circular sealing contact plane, outer wall engraved model identification code
Application conditions: High-pressure fuel atomization injection, combustion chamber high-temperature heat insulation sealing, continuous vibration of engine compartment under hot and cold alternation, corrosion of impurity diesel for heavy-duty diesel engines with direct injection fuel injector front-end injection sealing components
Product status: New and complete fuel injector head, factory completed with full calibration and testing of atomization accuracy, high-pressure sealingity, and opening pressure

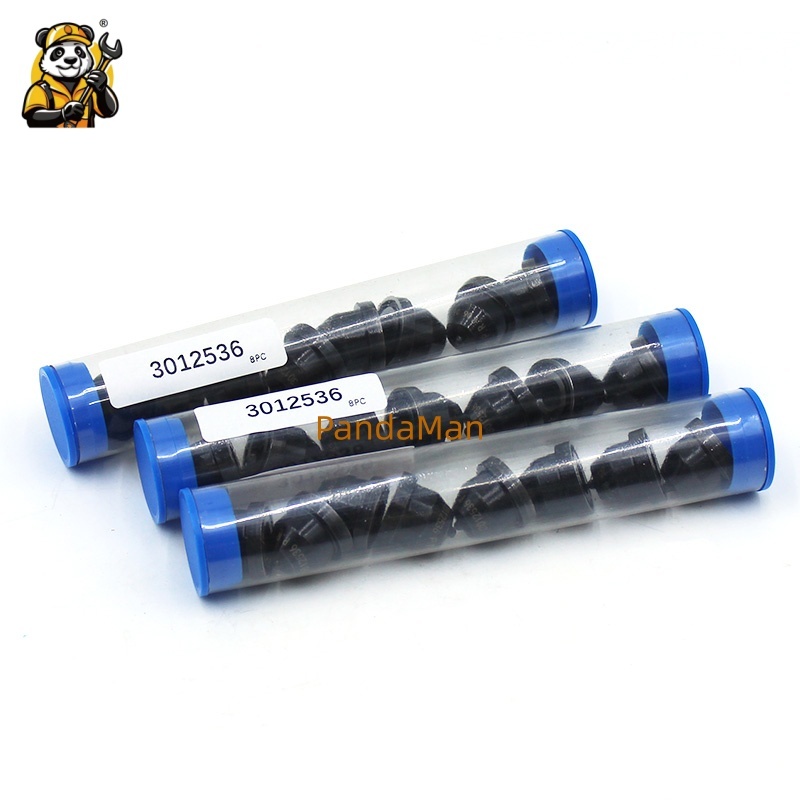

Packaging: Independent vacuum-sealed plastic bag packaging, isolated from dust and oil stains, hard protective tube buffer protection to avoid the bottom sealing surface and front-end spray holes during transportation. Supports single-sale per unit， bulk purchase per bag， and is compatible with cross-border small-sized logistics.
