Description
Product Overview

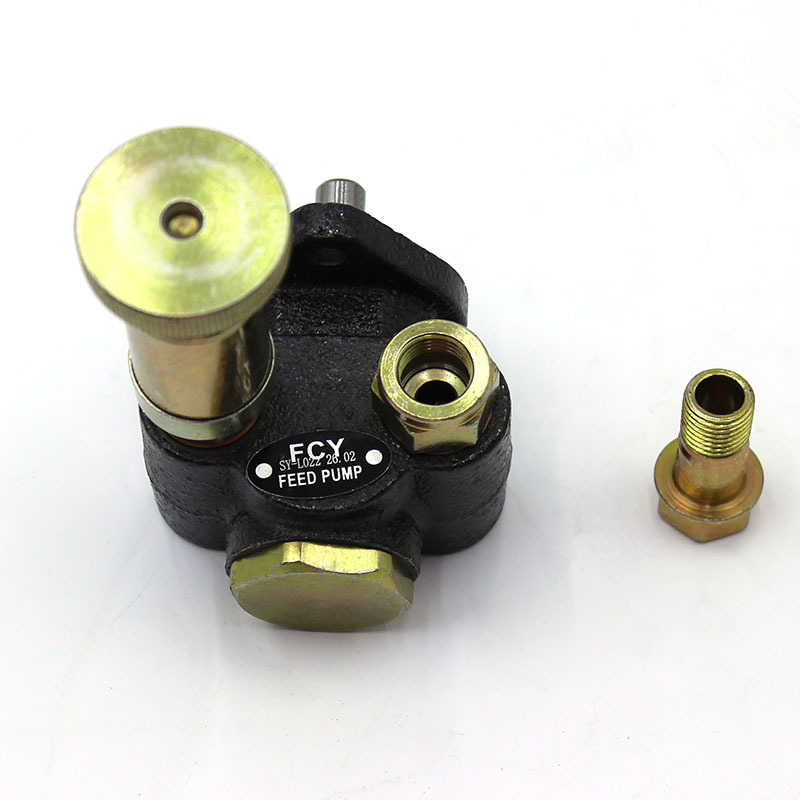

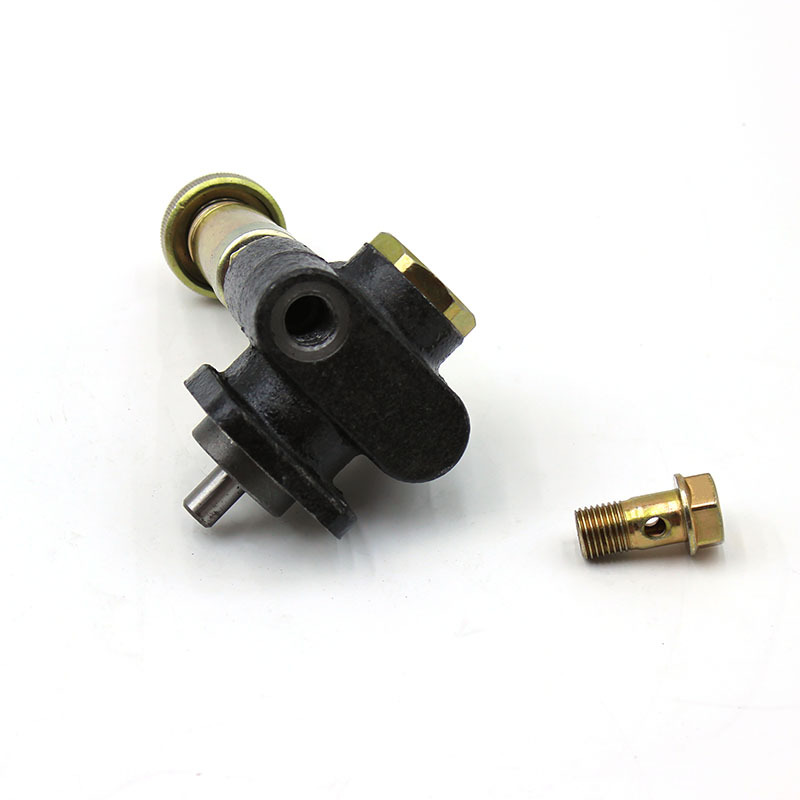

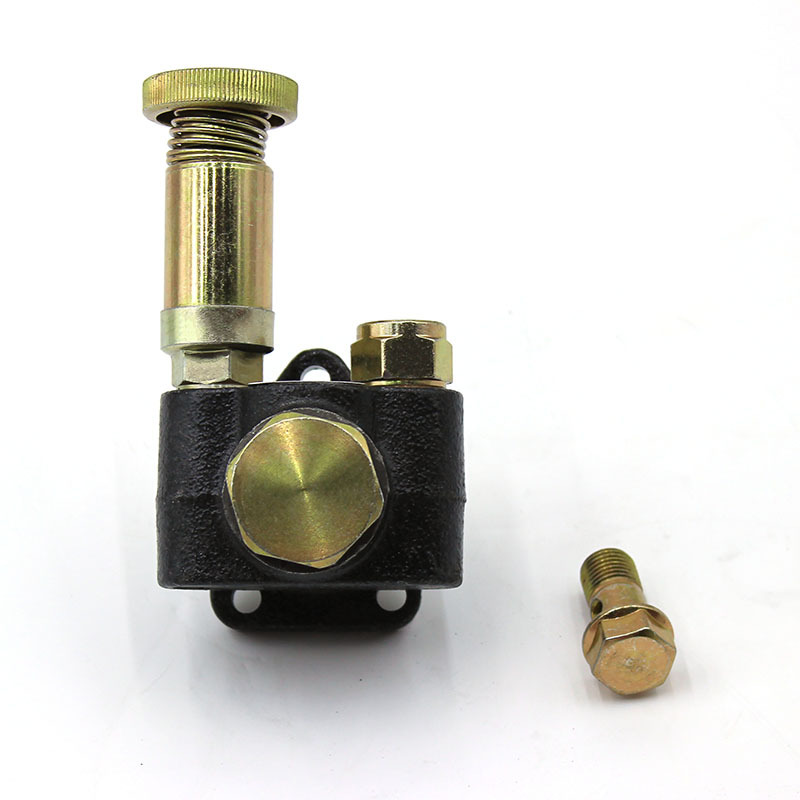

The needle valve type fuel pump is assembled on the side of the mechanical fuel injection pump and is driven by the engine cam to move the internal piston to deliver low-pressure fuel. The front-mounted manual plunger can be manually emptied to remove air from the fuel line. The built-in needle-type one-way valve locks the fuel line to prevent fuel backflow. Under long-term field conditions of high and low temperatures and high dust content, the one-way sealing and wear of the plunger oil seal can cause air intake in the fuel line, insufficient fuel supply, and difficulty in starting. This product comes with a dedicated fuel pipe connector, and the entire machine can be replaced without the need to purchase additional sealing consumables. It is suitable for medium-sized trucks, agricultural tractors, and mechanical diesel engines of construction machinery with low-pressure fuel lines for major repairs.
Unique Core Features of the Single Product

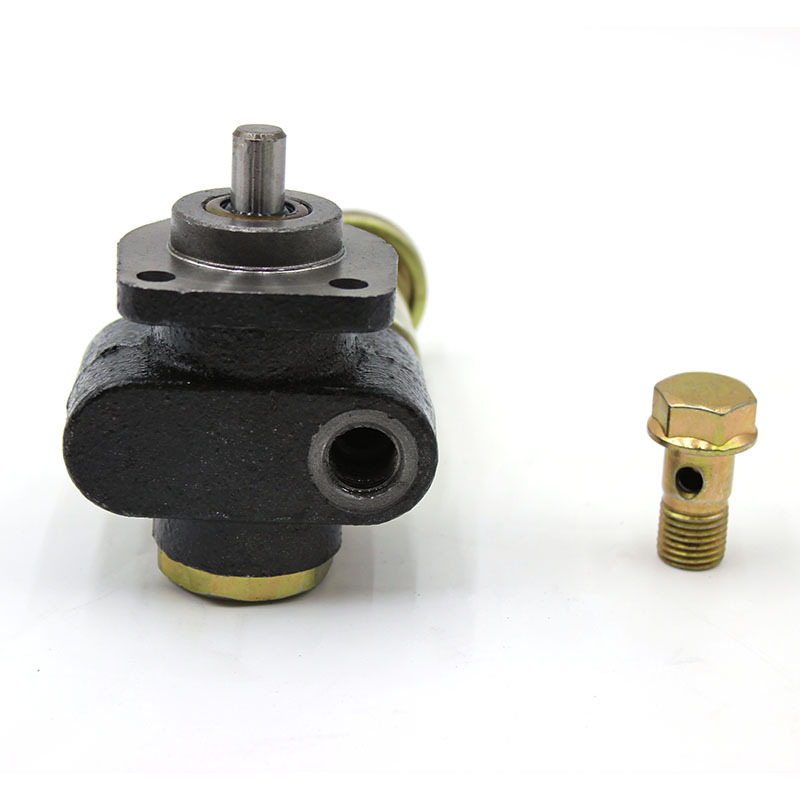

Triangular three-hole flange fixed base, stable and resistant to vibration
The top triangular metal flange disc evenly distributes three standard installation holes. After locking, it fits the fuel pump housing uniformly, and the vehicle will not shift or leak oil under long-term heavy load and vibration, ensuring a continuous and stable supply of fuel without attenuation.

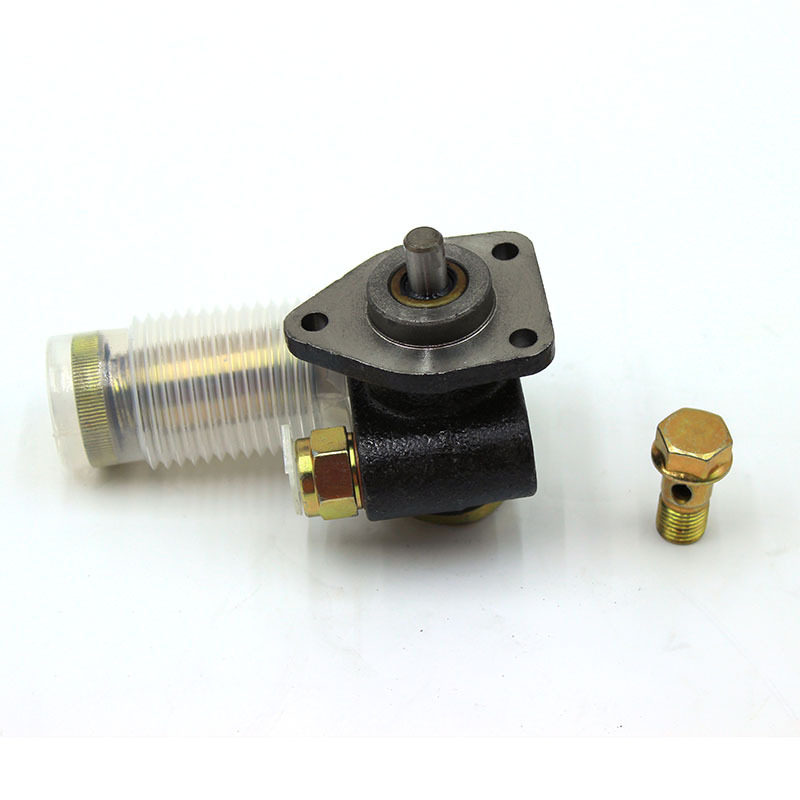

Extended manual plunger with transparent corrugated protective sleeve, integrated exhaust protection
The front extended brass manual pump plunger is wrapped with a semi-transparent corrugated plastic sleeve. It protects against sand and impact during storage and transportation. The knurled pressing end has sufficient travel, and it is easy to expel air from the fuel line quickly, shortening the start-up waiting time.
Separate matching brass fuel pipe connector, universal and compatible with low-pressure fuel pipes
The kit comes with an independent galvanized brass outer threaded connector. The pump body's oil inlet and outlet ports are standard internal threads, compatible with common low-pressure diesel fuel pipes on the market. The brass material is rust-resistant and oil-resistant, with a tight and leak-free screw connection, and is convenient for disassembly, replacement, and adjustment.
Built-in needle-type one-way valve structure, excellent sealing and locking oil effect
The pump body adopts a precise needle-type one-way sealing structure. The fuel flows unidirectionally, effectively blocking the oil circuit from backflow after shutdown, preventing air from entering the pipeline, and ensuring sufficient and stable fuel supply for the next start.
Black anti-rust cast iron pump body, resistant to oil, high and low temperatures, and不易leak
The outer layer of the main body's cast iron pump body is treated with anti-rust black paint. The internal piston has a precise and uniform clearance. It is less prone to rust in long-term diesel soaking， in-cabin cold and hot alternating environments， and is less likely to leak the oil seal， extending the service life. Applicable scenarios
Suitable for medium-sized freight trucks, multi-cylinder agricultural tractors, wheeled loaders, fixed diesel generator sets. Applicable for long-distance transportation, field farming, and continuous heavy-load mechanical diesel-powered equipment with low-pressure oil circuits for maintenance.
Product Basic Parameters
Product Name: Needle Valve Mechanical Oil Pump (Hand Oil Pump Assembly)
Part Number: 1157501980
Structural Type: Needle-Type One-Way Valve Model
Main Material: Rust-proof cast iron pump body, brass manual plunger, precision needle-type valve core, metal triangular flange, brass oil pipe joint, transparent corrugated plastic protective sleeve
Structural Features: Triangular three-hole flange base, transparent corrugated protective sleeve with extended manual plunger, separate yellow brass inlet and outlet oil joints, built-in needle-type one-way valve
Application Conditions: Continuous heavy-load, cabin alternating high and low temperatures, outdoor high-pollution mechanical diesel engine low-pressure oil supply system
Product Status: New and complete oil pump assembly, with independent oil pipe joints, factory completed with full set of tests for oil supply flow, one-way sealing, and manual exhaust performance
Packaging: Independent shock-proof packaging, yellow brass joints and plunger ends are separately protected to avoid transportation knocks, scratches, and damaged threads, suitable for cross-border small package logistics.
