Description
Product Overview
The fuel injector is assembled at the front end of the single-cylinder mechanical fuel injector. Under high pressure, the fuel pushes the internal needle valve stem to move, and through the center micro-hole on the end face, it forms a concentrated and fine oil mist. It is suitable for small single-cylinder combustion chambers to complete fuel injection and work. Under long-term conditions such as light load in farmland, exposure to high and low temperatures, and diesel with impurities, if the injector holes get clogged, the sealing surface of the needle valve wears out, and the clearance between the mating parts expands, resulting in uneven atomization, engine shutdown dripping oil, weak power, difficulty in starting the engine, increased black smoke in exhaust, and increased fuel consumption. This product is an integrated small precision fuel injector that is factory-tested for high-pressure holding and flow balance. The size specifications are uniform, and disassembly and assembly do not require grinding to fit. It is suitable for maintenance and repair of fuel injectors for hand-held tractors, small diesel generators, and light agricultural power equipment.
Unique Core Advantages of the Single Product

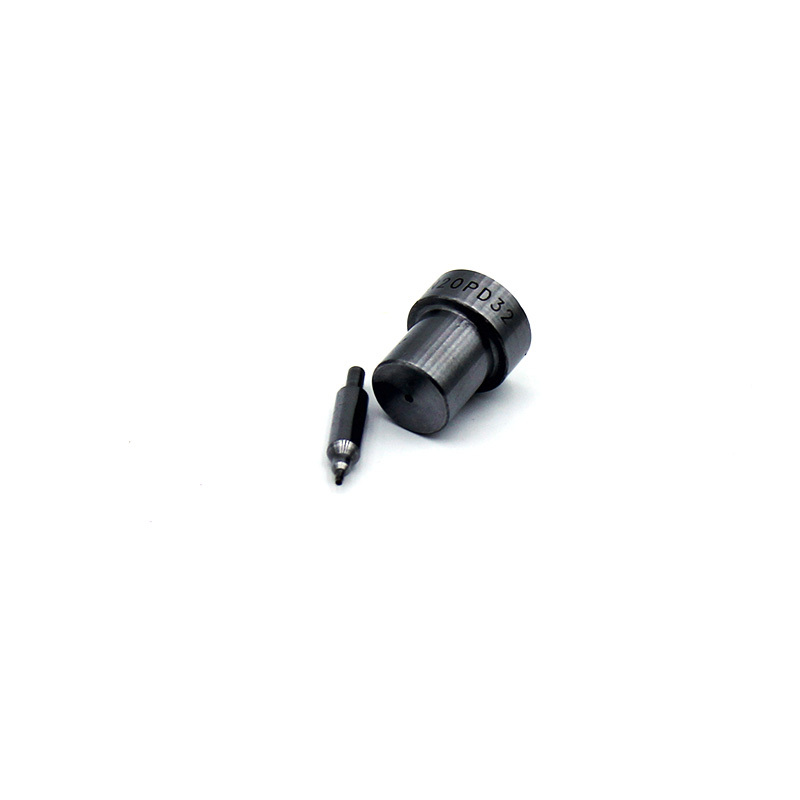

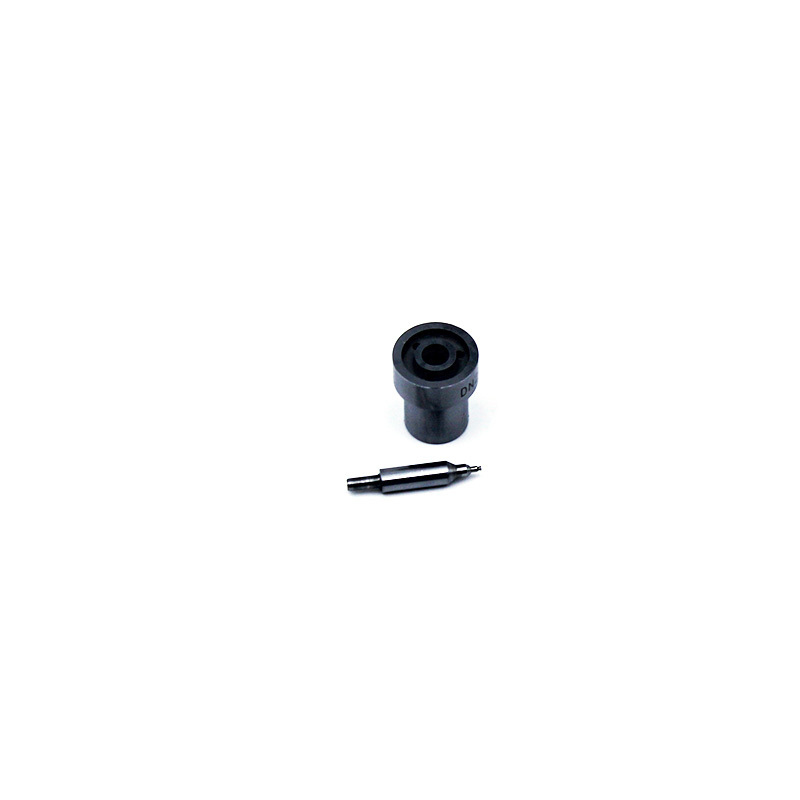

The elongated and precisely positioned needle valve stem moves coaxially without offset or wear.
The outer wall of the thin and long guiding needle valve stem is finely ground to a mirror finish, which precisely matches the internal components of the fuel injector. The reciprocating motion has no unilateral inclination, and the micro-micron sealing gap between the needle valve and the valve seat is maintained for a long time, preventing internal leakage of high-pressure fuel and pressure relief, and ensuring stable fuel injection pressure.
The short and straight cylinder integrated mirror valve body has no turbulent loss in fuel flow.
The overall short and straight cylinder steel body has mirror polished inner and outer walls. The high-pressure fuel flows smoothly without vortex, and the oil pressure is stable under low-speed and idle conditions. The atomization effect is uniform and stable.
The end face single-point center micro-hole injector hole is for concentrated atomization and is suitable for single-cylinder models.
The single center micro-hole on the end face is precisely polished with no burrs on the mirror surface. The fuel is concentratedly sprayed to form a fine oil mist, which matches the single-cylinder small combustion chamber, ensuring adequate oil-gas mixture, reducing carbon deposits in the cylinder, and lowering black smoke emissions and fuel consumption.

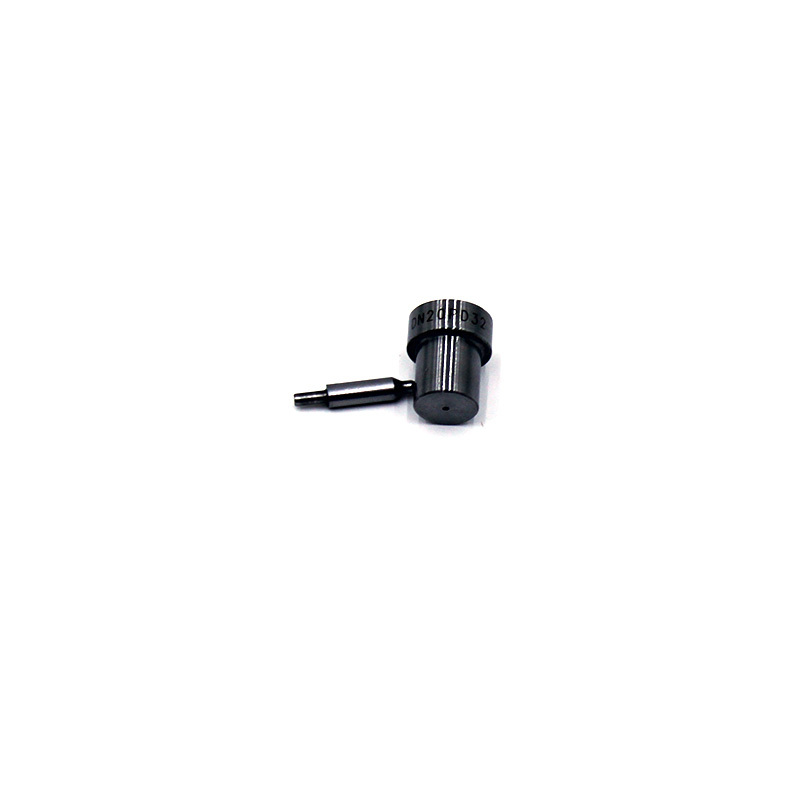

The middle integrated limit flange ensures a secure assembly and sealing fit.
The widened limit step in the middle section of the valve body is precisely matched with the installation position of the small fuel injector housing during assembly. After being combined with a sealing copper pad, multiple layers of barriers prevent high-pressure fuel leakage and avoid pressure loss, ensuring the stable output of power for small-displacement engines.

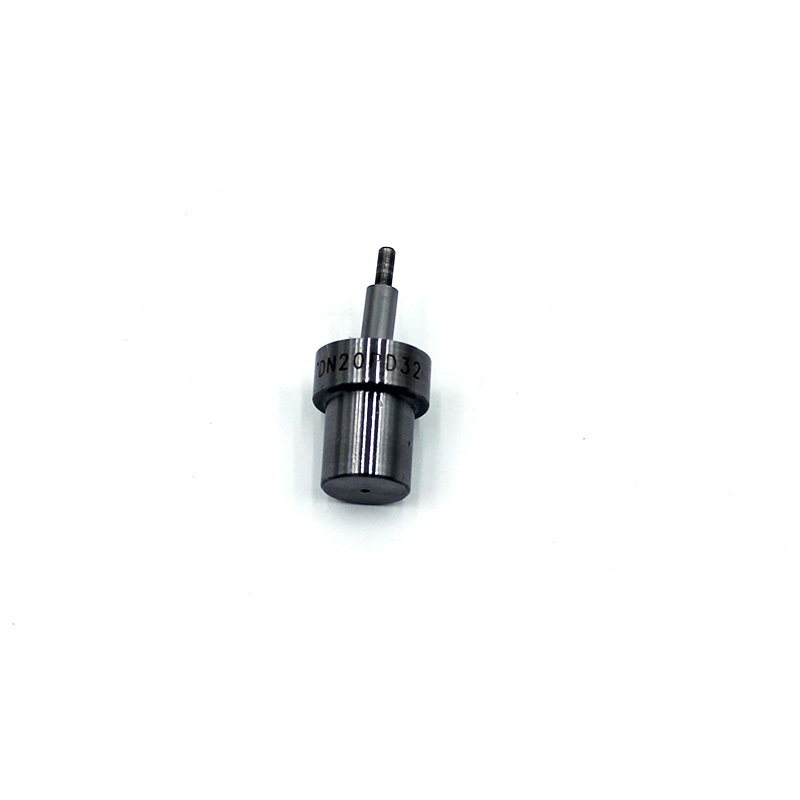

The outer wall is permanently engraved with the part number for easy inventory verification and to prevent incorrect parts.
The side wall of the flange is etched with the DN20PD32 model code, which is resistant to diesel immersion, wiping, and wear. The inventory and maintenance of small agricultural equipment parts are intuitive and clear, reducing the cost of rework due to model confusion.
The entire nitrided and hardened alloy steel is used. The fuel injector components are processed as a whole using high-hardness alloy steel, with a surface nitrided hardening treatment. The sealing surface of the needle valve is wear-resistant and scratch-resistant, providing a longer service life in fields with dust and impure diesel, reducing the frequency of frequent disassembly and replacement of small agricultural machinery.
Application Scenarios
Suitable for hand-held tractors, small diesel generators, agricultural spraying machinery, and micro engineering power equipment equipped with single-cylinder mechanical direct injection fuel supply systems. Suitable for major repairs of fuel injectors for single-cylinder mechanical diesel engines in light-duty farmland operations and outdoor high and low temperature environments.
Product Basic Parameters
Product Name: Mechanical Direct Injection Fuel Injector Assembly
Part Number: DN20PD32
Main Material: Overall Nitrided and Hardened Alloy Steel
Structural Feature: Short and Straight Cylinder Integrated Valve Body, Thin and Long Positioning Guide Rod, End Face Single Point Micro-Hole Spray Surface, Middle Limit Flange, Outer Wall Engraved Model Number
Application Conditions: Continuous light-load operation, engine compartment alternating cold and hot temperatures, outdoor dusty environment for single-cylinder small mechanical diesel engine fuel injectors
Product Status: New precision fuel injector, factory-tested for atomization effect, high-pressure sealing, and fuel injection opening pressure calibration and detection
Packaging: Each unit is independently packaged in a transparent hard protective tube, with plastic plugs at both ends for protection. It isolates the fuel from being scratched by transportation impacts and scratches on the end face micro-holes. Supports single-piece, multi-box, and bulk purchase in cartons, suitable for cross-border small package logistics.
