Description
Product Overview

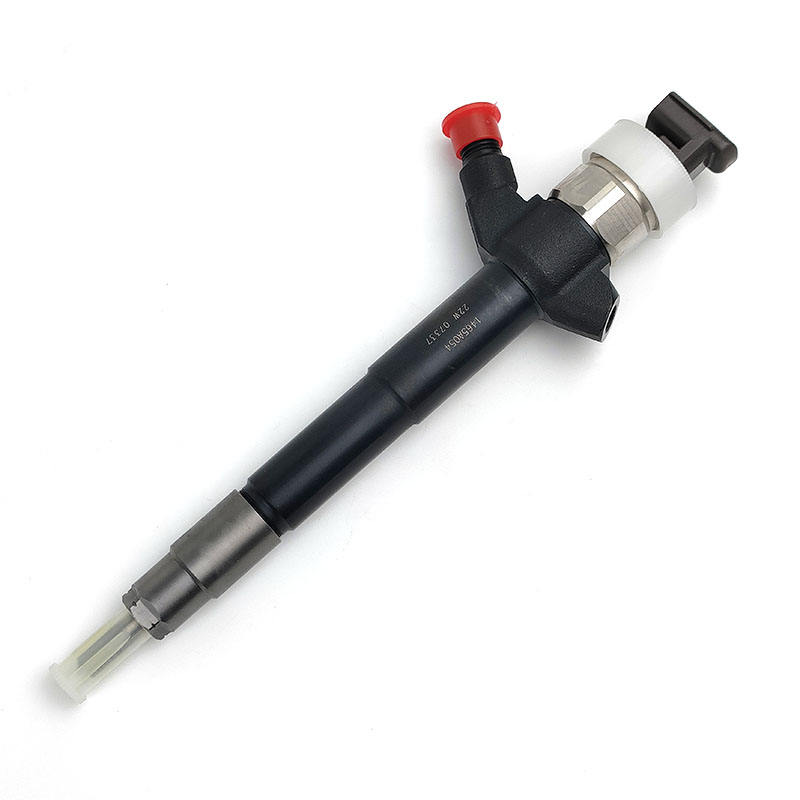

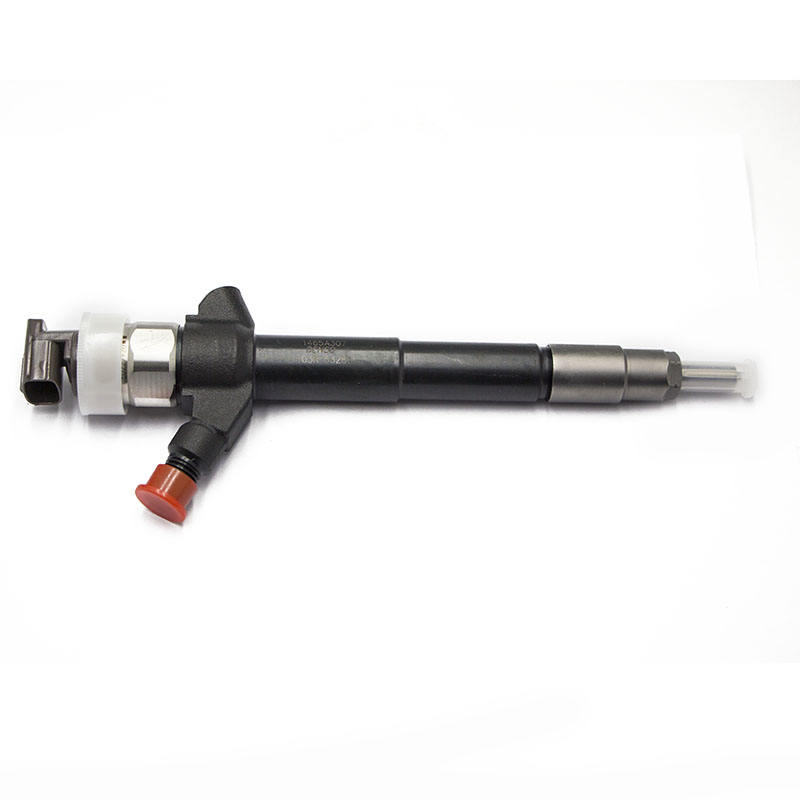

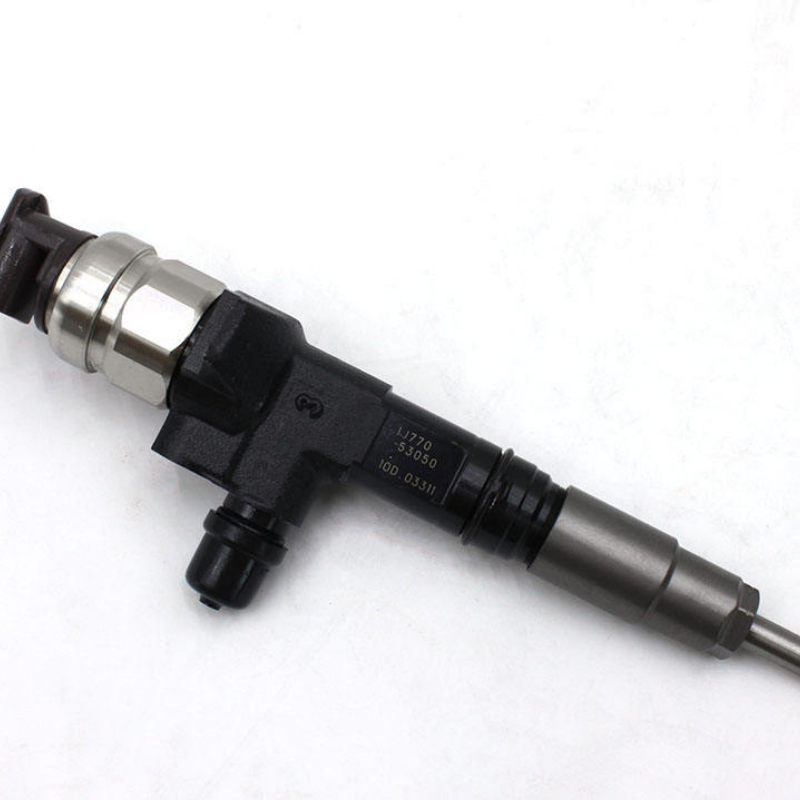

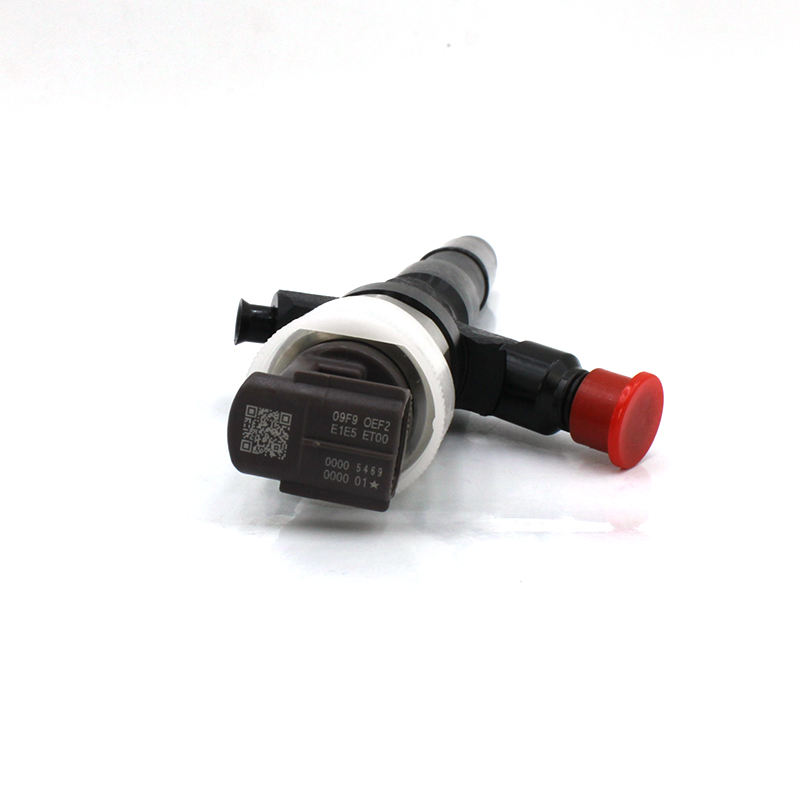

The electronically controlled common rail injector receives high-pressure fuel from the common rail pipe and relies on the top electromagnetic component to receive the electrical control unit's signal, driving the internal precision valve core to open and close rapidly, splitting the high-pressure fuel into fine oil mist and injecting it into the cylinder to complete combustion and power generation. Under long-term load operation, impurities from diesel washing, continuous vibration under high and low temperatures, the wear of the internal valve core sealing surface, deformation of the nozzle spray holes, and aging and leakage of the sealing components will cause unbalanced fuel supply for a single cylinder, pressure loss in the high-pressure oil circuit, decrease in engine power, and increased black smoke emissions from the exhaust. This product is standardized in terms of installation dimensions, oil circuit interface specifications, and electromagnetic signal parameters. During maintenance, the entire injector can be directly replaced, eliminating the need for individual adjustment of internal components, and is suitable for maintenance and use of light-duty trucks, pickups, medium-sized construction machinery, and diesel generator sets.
Core Advantages of the Single Product
Thickened segmented alloy steel cylinder body, high strength, pressure resistance, and resistance to deformation, and less oil leakage
The cylinder body is precisely machined by CNC from thickened alloy steel, with surface passivation for rust prevention. It is compatible with the installation structure of medium-sized engine cylinder heads and can withstand the impact of high-pressure fuel for a long time, resist diesel corrosion and temperature changes, and is less likely to crack or deform. The threads are less likely to slip, and the high-pressure oil circuit sealability is maintained stably for a long time.
Side-mounted integrated return oil interface, smooth and stable oil flow and track pressure
The side-mounted integrated return oil connector is formed by one-piece molding, reducing the resistance of fuel flow through the connection gap and allowing excess fuel to quickly return and relieve pressure, stabilizing the common rail system oil pressure and improving the phenomenon of cylinder carbon buildup and black smoke emissions caused by excessive fuel injection in a single cycle.
Top-mounted precision electromagnetic driving component, rapid and no-delay signal response
The upper end integrates an electromagnetic actuator, with a compact and stable structure, sensitive electrical signal sensing, timely valve core opening and closing action response, precise control of fuel injection volume and timing, ensuring smooth idle operation of the engine and smooth acceleration power output.
Precise atomization nozzle at the front end, uniform atomization and complete combustion
The nozzle is precisely ground and processed, with fine oil atomization particles, complete oil-gas mixture, effectively reducing carbon buildup in the cylinder, optimizing fuel consumption levels, and reducing exhaust emissions.
Multi-layer oil-resistant sealing structure, bidirectional anti-leakage, and anti-air reverse suction
The cylinder body is equipped with multiple specifications of fluorine rubber oil-resistant sealing rings, which isolate the high and low-pressure oil circuits layer by layer to prevent fuel leakage outward; at the same time, it prevents air from reversing suction into the oil circuit after shutdown, solving the problems of starting oil circuit intake and slow oil pump pressure building up.
Full-item factory testing of the entire machine, no need for secondary adjustment during installation
Each injector independently completes electromagnetic response, high-pressure pressure retention, atomization effect, and injection flow detection calibration. The performance parameters are unified, and after assembly, the original engine power performance is quickly restored, shortening the time for oil circuit maintenance and debugging. List of Accessories
16600-5X30A (295050-1050) Complete Electronic Control Common Rail Injector Assembly - 1 piece
Front nozzle dust protection cover pre-installed
End protection dust plug pre-installed Applicable scenarios
This product is suitable for light-duty freight vehicles, pickups, medium-sized wheeled construction machinery, and fixed diesel generator sets that are equipped with high-pressure common rail fuel supply systems. It is applicable for urban transportation, short-distance operations, and medium-sized electronically controlled diesel engines under complex outdoor conditions. The product is suitable for the overall replacement and repair of the fuel injectors.
Product Basic Parameters
Product Name: Electronic Common Rail Injector Assembly
Part Number: 16600-5X30A, Ancillary Part Number: 295050-1050
Main Material: Thickened segmented alloy steel housing, hardened alloy steel valve core and atomization nozzle, alloy electromagnetic components, oil-resistant multi-layer fluorine rubber sealing ring
Structural Feature: Thickened segmented metal cylinder, side-mounted integrated return oil interface, built-in electromagnetic drive end at the top, precise atomization nozzle at the front end, built-in layered high and low pressure sealing structure
Application Conditions: High-pressure fuel electronic injection, continuous load vibration, wide temperature difference conditions for medium-sized electronically controlled common rail diesel engine fuel injection assembly
Product Status: New and complete injector assembly, factory completed with full bench calibration and testing for electromagnetic response, high-pressure sealingity, and atomization flow
Packaging: Independent thickened shock-proof tube packaging, all nozzle, oil passage ports, and electromagnetic ends are equipped with dust-proof plugs to protect internal precision parts from transportation impacts and damage; supports single-piece retail and bulk purchase in cases, and is compatible with cross-border logistics transportation.
