Description
The pump head of the distribution pump is assembled inside the VE type distribution fuel injection pump and serves as the core component for fuel distribution control. It completes high-pressure fuel measurement, pressure increase, and sequentially delivers fuel to each cylinder according to the engine's operating conditions. After long-term use, the precise friction surfaces are prone to wear, which can lead to uneven fuel supply, difficulty starting, insufficient power, and idle vibration, among other faults. This product is precisely manufactured according to standard dimensions. For major overhauls of the fuel pump, this component can be replaced independently to restore the fuel pump's supply accuracy and meet the maintenance needs of various diesel vehicles and construction machinery's fuel injection systems.
Core advantages of individual products
1. **High-strength alloy steel raw materials, resistant to wear and fuel corrosion**
The main body has undergone heat treatment to enhance strength, and the precision working surfaces meet the hardness standards. It can withstand the impact of high-pressure diesel oil for a long time without rusting or being scratched, resulting in a longer service life.
2. **Multiple precision grinding processes, precise internal clearance**
The key coupling surfaces are precisely ground, with standard gap control. The oil pump operates with stable oil pressure, reducing fuel leakage.
3. **Integrated precision housing structure, stable positional tolerances**
The flange installation surface and the center mating position are strictly controlled for coaxiality. The assembly is tight and prone to avoid installation misalignment and oil leakage problems.
4. **Uniform and stable fuel distribution, optimizing engine operation**
The fuel supply is consistent, the idle operation is smoother, the power output is smooth, and the fuel combustion is more complete.
5. **Standard external installation dimensions, direct replacement for maintenance without processing**
The flange hole distance, center outer diameter, and oil passage specifications match the original standard. The oil pump can be directly replaced during disassembly for major repairs, saving debugging time.
6. **Multiple precision inspections of the finished product, high consistency of specifications in the same batch**
The factory conducts sampling inspections for external dimensions, sealing planes, and internal hole accuracy. The quality of batch supply is stable.
List of Accessories
146400-2820 Distribution pump pump head × 1 piece
Applicable Scenario
Compatible with the VE series distributed fuel injection pump, it is applied to diesel light vehicles, excavators, loaders and other construction machinery; used for disassembling and repairing fuel injection pumps, and replacing worn or damaged old pump heads.
Product Basic Parameters

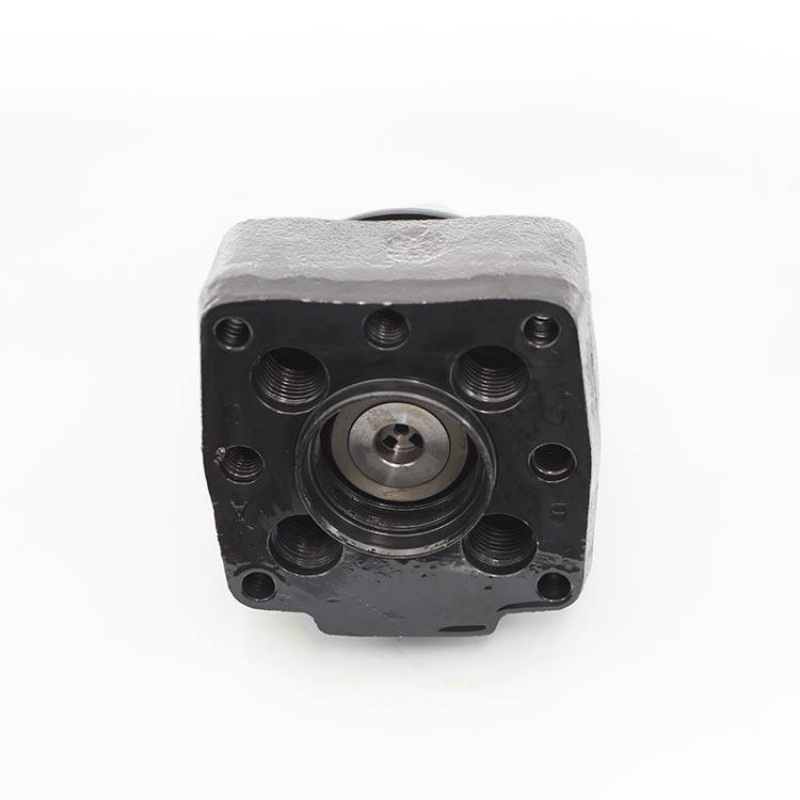

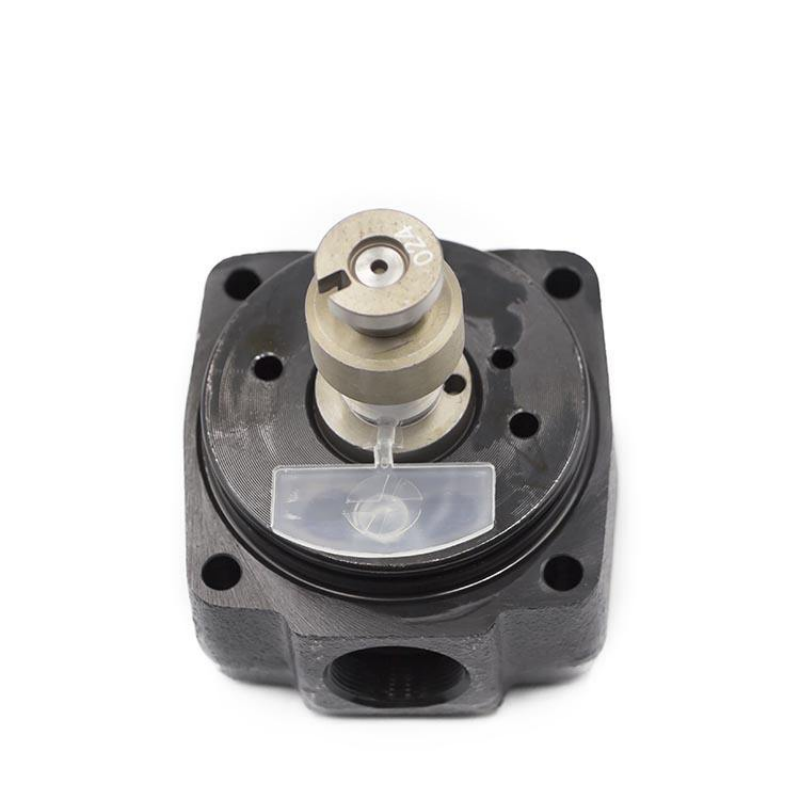

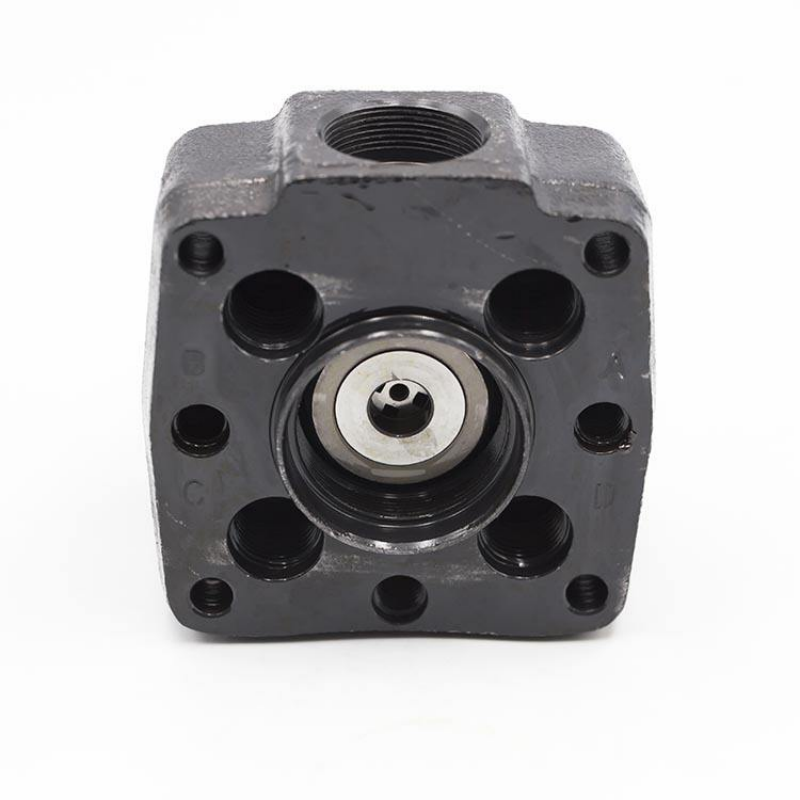

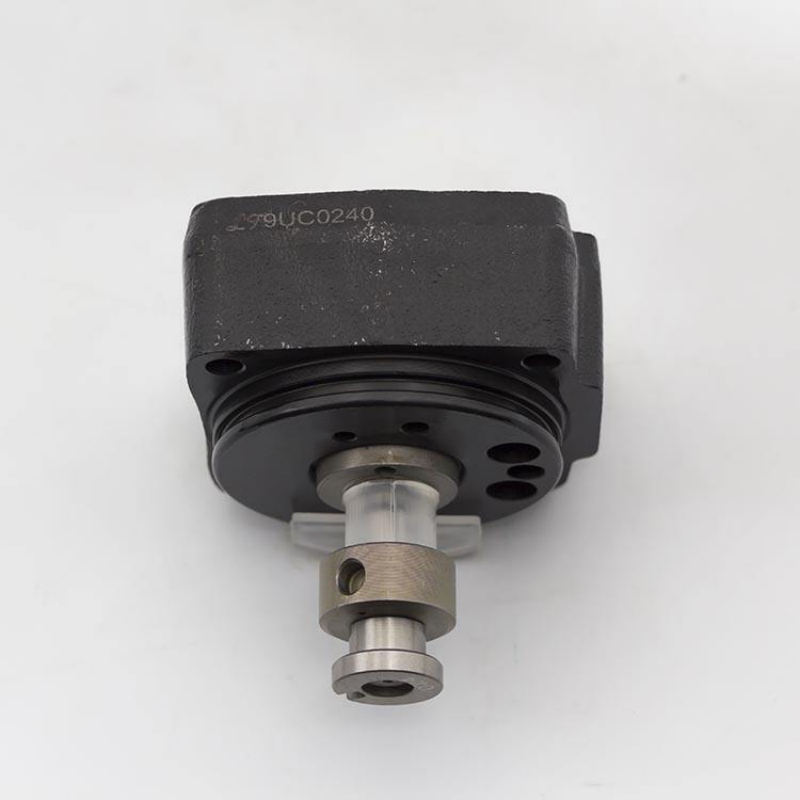

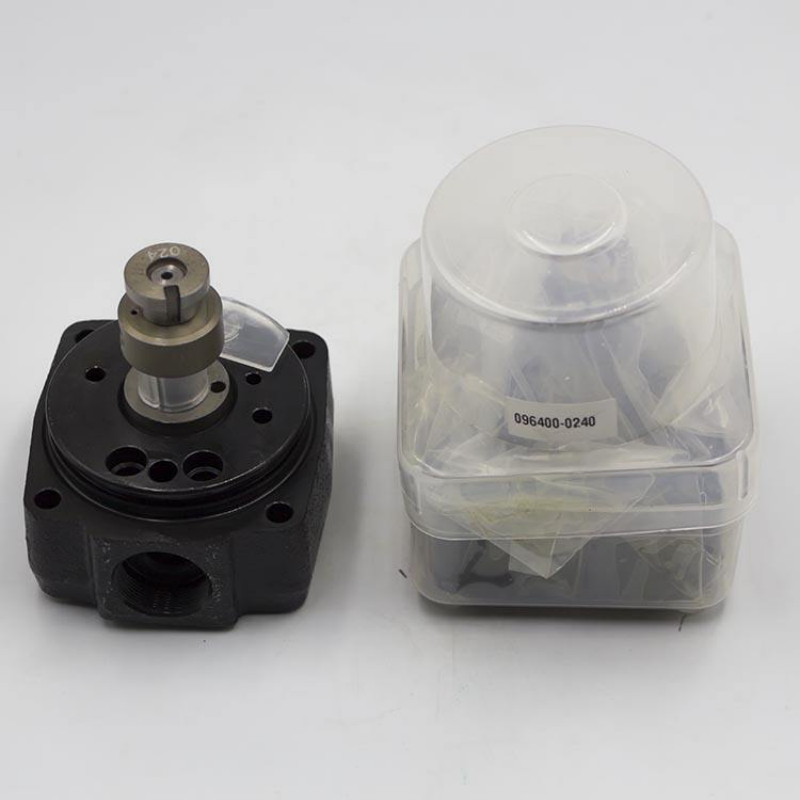

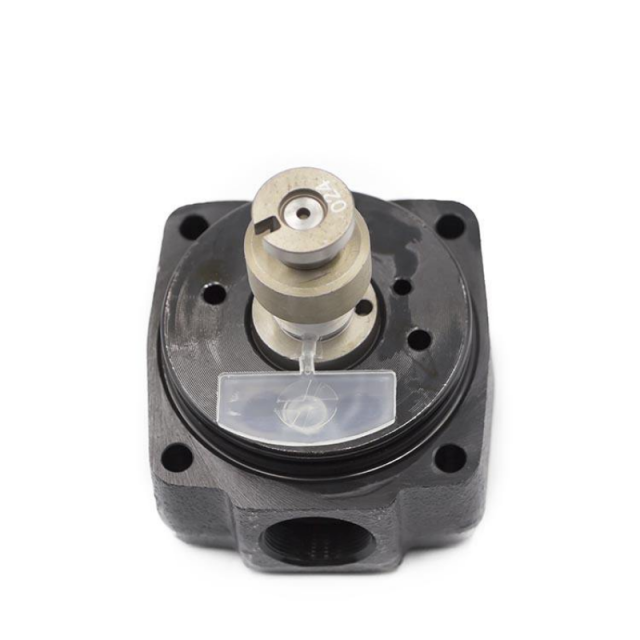

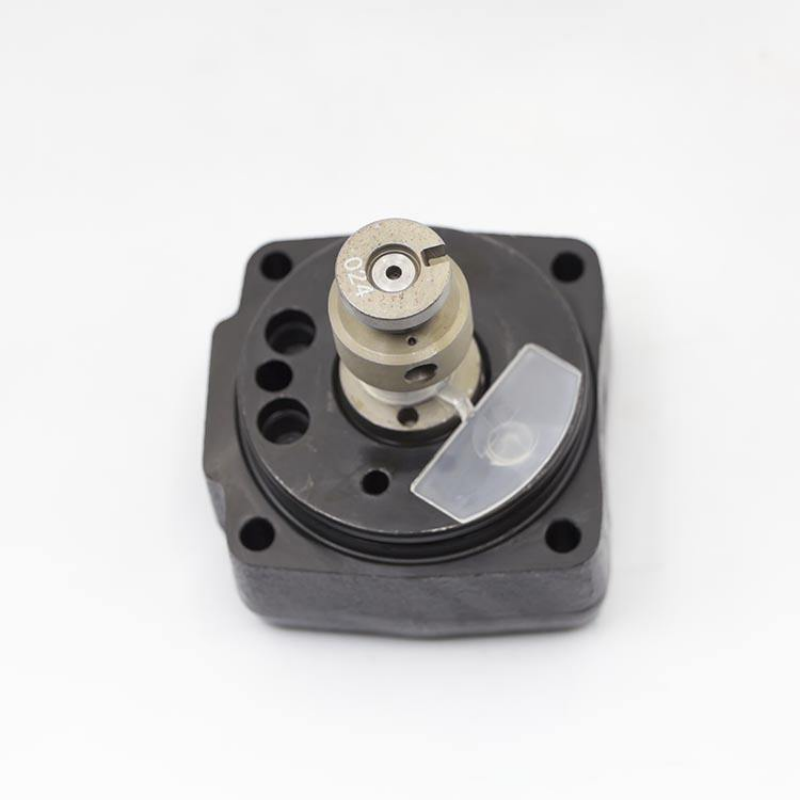

Product Name: VE Distribution Pump Pump Head
Part Number: 146400-2820
Main Material: Heat-treated high-strength alloy steel
Structural Feature: Square flange installation end face, central precision coupling component, multiple oil circuit through holes
Application Conditions: VE Distributed Diesel Injection Pump internal core component, for continuous high-pressure fuel circulation transportation conditions
Product Status: Brand new finished product, completed with precision inspection upon leaving the factory
Packaging: Independent shock-proof protective packaging, focusing on protecting the precise mating surfaces to avoid磕碰 damage； Supports single-piece retail and bulk purchase， suitable for cross-border warehouse shipment
